Chevrolet Silverado / GMC Sierra. Manual - part 2546

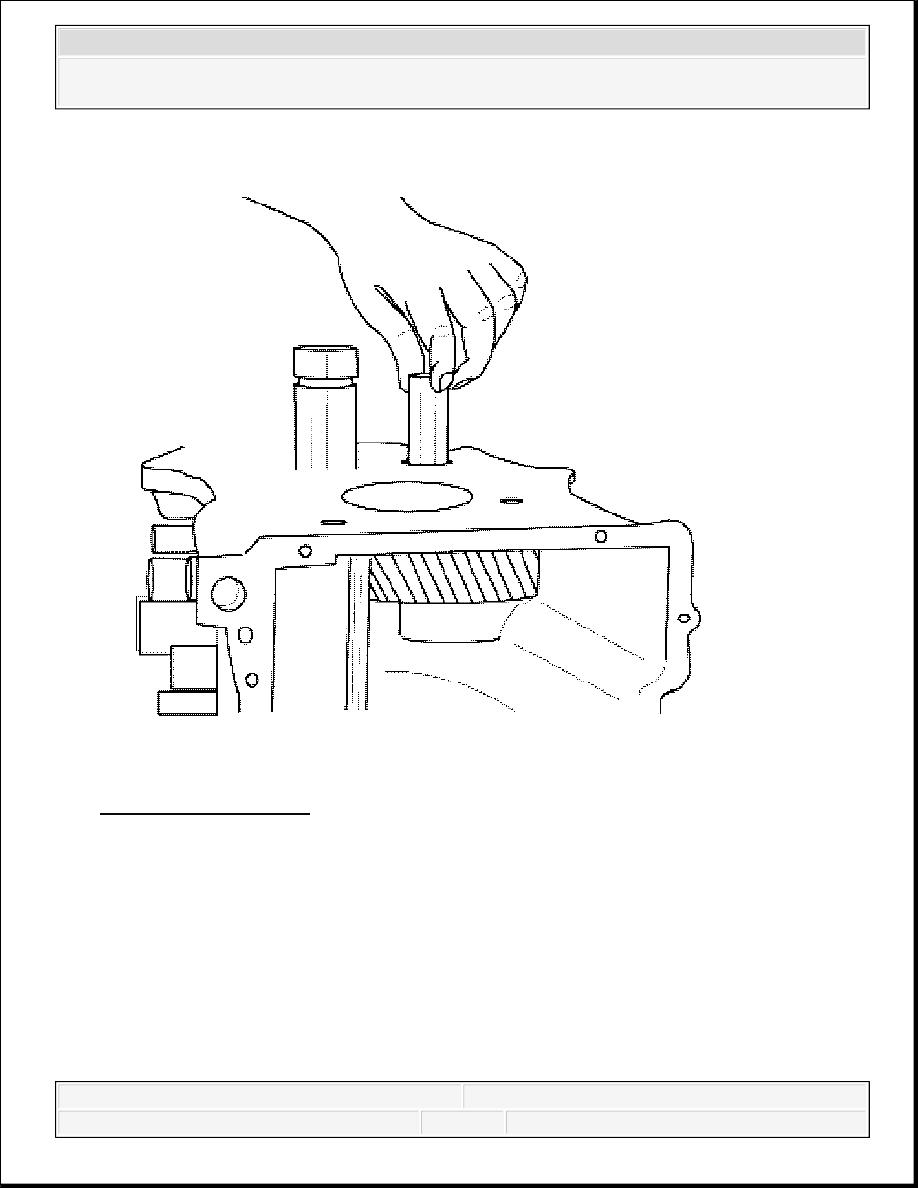

Fig. 103: Reverse Shaft
Courtesy of GENERAL MOTORS CORP.
4. Remove the reverse shaft.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

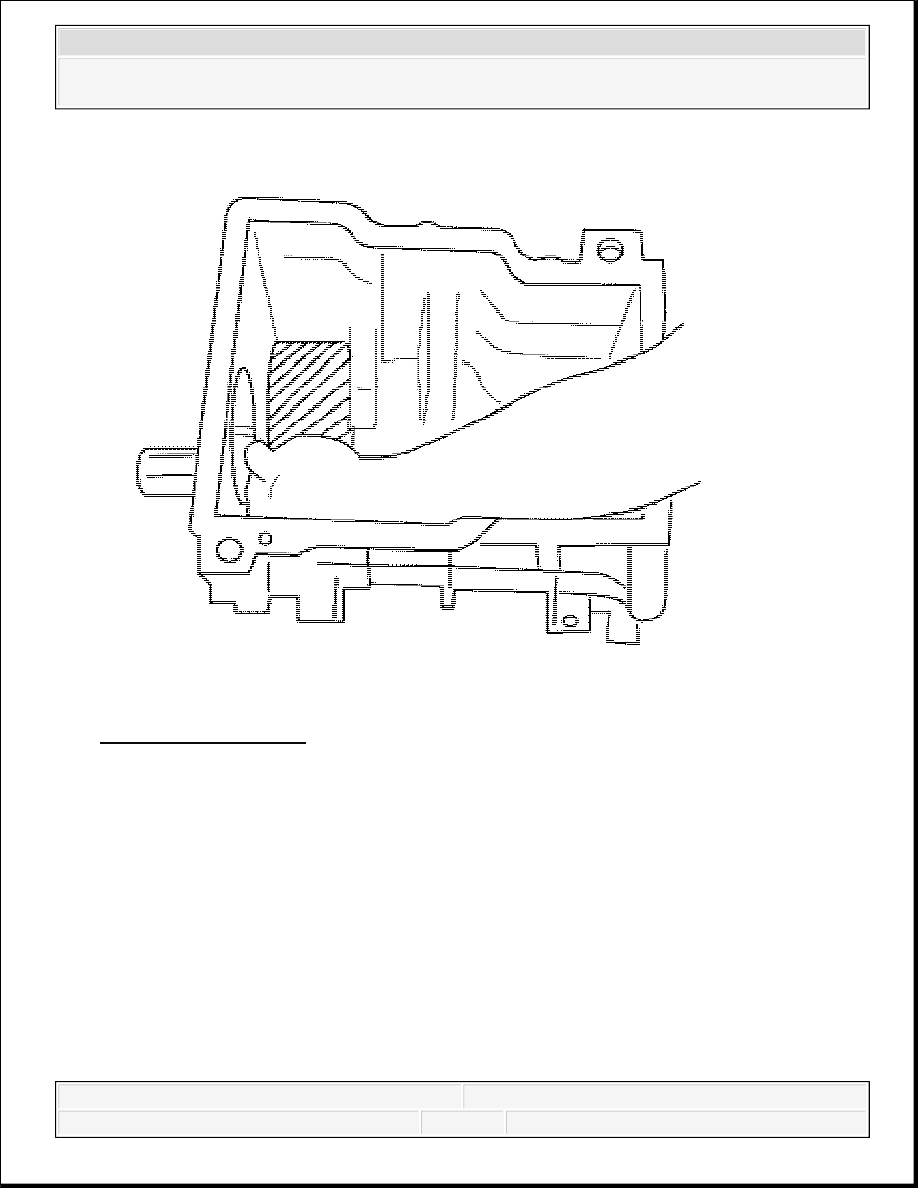

Fig. 104: Reverse Gear
Courtesy of GENERAL MOTORS CORP.
5. Remove the reverse gear.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

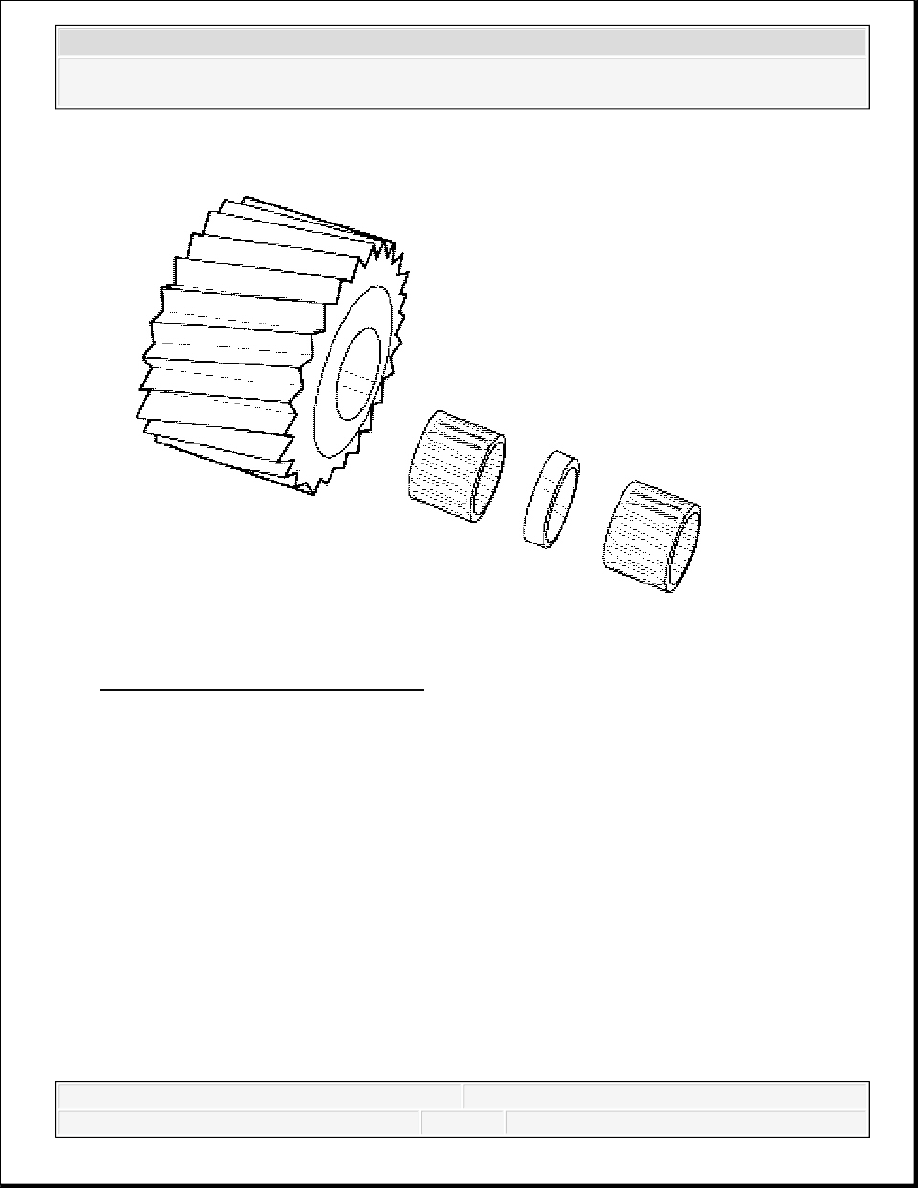

Fig. 105: Cages, Rollers And Spacer
Courtesy of GENERAL MOTORS CORP.
6. Remove the 2 cages with rollers and spacer.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

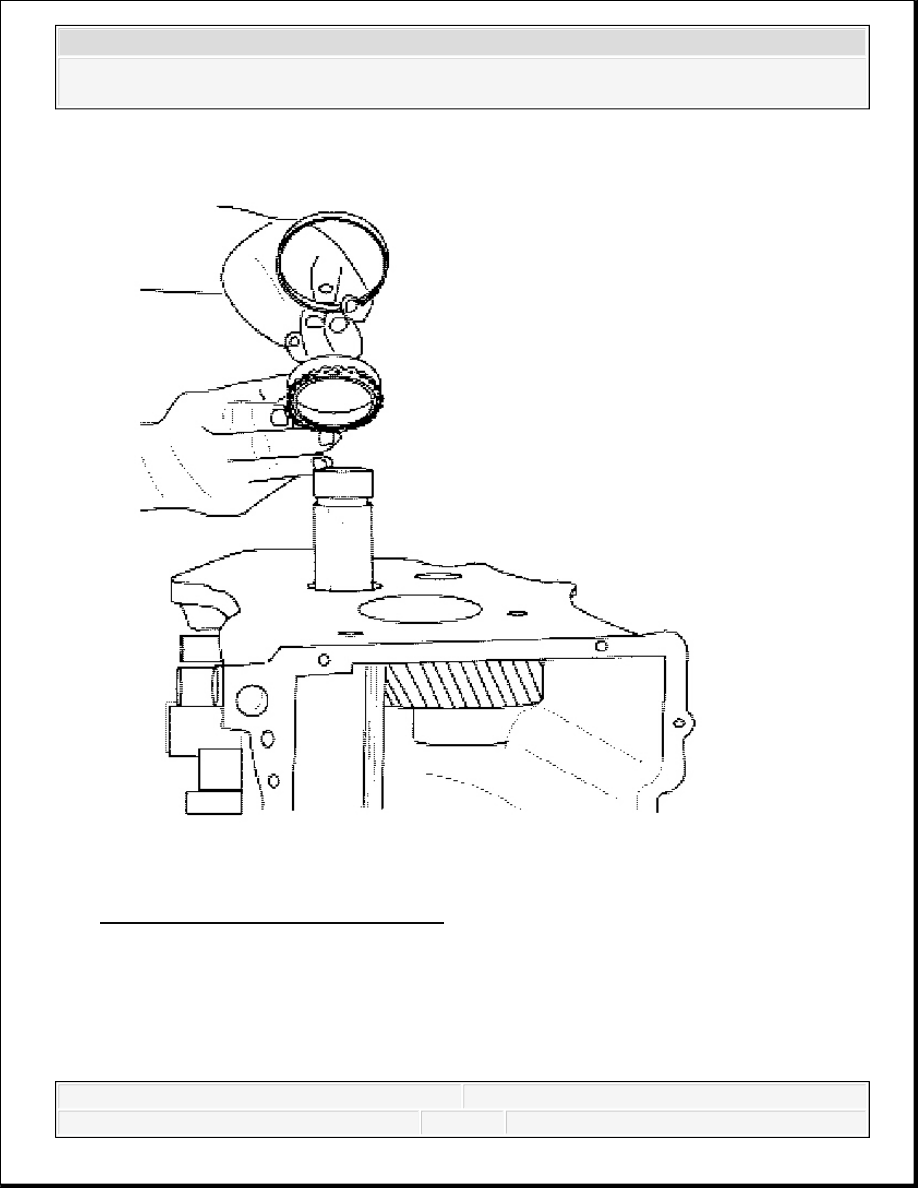

Fig. 106: Cup And Rear Bearing Race
Courtesy of GENERAL MOTORS CORP.
7. Remove the cup and rear bearing race from the gear assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
