Chevrolet Silverado / GMC Sierra. Manual - part 2522

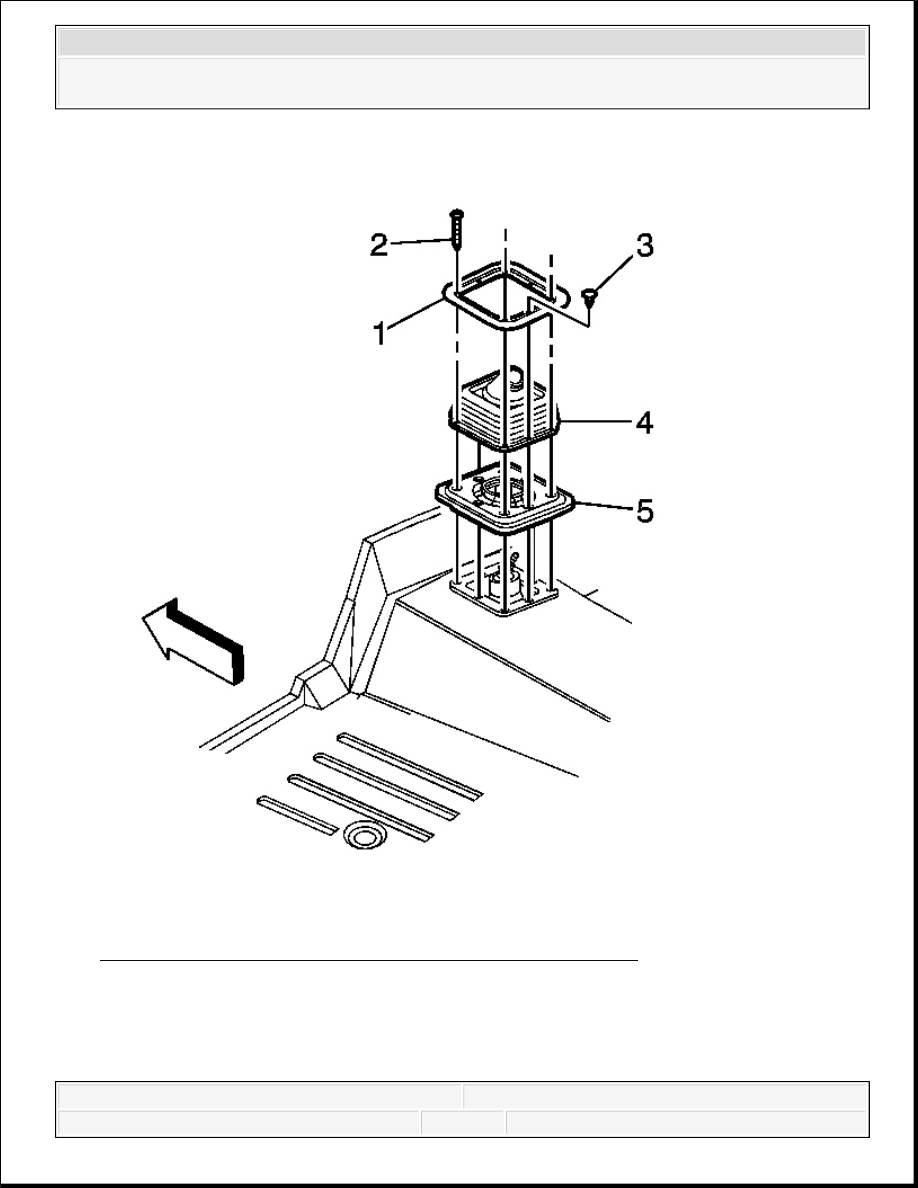

Fig. 9: Exploded View Of Transmission Control Lever Boot
Courtesy of GENERAL MOTORS CORP.
1. Install the control lever insulator (5) to the floor.
2. Assemble the control lever boot retaining bezel (1) to the boot (4) and insert the 4 plastic
retainers (3).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
3. Install the control lever boot retaining bezel (1), boot (4) and secure the 4 plastic retainers
(3) to the floor.
4. Lift and push the lower edge of the control lever boot as necessary in order to install the 4
retaining screws (2).
Tighten: Tighten the screws to 1.6 N.m (14 lb in).
5. Install the transmission control lever. Refer to Transmission Control Lever Knob
Replacement.
TRANSMISSION CONTROL LEVER KNOB REPLACEMENT
Removal Procedure
1. Remove the control lever boot from the control lever.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

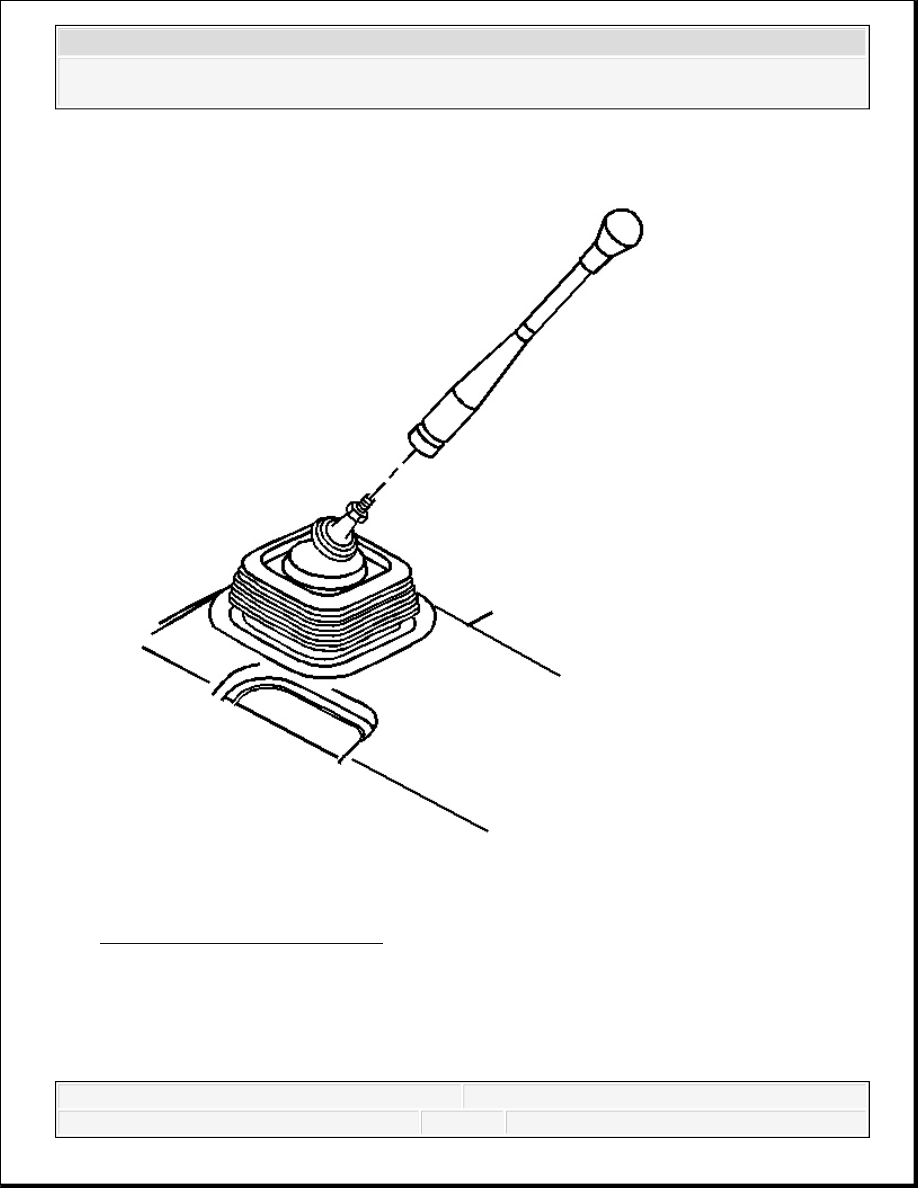

Fig. 10: View Of Control Lever
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: DO NOT move the shift lever assembly adjustment nut if
replacing the control lever.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
2. Remove the control lever.
Installation Procedure

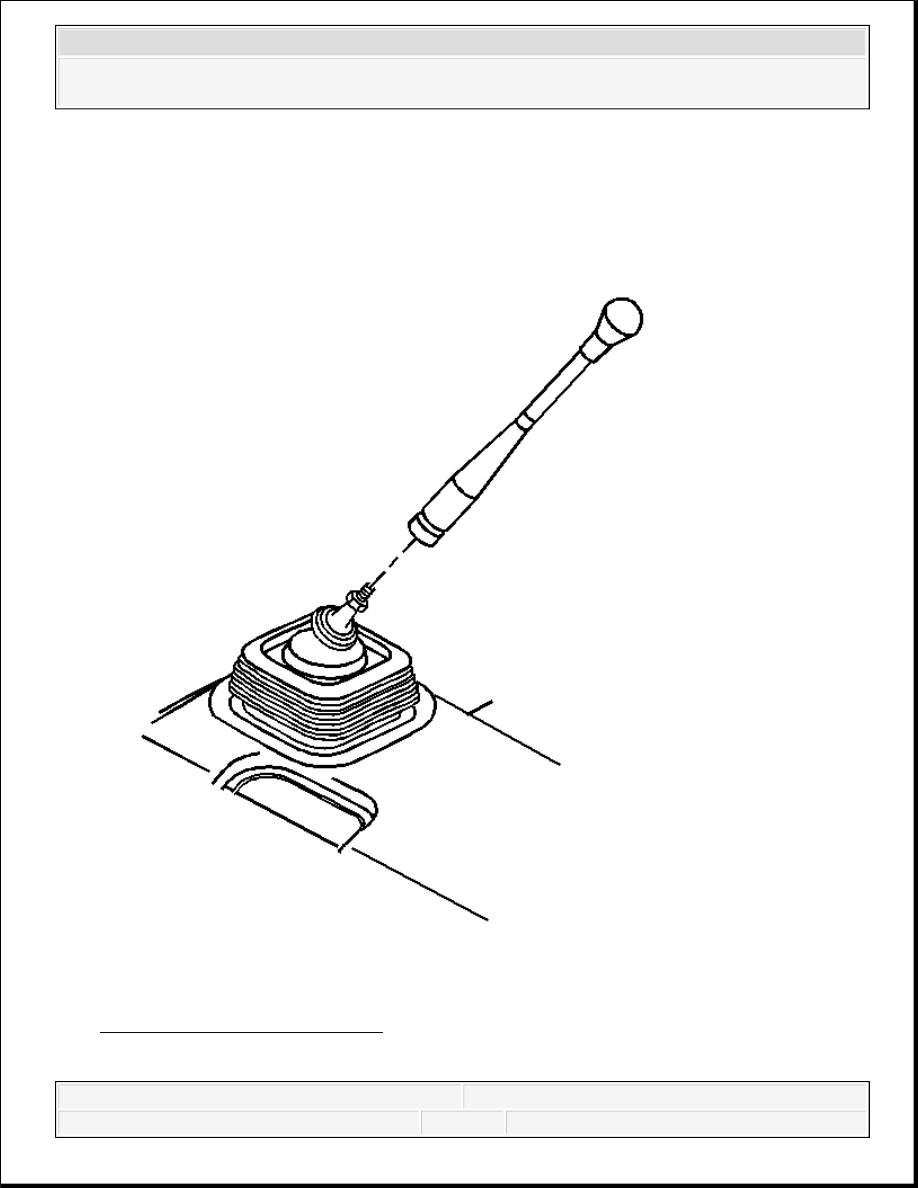

Fig. 11: View Of Control Lever
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
