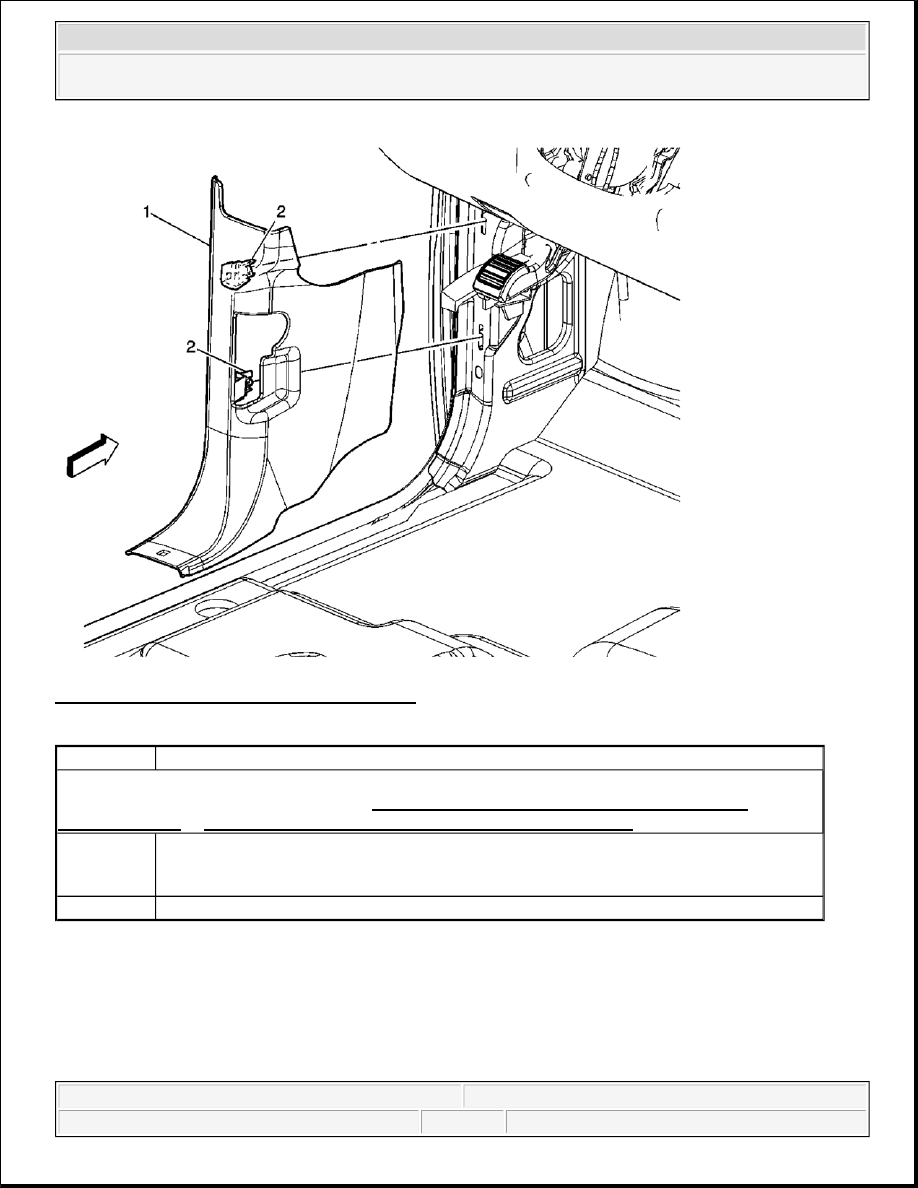

Fig. 25: View Of Body Lock Pillar Trim (Regular Cab)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

1. Disable the SIR system. Refer to SIR Disabling and Enabling .

2. Remove rear side door sill plate. Refer to Front Side Door Sill Plate Replacement (Regular

Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended Cab).

3. Remove rear window lower molding. Refer to Rear Window Lower Garnish Molding

Replacement (Regular Cab) or Rear Window Lower Garnish Molding Replacement (Ext
Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext
Cab/Crew Cab w/o A48).

1

Seat Belt Assembly Anchor Bolt

Tighten: 70 N.m (52 lb ft)

NOTE:

Refer to Fastener Notice .

2

Front Seat Shoulder Belt Retractor Assembly
Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular Cab) or Seat
Belt Retractor Pretensioner Replacement - Front (Extended Cab) or Seat Belt
Retractor Pretensioner Replacement - Front (Crew Cab) .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 33

© 2005 Mitchell Repair Information Company, LLC.

BODY LOCK PILLAR TRIM REPLACEMENT (EXTENDED CAB)

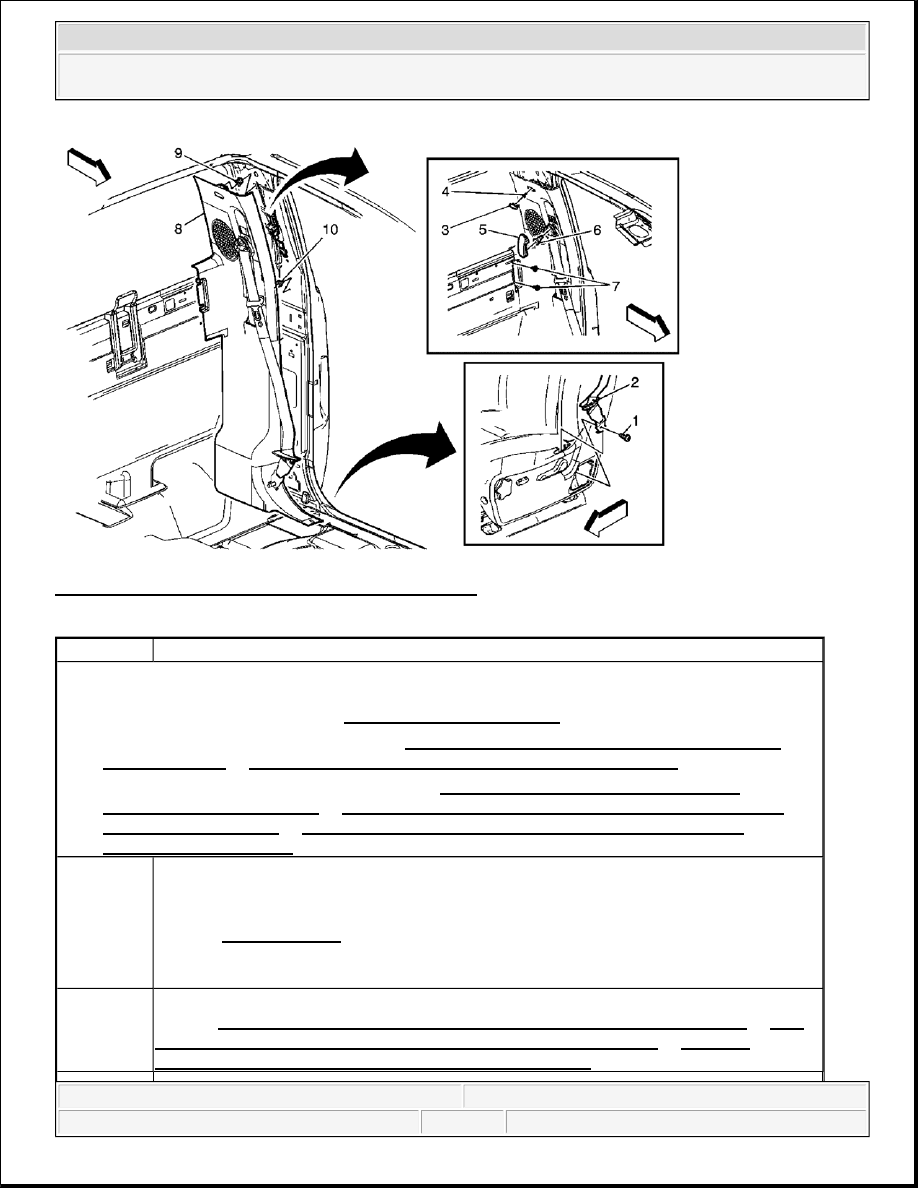

Fig. 26: View Of Body Lock Pillar Trim (Extended Cab)
Courtesy of GENERAL MOTORS CORP.

3

Body Lock Pillar Garnish Molding Plug

4

Body Lock Pillar Garnish Molding Screw

Tighten: 2 N.m (18 lb in)

5

Front Seat Shoulder Belt Guide Trim Cover

6

Front Seat Shoulder Belt Adjuster Bolt

Tighten: 43 N.m (32 lb ft)

7

Body Lock Pillar Garnish Molding Retainer (Qty: 2)

8

Body Lock Pillar Garnish Molding Assembly
Tip: Route seat belt through garnish molding.

9

Body Lock Pillar Garnish Molding Clip

10

Body Lock Pillar Garnish Molding Retainer (Qty: 3)

Callout

Component Name

Preliminary Procedures



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 34

© 2005 Mitchell Repair Information Company, LLC.

BODY HINGE PILLAR TRIM PANEL REPLACEMENT

1. Disable the SIR system. Refer to SIR Disabling and Enabling .

2. Remove rear side door sill plate. Refer to Front Side Door Sill Plate Replacement (Regular

Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended Cab).

3. Remove rear window lower molding. Refer to Rear Window Lower Garnish Molding

Replacement (Regular Cab) or Rear Window Lower Garnish Molding Replacement (Ext
Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext
Cab/Crew Cab w/o A48).

1

Body Lock Pillar Garnish Molding Retainer

2

Body Lock Pillar Garnish Molding Plug

3

Body Lock Pillar Garnish Molding Screw

Tighten: 2 N.m (18 lb in)

NOTE:

Refer to Fastener Notice .

4

Seat Belt Assembly Anchor Nut

Tighten: 70 N.m (52 lb ft)

5

Front Seat Shoulder Belt Retractor Assembly
Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular Cab) or Seat
Belt Retractor Pretensioner Replacement - Front (Extended Cab) or Seat Belt
Retractor Pretensioner Replacement - Front (Crew Cab) .

6

Body Lock Pillar Garnish Molding Assembly
Tip: Route seat belt through garnish molding.

7

Body Lock Pillar Garnish Molding Retainer (Qty: 3)

8

Body Lock Pillar Garnish Molding Clip



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 35

© 2005 Mitchell Repair Information Company, LLC.

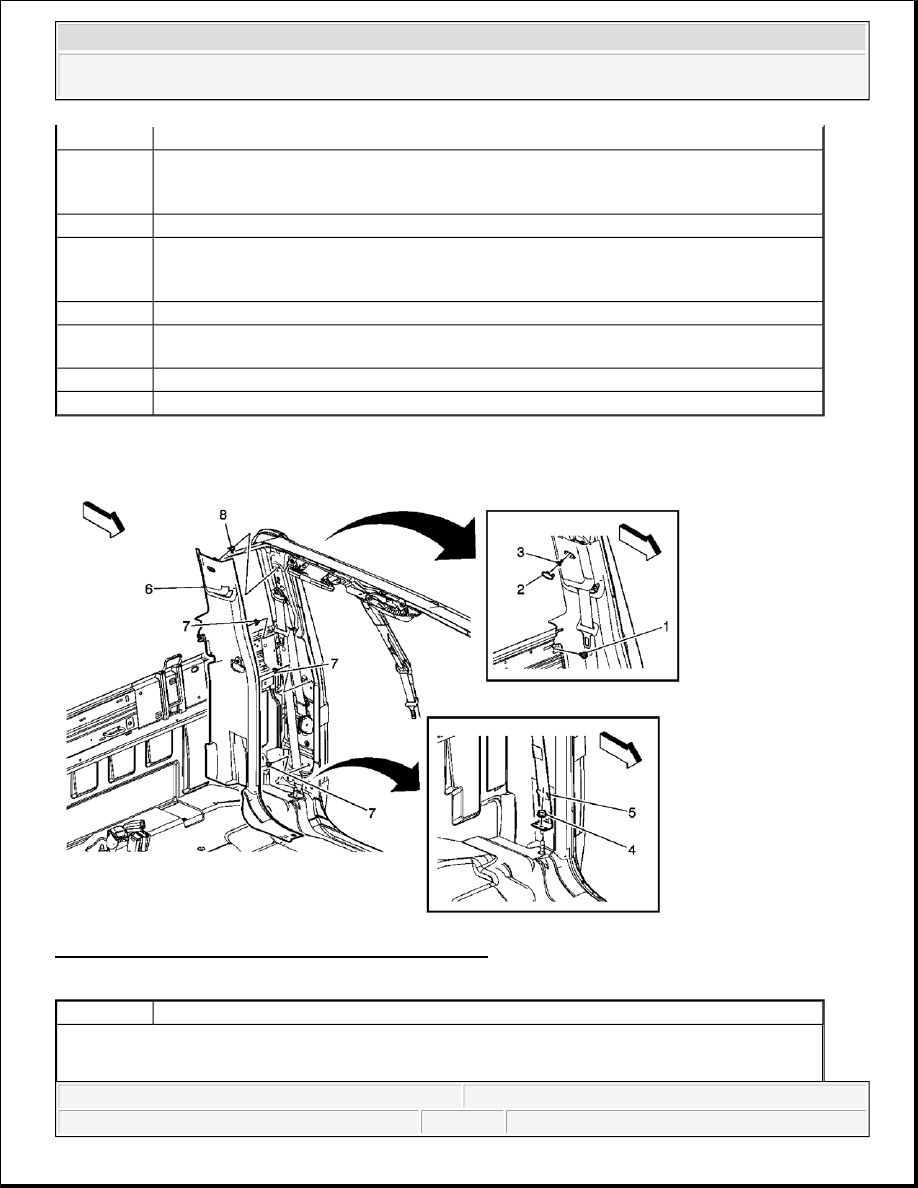

Fig. 27: View Of Body Hinge Pillar Trim Panel
