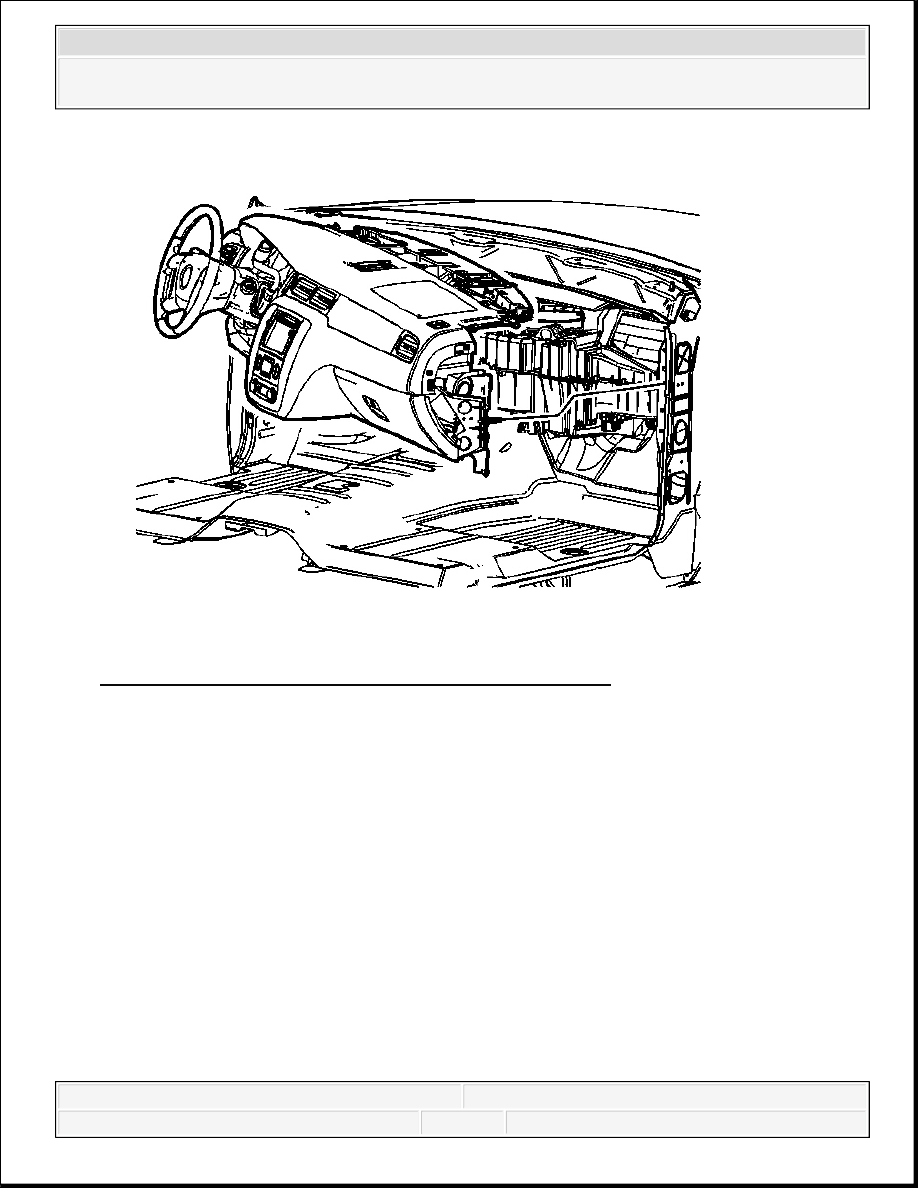

Fig. 60: Removing/Installing Instrument Panel Assembly 18. With the aid of an assistant pull the instrument panel assembly (1) rearward in the vehicle until the locator pin on each side clears the opening. 19. The person on the right side of the instrument panel should pivot the instrument panel inward toward the center of the vehicle until enough clearance is gained to access the 20. Set the instrument panel assembly down and adequately support it in order to prevent any damage. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 61: Removing/Installing Instrument Panel Assembly 1. With the aid of an assistant. Lift the instrument panel assembly (1) up and align the locator pins to the openings in Push the instrument panel forward until the instrument panel is in vehicle position.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

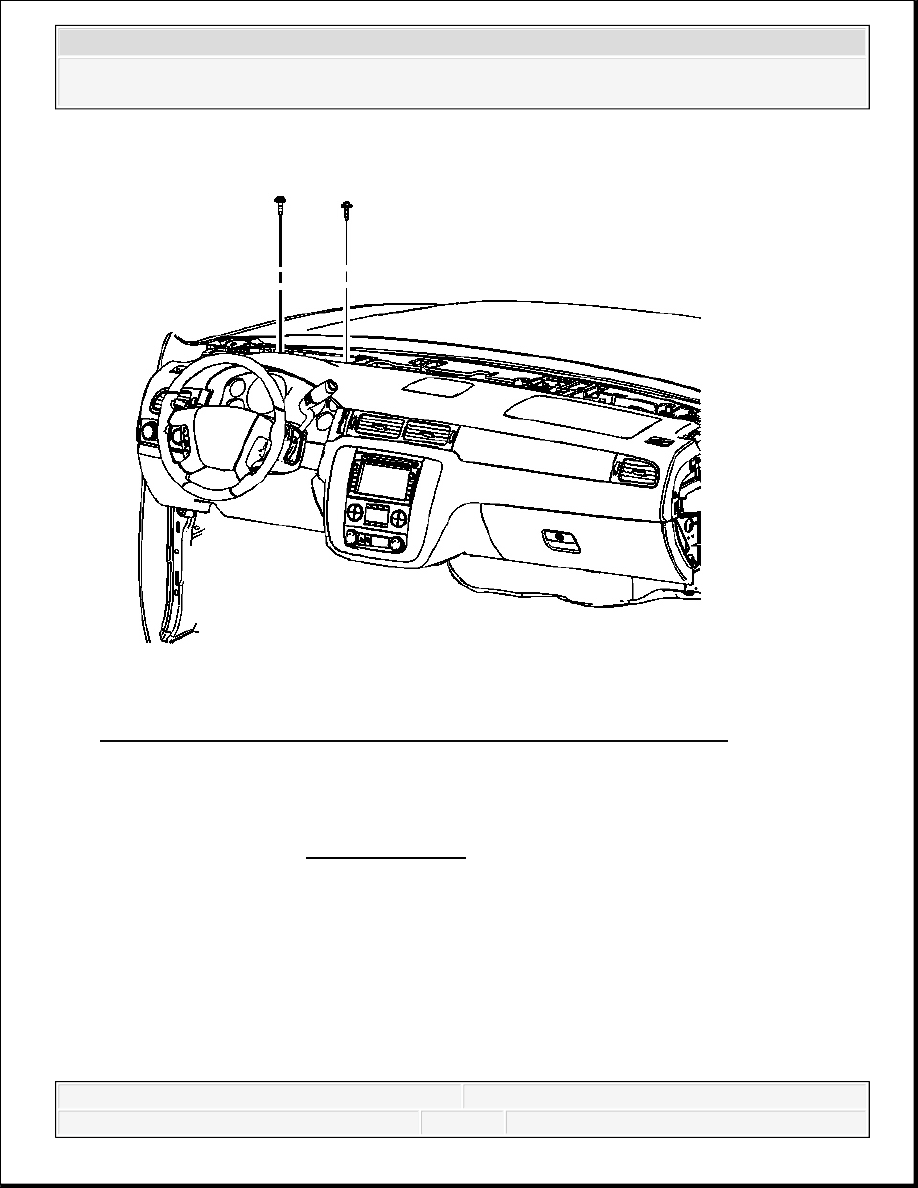

Fig. 62: View Of Bolts Holding Instrument Panel Assembly To Vehicle 2. Loosely install the (4) bolts (1) on the outer ends of the instrument panel.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

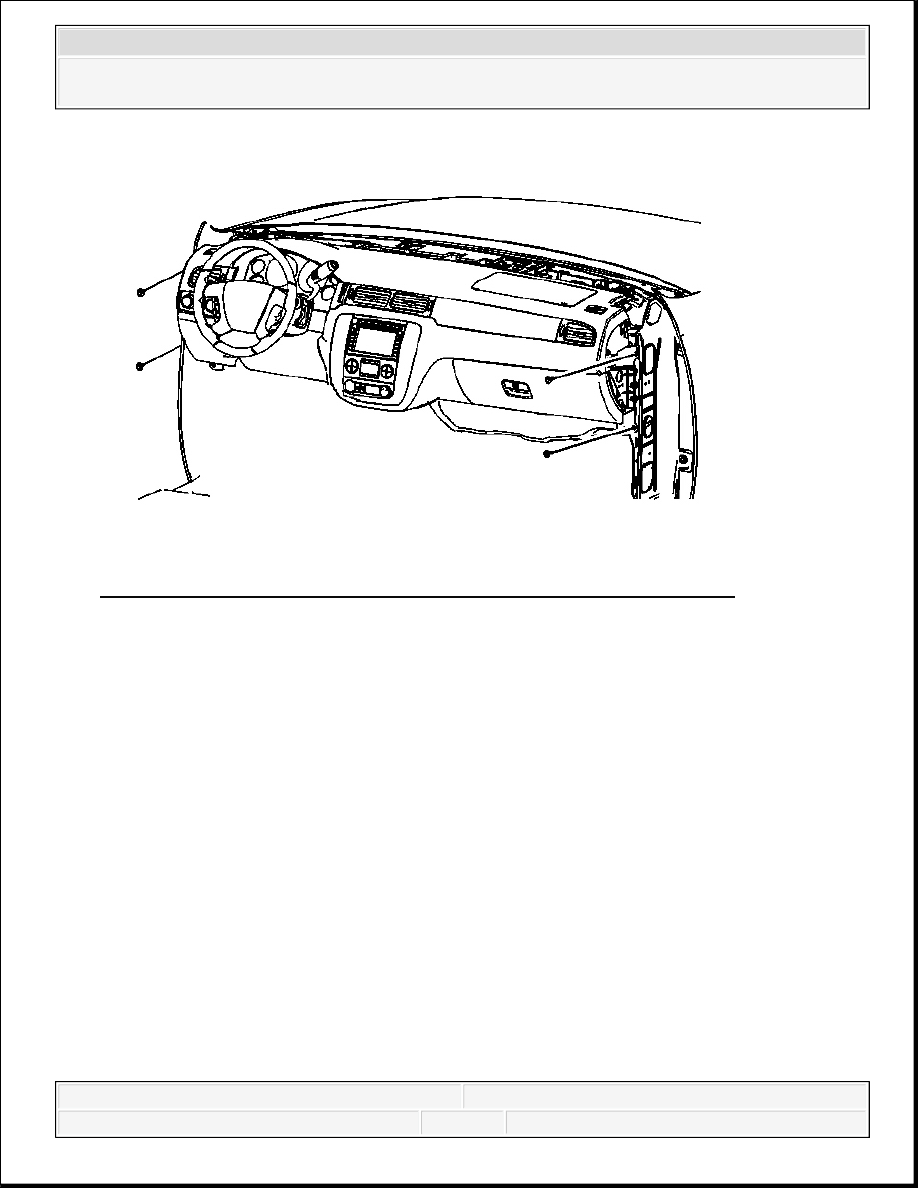

Fig. 63: View Of Bolts Securing Instrument Carrier Support To Cowl 3. Loosely install the (2) bolts (1) securing the instrument panel carrier support to the cowl. 4. Tighten the (6) bolts securing the instrument panel to the vehicle. Tighten: Tighten the bolts to 22 N.m (16 lb ft). NOTE: Refer to Fastener Notice .
