Chevrolet Silverado / GMC Sierra. Manual - part 2394
Fig. 45: Identifying Accumulator Components
Courtesy of GENERAL MOTORS CORP.
13. Remove the accumulator (2) and the O-ring seal (3).
Installation Procedure
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

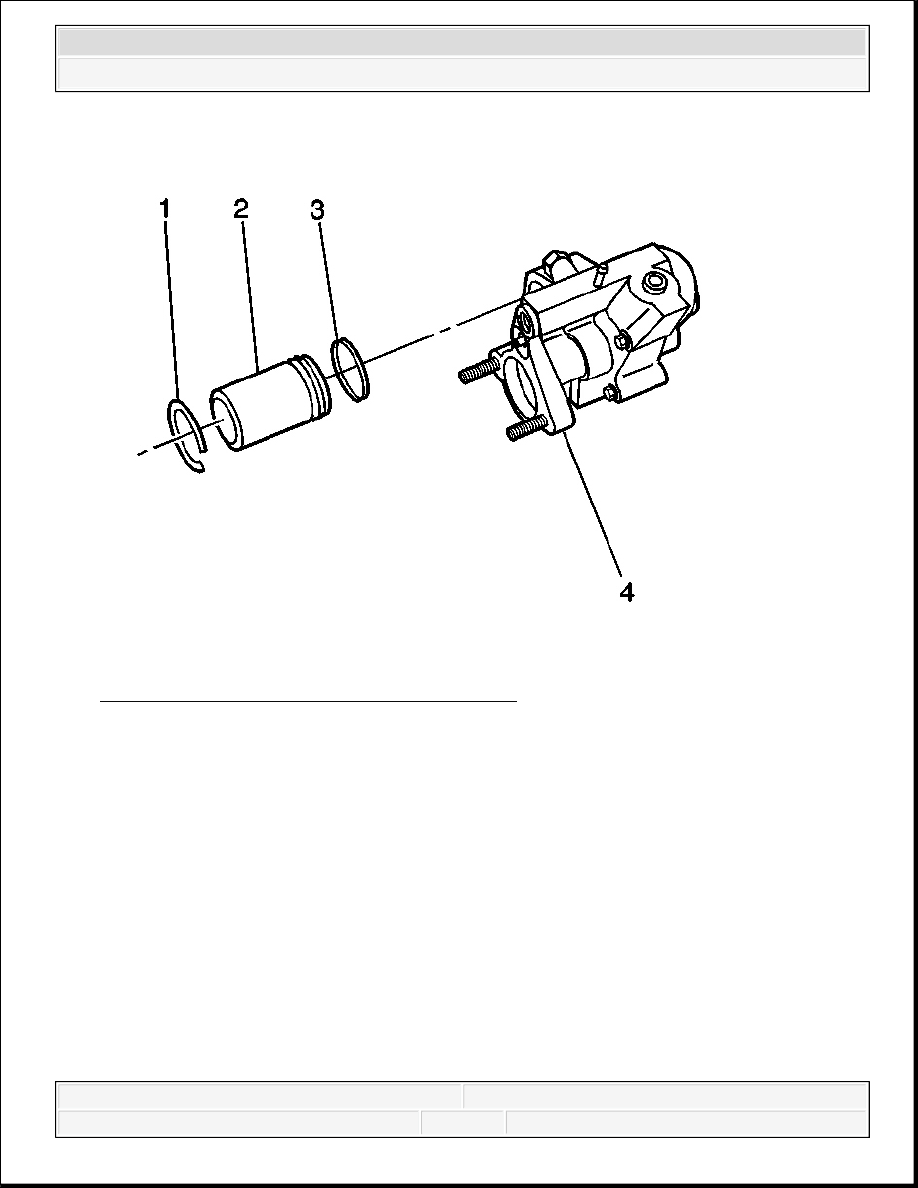

Fig. 46: Identifying Accumulator Components
Courtesy of GENERAL MOTORS CORP.
1. Lubricate all of the seals and the metal friction points with power steering fluid.
2. Install the accumulator (2) and the O-ring seal (3).
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

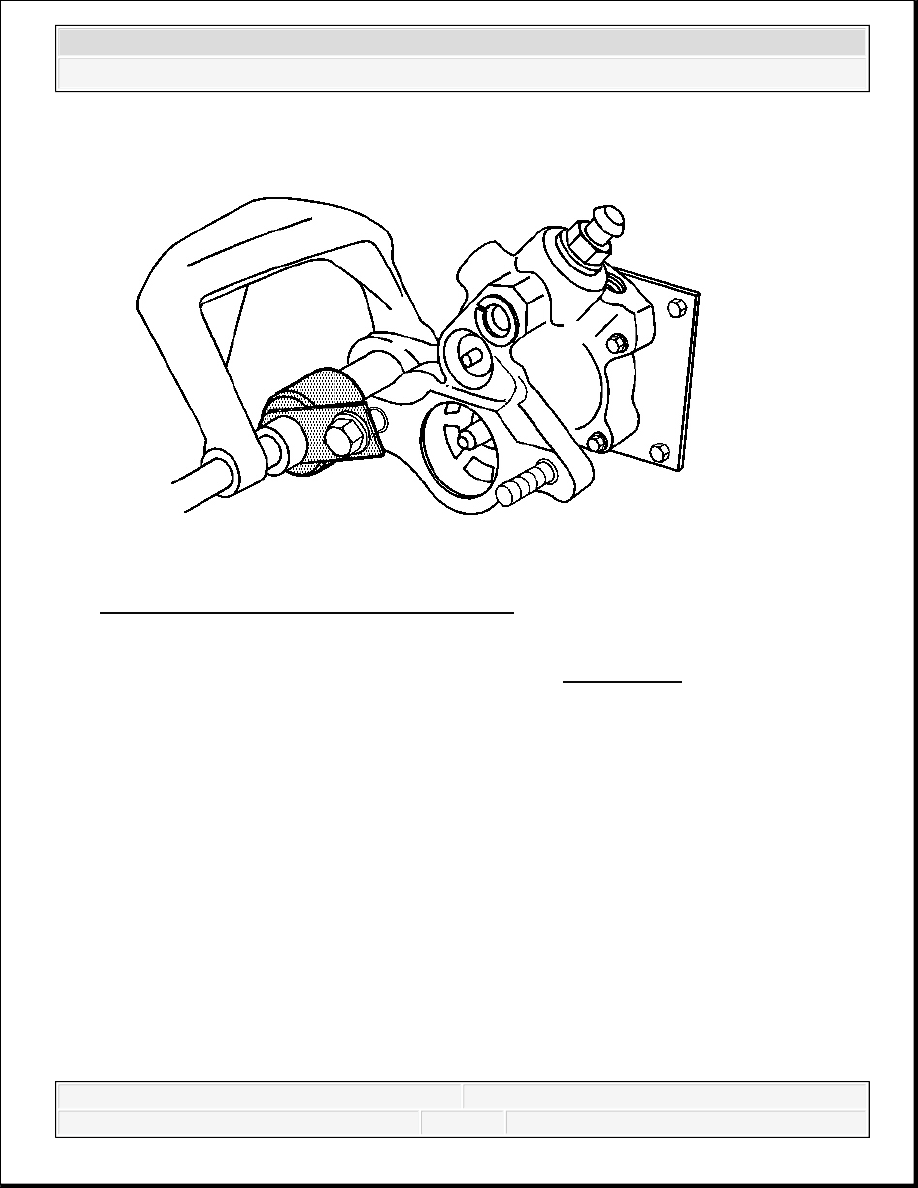

Fig. 47: View Of Accumulator With C-Clamp
Courtesy of GENERAL MOTORS CORP.
3. Place the J 26889 over the end of the accumulator. See Special Tools.
4. Install the nut on the stud.
5. Depress the accumulator with a C-clamp.
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 48: Identifying Brake Booster Retaining Ring & Access Hole
Courtesy of GENERAL MOTORS CORP.
6. Install the accumulator retainer ring (1).
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
