leaks. 6. If the master cylinder exhibits any leakage around the primary piston (2), then the primary piston primary seal (4) and/or secondary seal (3) is leaking and the master cylinder requires 7. If the master cylinder primary piston (2) does not exhibit any leakage, pressure bleed the brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual) . 8. If the brake pedal apply did not feel spongy, and the brake pedal travel was initially steady and not excessive, but then gradually fell, then the master cylinder requires overhaul or 9. If the brake pedal apply did not feel spongy, and the brake pedal travel was initially steady and not excessive, then fell slightly, then became steady again, then the brake pressure HYDRAULIC BRAKE COMPONENT OPERATION VISUAL INSPECTION
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

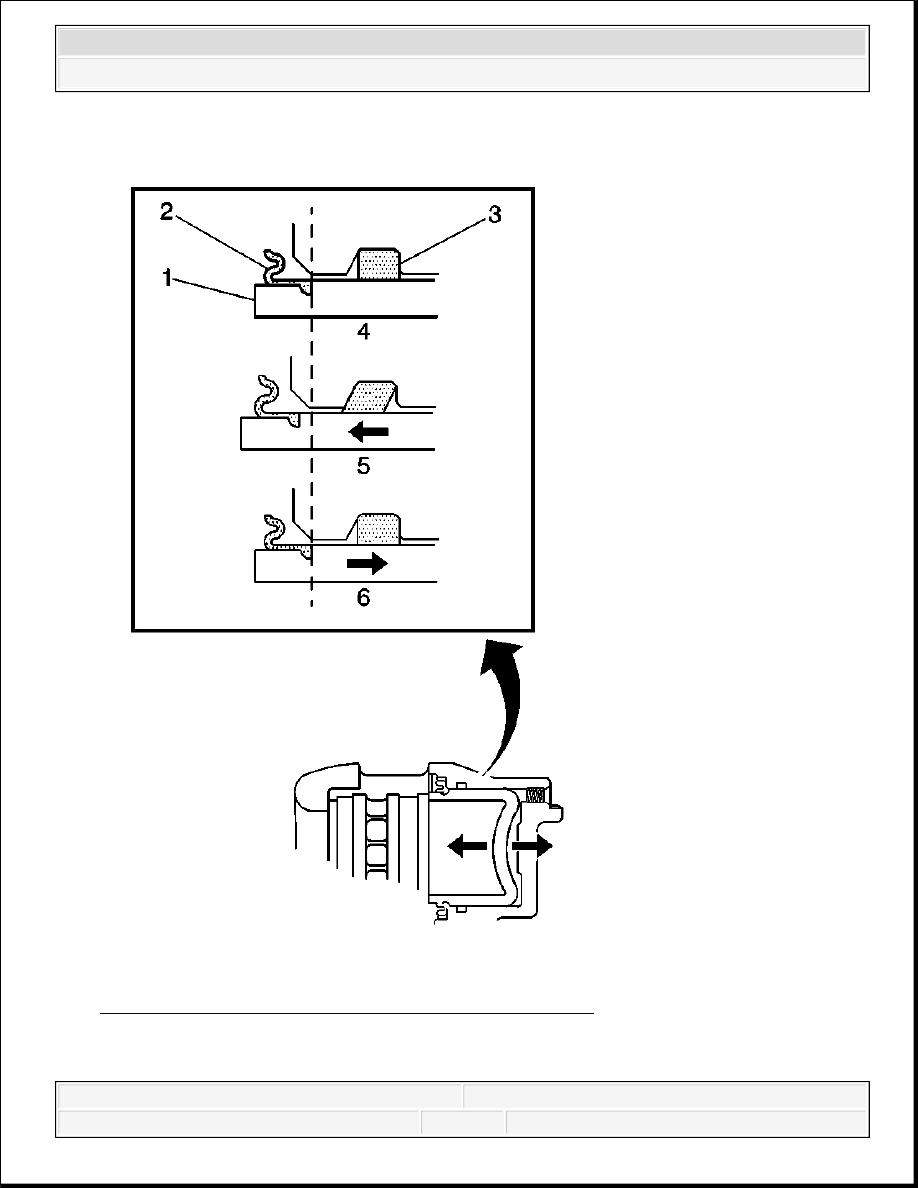

Fig. 4: Identifying Brake Caliper/Pad Inspection Areas
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. With the tire and wheel assemblies removed and the brake rotors retained by wheel lug nuts, visually inspect the caliper piston dust boot (2) sealing area to ensure that there are no brake 2. If any evidence of a brake fluid leak is present, the brake caliper requires overhaul or replacement. 3. While the brake system is at rest (4), observe the position of the caliper piston (1) in relation to the caliper housing. 4. Have an assistant apply and release the brake pedal several times while you observe the operation of the hydraulic brake caliper. 1. Observe the caliper piston (1) for unrestricted and even movement during each apply of the brake system (5). 2. Observe the caliper piston (1) for an unrestricted and even return motion during each release of the brake system (6). 5. If the caliper piston (1) did not exhibit unrestricted and even movement during brake system apply and/or release, the piston square seal (3) may be worn or damaged and the caliper BRAKE PIPE AND HOSE INSPECTION 1. Visually inspect all of the brake pipes for the following conditions: Kinks, improper routing, missing or damaged retainers Leaking fittings, excessive corrosion 2. If any of the brake pipes exhibited any of the conditions listed, then the identified pipe, or pipes, require replacement. 3. Ensure that the vehicle axles are properly supported at ride height in order to maintain the proper relationship of the flexible brake hoses to the chassis. CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

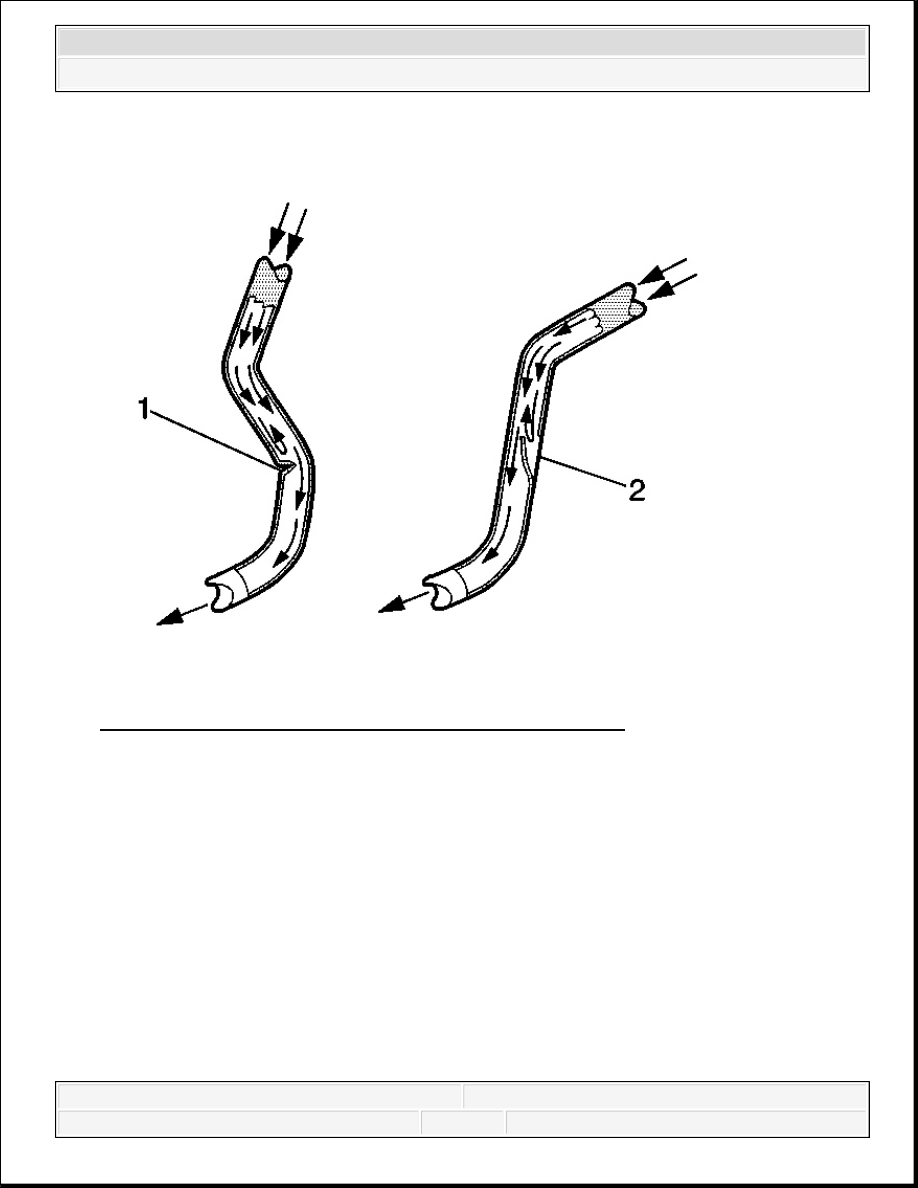

Fig. 5: Identifying Flexible Brake Hose Failure Conditions 4. Visually inspect all of the flexible brake hoses for the following conditions: Kinks (1), improper routing, twists, chafing, missing or damaged retainers Leaking connections, cracking, dry-rot, blisters, bulges 5. If any of the flexible brake hoses exhibited any of the conditions listed, then the identified flexible brake hose, or hoses require replacement. 6. Squeeze the flexible brake hoses with firm finger pressure to check for soft spots (2), indicating an internal restriction. Check the entire length of each flexible brake hose. 7. If any of the flexible brake hoses were found to have soft spots (2), then the identified flexible brake hose, or hoses require replacement. BRAKE PEDAL PUSHROD INSPECTION
