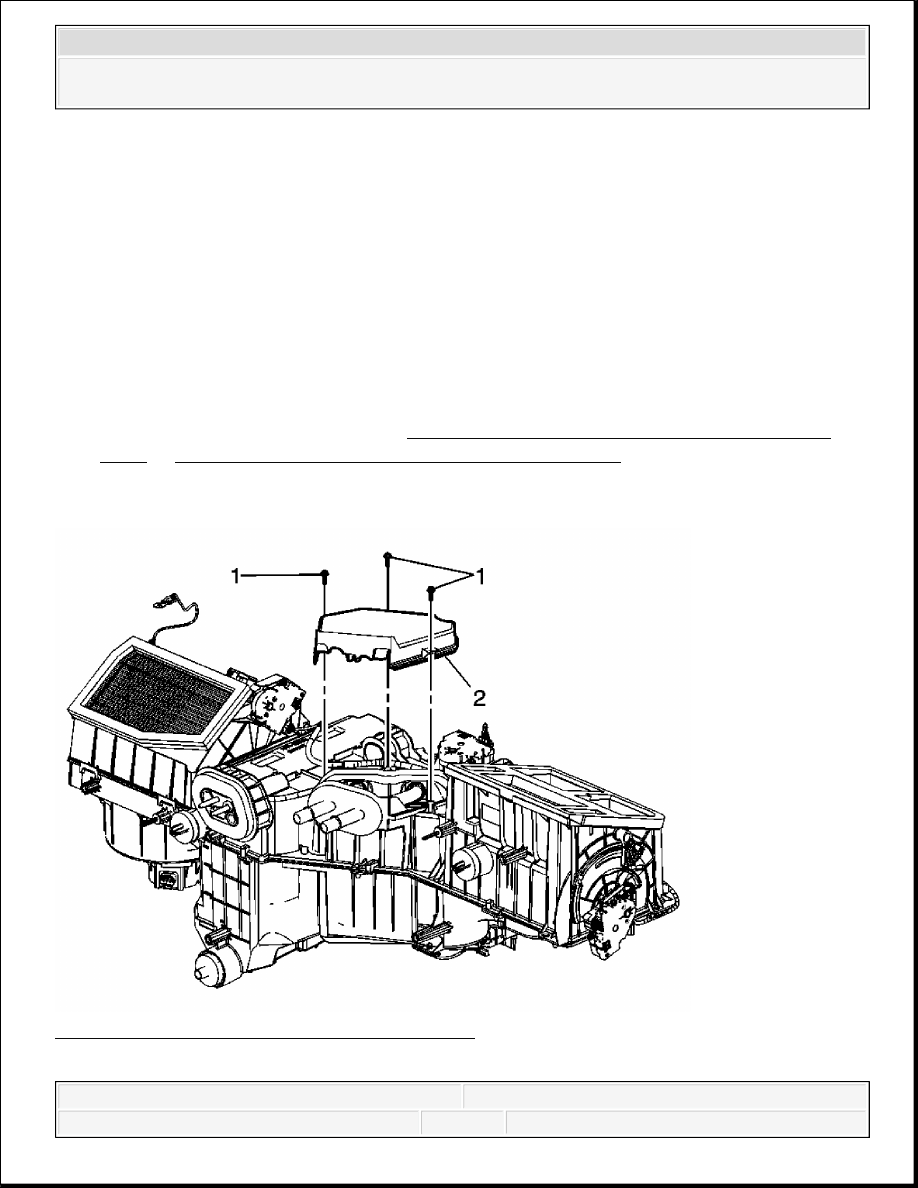

3. Install the screws to the HVAC module assembly. Tighten: Tighten the screws to 1.6 N.m (14 lb in). 4. Install the mode actuator to the HVAC module assembly. 5. Install the screws to the mode actuator. Tighten: Tighten the screws to 1.6 N.m (14 lb in). 6. Connect the electrical connector to the mode actuator. 7. Install the instrument panel. Refer to Instrument Panel Service Positioning (Without SLT) or Instrument Panel Service Positioning (With SLT) . HEATER CORE COVER REPLACEMENT Fig. 127: View Of Heater Core Cover & Screw IMPORTANT: For every heat stake removed ensure that you install a screw.
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
HEATER CORE REPLACEMENT Callout Component Name Preliminary Procedure: 1 Heater Core Cover Screw Tighten: 1.5 N.m (13 lb in) NOTE: Refer to Fastener Notice . 2 Heater Core Cover
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

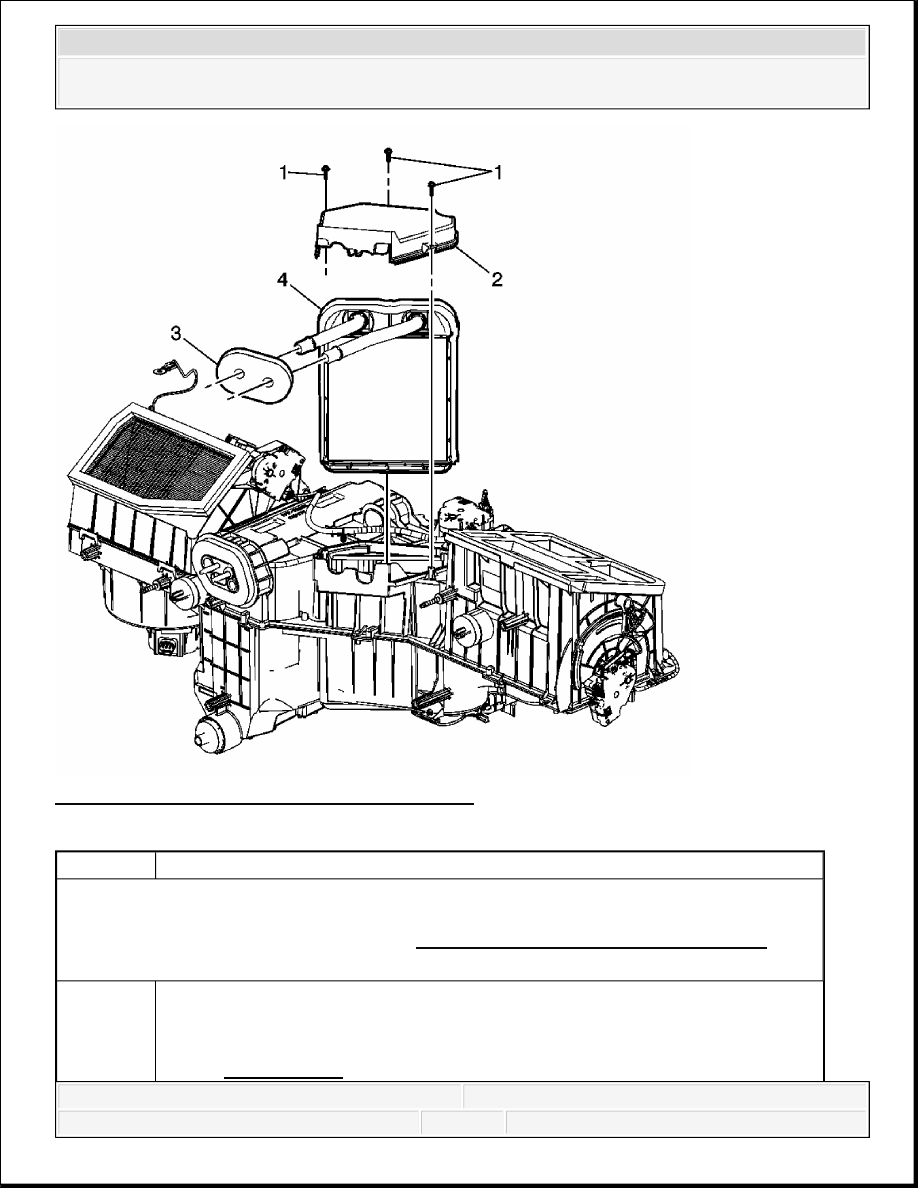

Fig. 128: View Of Heater Core & Components Callout Component Name Preliminary Procedure 1. Remove the HVAC module. Refer to HVAC Module Assembly Replacement. 2. Disconnect the wiring harness retainer from the heater core cover. 1 Heater Core Cover Screw NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

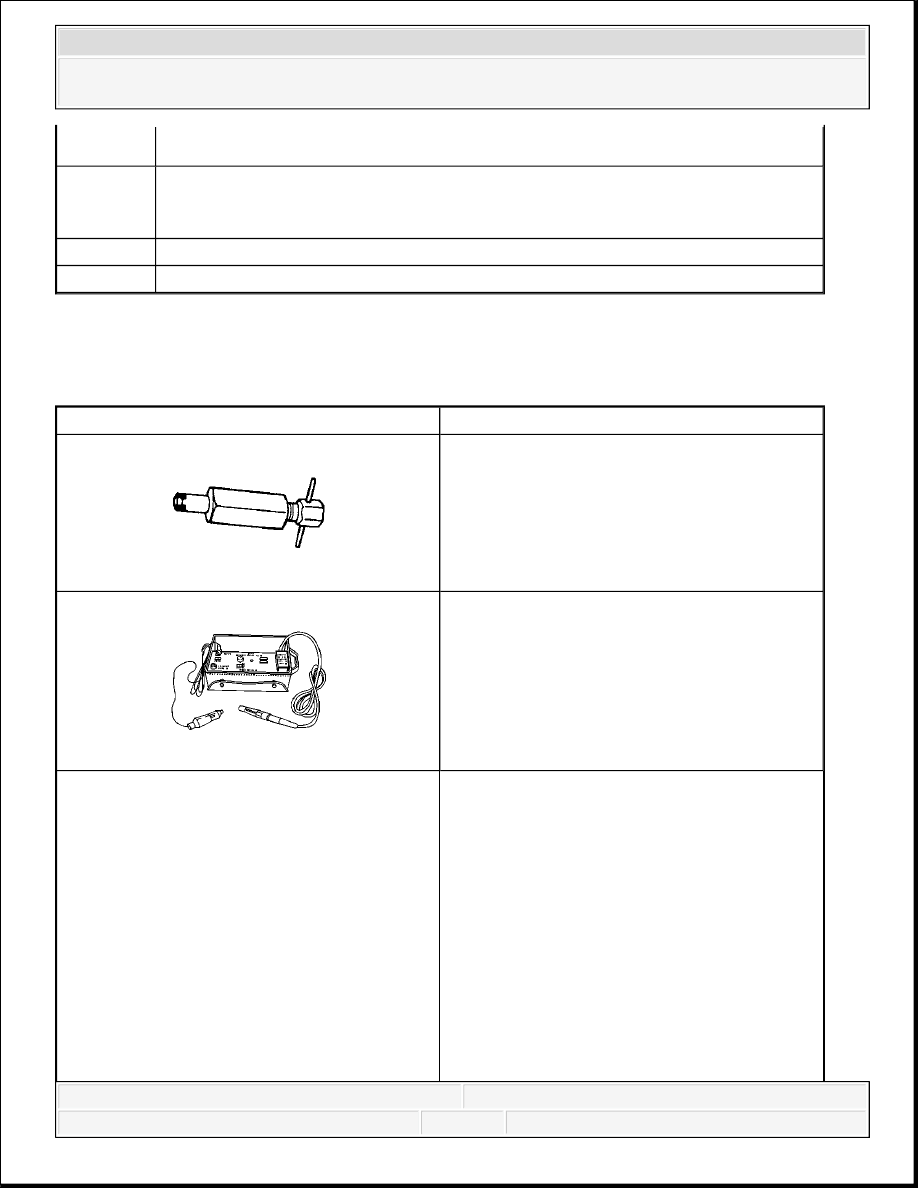

SPECIAL TOOLS AND EQUIPMENT SPECIAL TOOLS Tighten: 1.5 N.m (14 lb in) 2 Heater Core Cover Tighten: 1.5 N.m (14 lb in) 3 Heater Core Pass Through Seal 4 Heater Core Illustration Tool Number/ Description J 26549-E Orifice Tube Remover J 39400-A Halogen Leak Detector J 41425 A/C Line Repair Kit
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
