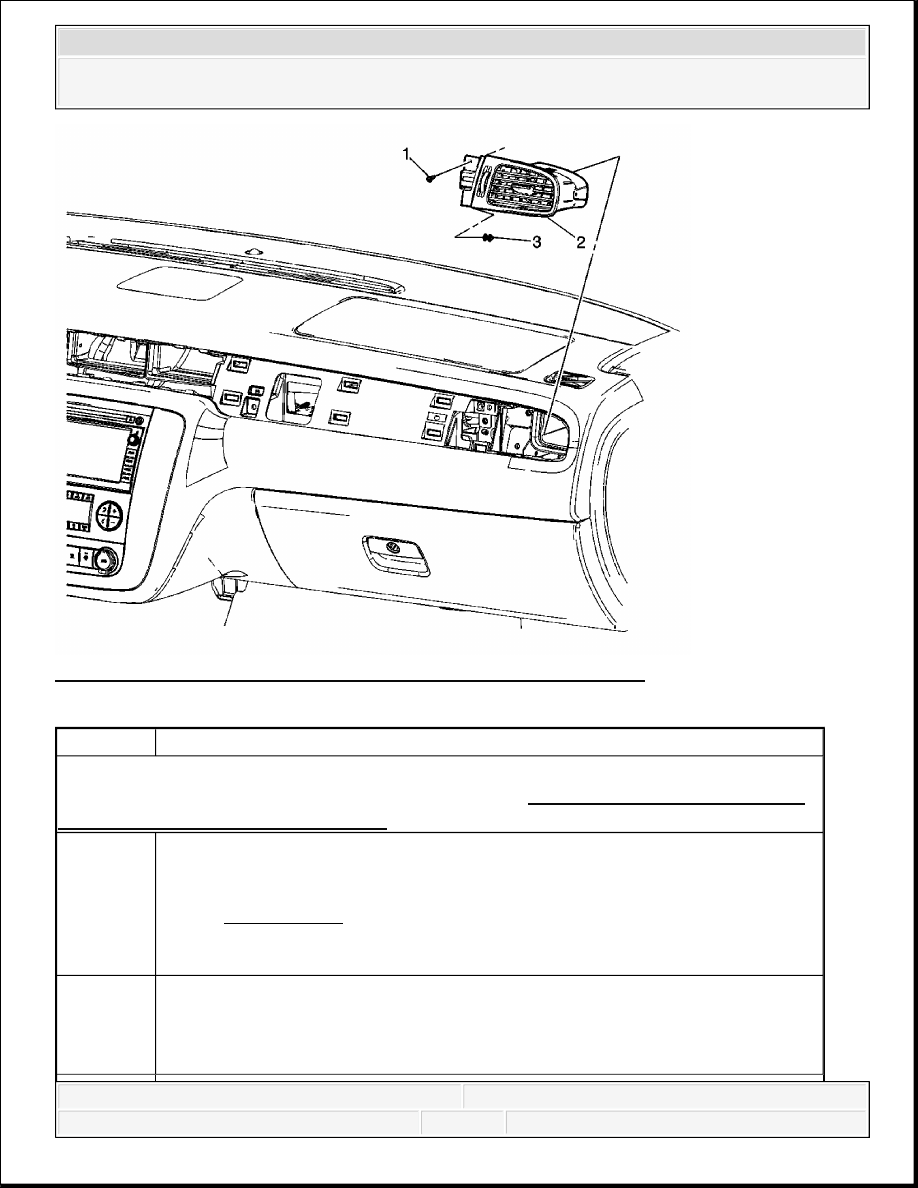

Fig. 108: View Of Instrument Panel Air Deflector & Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim
Panel Replacement (with RPO SLT) .
1
Instrument Panel Air Outlet Assembly Screw (Qty: 1)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Air Outlet - Right
Tip: Use a flat-bladed plastic trim tool to release the retainer clip on the left
side of the air outlet assembly, securing the air outlet assembly to the instrument
panel.
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
FLOOR AIR OUTLET DUCT REPLACEMENT - LEFT SIDE
Removal Procedure

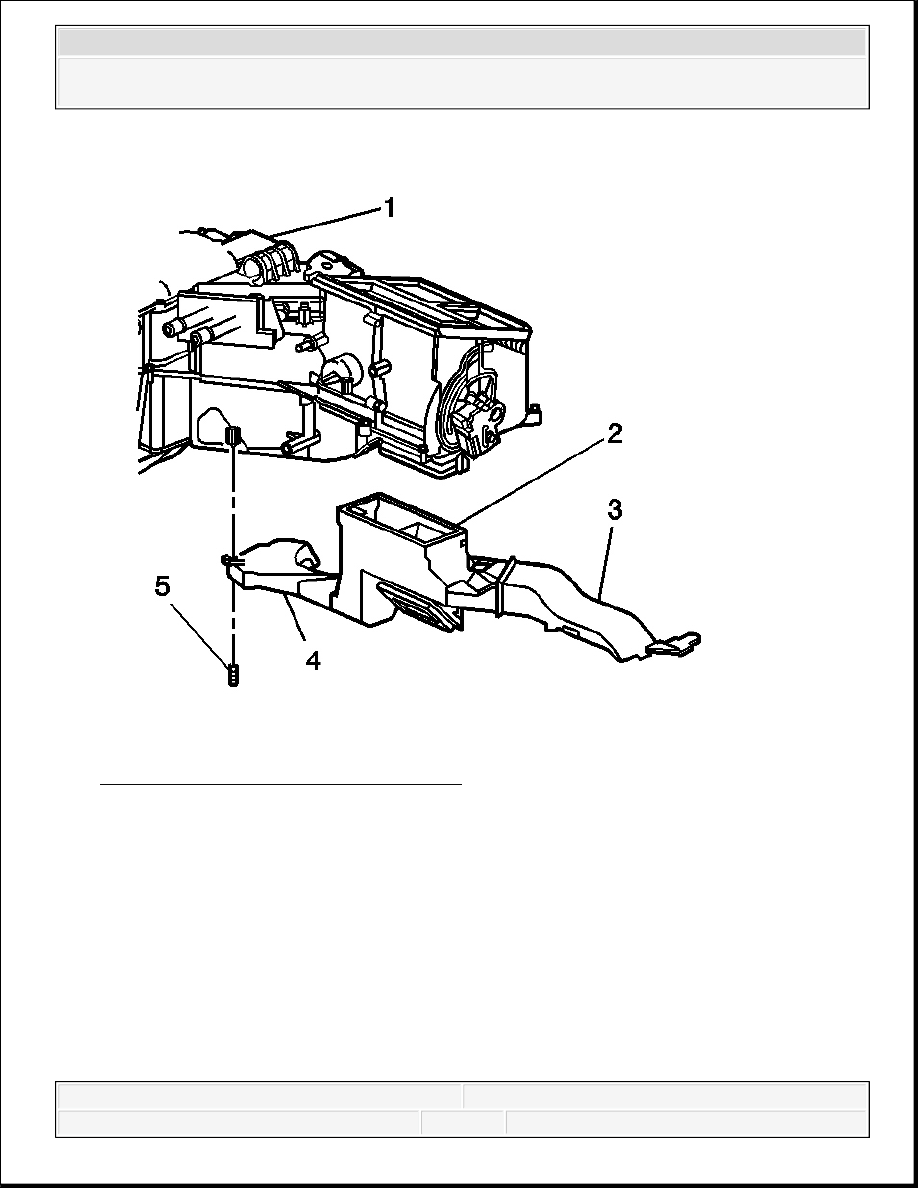

Fig. 109: View Of Floor Air Outlet Duct
Courtesy of GENERAL MOTORS CORP.
1. Remove the push pin (5) from the left floor air outlet duct (4).
2. Remove the left floor duct (1) from the HVAC module (2).
Installation Procedure
3
Retainer Clip (Qty: 1)
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

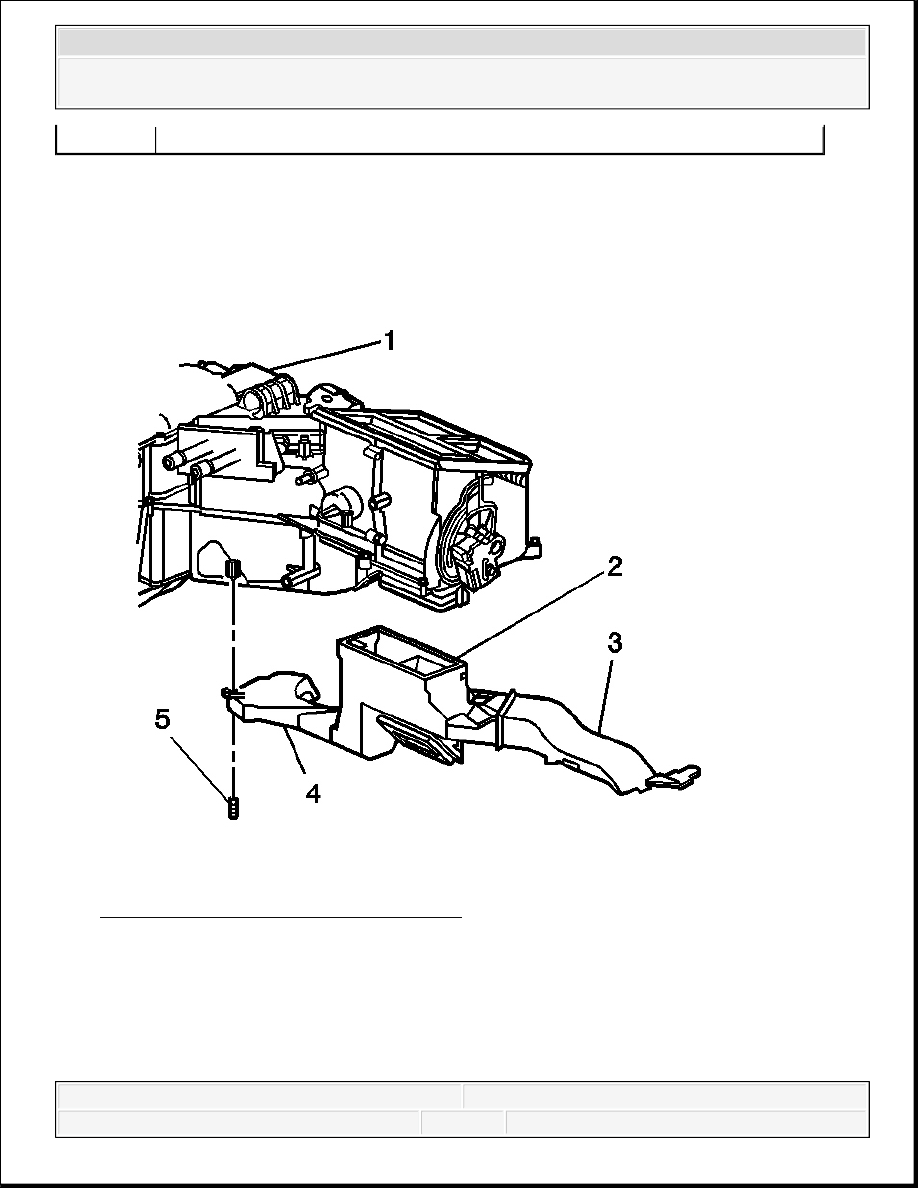

Fig. 110: View Of Floor Air Outlet Duct
Courtesy of GENERAL MOTORS CORP.
1. Install the left floor air outlet duct (1) to the HVAC module (2).
2. Install the push pin (2) to the left floor air outlet duct.
FLOOR AIR OUTLET DUCT REPLACEMENT - RIGHT SIDE
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

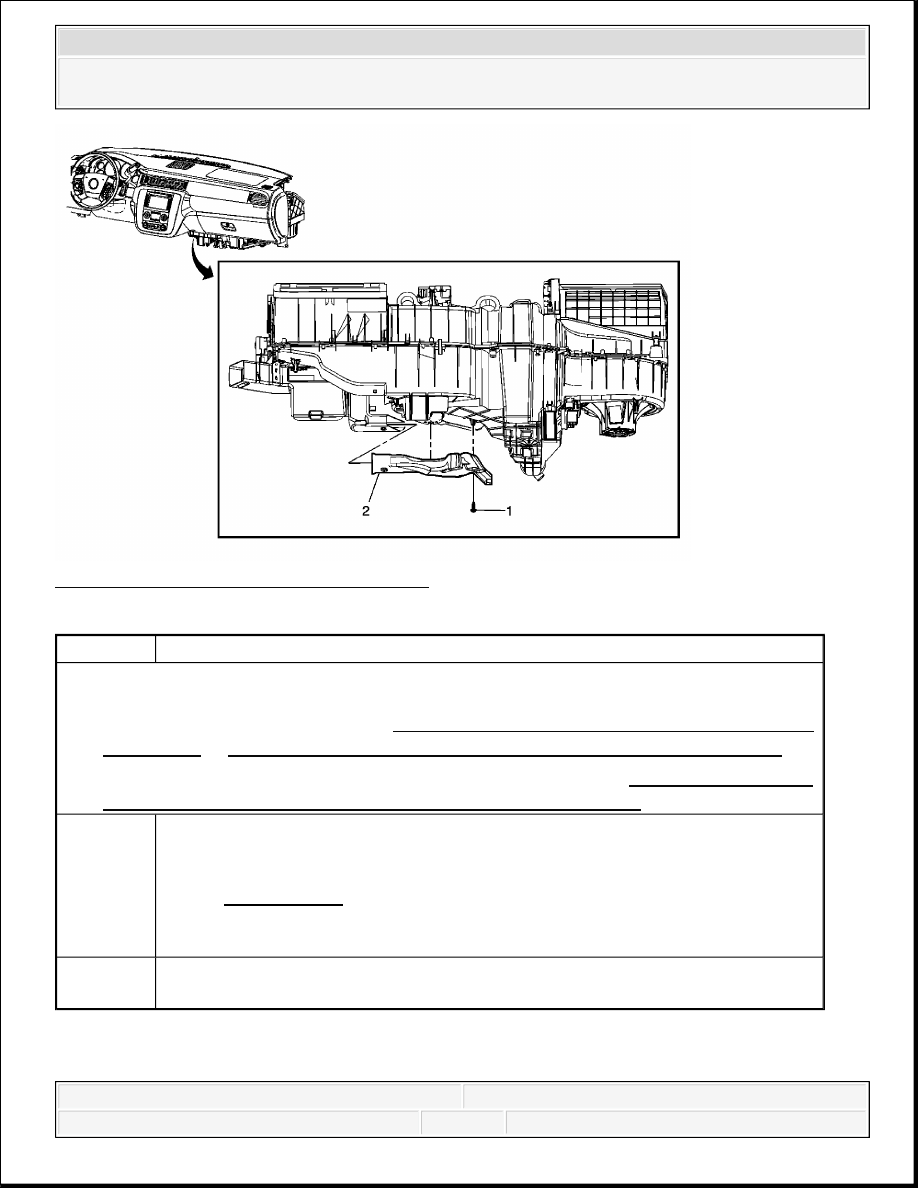

Fig. 111: View Of Air Outlet Duct & Bolt
Courtesy of GENERAL MOTORS CORP.
AIR TEMPERATURE DOOR REPLACEMENT - RIGHT SIDE
Callout
Component Name
Preliminary Procedure
1. Remove the I/P insulator. Refer to Instrument Panel Insulator Replacement (with
RPO SLT) or Instrument Panel Insulator Replacement (without RPO SLT) .
2. Remove the front floor console side trim panel - right. Refer to Front Floor Console
Side Trim Panel Replacement - Right Side (with RPO SLT) .
1
Air Duct Bolt
Tighten: 1.5 N.m (13 lb in)
NOTE:
Refer to Fastener Notice .
2
Air Outlet Duct - Floor RH
Tip: Slide Duct to the right and remove.
2008 Chevrolet Silverado 1500
2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
