FRONT WHEELHOUSE LINER REPLACEMENT - LEFT SIDE (CHEVROLET)

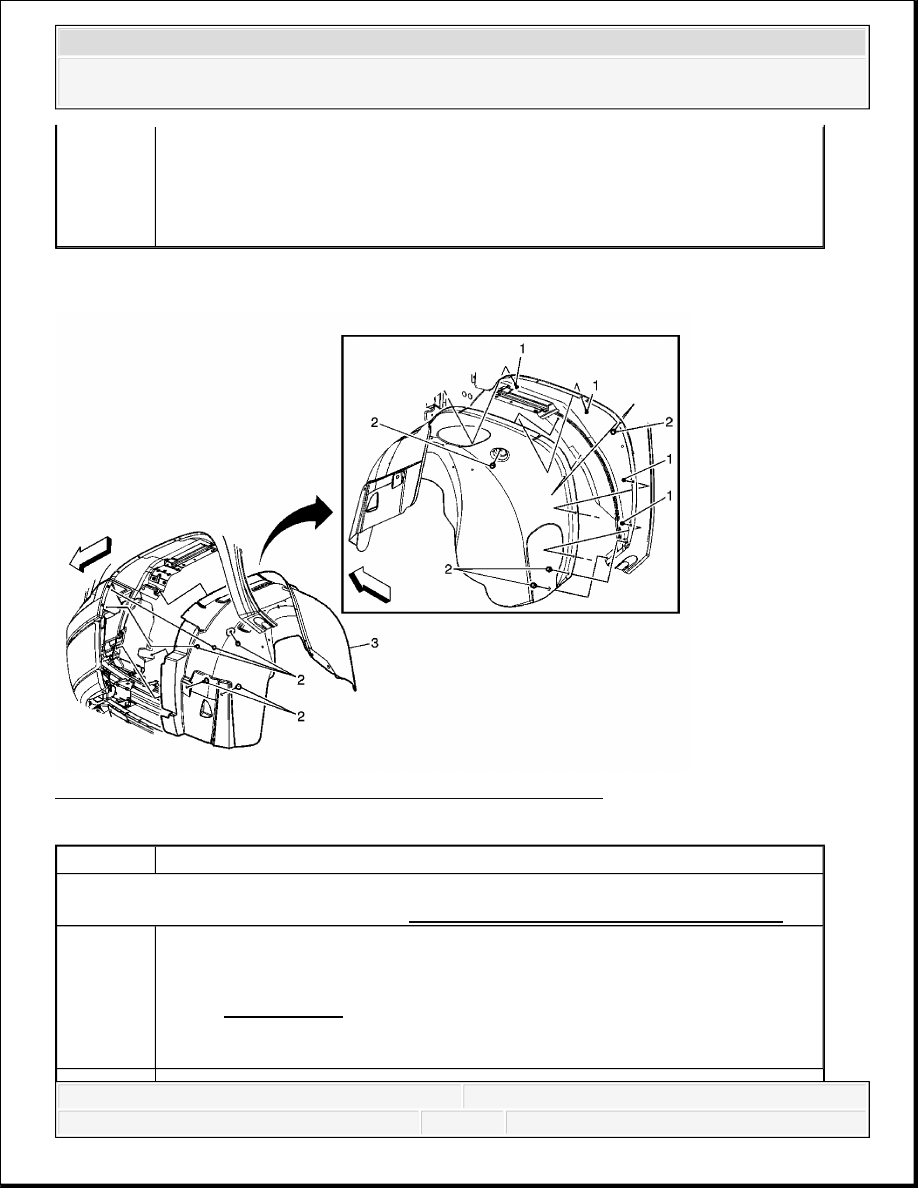

Fig. 20: View Of Front Wheelhouse Liner - Left Side (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
Use the reverse procedure to install to help with the proper alignment of
the right side front wheelhouse liner.
Callout
Component Name
Preliminary Procedure:
Remove the tire/wheel assembly. Refer to Tire and Wheel Removal and Installation .
1
Left Side Front Wheelhouse Liner Screw (Qty: 5)
Tighten: 2.5 N.m (22 lb in)
NOTE:
Refer to Fastener Notice .
2
Left Side Front Wheelhouse Liner Plastic Retainer (Qty: 7)
Left Side Front Wheelhouse Liner
Tip:
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado
FRONT WHEELHOUSE LINER REPLACEMENT - LEFT SIDE (GMC)

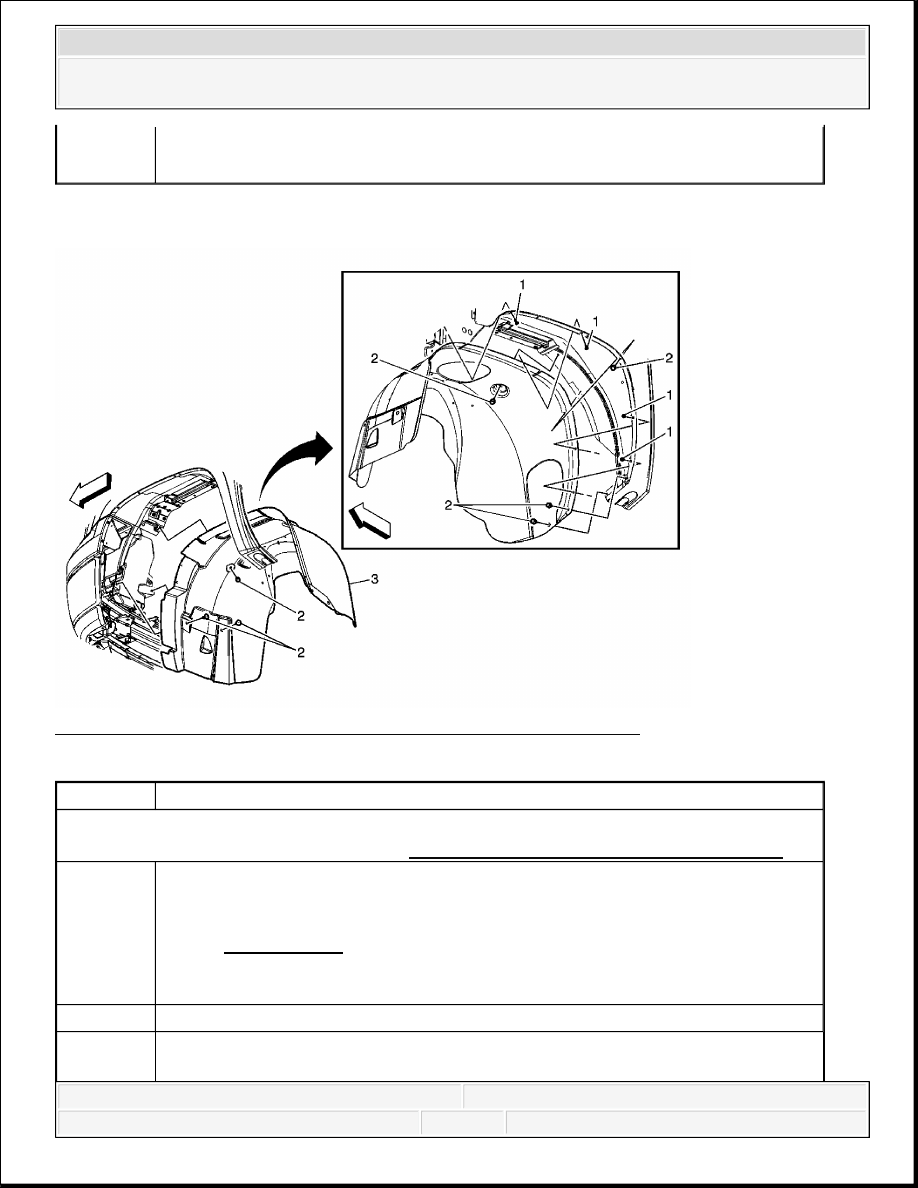

Fig. 21: View Of Front Wheelhouse Liner - Left Side (GMC)
Courtesy of GENERAL MOTORS CORP.
3
Disconnect any electrical harnesses/connectors and attached parts from the
left side front wheelhouse liner as needed.
Use the reverse procedure to install to help with the proper alignment of
the left side front wheelhouse liner.
Callout
Component Name
Preliminary Procedure:
Remove the tire/wheel assembly. Refer to Tire and Wheel Removal and Installation .
1
Left Side Front Wheelhouse Liner Screw (Qty: 4)
Tighten: 2.5 N.m (22 lb in)
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado
ENGINE SPLASH SHIELD REPLACEMENT - LEFT SIDE

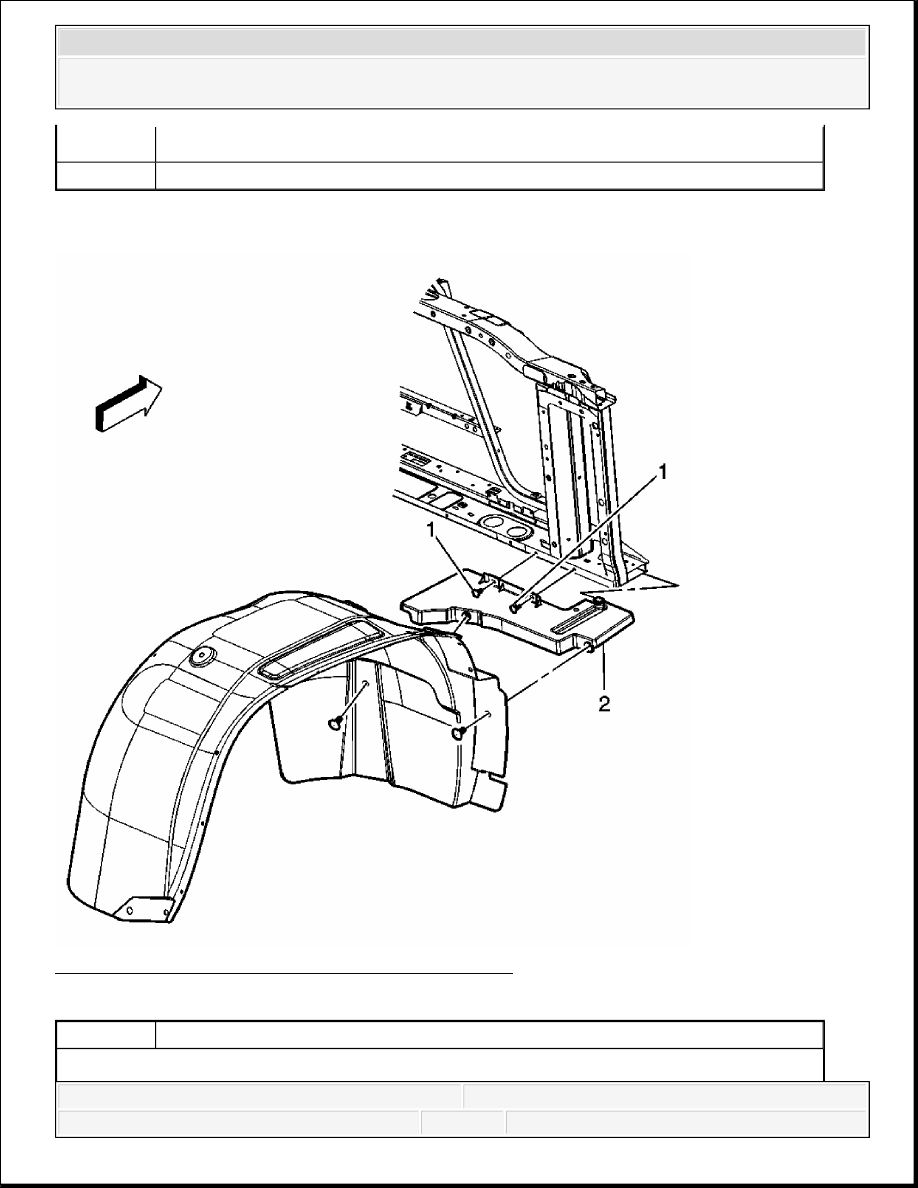

Fig. 22: View Of Engine Splash Shield Replacement - Left Side
Courtesy of GENERAL MOTORS CORP.
2
Left Side Front Wheelhouse Liner Plastic Retainer (Qty: 9)
3
Left Side Front Wheelhouse Liner
Tip:
Disconnect any electrical harnesses/connectors and attached parts from the
left side front wheelhouse liner as needed.
Use the reverse procedure to install to help with the proper alignment of
the left side front wheelhouse liner.
Callout
Component Name
Preliminary Procedure:
Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement -
Left Side (Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC).
1
Lower Left Engine Splash Shield Bolts (Qty: 2)
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado
ENGINE SPLASH SHIELD REPLACEMENT - RIGHT SIDE

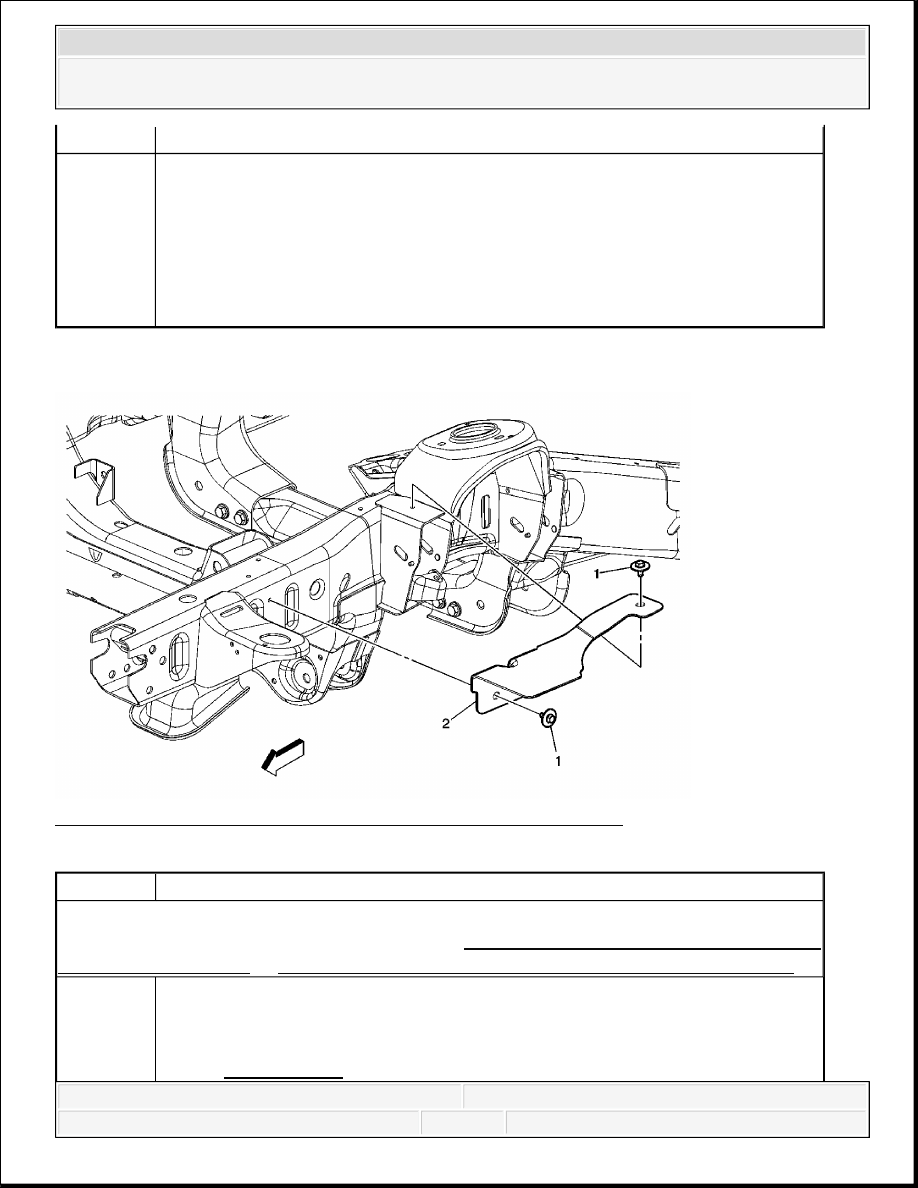

Fig. 23: View Of Engine Splash Shield - Right Side
Courtesy of GENERAL MOTORS CORP.
Tighten: 12 N.m (106 lb in)
2
Lower Left Engine Splash Shield
Callout
Component Name
Preliminary Procedure:
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado
