1. Clean the engine block cylinder head bolt holes, if required. Thread repair tool J 42385-107 may be used to clean the threads of old threadlocking 2. Spray cleaner GM P/N 12346139 (Canadian P/N 10953463), GM P/N 12377981 (Canadian P/N 10953463), or equivalent, into the hole. 3. Clean the cylinder head bolt holes with compressed air. 4. Install the cylinder head locating pins (230). cylinder head bolts during assembly. Do not use any type of sealant on the cylinder head
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

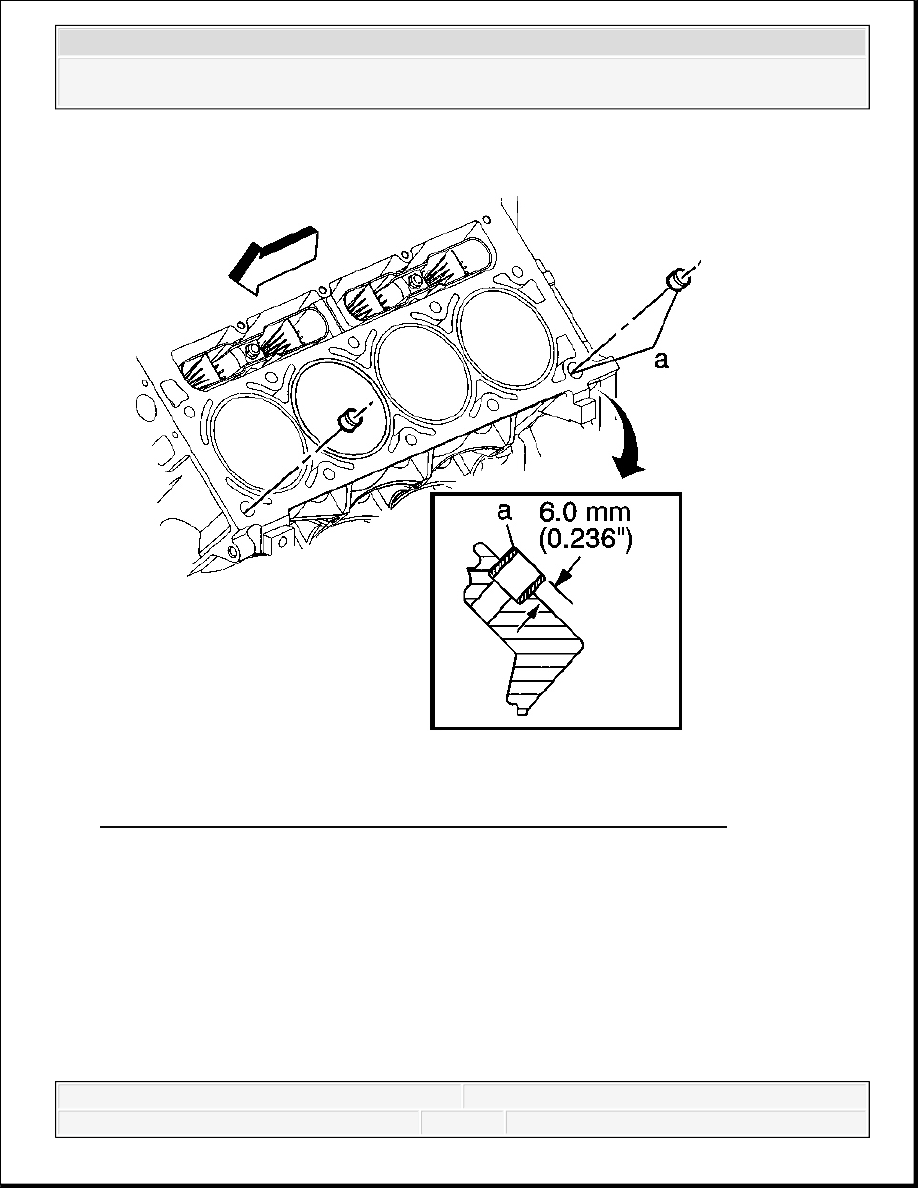

Fig. 36: Identifying Cylinder Head Locating Pins Installation Position 5. Inspect the locating pins for proper installation.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

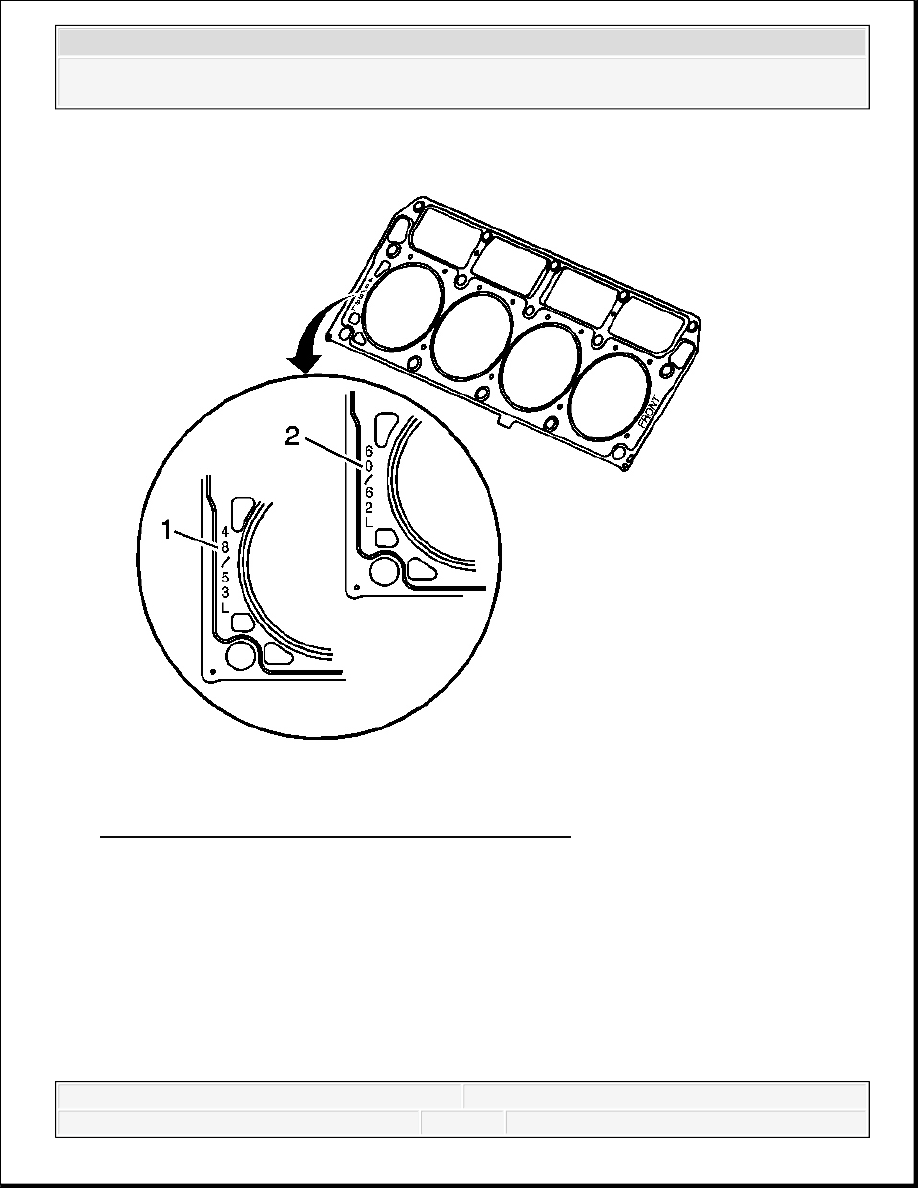

Fig. 37: View Of Displacement Markings On Gasket 6. Inspect the displacement markings (1, 2) on the gasket, for proper usage.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

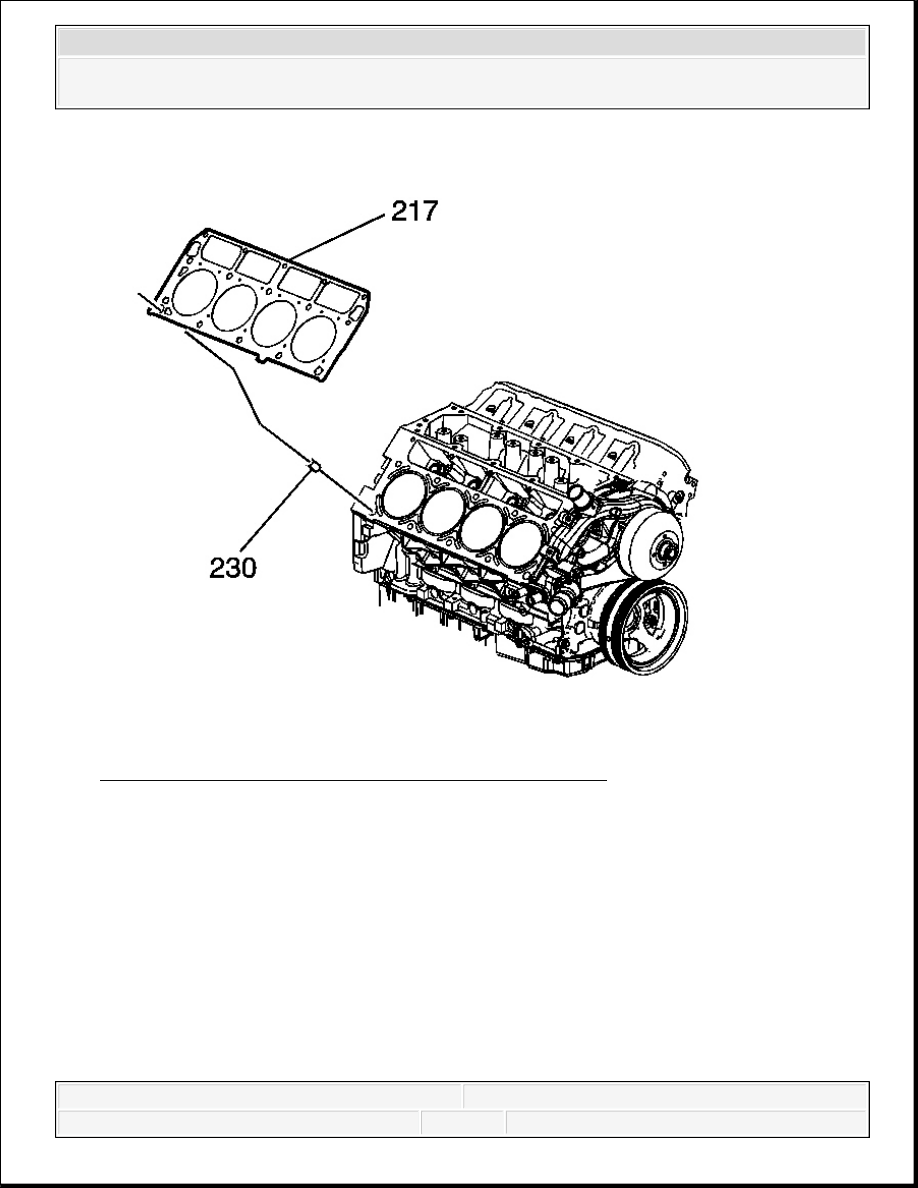

Fig. 38: View Of Cylinder Head Gasket & Locating Pins 7. Install the NEW cylinder head gasket (217) onto the locating pins.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
