Chevrolet Silverado / GMC Sierra. Manual - part 2084
Fig. 203: MAP Sensor
Courtesy of GENERAL MOTORS CORP.
2. Remove the manifold absolute pressure (MAP) sensor (714) and retainer (736), as required.
3. Remove the O-ring (715) from the sensor, as required.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Fig. 204: Intake Manifold
Courtesy of GENERAL MOTORS CORP.
4. Remove the intake manifold bolts (512).
5. Remove the intake manifold (500) with gaskets.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

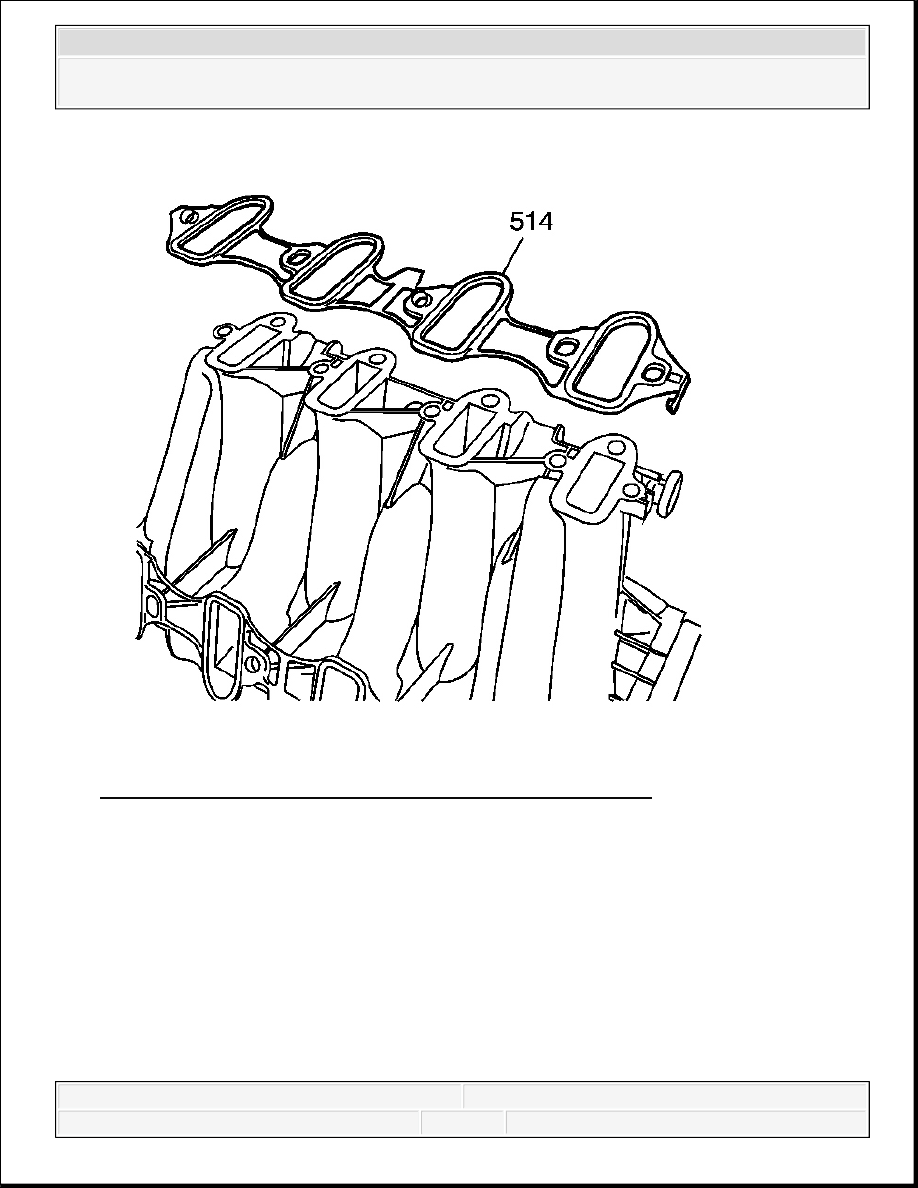

Fig. 205: View Of Intake Manifold-To-Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
6. Remove the intake manifold gaskets (514).
7. Discard the intake manifold gaskets.
ENGINE COOLANT AIR BLEED PIPE AND HOLE COVER REMOVAL (RPO LY2/LY6/L92)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

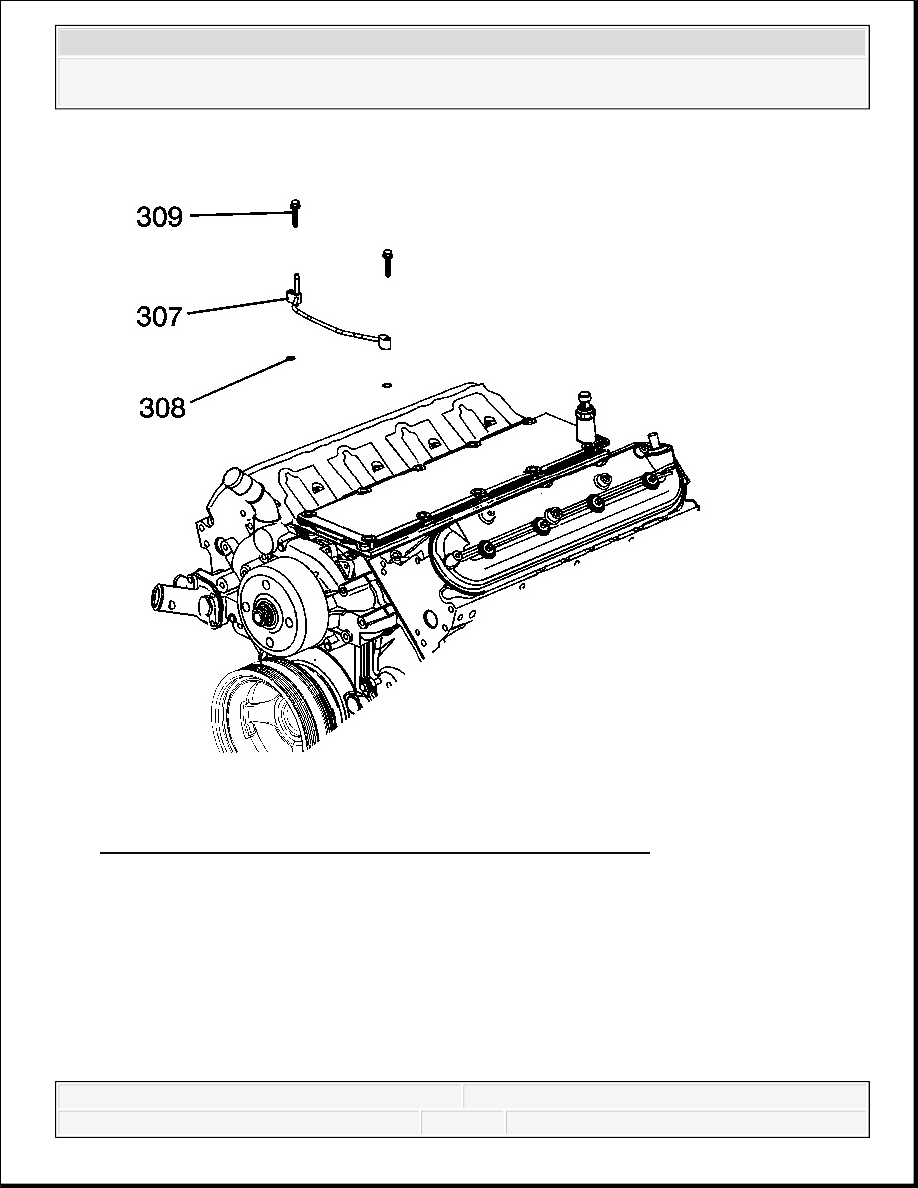

Fig. 206: Removing/Installing Engine Coolant Air Bleed Pipe
Courtesy of GENERAL MOTORS CORP.
1. Remove the engine coolant air bleed pipe bolts (309).
2. Remove the pipe (307) with seals (308).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
