10. Raise the hood until the service position notch (1) in the upper hinge is reached. 11. Install the 2 sets of the M6 bolts to both the left and right side service notches and tighten finger tight. 12. Lower the hood until the bolts rest against the lower hinge, tighten the bolts to secure the hood. Tighten: Tighten the bolts to 20 N.m (15 lb ft). 13. The hood is now set in the service position. 14. Remove the hood latch. Refer to Hood Primary and Secondary Latch Replacement . 15. Remove the front end upper tie bar. Refer to Front End Upper Tie Bar Replacement . 16. Remove the intake manifold. Refer to Intake Manifold Replacement (L92 - First Design) or Intake Manifold Replacement (L92 - Second Design) or Intake Manifold opened too far. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 108: View Of Radiator Vent Inlet Hose & Clamps 17. Remove the radiator vent inlet hose (2) from the radiator inlet hose clip (3). 18. Reposition the radiator vent inlet hose clamp (1) at the air bleed pipe. 19. Remove the radiator vent inlet hose (2) from the air bleed pipe and reposition.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 109: View Of Radiator Vent Inlet Hose Clamp At Water Pump 20. Reposition the radiator inlet hose clamp (3) at the water pump. 21. Remove the radiator inlet hose from the water pump.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

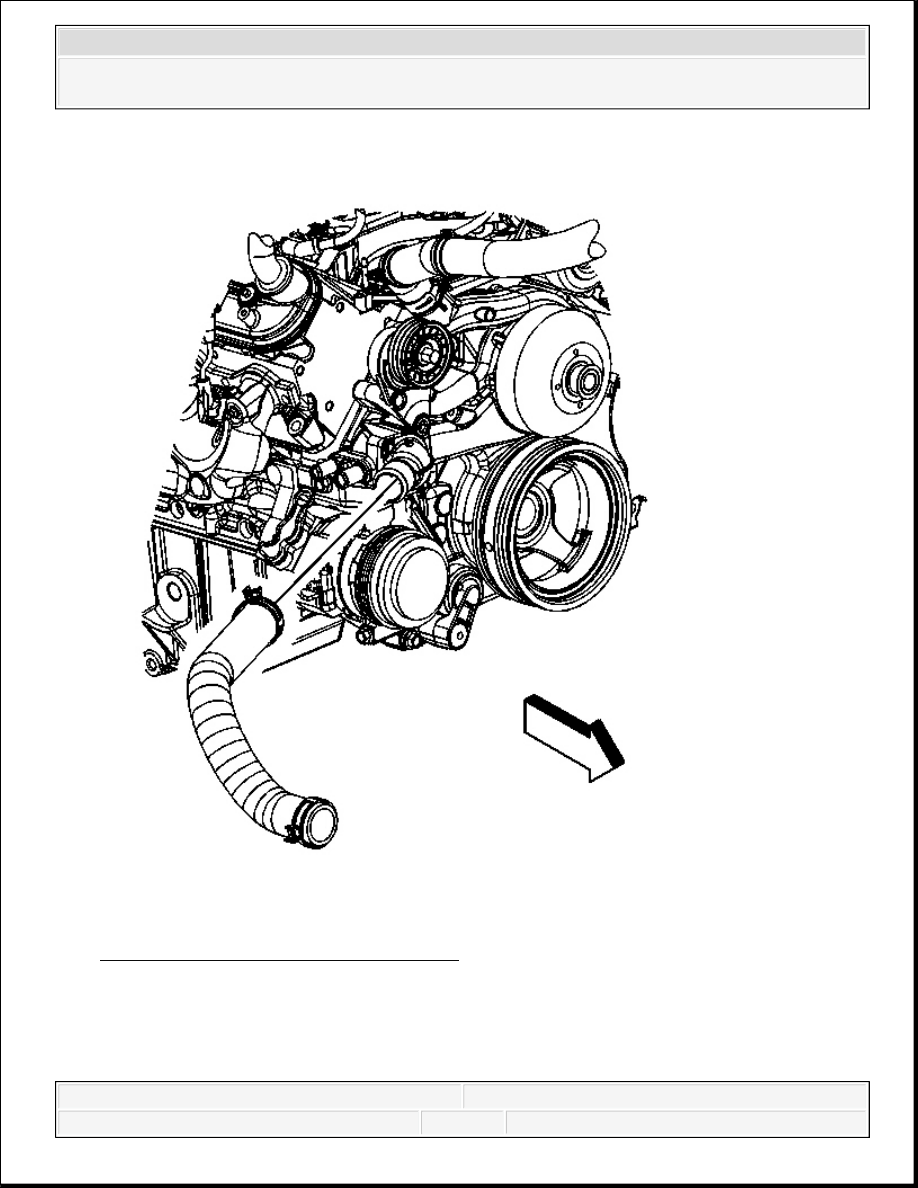

Fig. 110: View Of Radiator Outlet Hose 22. Reposition the radiator outlet hose clamp at the water pump. 23. Remove the radiator outlet hose from the water pump.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
