Fig. 70: Camshaft Retainer & Bolts 9. Remove the camshaft retainer bolts (204) and retainer (203).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 71: View Of Camshaft 10. Install the camshaft sprocket bolt into the camshaft front bolt hole. 11. Using the bolt as a handle, carefully rotate and remove the camshaft from the engine block. 12. Remove the bolt from the camshaft. Installation Procedure NOTE: All camshaft journals are the same diameter, so care must be
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

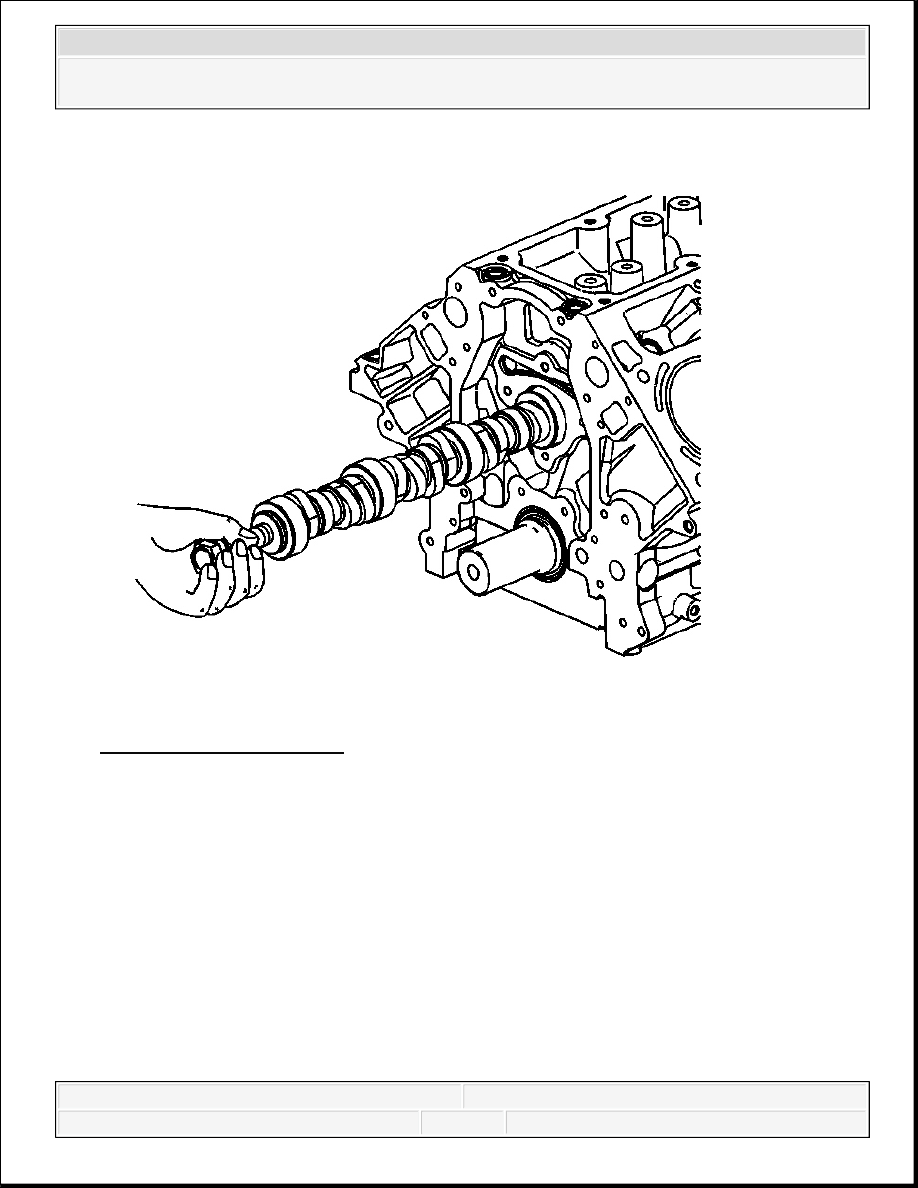

Fig. 72: View Of Camshaft 1. Lubricate the camshaft journals and the bearings with clean engine oil. 2. Install the camshaft sprocket bolt into the camshaft front bolt hole. 3. Using the bolt as a handle, carefully install the camshaft into the engine block. 4. Remove the bolt from the front of the camshaft. NOTE: All camshaft journals are the same diameter, so care must be
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

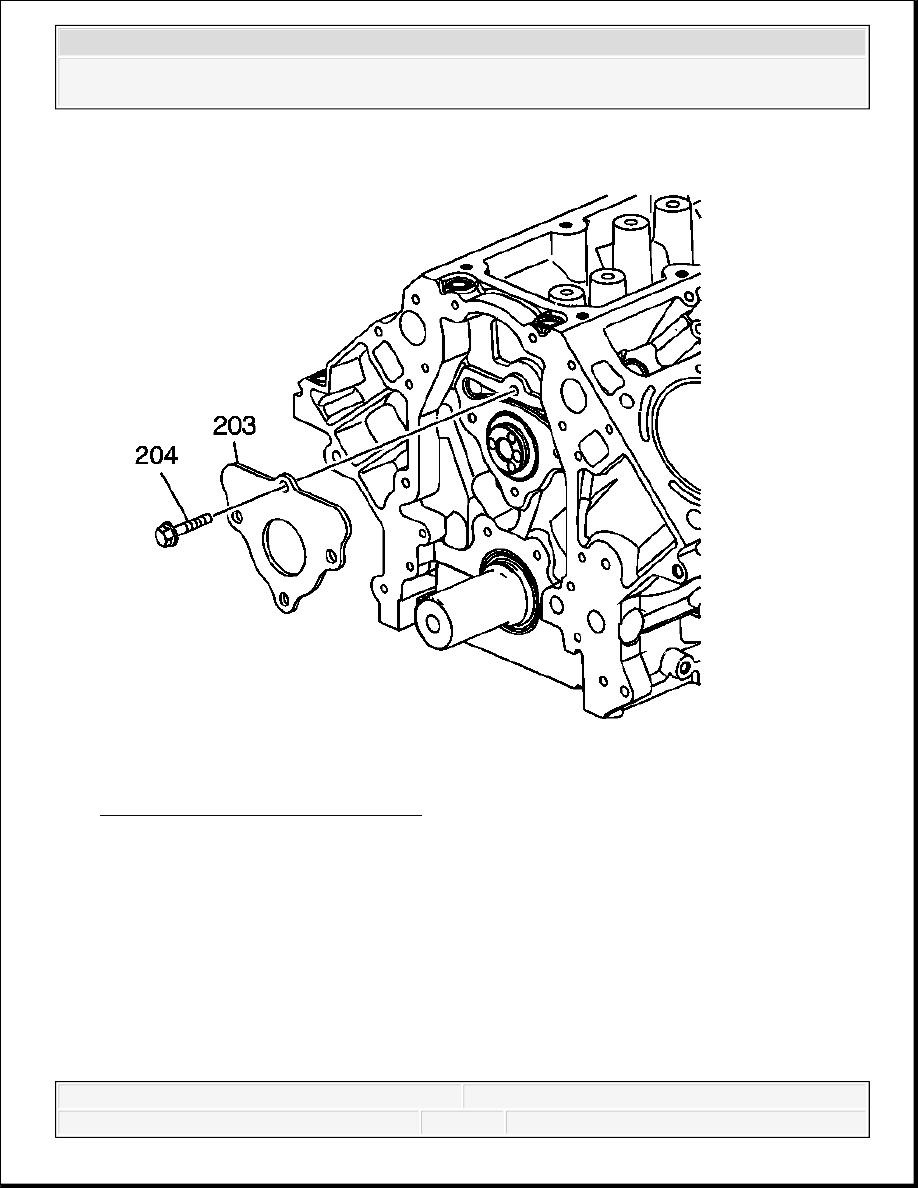

Fig. 73: Camshaft Retainer & Bolts 5. Install the camshaft retainer (203) and bolts (204). Install the retainer with the sealing gasket facing the engine block. IMPORTANT: The gasket surface on the engine block should be clean and free of dirt and/or debris.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
