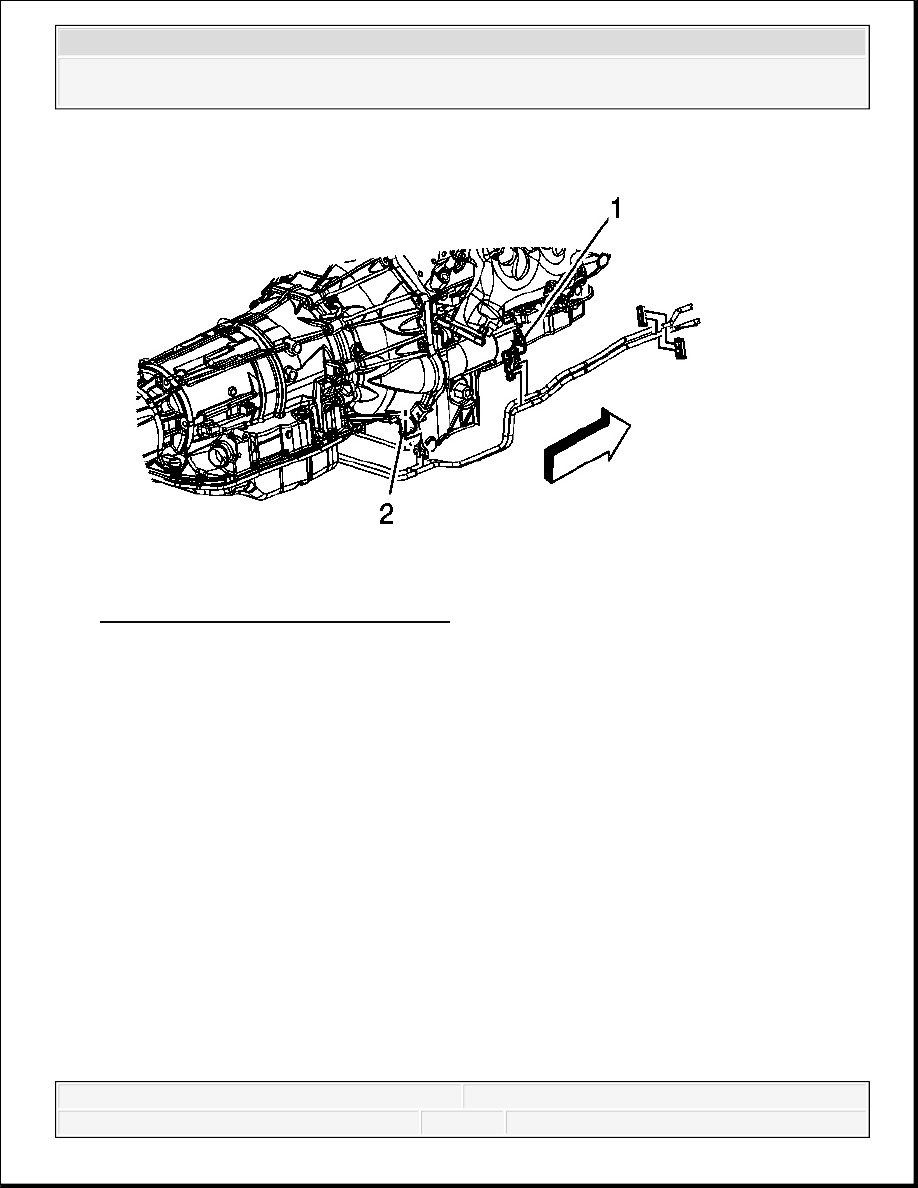

Fig. 445: View Of Oil Cooler Line Clip
Courtesy of GENERAL MOTORS CORP.

28. For vehicles with a 6L80-E automatic transmission, remove the oil cooler lines from the clip

(1).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

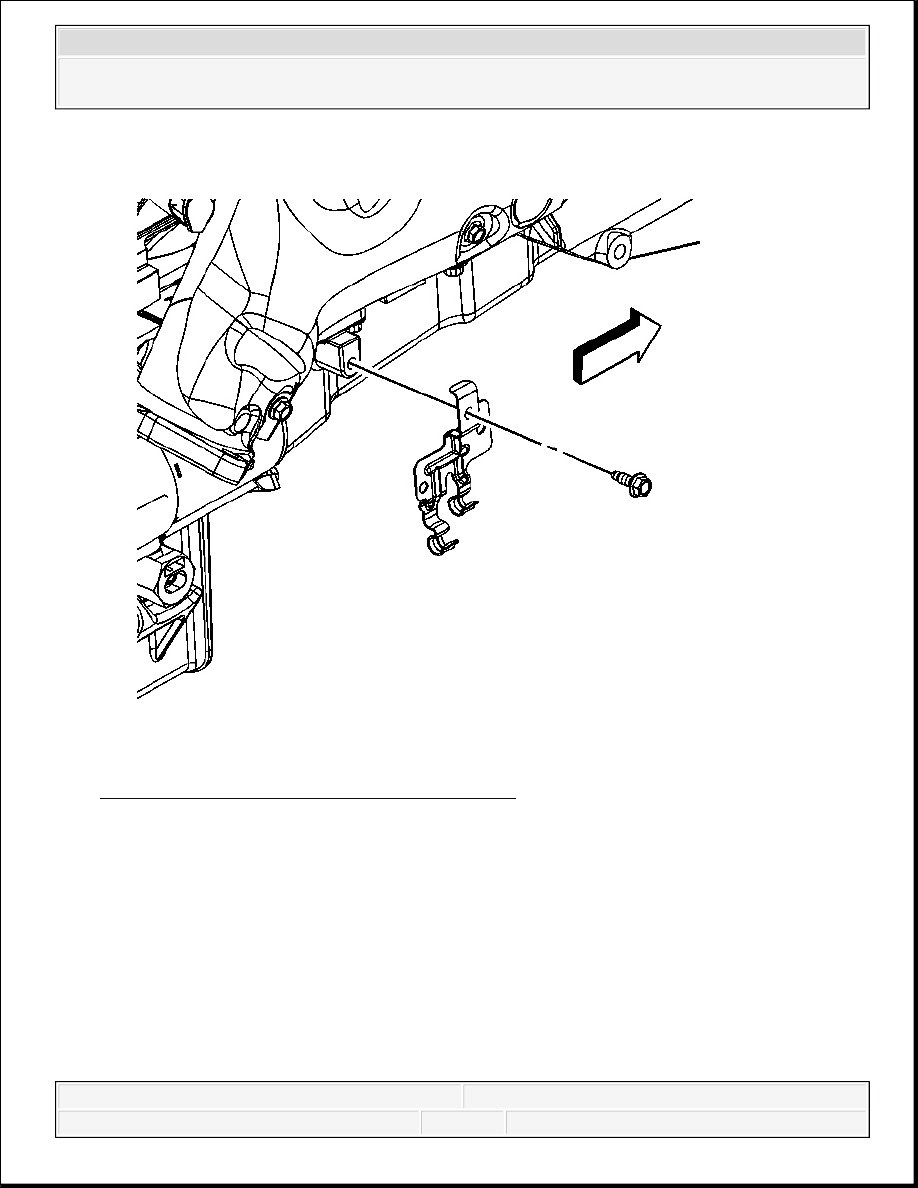

Fig. 446: View Of Oil Cooler Line Clip & Bolt
Courtesy of GENERAL MOTORS CORP.

29. Remove the transmission oil cooler line clip bolt and clip from the oil pan.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

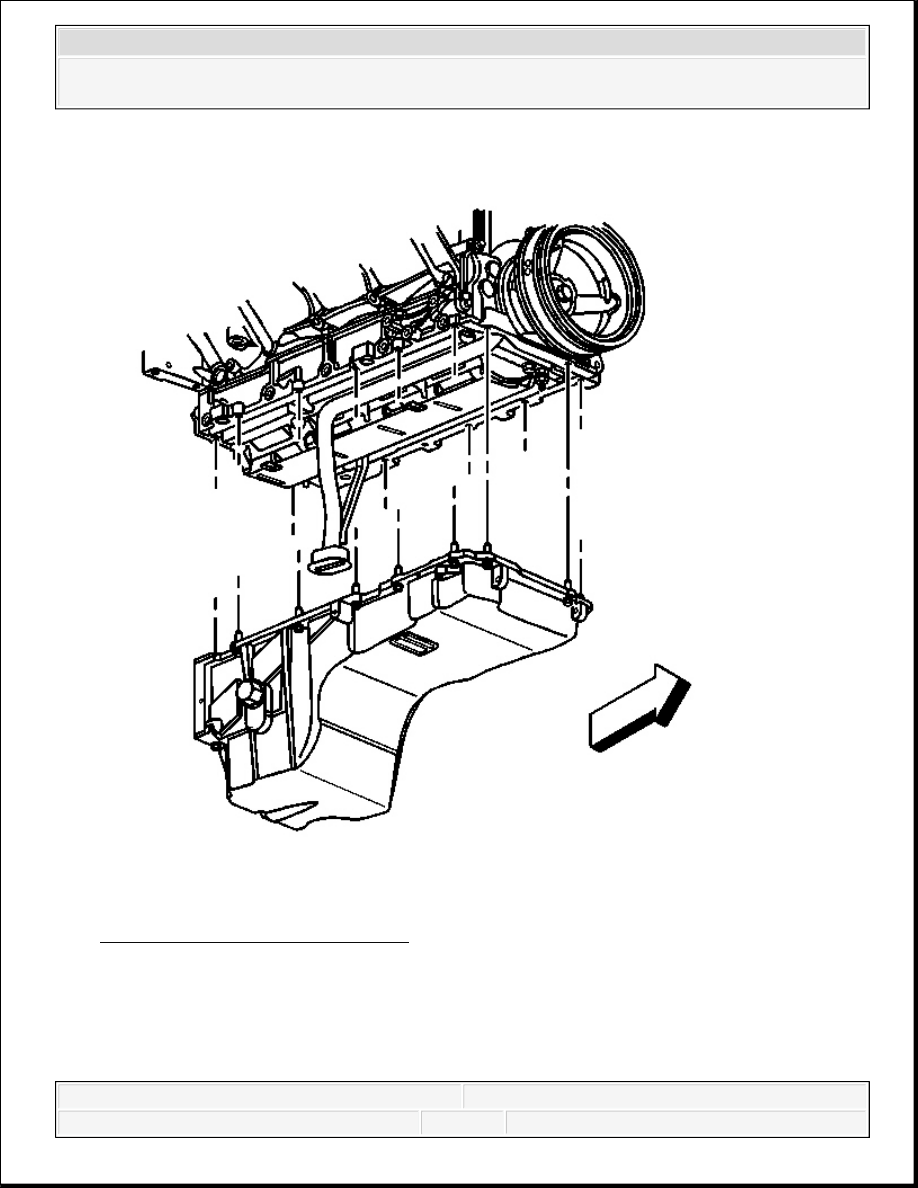

Fig. 447: View Of Oil Pan & Bolts
Courtesy of GENERAL MOTORS CORP.

30. Remove the oil pan bolts.

31. Remove the oil pan.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

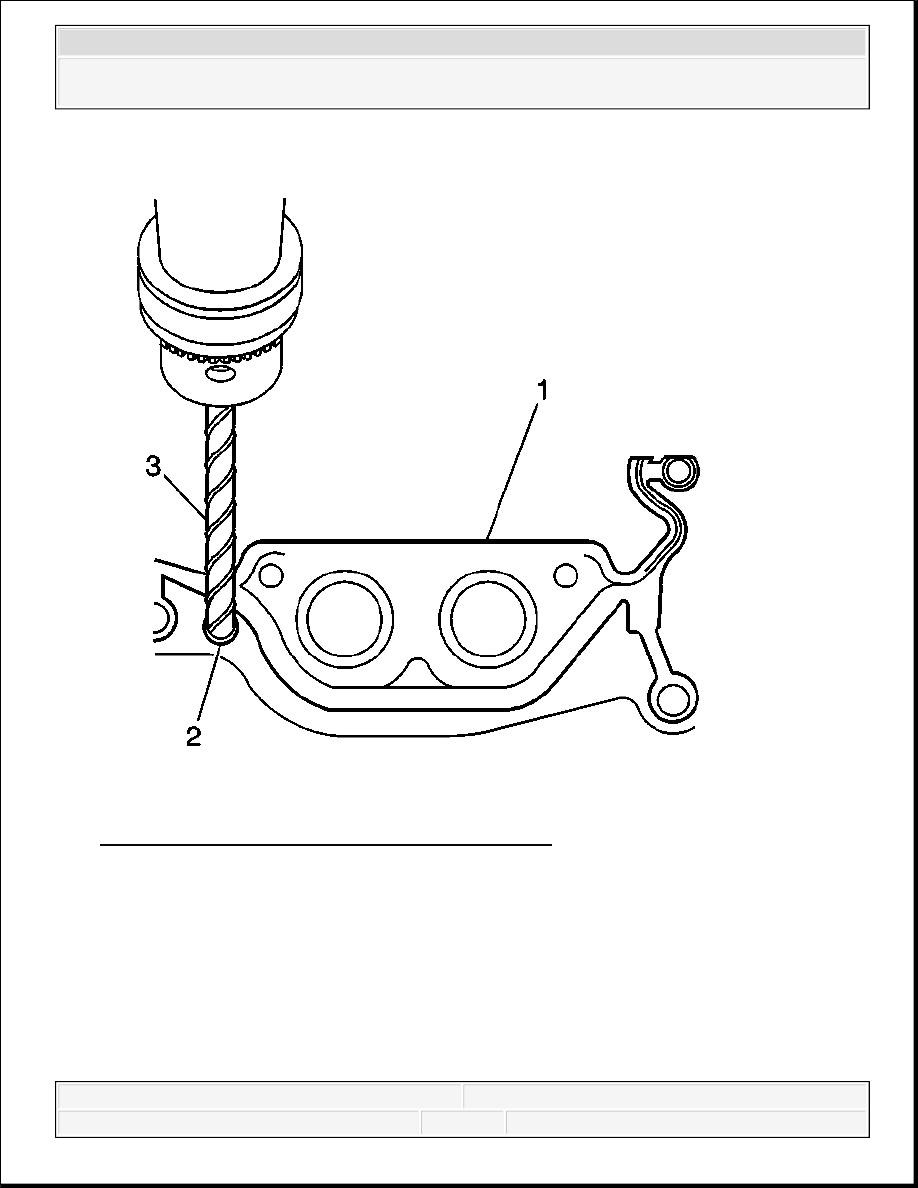

Fig. 448: Drilling Oil Pan Gasket Retaining Rivets
Courtesy of GENERAL MOTORS CORP.

32. If reusing the oil pan perform the following steps, otherwise proceed to step 3 of the

installation procedure.

33. Drill out the oil pan gasket rivets (2), if necessary.

IMPORTANT: DO NOT allow foreign material to enter the oil passages of

the oil pan, cap or cover the openings as required.
