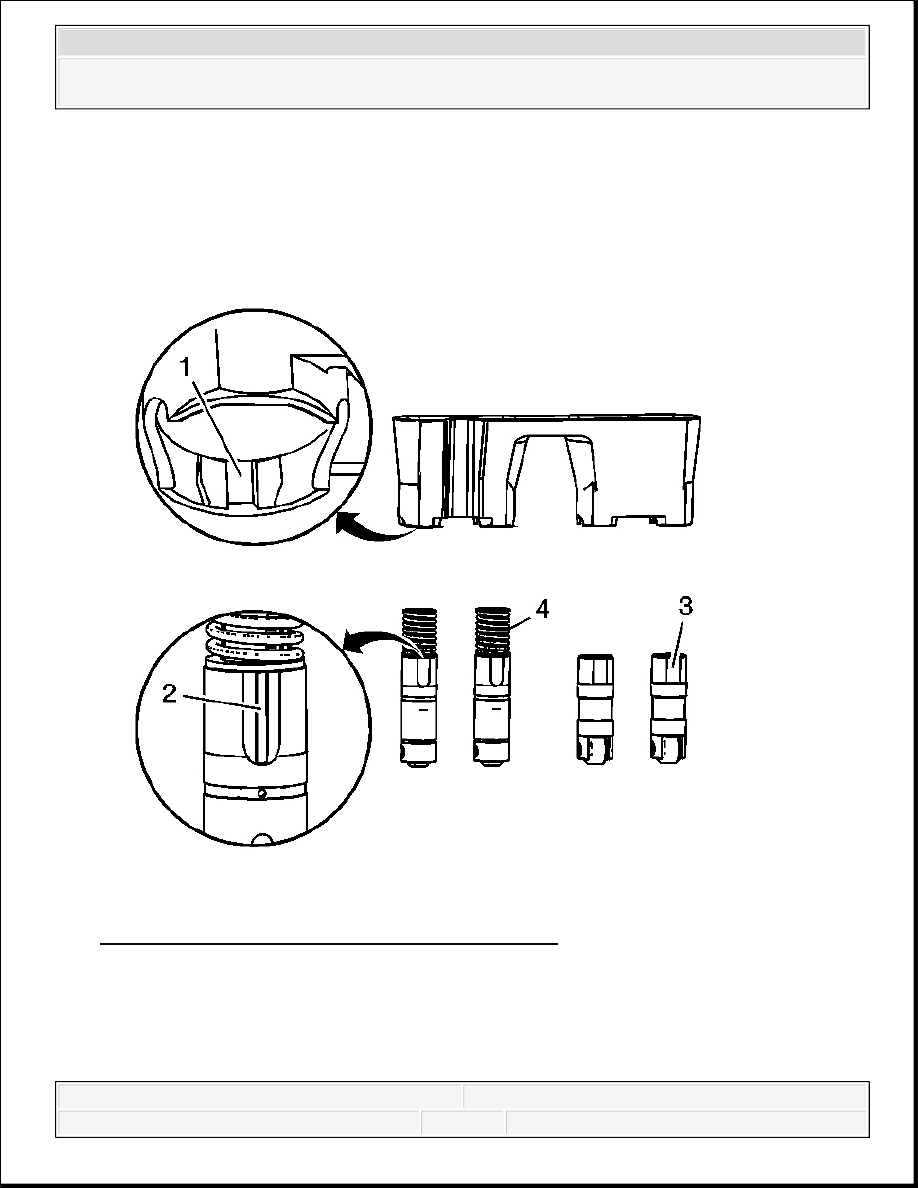

Fig. 308: Inserting Valve Lifters Into Lifter Guides 5. Organize or mark the components so that they can be installed in the same location from which they were removed, if required. 6. Clean and inspect the valve lifters, if required. Refer to Valve Lifters and Guides Cleaning and Inspection (RPO LY2/LY6/L92) or Valve Lifters and Guides Cleaning IMPORTANT: The active fuel management lifters are installed into the guide by aligning the notched area of the guide (1) with the
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

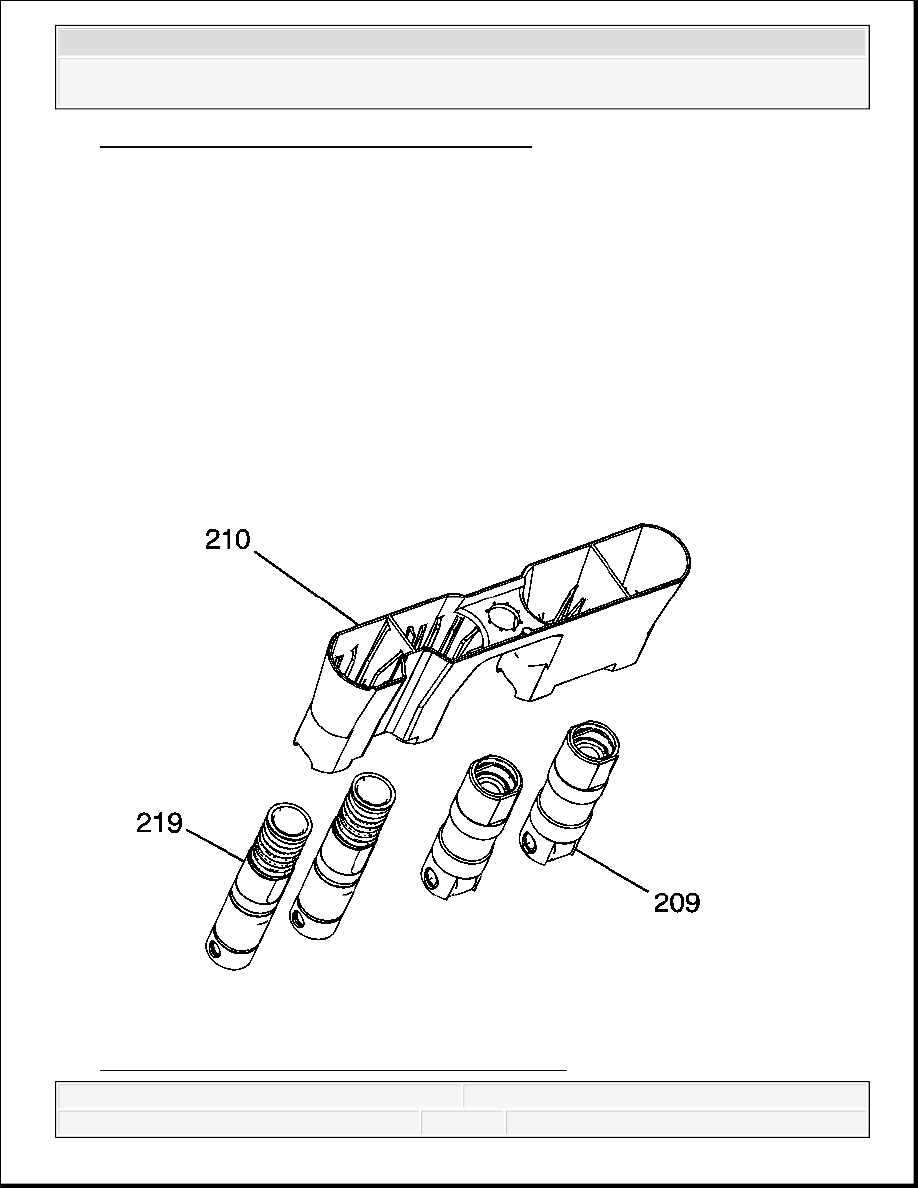

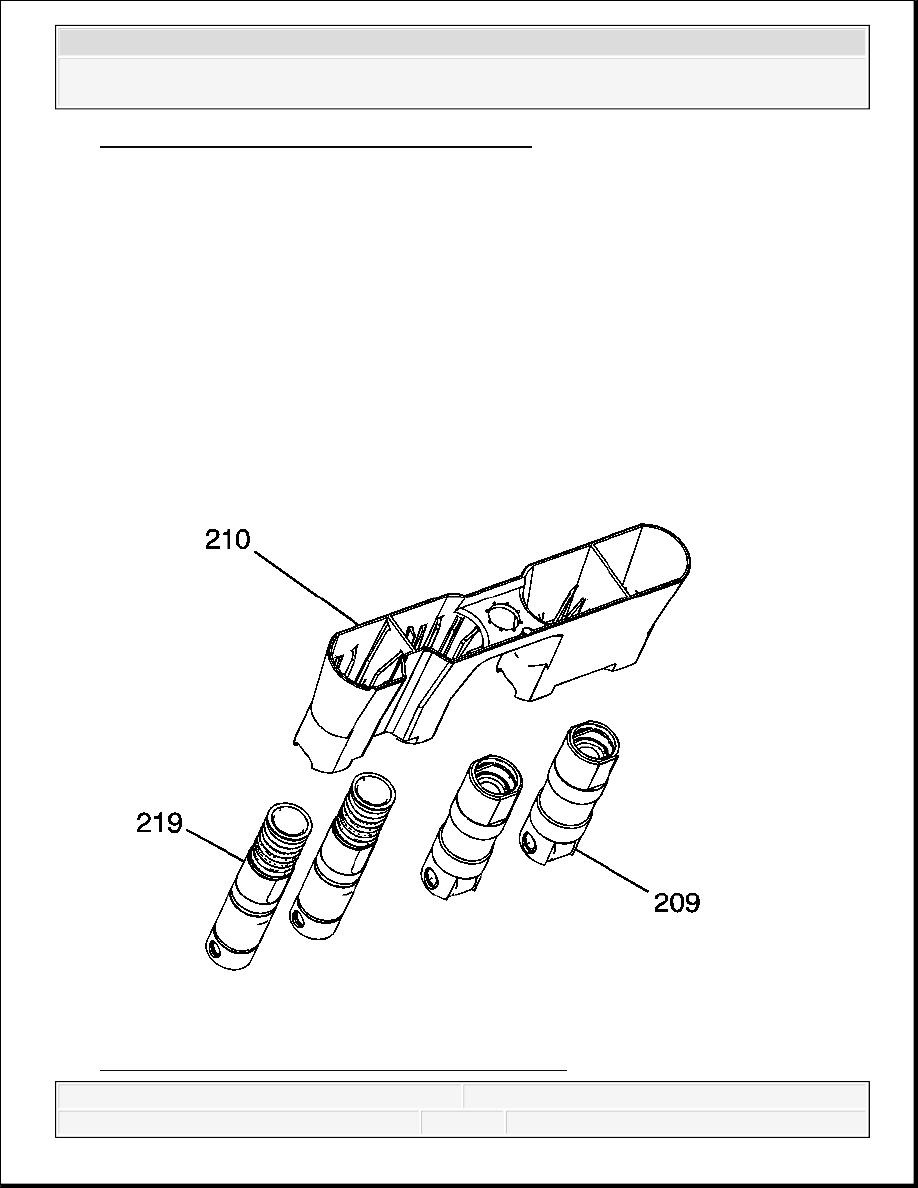

and Inspection (RPO LH6/LMG/LY5/LC9/L76) . Installation Procedure Fig. 309: Exploded View Of Lifter Guides & Lifters IMPORTANT: When reusing valve lifters, install the lifters to their original Each of the 4 valve guide assemblies will contain 2 active With the lifters and guides properly installed, cylinders 1, 4,
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

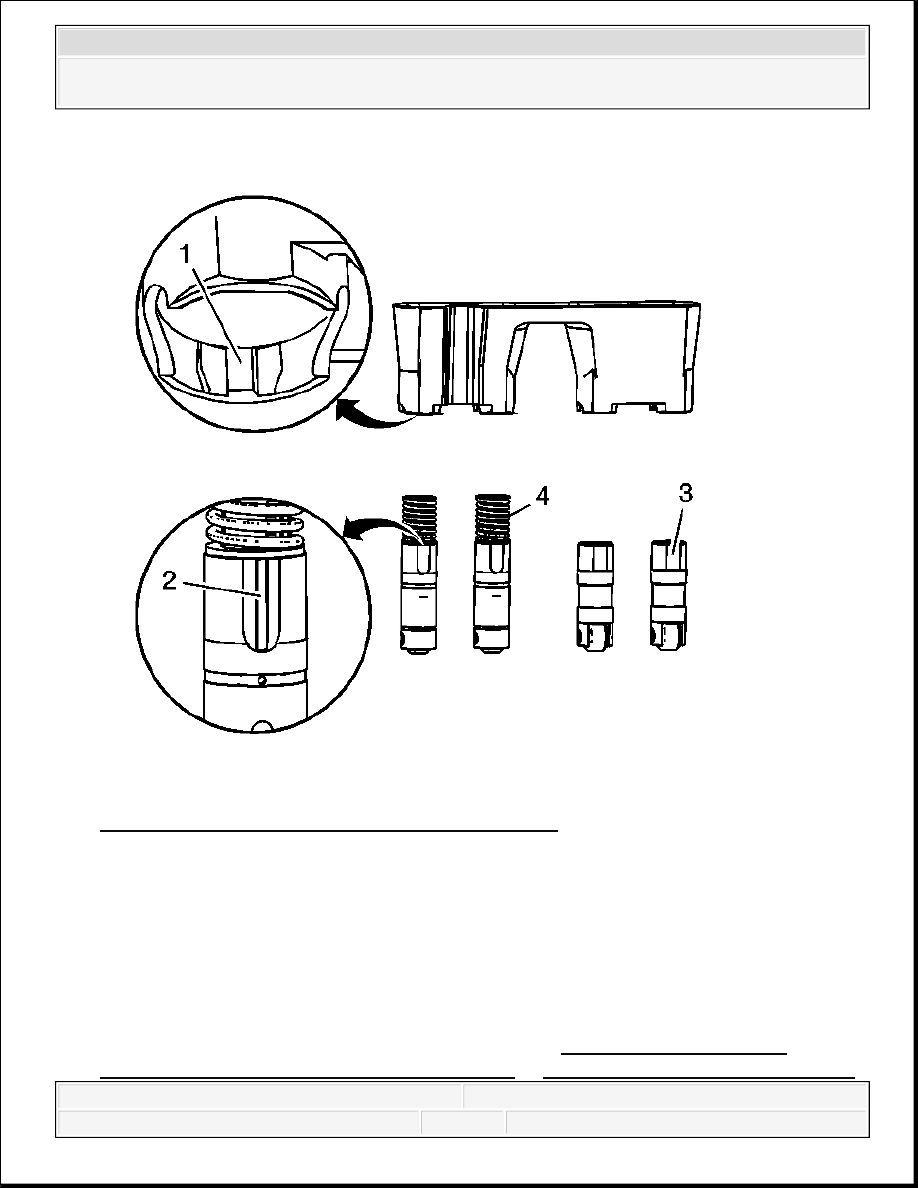

Courtesy of GENERAL MOTORS CORP. 1. Lubricate the valve lifters (209, 219) and engine block valve lifter bores with clean engine oil. Fig. 310: Inserting Valve Lifters Into Lifter Guides 2. Insert the valve lifters into the lifter guides. Align the flat area (3) on the top of the non active fuel management lifter with the flat
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

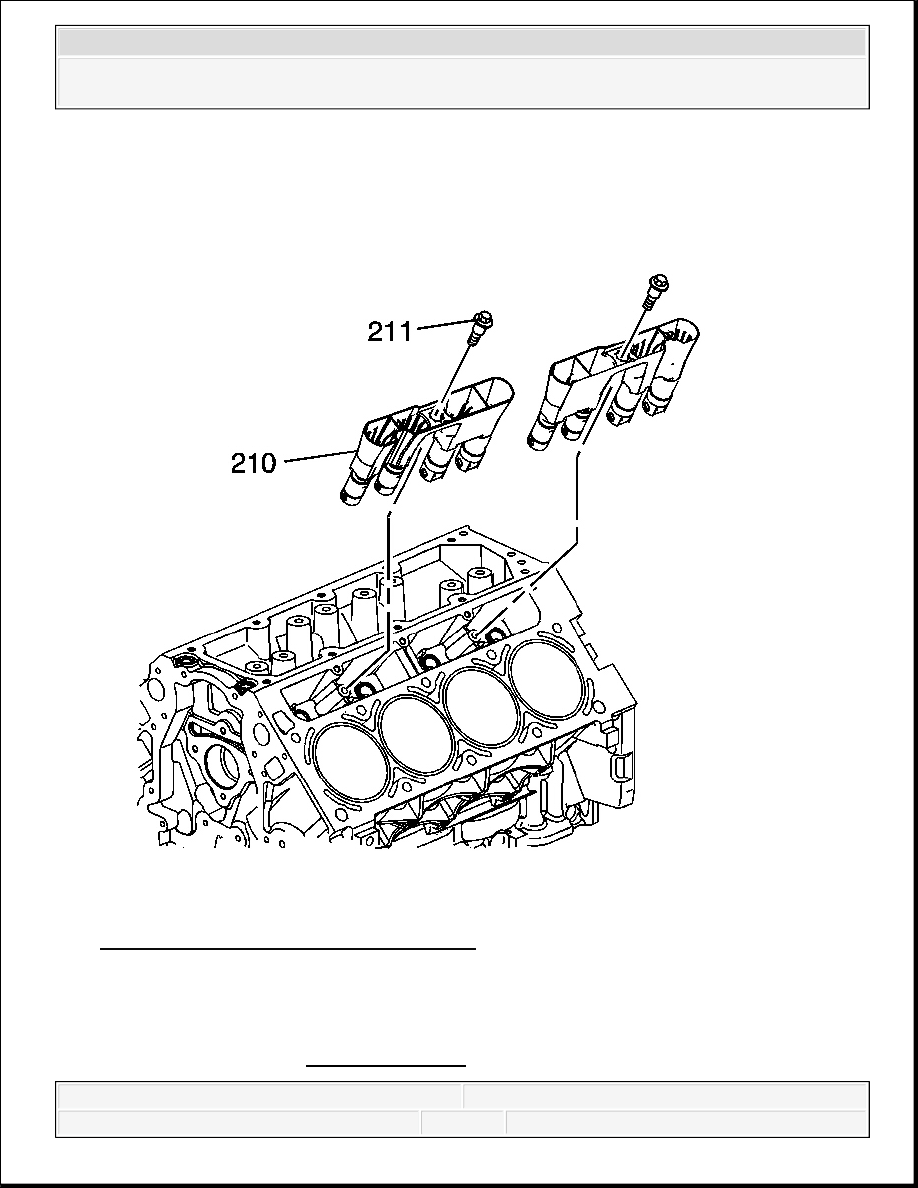

The active fuel management lifters are to be installed into the guide, with the notch in Fig. 311: View Of Lifter Guides & Lifters 3. Install the valve lifters and guide (210) to the engine block. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
