Fig. 255: View Of Radiator Surge Tank Outlet Hose, Clamp & Water Pump
Courtesy of GENERAL MOTORS CORP.
13. Install the surge tank outlet hose (2) to the heater hose bracket (3).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

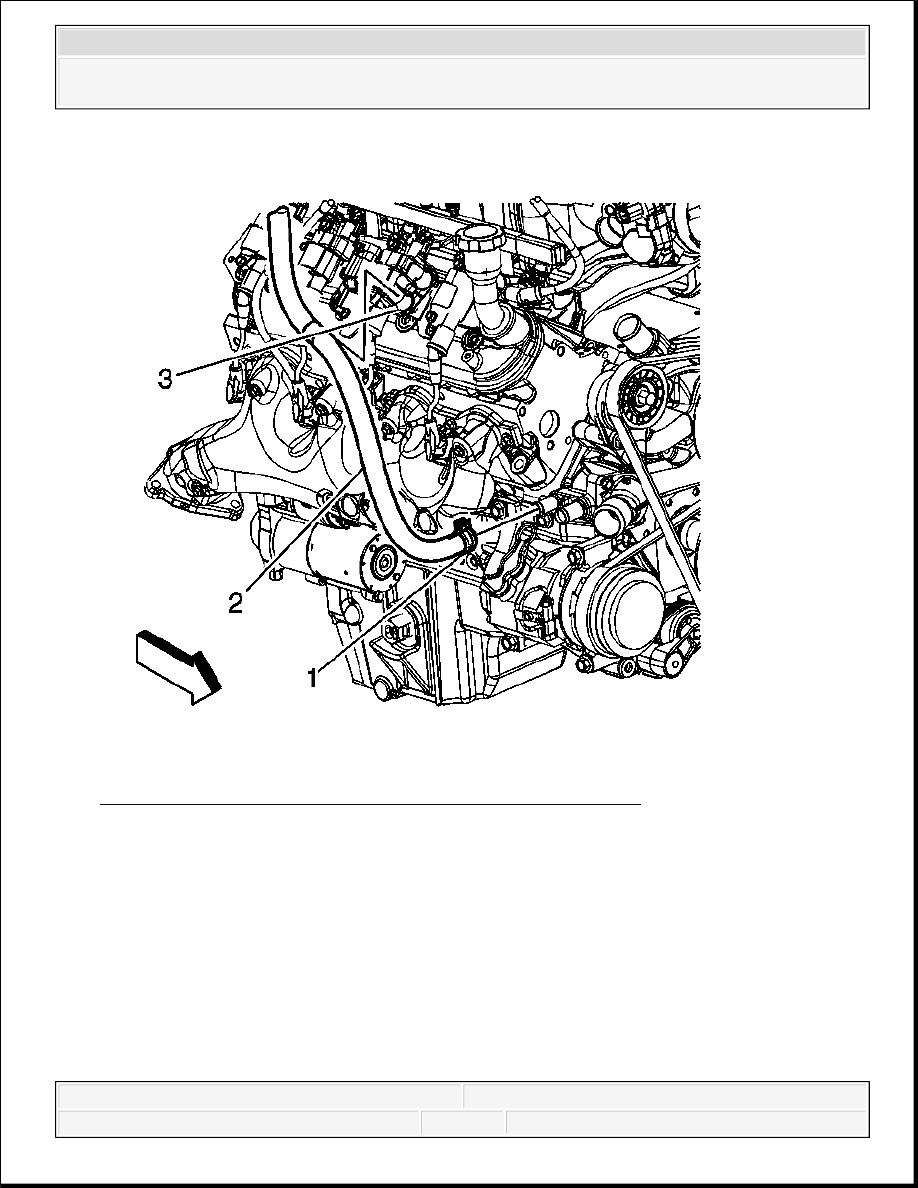

Fig. 256: View Of Heater Inlet Hose, Clamp & Water Pump
Courtesy of GENERAL MOTORS CORP.
14. Install the heater inlet hose (2) to the heater hose bracket (3).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

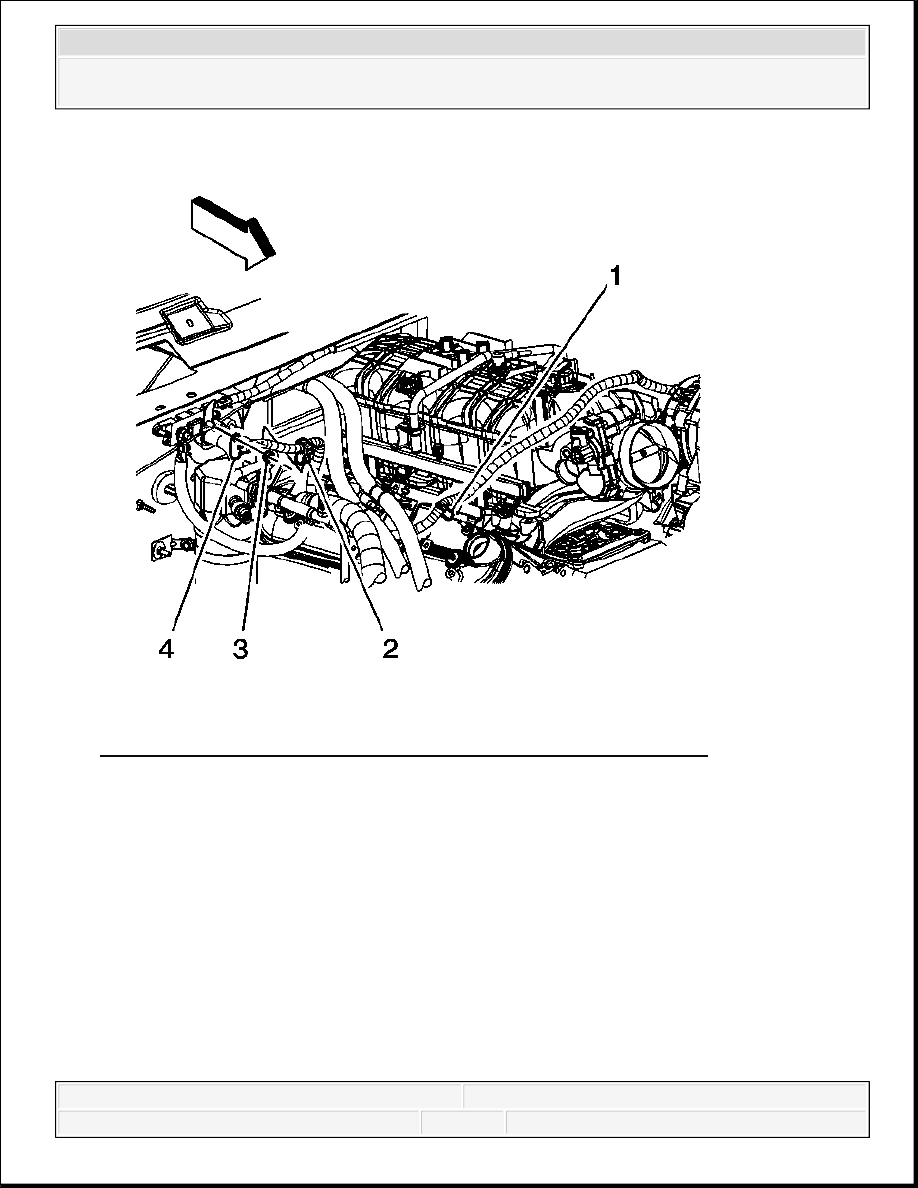

Fig. 257: View Of Generator Battery Jumper Cable & Components
Courtesy of GENERAL MOTORS CORP.
15. Position the generator battery cable as necessary.
16. Install the generator battery cable clip (1) to the ignition coil bracket stud.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

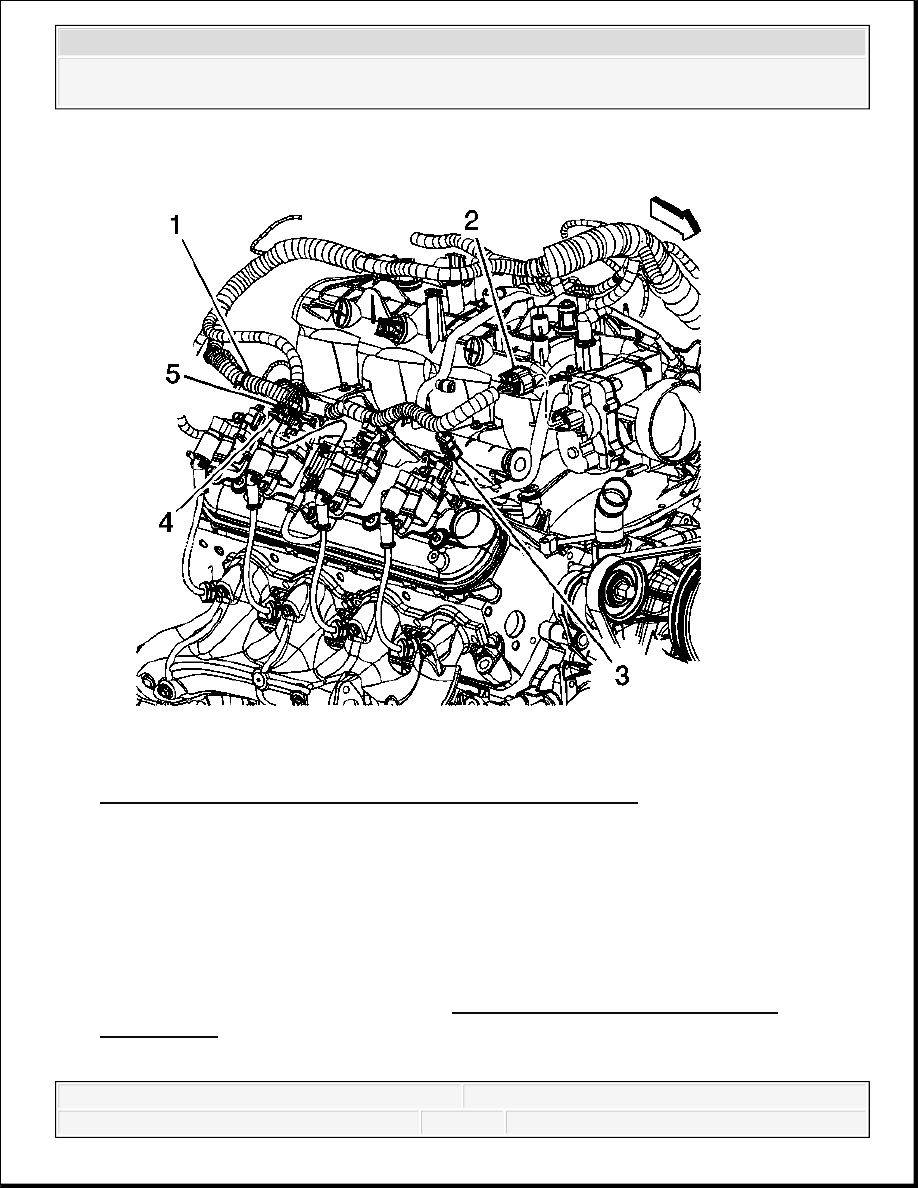

Fig. 258: Identifying Right Side Main Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
17. Position the engine wiring harness (electronic throttle control branch) as necessary.
18. Install the engine wiring harness (electronic throttle control branch) clip (6) to the ignition
coil bracket stud.
19. Connect the engine harness electrical connector (1) to the ignition coil wire harness.
20. Install the CPA retainer (2).
21. Install the intake manifold cover. Refer to Upper Intake Manifold Sight Shield
Replacement.
VALVE ROCKER ARM AND PUSH ROD REPLACEMENT
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
