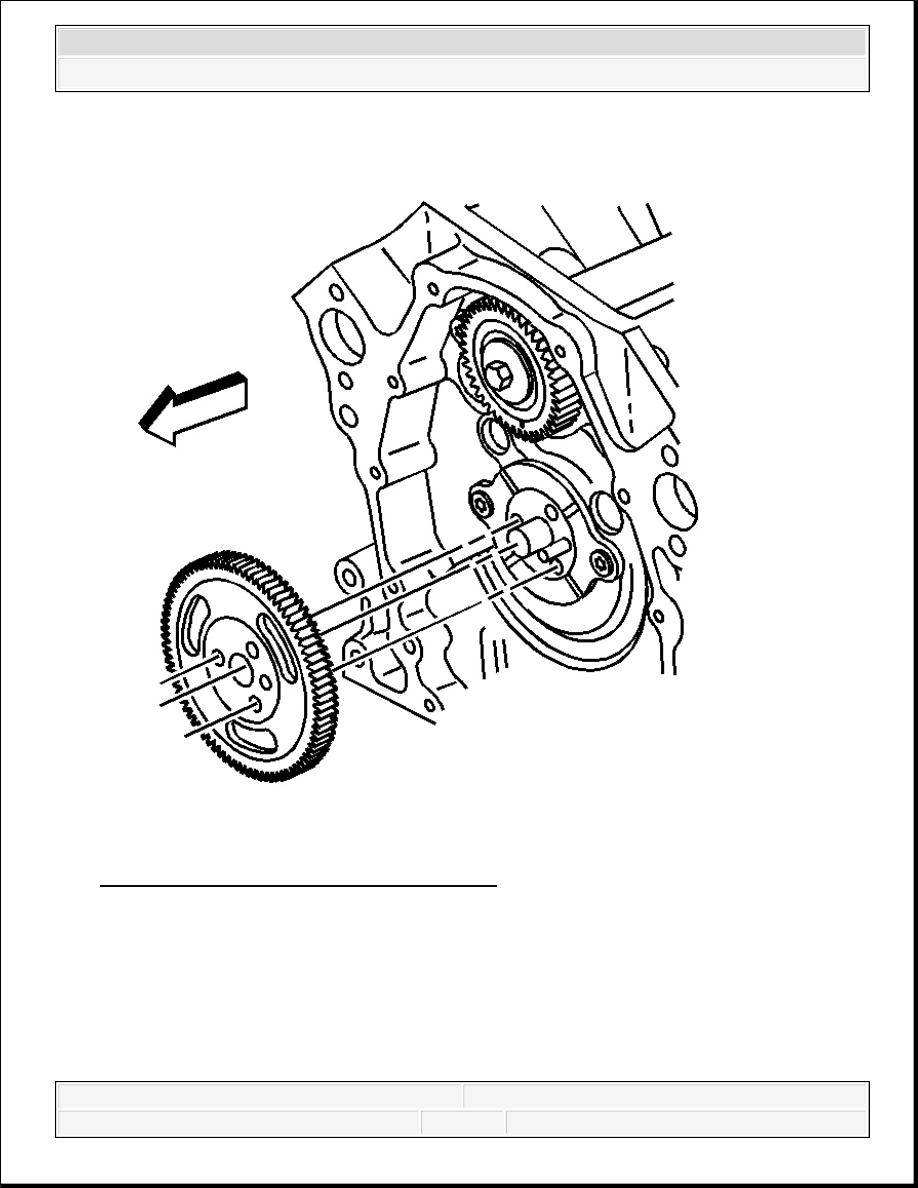

Fig. 647: View Of Balance Shaft Drive Gear
Courtesy of GENERAL MOTORS CORP.
11. Remove the balance shaft drive gear.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

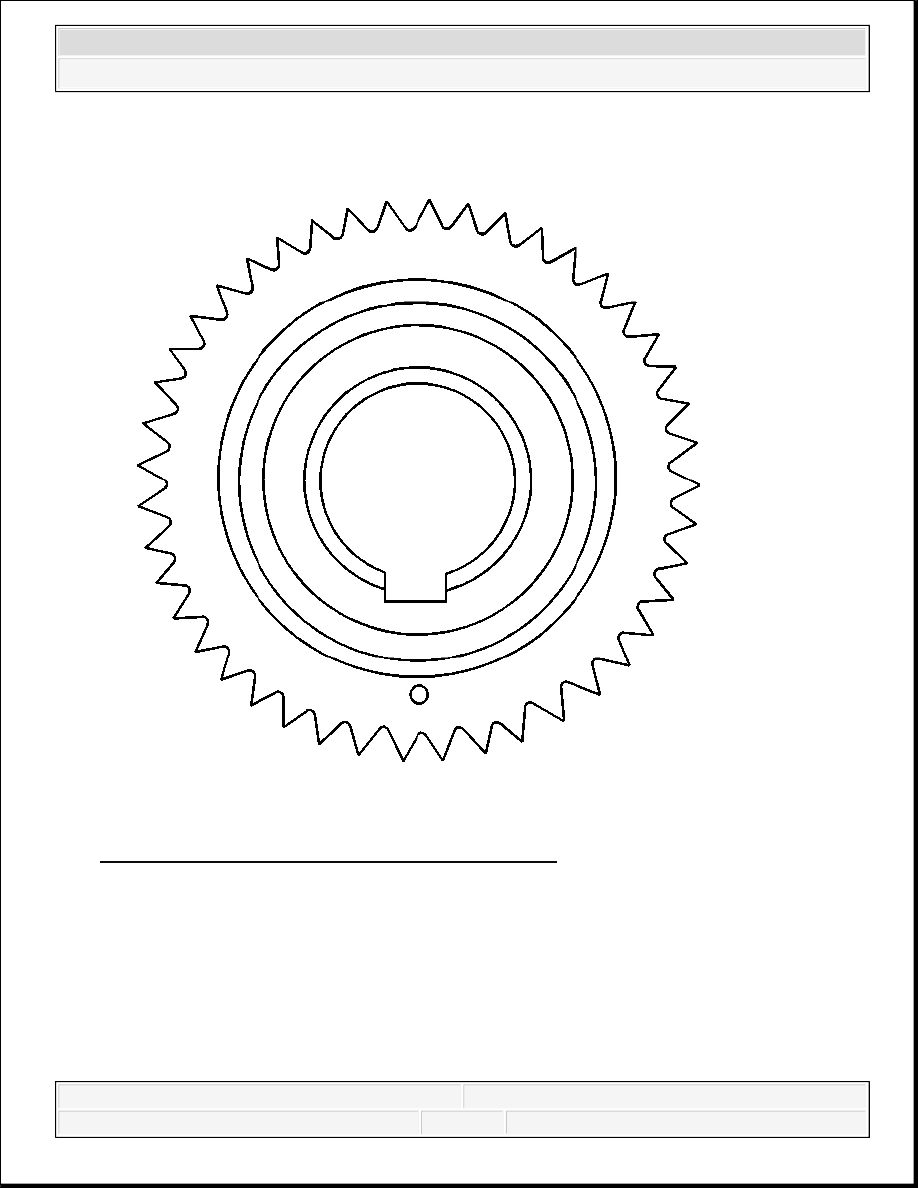

Fig. 648: Balance Shaft Driven Gear Timing Mark
Courtesy of GENERAL MOTORS CORP.
12. Rotate the balance shaft so that the timing mark on the balance shaft driven gear is in the 6
o'clock position.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

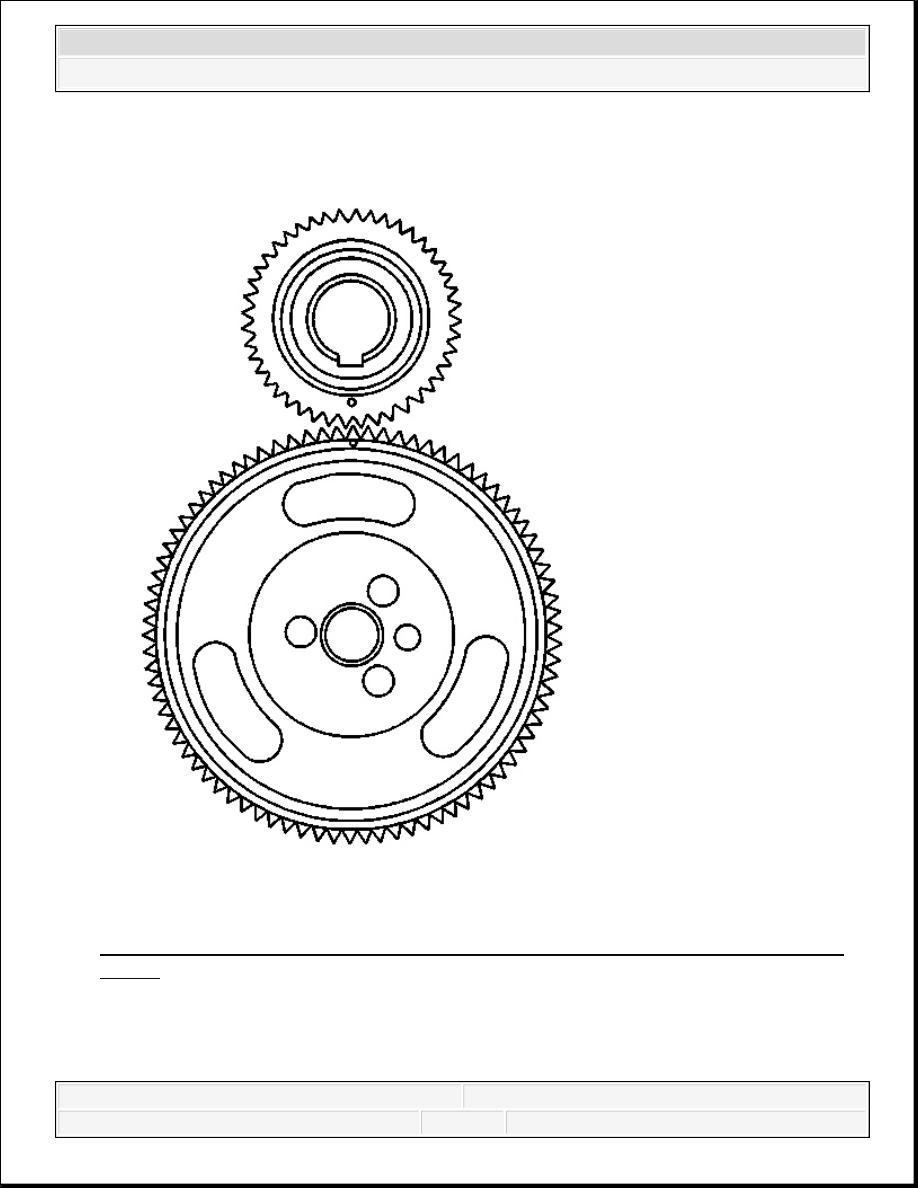

Fig. 649: Aligning Balance Shaft Drive Gear & Balance Shaft Driven Gear Timing
Marks
Courtesy of GENERAL MOTORS CORP.
13. Position the balance shaft drive gear onto the engine camshaft.
14. Look to ensure that the balance shaft drive gear and the balance shaft driven gear timing
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
marks are aligned.
TIMING CHAIN AND SPROCKETS INSTALLATION
Tools Required
J 5590 Pinion Bearing Race Installer - Rear. See Special Tools.
Installation

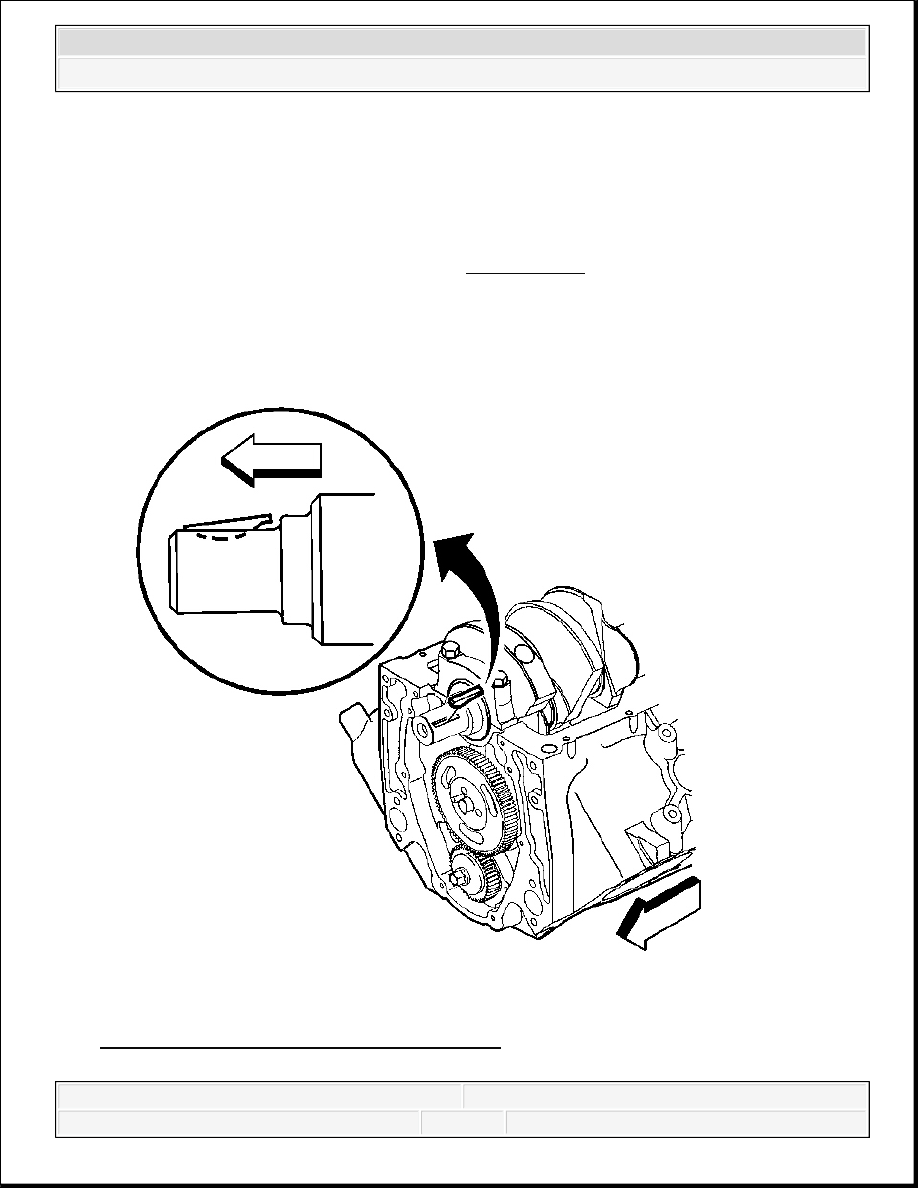

Fig. 650: Locating Crankshaft Balancer Key
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
