Chevrolet Silverado / GMC Sierra. Manual - part 1927
Fig. 87: View Of MAP Sensor & Retainer
Courtesy of GENERAL MOTORS CORP.
36. Remove the manifold absolute pressure (MAP) sensor retainer.
37. Remove the MAP sensor.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Fig. 88: View Of EVAP Tube & Purge Solenoid
Courtesy of GENERAL MOTORS CORP.
38. Disconnect the EVAP tube quick connect fitting at the intake manifold. Refer to Plastic
Collar Quick Connect Fitting Service .
39. Disengage the retainer securing the EVAP canister purge solenoid to the fuel rail.
40. Remove the EVAP tube and purge solenoid.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Fig. 89: View Of Throttle Body, Gasket & Bolts/Nuts
Courtesy of GENERAL MOTORS CORP.
41. Remove the throttle body bolts/nuts.
42. Remove the throttle body.
43. Remove and discard the throttle body gasket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

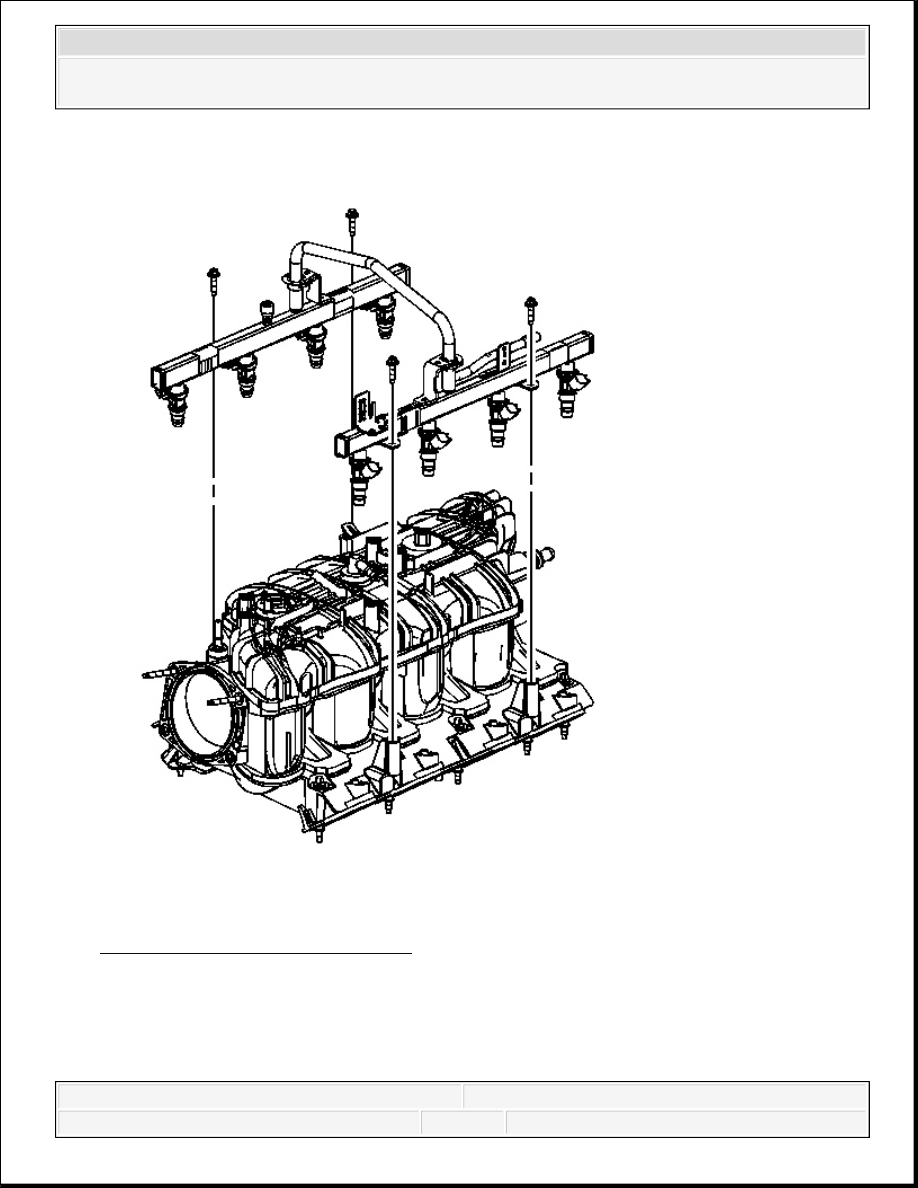

Fig. 90: View Of Fuel Rail & Bolts
Courtesy of GENERAL MOTORS CORP.
44. Remove the fuel rail bolts.
IMPORTANT: Lift evenly on both sides of the fuel rail until all injectors are
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
