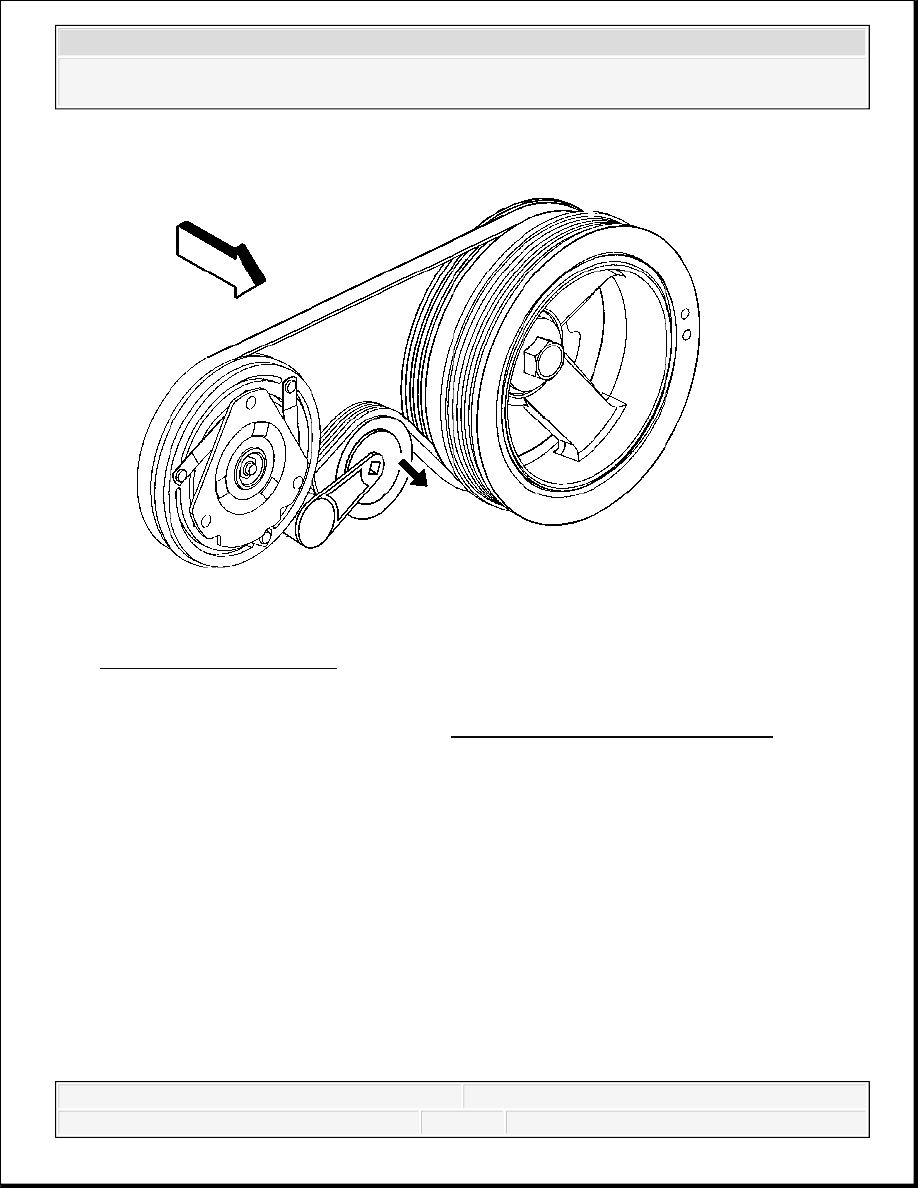

Fig. 3: A/C Belt Tensioner 1. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory. 2. Install a ratchet into the air conditioning (A/C) belt tensioner adapter opening. 3. Rotate the A/C belt tensioner clockwise in order to relieve tension on the A/C belt. 4. Remove the A/C belt from the pulleys. 5. Slowly release the tension on the A/C belt tensioner. 6. Remove the ratchet from the A/C belt tensioner. 7. Clean and inspect the belt surfaces of all the pulleys. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

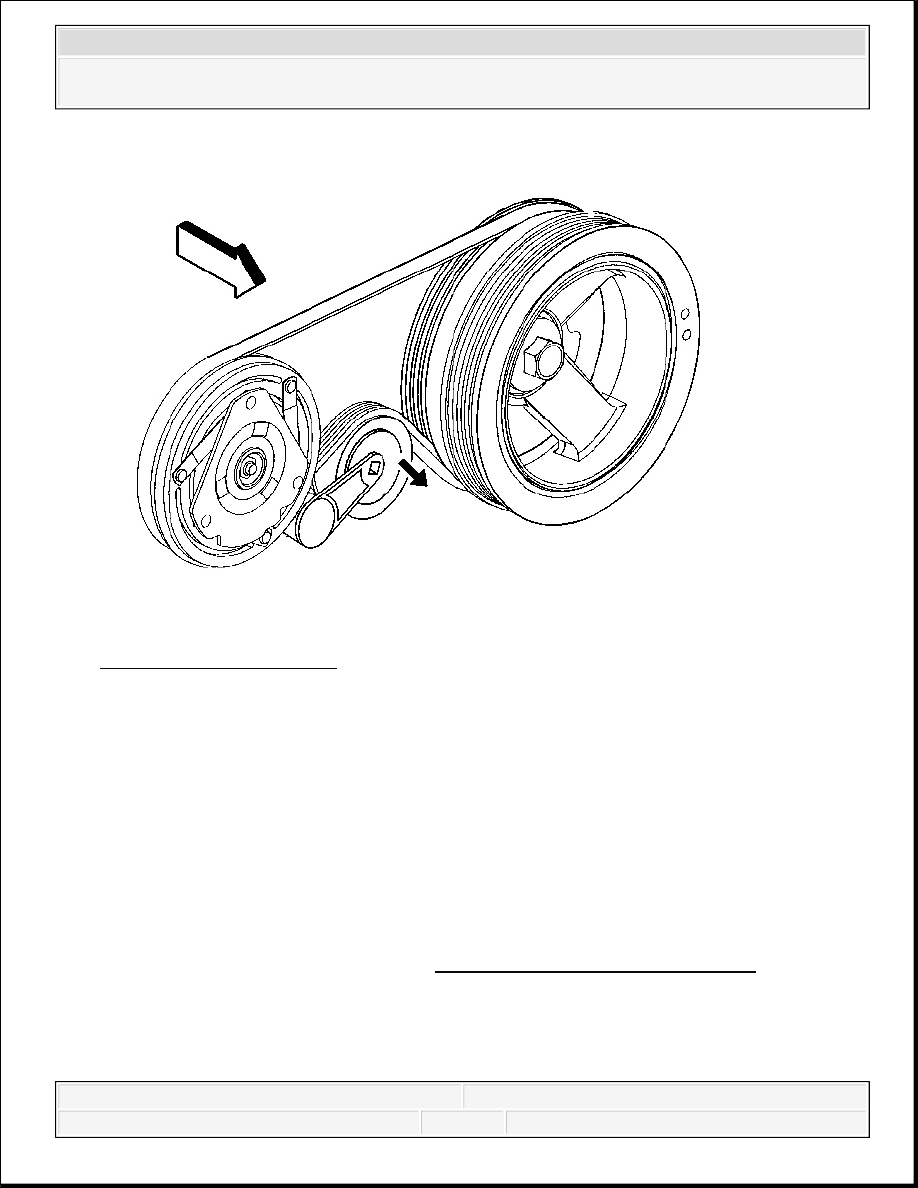

Fig. 4: A/C Belt Tensioner 1. Install the A/C belt over the crankshaft balancer. 2. Install a ratchet into the A/C drive belt tensioner adapter opening 3. Rotate the A/C belt tensioner clockwise in order to relieve tension on the belt tensioner. 4. Install the A/C belt over the tensioner pulley. 5. Install the A/C belt around the A/C compressor pulley. 6. Slowly release the tension on the A/C belt tensioner. 7. Remove the ratchet from the A/C belt tensioner. 8. Inspect the A/C belt for proper installation and alignment. 9. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory. DRIVE BELT IDLER PULLEY REPLACEMENT Removal Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

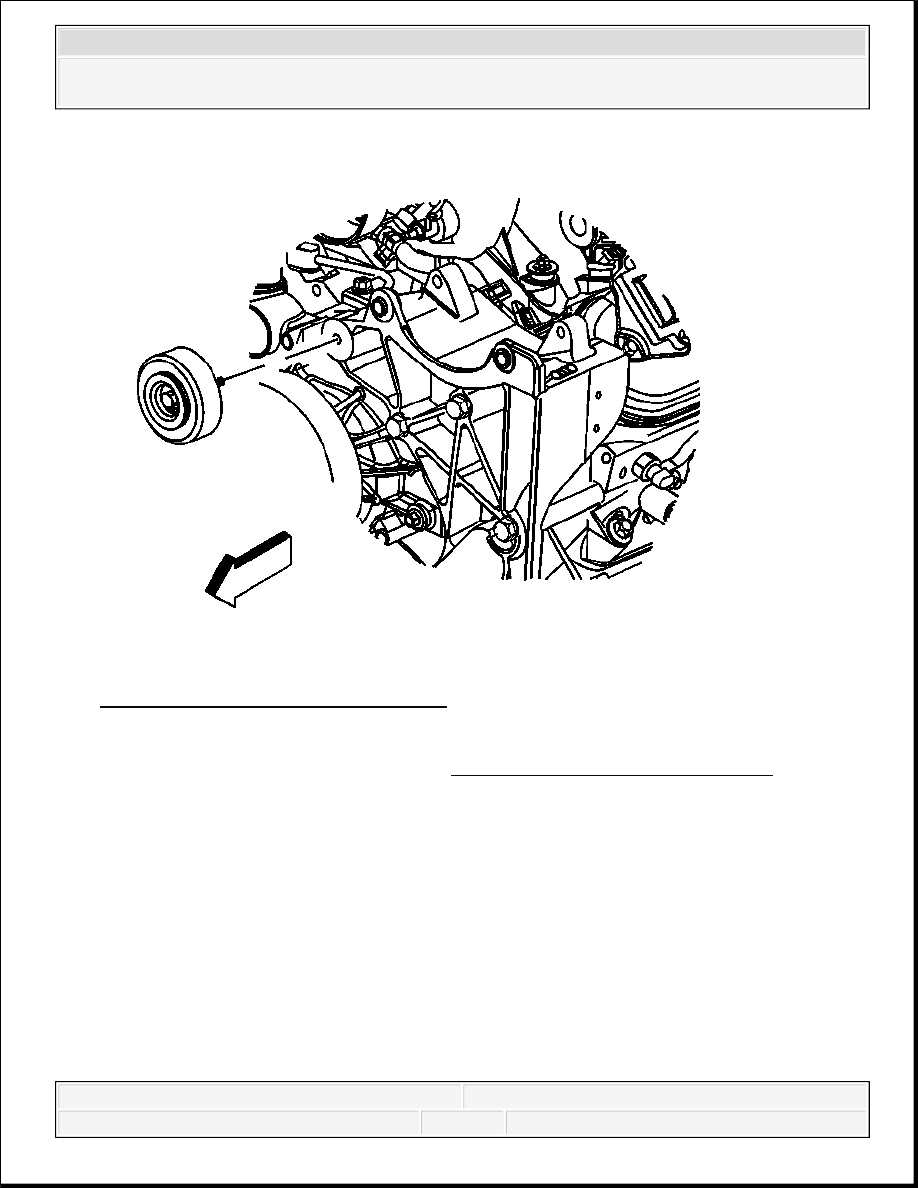

Fig. 5: View Of Drive Belt Idler Pulley 1. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory. 2. Loosen the drive belt idler pulley bolt and remove the idler pulley. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 6: View Of Drive Belt Idler Pulley 1. Position the drive belt idler pulley to the generator bracket and tighten the idler pulley bolt finger tight. 2. Tighten the drive belt idler pulley bolt. Tighten: Tighten the bolt to 50 N.m (37 lb ft). 3. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory. DRIVE BELT TENSIONER REPLACEMENT - ACCESSORY Removal Procedure NOTE: Refer to Fastener Notice .
