Tighten: Tighten the bolts to 25 N.m (18 lb ft). Fig. 168: View Of RPO MW7 Exhaust Pipe Hanger Bracket, Bolts & Studs 2. If equipped with a Allison® automatic transmission, RPO MW7, install the exhaust pipe hanger bracket and bolt/stud. Tighten: Tighten the bolt/stud to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 169: View Of Exhaust Pipe Hanger Bracket & Bolts 3. If equipped with a 4L80-E automatic transmission, RPO MT1, install the exhaust pipe hanger bracket and bolts. Tighten: Tighten the bolts to 25 N.m (18 lb ft). 4. If equipped with a 6.6L engine, install the catalytic converter. Refer to Catalytic Converter Replacement (4.3L) or Catalytic Converter Replacement (4.8L, 5.3L, 6.0L, 5. If equipped with a 6.0L engine, install the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side (6.0L - Cab/Chassis). 6. If equipped with a 6.0L engine, install the exhaust manifold pipe. Refer to Exhaust
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Manifold Pipe Replacement (6.0L - Cab/Chassis). MUFFLER REPLACEMENT (1500 SERIES W/4.3L, 4.8L, 5.3L, 6.0L) Removal Procedure Fig. 170: View Of Catalytic Converter To Muffler Nuts 1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Lower the spare tire. 3. Remove the catalytic converter to exhaust muffler nuts.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

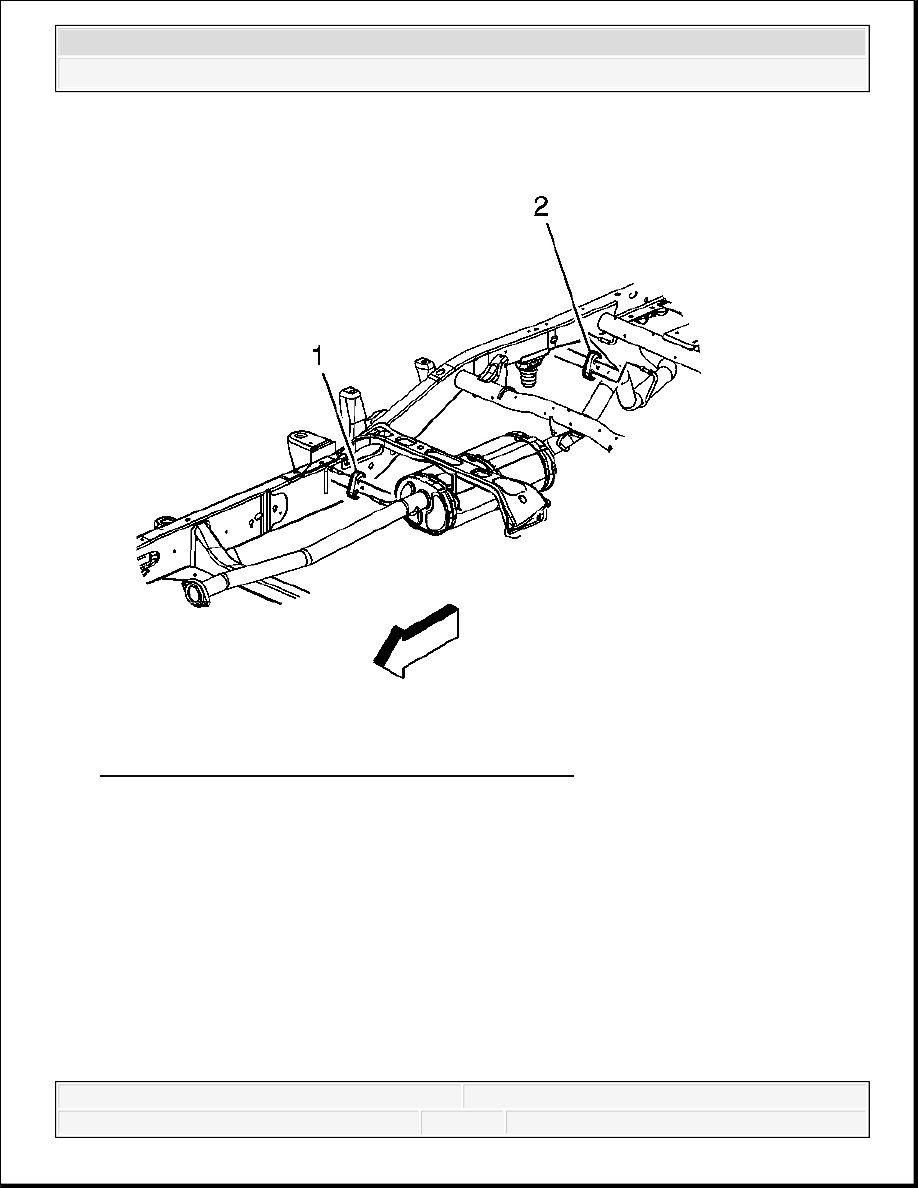

Fig. 171: View Of Rear Muffler Assembly Insulators 4. If equipped with a 4.8L engine, perform the following steps, otherwise proceed to step 7. 5. Lubricate the 3 insulators where the muffler assembly hangers are inserted in order to ease removal. 6. With the aid of an assistant, remove the insulators (1, 2) from the front and rear muffler assembly hangers.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
