Fig. 79: View Of Left Exhaust Pipe 5. Remove the exhaust pipe and gaskets. Discard the gaskets. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 80: View Of Left Exhaust Pipe 1. Position the exhaust pipe with a NEW gasket to the turbocharger. 2. Loosely install the exhaust pipe to turbocharger bolts. 3. Position the exhaust pipe with a NEW gasket to the exhaust manifold. Align the tabs on the gasket to face downward. 4. Loosely install the exhaust pipe to exhaust manifold bolts.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 81: Exhaust Pipe To Exhaust Manifold Bolt Tightening Sequence - Left Side 5. Tighten the exhaust pipe bolts in the sequence shown. Tighten: Tighten the bolts to 53 N.m (39 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

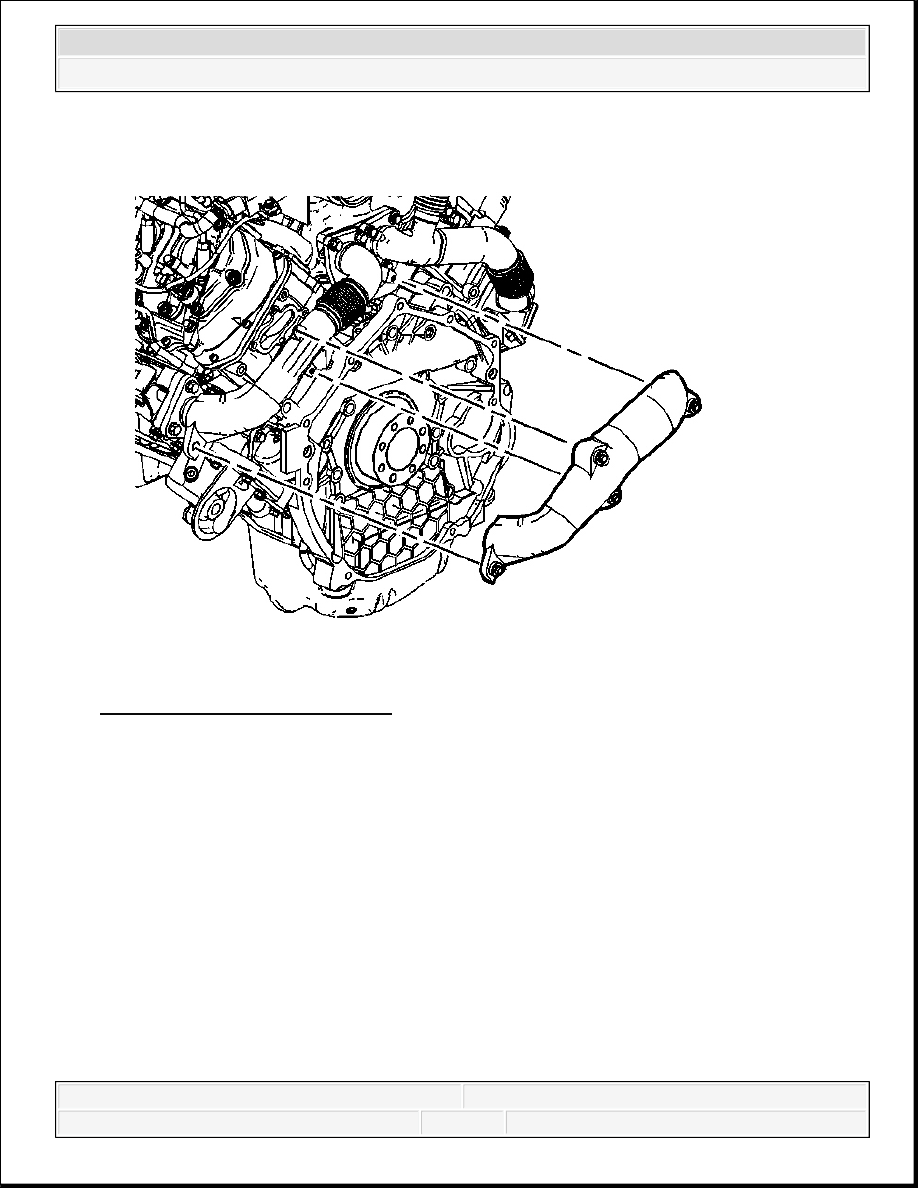

Fig. 82: View Of Exhaust Outlet 6. Install the exhaust pipe heat shield bolts. Tighten: Tighten the bolts to 10 N.m (89 lb in).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Exhaust - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
