Fig. 269: View Of Coolant Heater Cord 3. Disconnect the coolant heater cord electrical connector.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 270: View Of Coolant Heater Cord & Components 4. Remove the coolant heater cord retainer (5) from the frame. 5. Remove the coolant heater cord clip (6) from the front brake front pipe. 6. Lower the vehicle. 7. Remove the coolant heater cord bolt (4) from the frame. 8. Remove the coolant heater cord clip (2) from the chassis harness. 9. Remove the coolant heater cord clip (1) from the front spring stud. 10. Remove the coolant heater cord from the vehicle.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Installation Procedure Fig. 271: View Of Coolant Heater Cord & Components 1. Install the coolant heater cord to the vehicle. 2. Install the coolant heater cord clip (1) to the front spring stud. 3. Install the coolant heater cord clip (2) to the chassis harness. 4. Position the coolant heater cord clip to the frame and install the coolant heater cord bolt NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

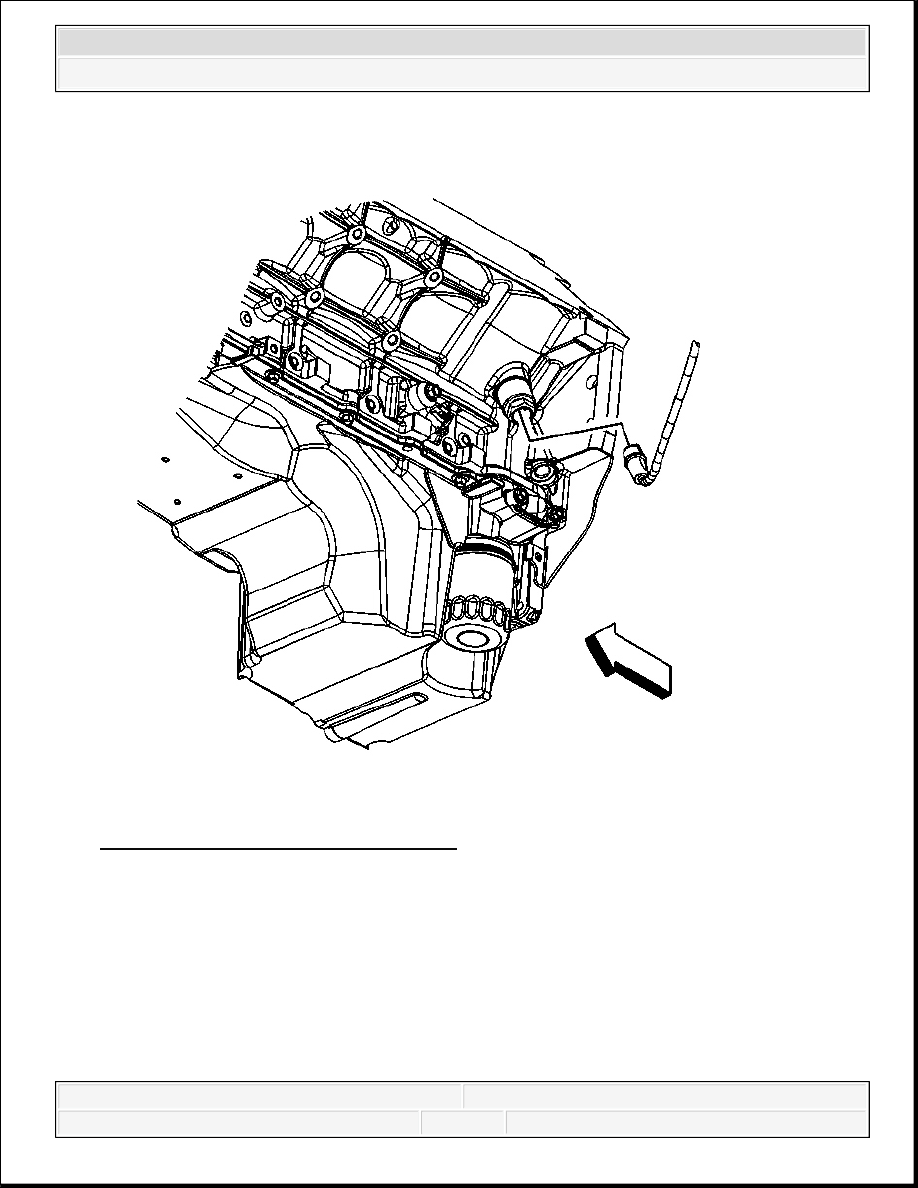

(4). Tighten: Tighten the bolt to 8 N.m (71 lb in). 5. Raise the vehicle. 6. Install the coolant heater cord clip (6) to the front brake front pipe. 7. Position the coolant heater cord clip to the frame and install the coolant heater cord retainer (5). Fig. 272: View Of Coolant Heater Cord
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
