Fig. 210: View Of Water Pump, Bolts & Gaskets 18. Remove the water pump bolts (301). 19. Remove the water pump (300) and gaskets (309). Discard the gaskets. Installation Procedure NOTE: DO NOT use cooling system seal tabs, or similar compounds, IMPORTANT: All gaskets surfaces are to be free of oil or other foreign material
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 211: View Of Water Pump, Bolts & Gaskets 1. Position the water pump (300) and NEW gaskets (306) to the engine block. 2. Install the water pump bolts (301). Tighten: 1. Tighten the bolts a first pass to 15 N.m (11 lb ft). 2. Tighten the bolts a final pass to 30 N.m (22 lb ft). during assembly. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

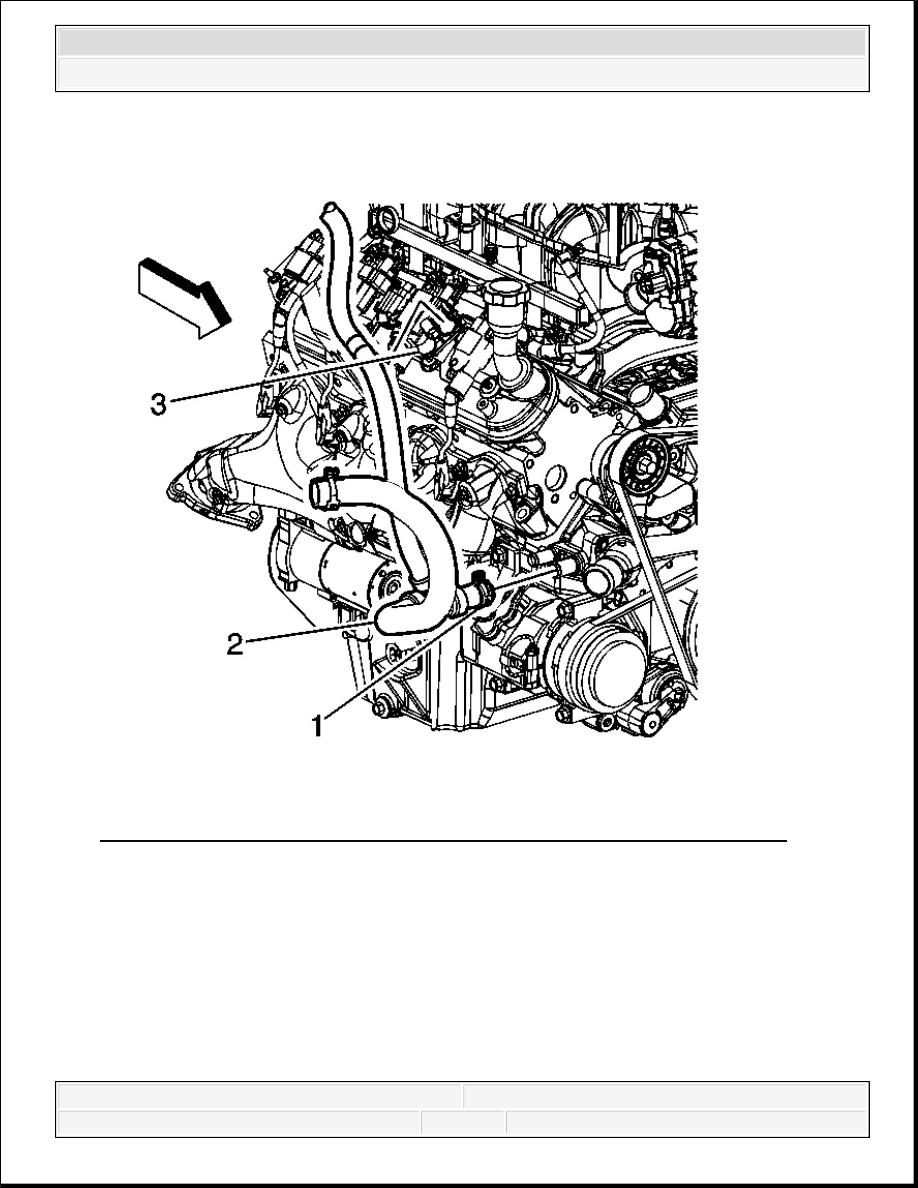

Fig. 212: View Of Heater Inlet Hose, Clamp & Waterpump 3. Position and install the heater inlet hose (2) to the water pump. 4. Position the heater inlet hose clamp (1) at the water pump.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

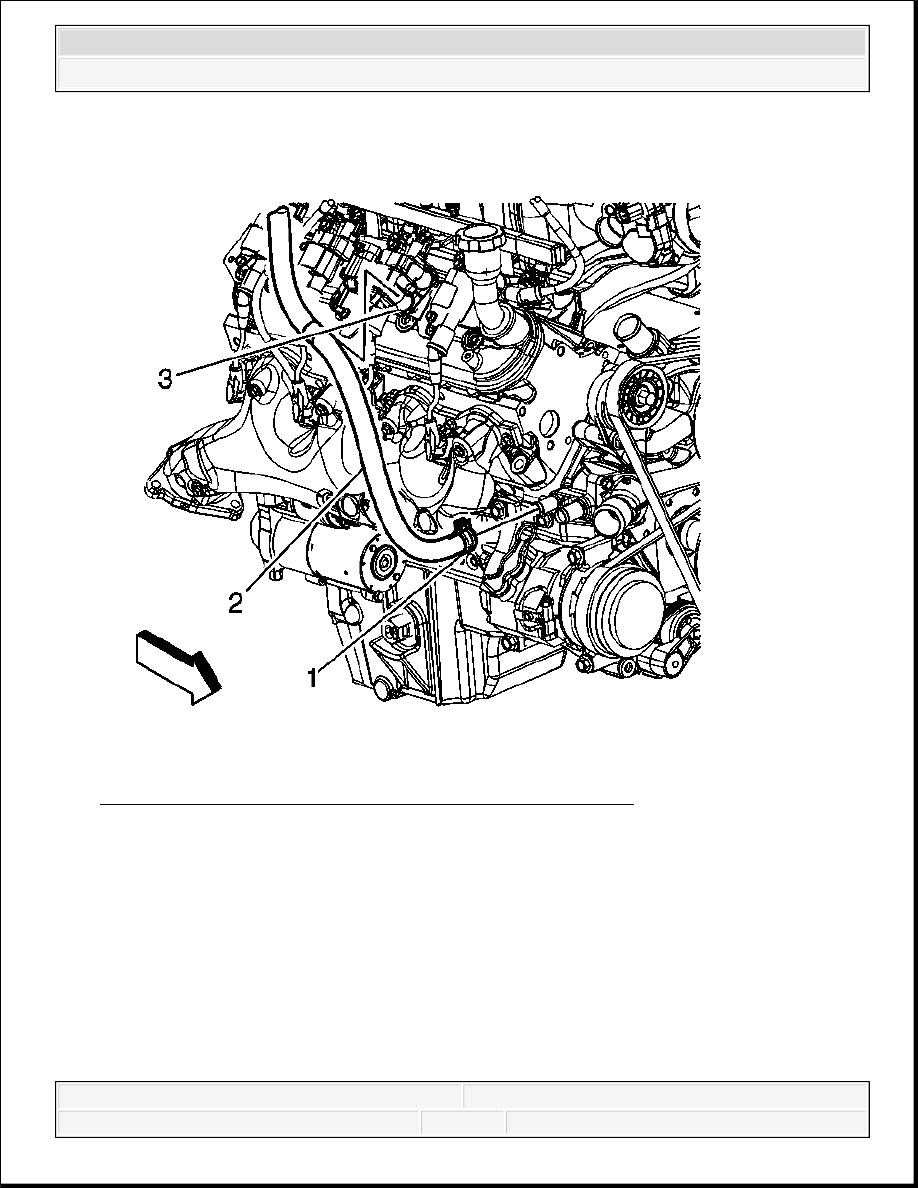

Fig. 213: View Of Radiator Surge Tank Outlet Hose, Clamp & Water Pump 5. Position and install the radiator surge tank outlet hose (2) to the water pump. 6. Position the radiator surge tank outlet hose clamp (1) at the water pump.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
