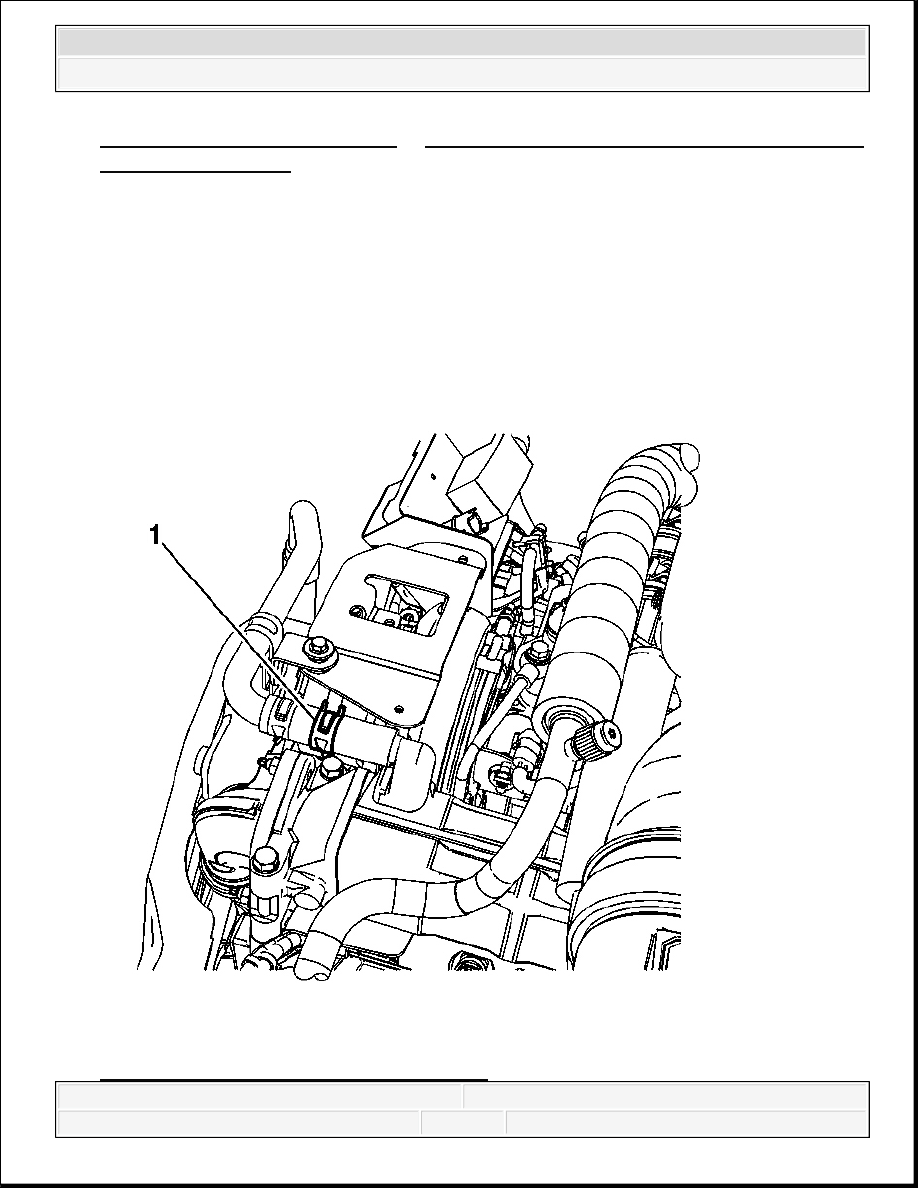

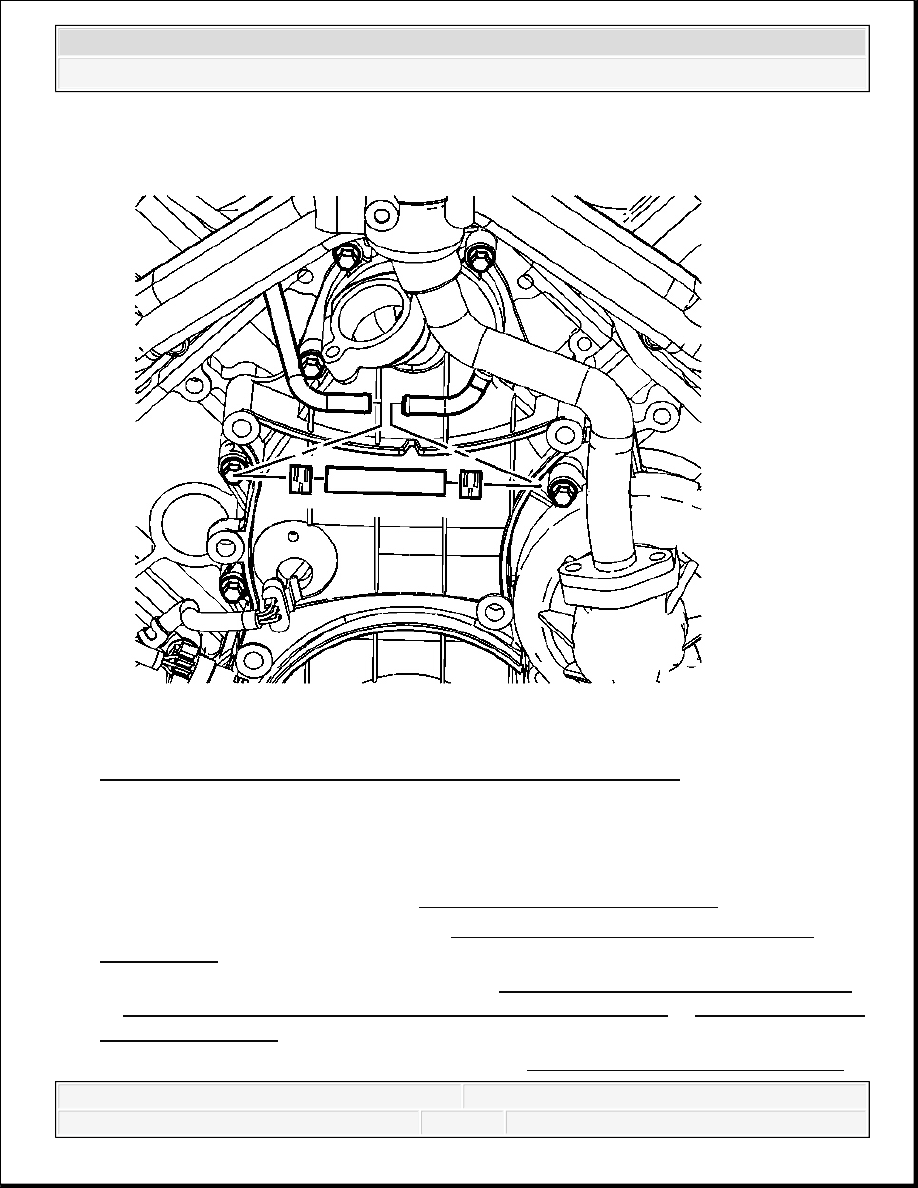

Fig. 112: View Of Turbocharger Coolant Outlet Hose & Clamps 7. Install the turbocharger coolant outlet hose to the bypass pipe. 8. Position the hose clamp at the bypass pipe. 9. Install the cooling fan clutch. Refer to Fan Clutch Replacement (Diesel). 10. Install the EGR cooler assembly. Refer to Exhaust Gas Recirculation Valve Cooler Replacement . 11. Install the generator mounting bracket. Refer to Generator Bracket Replacement (4.3L) or Generator Bracket Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Generator Bracket 12. Install the turbocharger coolant inlet pipe. Refer to Turbocharger Coolant Hoses/Pipes
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

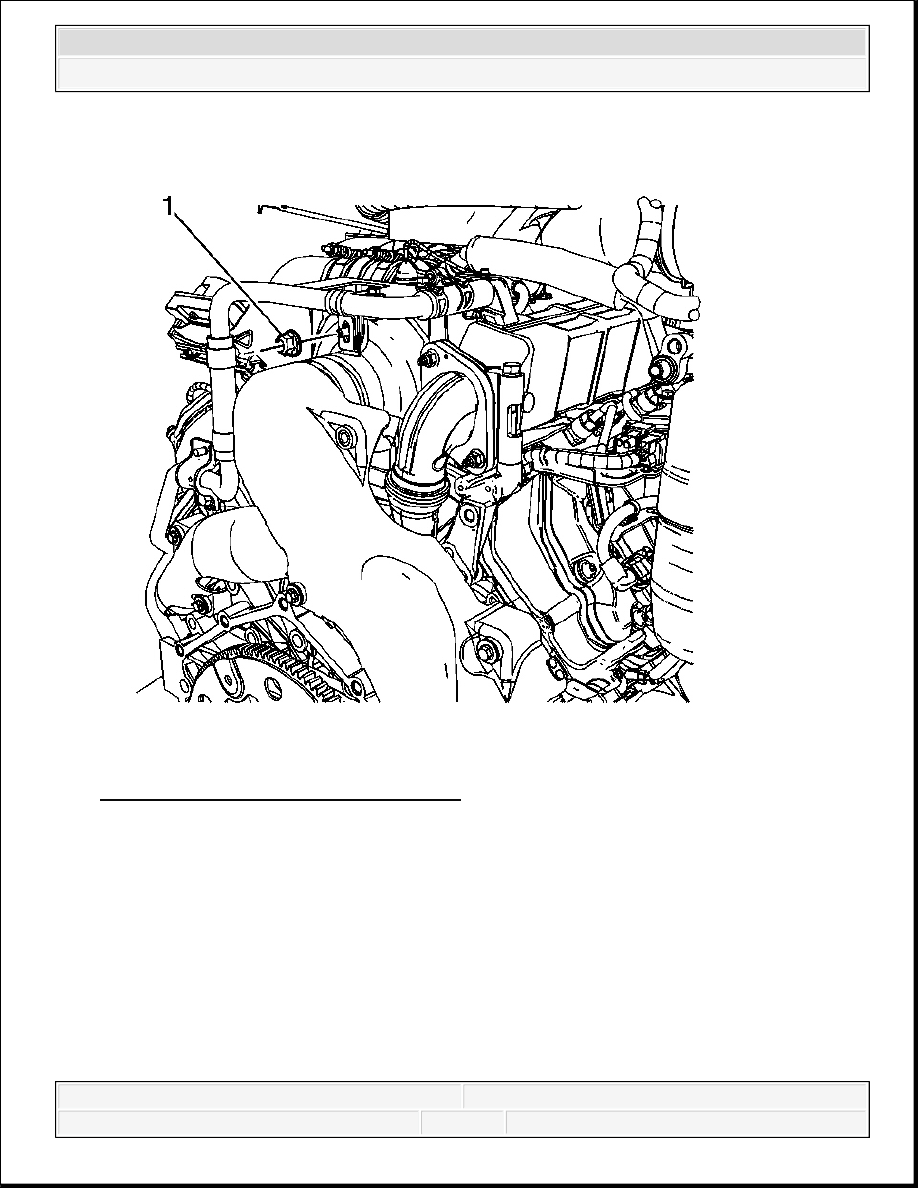

Replacement (LMM - Inlet Pipe) or Turbocharger Coolant Hoses/Pipes Replacement EXHAUST GAS RECIRCULATION COOLING PIPE REPLACEMENT - LOWER (LMM) Tools Required J 38185 Hose Clamp Pliers Removal Procedure Fig. 113: View Of EGR Cooler Pipe Clamp
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP. 1. Drain the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) or Cooling System Draining and Filling (Static Fill). 2. Reposition the EGR cooler pipe clamp (1) and remove the EGR cooler pipe hose from the EGR cooler tube. CAUTION: To avoid being burned, do not remove the radiator cap or surge tank cap while the engine is hot. The cooling
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
