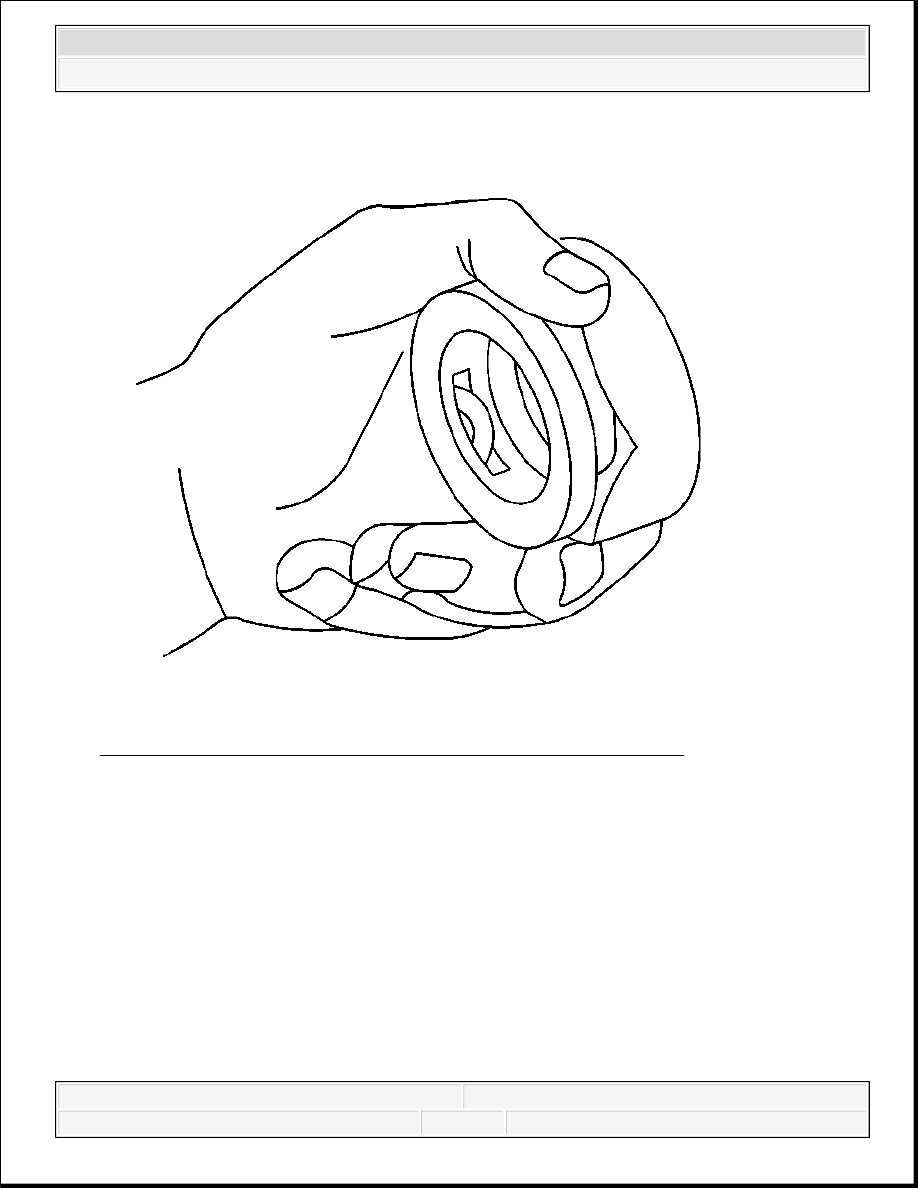

Fig. 36: View Of Retaining Ring Ears From Inside Of Connector
Courtesy of GENERAL MOTORS CORP.
4. Ensure the 3 retaining ring ears can be seen from the inside of the connector and the
retaining ring can move freely in the slots.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

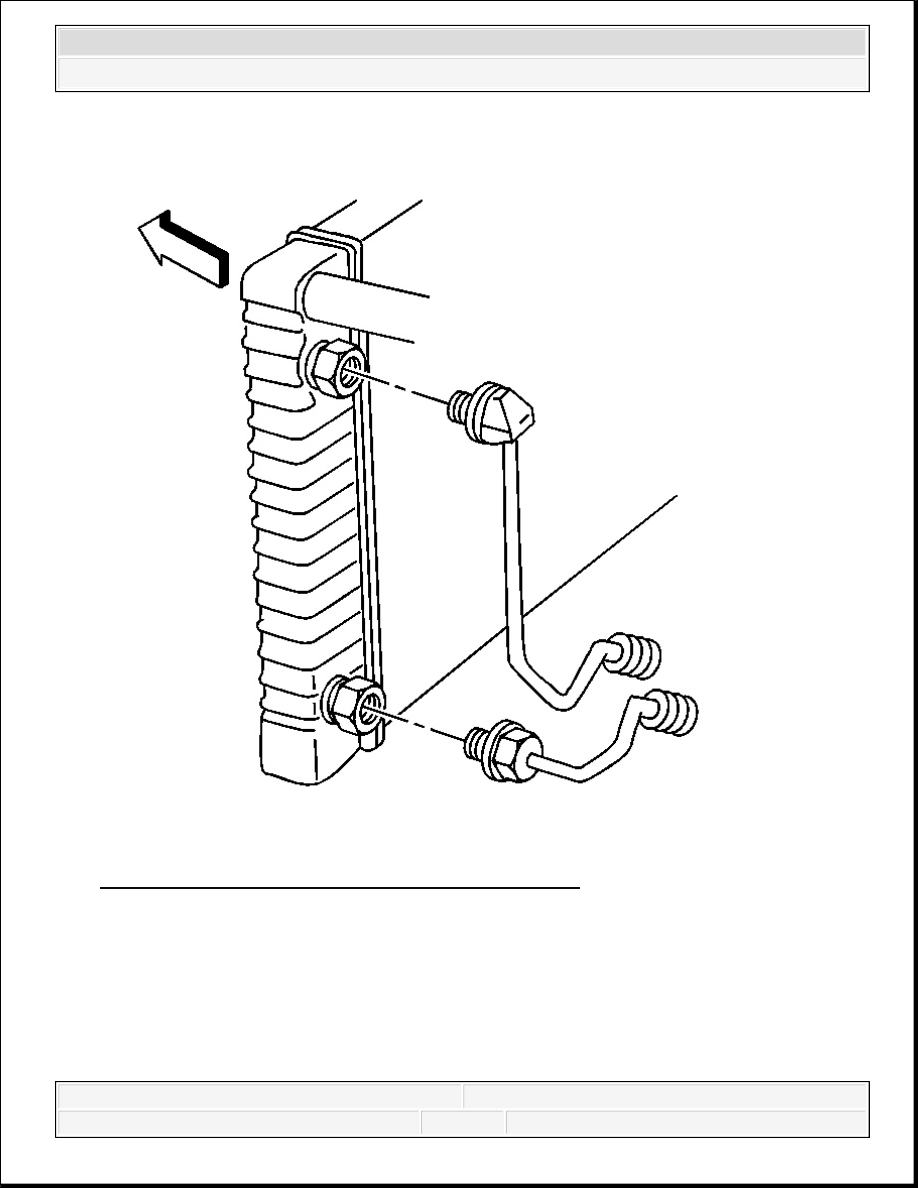

Fig. 37: View Of Engine Oil Cooler Line Connections
Courtesy of GENERAL MOTORS CORP.
5. Install the engine oil cooler line into the quick connector fitting until a click is heard or felt.
Pull back on the engine oil cooler lines to ensure a proper connection.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

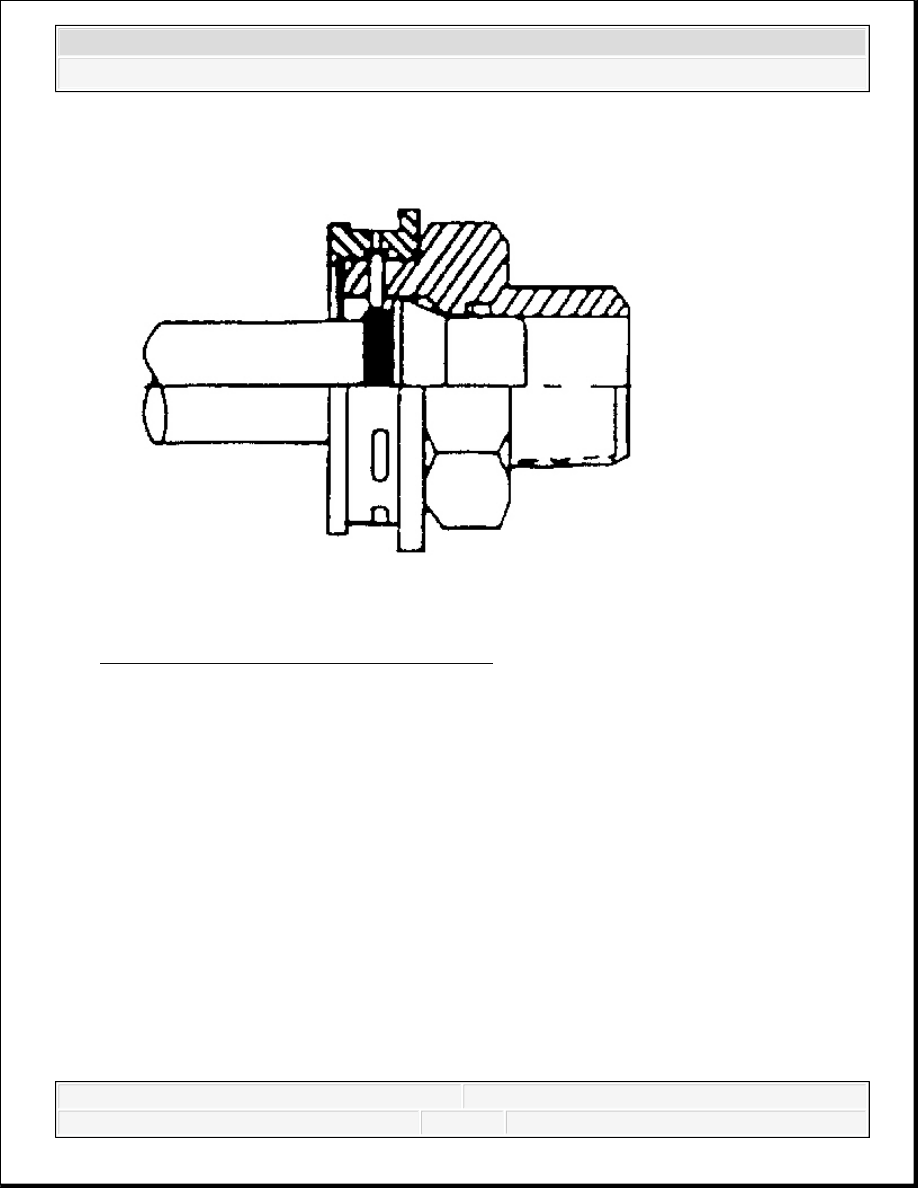

Fig. 38: View Of Cooler Line & Plastic Cap
Courtesy of GENERAL MOTORS CORP.
6. Snap the plastic cap onto the quick connect fitting.
7. Ensure that the plastic cap is fully seated against the fitting.
IMPORTANT: Do not manually depress the retaining clip when installing
the plastic cap.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

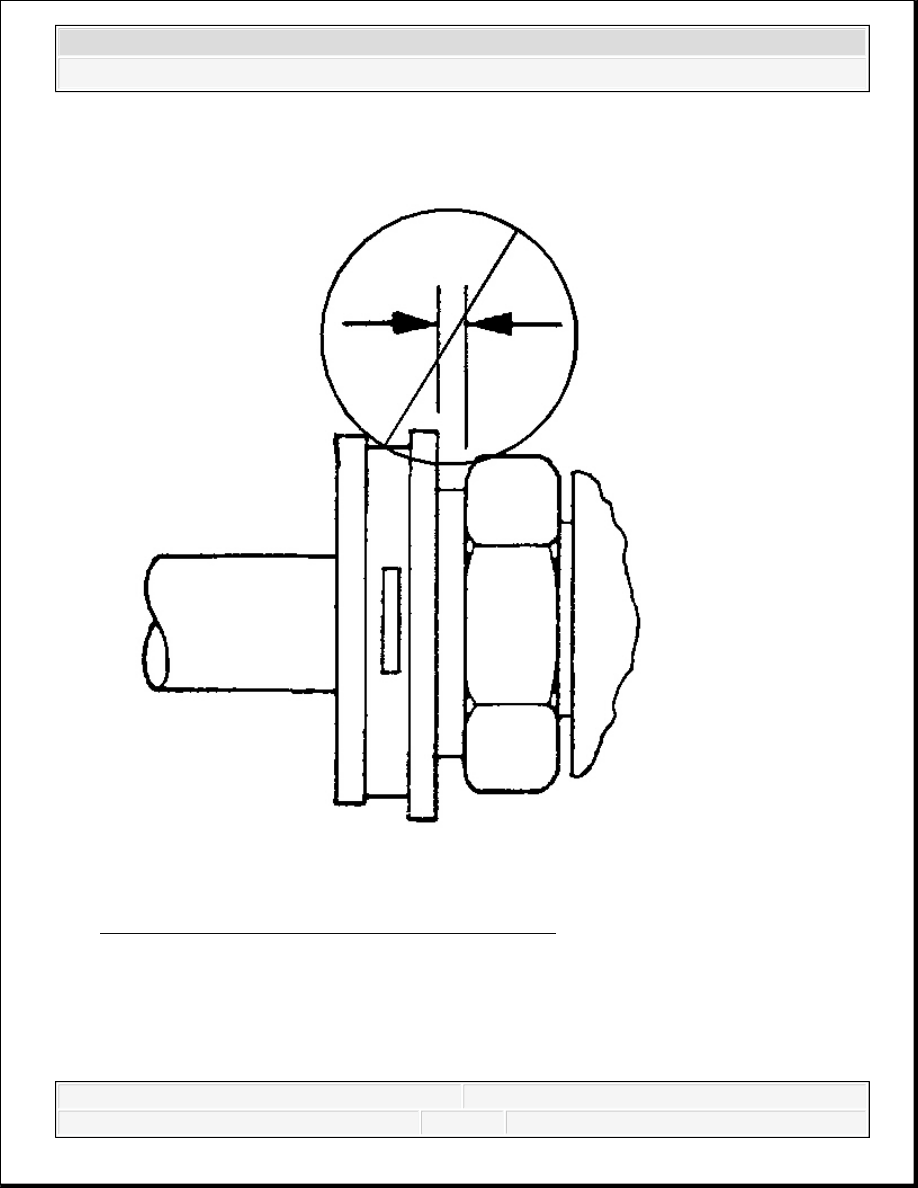

Fig. 39: Checking For Gap Between Cap & Fitting
Courtesy of GENERAL MOTORS CORP.
8. Ensure that no gap is present between the cap and the fitting.
9. Inspect and fill the engine oil to the proper level.
