Fig. 116: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 GENERAL MOTORS Sierra & Silverado

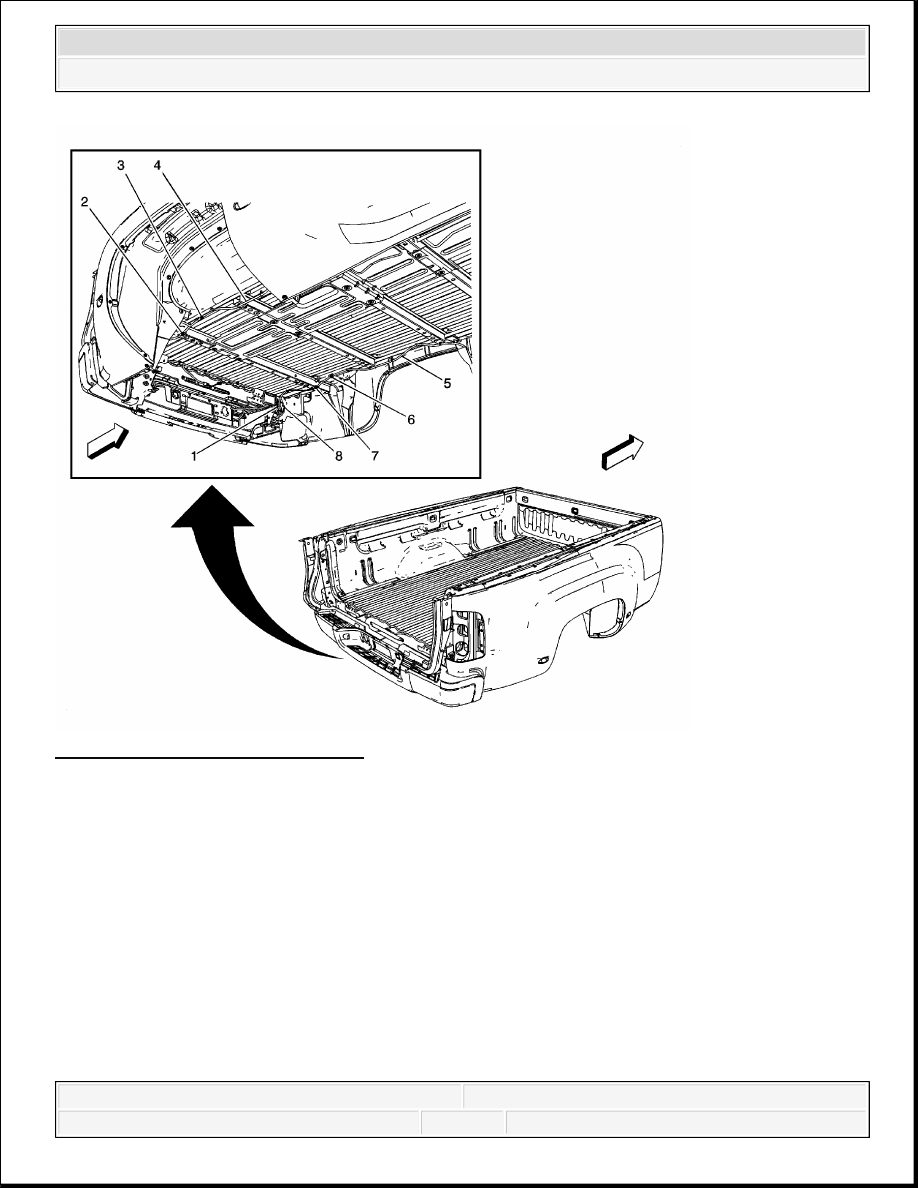

Fig. 117: Underside Of Cargo Box
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 GENERAL MOTORS Sierra & Silverado
2008 ENGINE
Engine Cooling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
SCHEMATIC AND ROUTING DIAGRAMS

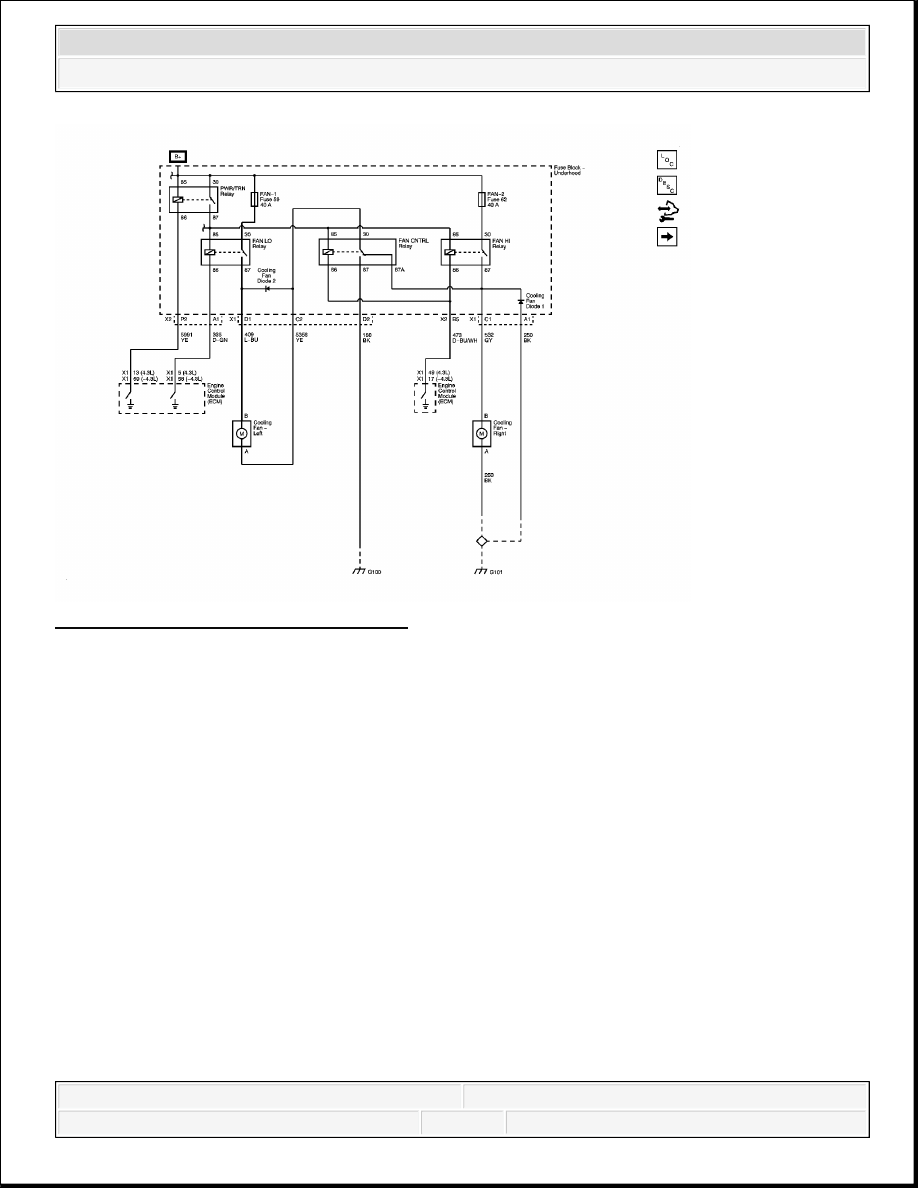

ENGINE COOLING SCHEMATICS
Application
Specification
Metric
English
Air Cleaner Outlet Duct Clamp
4 N.m
35 lb in
Coolant Air Bleed Pipe Bolts
12 N.m
9 lb ft
Coolant Heater
50 N.m
37 lb ft
Coolant Heater Cord Bolt
8 N.m
71 lb in
Cooling Fan Motor Bolts
10 N.m
89 lb in
Cooling Fan Shroud Bolts
9 N.m
80 lb in
Differential Carrier Bolts
100 N.m
74 lb ft
Fan Clutch Bolts
23 N.m
17 lb ft
Fan Clutch Bolts
56 N.m
41 lb ft
Oil Cooler Hose Adapter Bolt
12 N.m
106 lb in
Oil Cooler Hose Bracket Bolt
25 N.m
18 lb ft
Oil Pan Skid Plate Bolts
20 N.m
15 lb ft
Radiator Bolt
25 N.m
18 lb ft
Surge Tank Bolt/Nut
10 N.m
89 lb in
TCM Cover Bolts
9 N.m
80 lb in
TCM Electrical Connector Bolts
8 N.m
71 lb in
Transmission Cooling Line Bolts
4 N.m
35 lb in
Water Pump
First Pass
15 N.m
11 lb ft
Final Pass
30 N.m
22 lb ft
Water Pump Inlet Bolt
15 N.m
11 lb ft
