Chevrolet Silverado / GMC Sierra. Manual - part 1576
J322 (7)
In overhead console harness, 5 cm from X304 breakout. See Fig. 99.
J323 (8)
In overhead console harness, 4 cm from X304 breakout. See Fig. 99.
J324
In sunroof harness, 3 cm from sunroof switch breakout.
J327
In headliner harness, 15 cm from front inside air temperature sensor breakout.
See Fig. 76.
J328
In headliner harness, 5 cm from front inside air temperature sensor breakout.
See Fig. 76.
J330
In console harness, 12 cm from audio amplifier breakout.
J331
In chassis harness. See Fig. 77.
J334
In right "A" pillar harness.
J335
In sliding rear window jumper harness. See Fig. 78.
J336
In sliding rear window jumper harness. See Fig. 78.
J338 (4.3L)
In chassis harness. See Fig. 77.
J340
In driver seat jumper harness, 5 cm in X324 breakout.
J341
In driver seat jumper harness, 10 cm into X324 breakout.
J342
In seat position sensor harness.
J343
In seat position sensor harness.
J403
License lamp harness, 28 cm from left rear object sensors. See Fig. 79.
J404
License lamp harness, 20 cm from right rear object sensors. See Fig. 79.
J410 (UY2)
(10)
In camper harness, 232.5 cm from X414 breakout. See Fig. 106.
J410 (823)
(10)
In camper harness, 7 cm from back-up alarm breakout. See Fig. 106.
J411
In chassis harness.
J412 (2)
In right hip lamp harness, 7.5 cm from right rear clearance lamp breakout. See
Fig. 117.
J413 (7)
In left hip lamp harness, 17.5 cm from left rear clearance lamp breakout. See
Fig. 117.
J414 (8)
In camper harness. See Fig. 106.
J415 (4)
In camper harness, 109.5 cm from X414 breakout. See Fig. 106.
J416 (6)
In camper harness, 129.5 cm from X414 breakout. See Fig. 106.
J418 (6)
In left hip lamp harness, 7.5 cm from left rear clearance lamp breakout. See
Fig. 117.
J419 (3)
In right hip lamp harness, 17.5 cm from right rear clearance lamp breakout.
See Fig. 117.
2008 Chevrolet Silverado 1500
2008 GENERAL MOTORS Sierra & Silverado
COMPONENT LOCATION GRAPHICS
J420
In camper harness, 59.5 cm from X414 breakout. See Fig. 77.
J421 (9)
In camper harness, 205 cm from X414 breakout. See Fig. 106.
J422
In chassis harness.
J423 (4)
In the chassis harness. See Fig. 114.
J500
In driver's outside rearview mirror jumper.
J501
In driver's outside rearview mirror jumper.
J502 (3)
In left front door harness. See Fig. 115.
J600
In passenger's outside rearview mirror jumper.
J601
In passenger's outside rearview mirror jumper.
J602
In right front door harness.
J603 (6)
In right front door harness. See Fig. 116.
J604 (1)
In right front door harness. See Fig. 116.
NOTE:
Figures may show multiple component locations. Refer to
appropriate table for proper figure references.
2008 Chevrolet Silverado 1500
2008 GENERAL MOTORS Sierra & Silverado

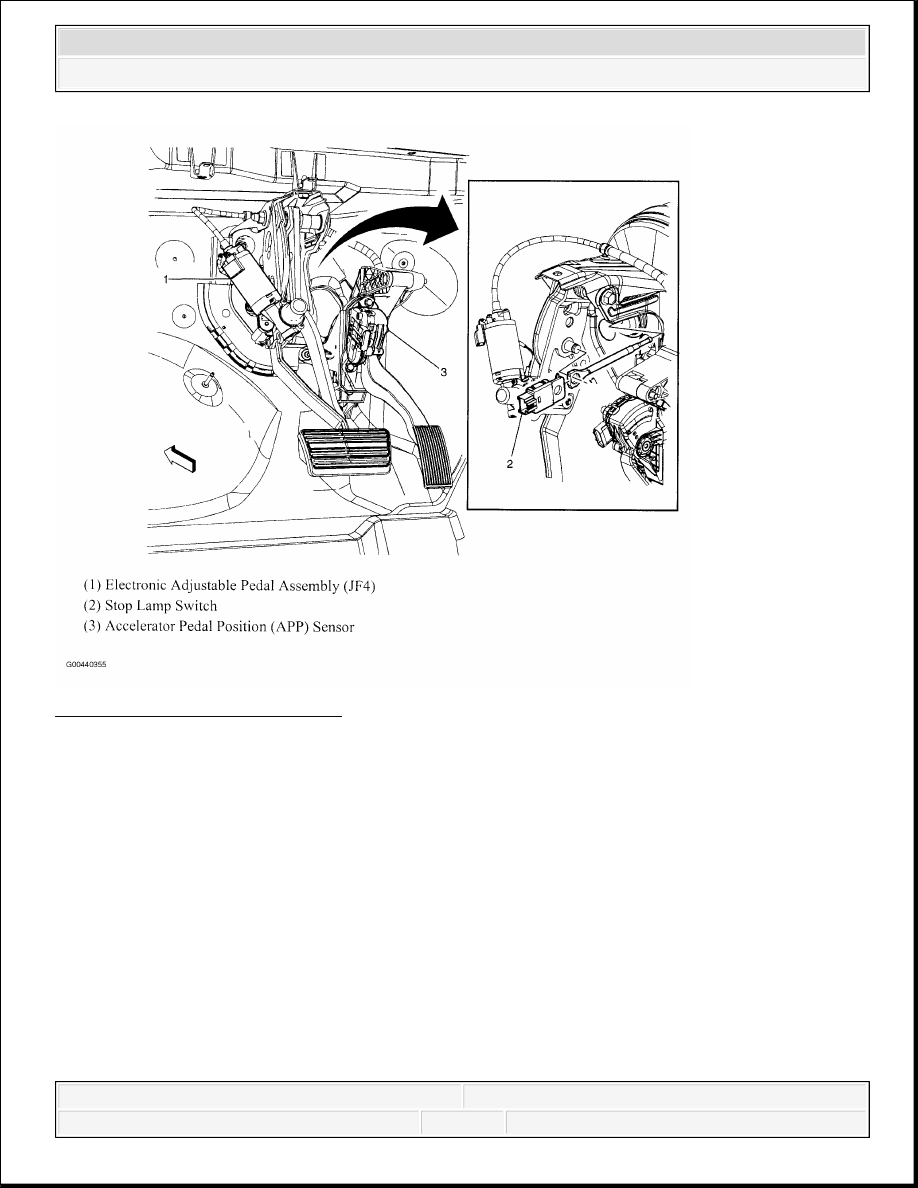

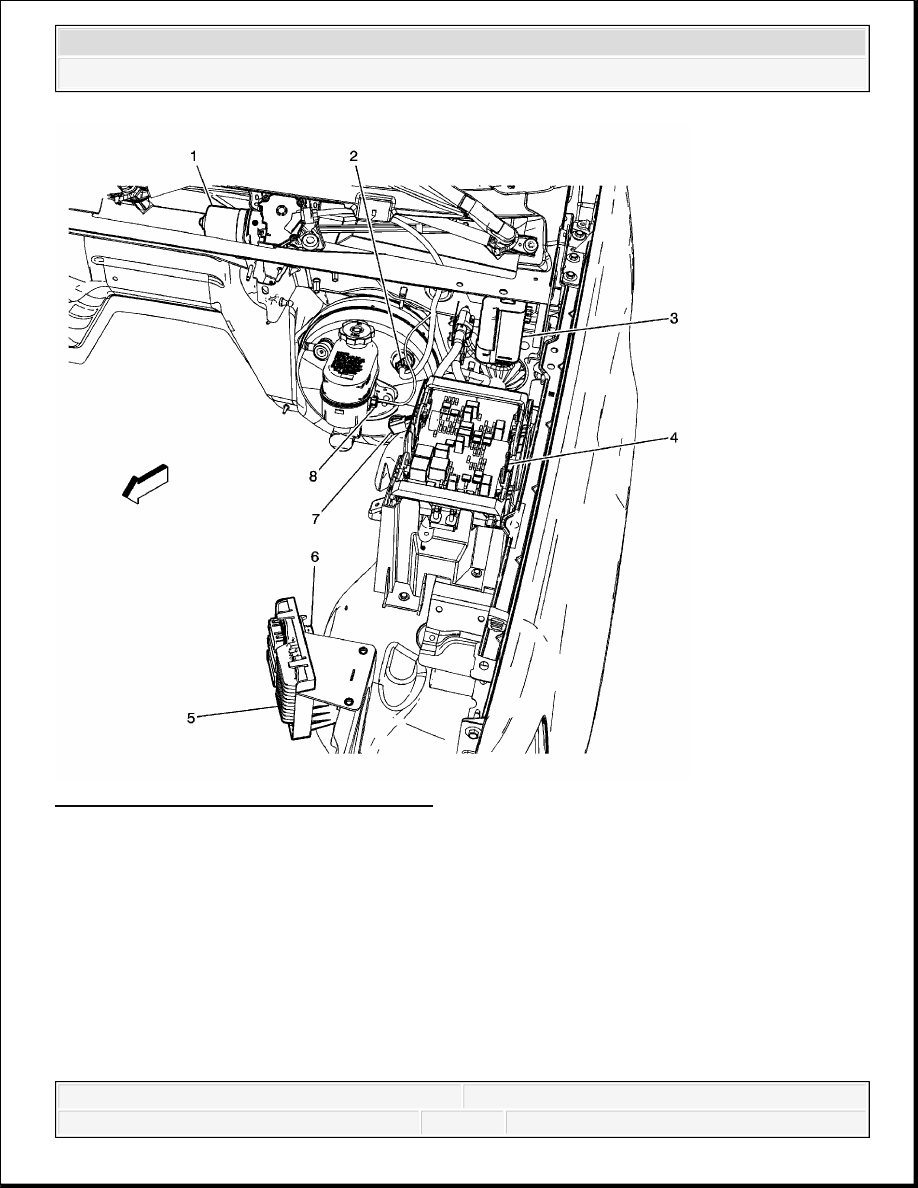

Fig. 1: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 GENERAL MOTORS Sierra & Silverado
