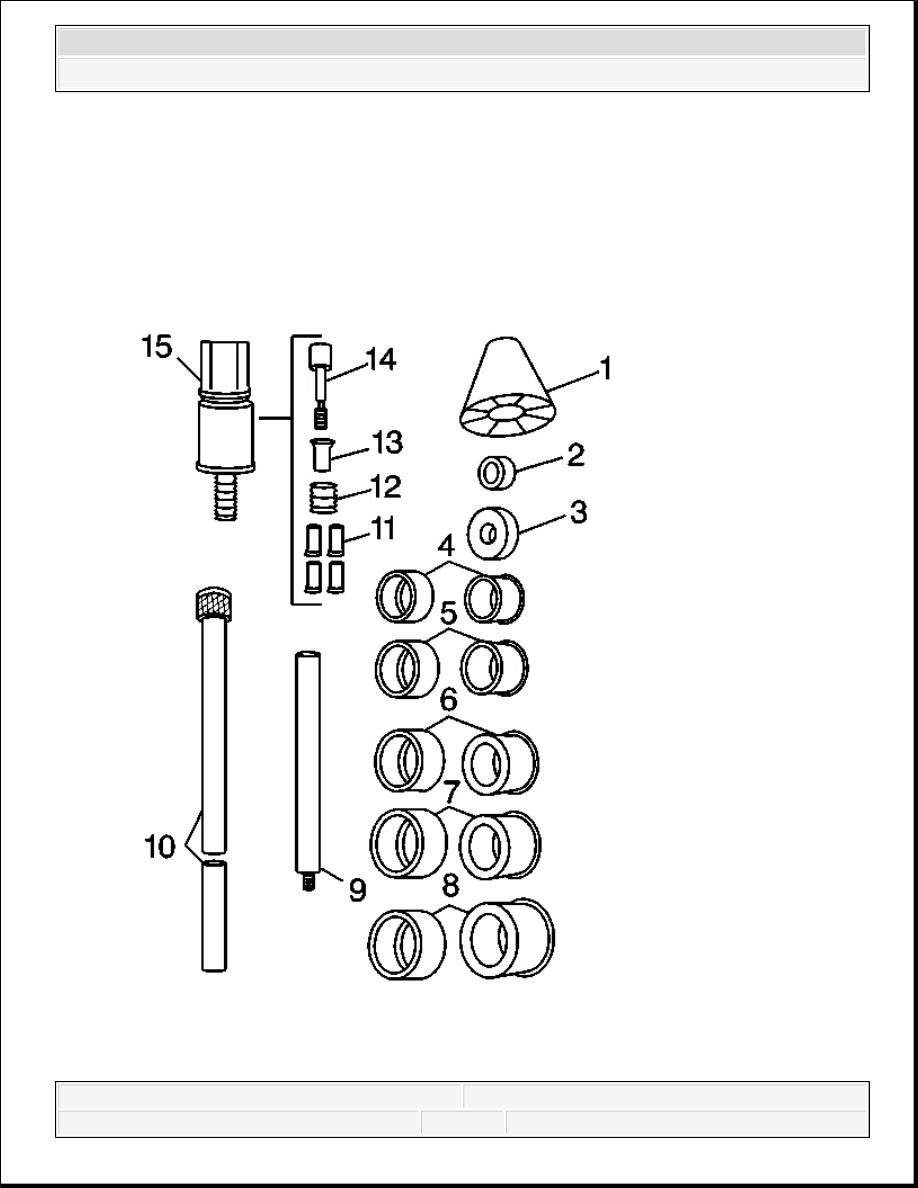

1. Select the cone (1), the handle (10), the expanding driver (4-8), the washer (2 or 3), and the
expander assembly (15) from the J 33049 . See Special Tools.
2. Assemble the J 33049 . See Special Tools.

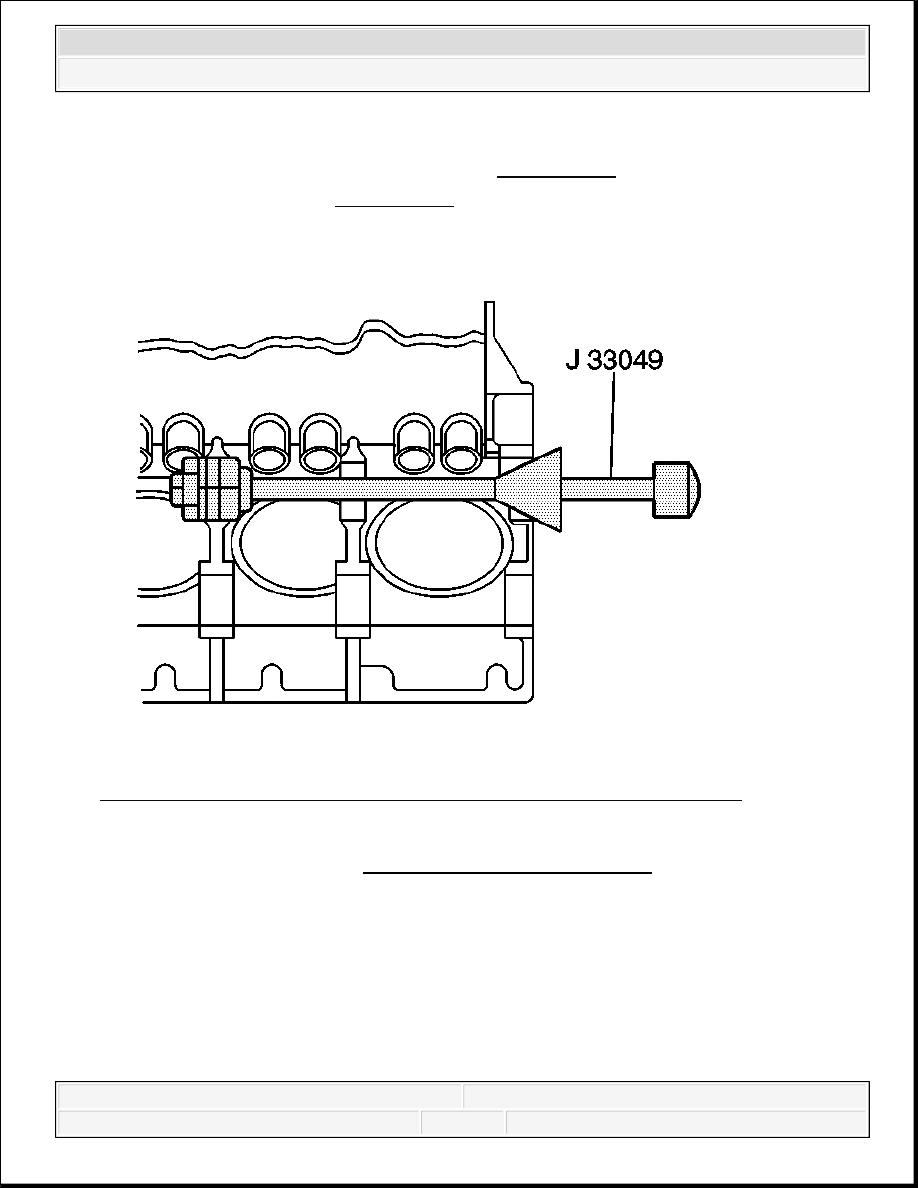

Fig. 524: Removing/Installation Camshaft Inner Bearing Using J 33049
Courtesy of GENERAL MOTORS CORP.
CAUTION: Refer to SAFETY GLASSES CAUTION .
IMPORTANT:
A loose camshaft bearing may be caused by an enlarged,
out-of-round, or damaged engine block camshaft bearing
bore.
Always remove the camshaft inner bearings #2 and #3
first. The camshaft outer bearings #1 and #4 serve as a
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
3. Remove the camshaft inner bearings #2 and #3.
1. Insert the J 33049 through the front of the engine block and into the camshaft inner
bearing #2. See Special Tools.
2. Tighten the J 33049 expander assembly nut until snug. See Special Tools.
3. Push the J 33049 guide cone into the camshaft front bearing in order to align the J
33049 . See Special Tools.
4. Drive the camshaft inner bearing #2 from the camshaft inner bearing bore #2.
5. Loosen the J 33049 expander assembly nut. See Special Tools.
6. Remove the camshaft inner bearing #2 from the J 33049 expander assembly. See
Special Tools.
7. Insert the J 33049 expander assembly into the camshaft inner bearing #3. See Special
Tools.
8. Tighten the J 33049 expander assembly nut until snug. See Special Tools.
9. Push the J 33049 guide cone into the camshaft front bearing in order to align the J
33049 . See Special Tools.
10. Drive the camshaft inner bearing #3 from the camshaft inner bearing bore #3.
11. Loosen the J 33049 expander assembly nut. See Special Tools.
12. Remove the camshaft inner bearing #3 from the J 33049 expander assembly. See
Special Tools.
4. Remove the J 33049 from the engine block. See Special Tools.
5. Remove the camshaft outer bearings #1 and #4.
1. Insert the J 33049 into the camshaft outer bearing #1. See Special Tools.
2. Tighten the J 33049 expander assembly nut until snug. See Special Tools.
3. Drive the camshaft outer bearing #1 from the camshaft outer bearing bore #1.
4. Loosen the J 33049 expander assembly nut. See Special Tools.
5. Remove the camshaft outer bearing #1 from the J 33049 expander assembly. See
Special Tools.
6. Remove the J 33049 from the engine block. See Special Tools.
7. Insert the J 33049 into the camshaft outer bearing #4. See Special Tools.
8. Tighten the J 33049 expander assembly nut until snug. See Special Tools.
9. Drive the camshaft outer bearing #4 from the camshaft outer bearing bore #4.
guide for the J 33049 . See Special Tools.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
10. Loosen the J 33049 expander assembly nut. See Special Tools.
11. Remove the camshaft outer bearing #4 from the J 33049 expander assembly. See
Special Tools.
6. Remove the J 33049 from the engine block. See Special Tools.
7. Discard the camshaft bearings.
CAMSHAFT BEARING INSTALLATION
Tools Required
J 33049 Camshaft Bearing Service Kit. See Special Tools.
Installation

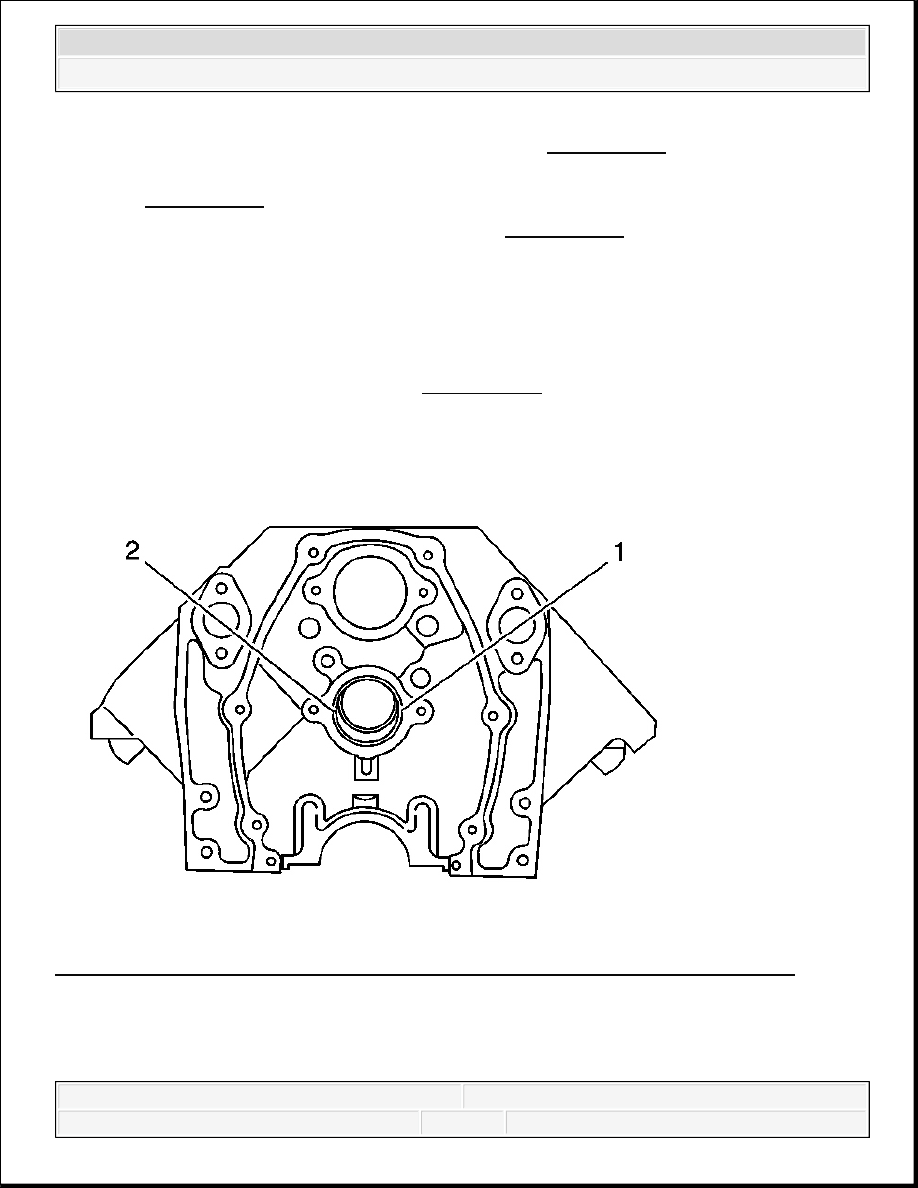

Fig. 525: Locating Camshaft Bearing Lubrication Hole At 3 & 9 O'clock Positions
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: When installing the camshaft bearings, always look in order to
ensure that the camshaft bearing lubrication hole is located
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
above the 3 o'clock position (1) or the 9 o'clock position (2). The
proper positioning of the camshaft bearing lubrication hole is in
order to ensure the best lubrication of the engine camshaft
journals.
