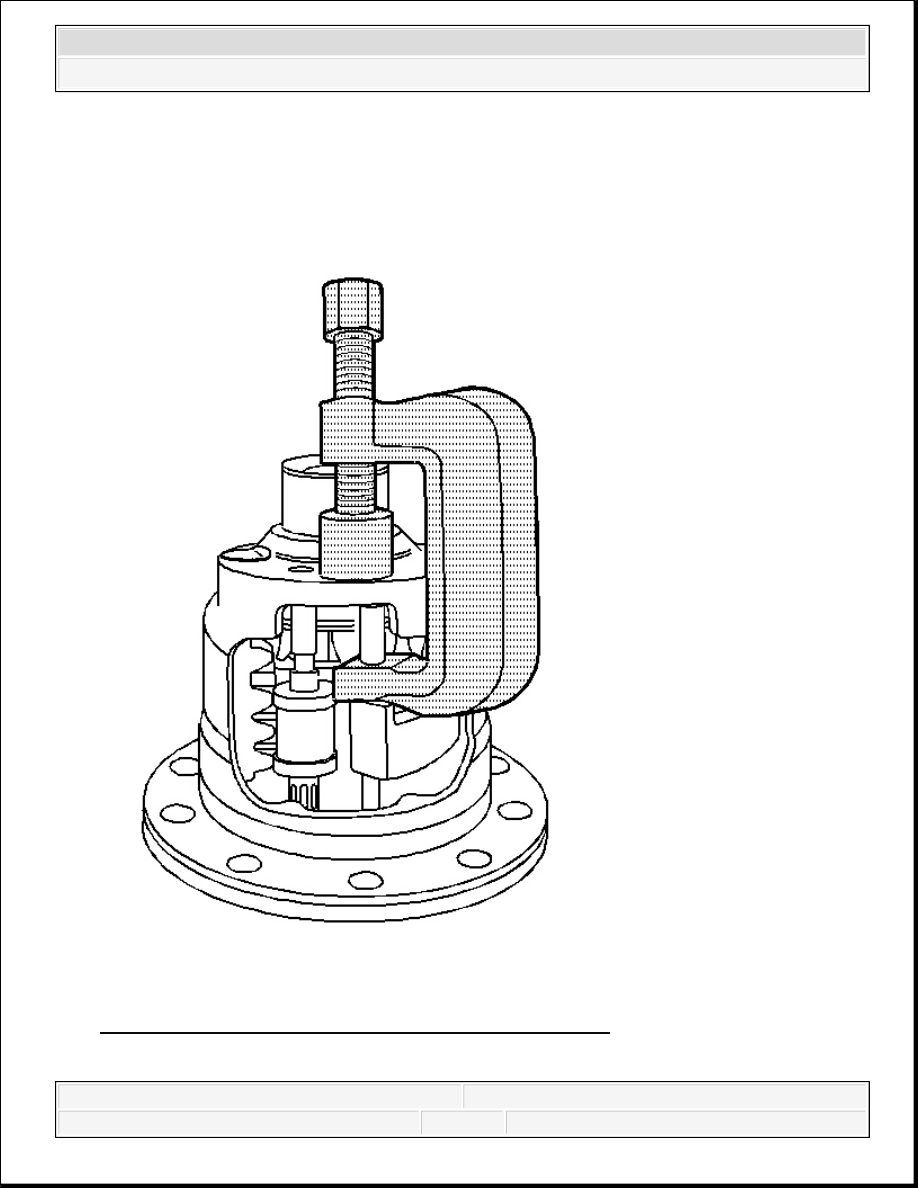

To aid in the removal of the governor assembly, turn the side gear as necessary to position Fig. 271: Removing Latching Bracket Assembly Bushing
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
4. Remove the latching bracket assembly bushing using the J 26252 . See Special Tools. To aid in the removal of the latching bracket assembly, turn the side gear as necessary to 5. Remove the pinion shaft lock bolt. 6. Remove the pinion shaft. 7. Remove the differential pinion gears and the thrust washers. Rotate the pinion gears and roll the pinion gears and the thrust washers out of the case Mark the pinion gears and thrust washers accordingly for re-assembly. 8. Remove the thrust block. 9. Remove the right side gear and clutch discs assembly. 10. Remove the right side shim.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

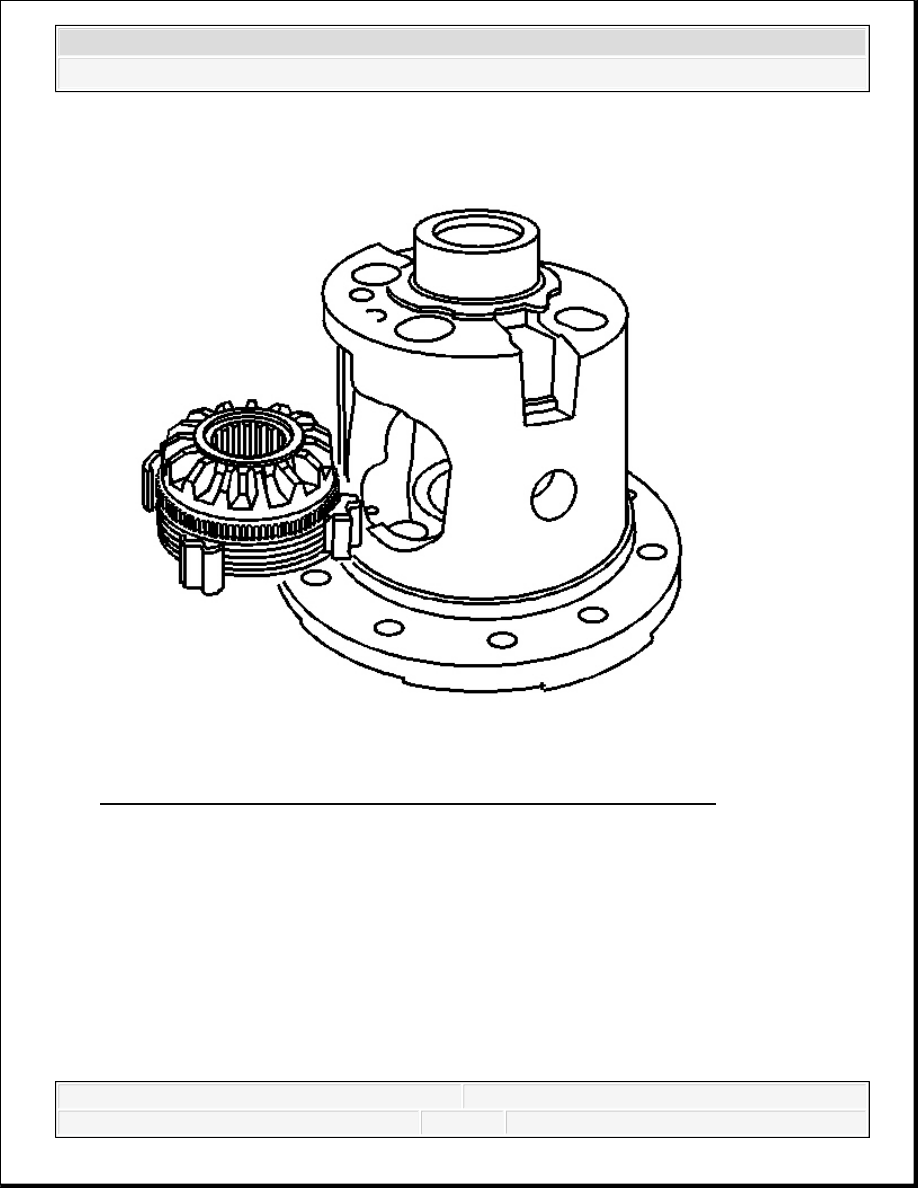

Fig. 272: View Of Left Side Gear Cam Unit & Clutch Disc Assembly 11. Remove the left side gear cam unit and clutch disc assembly.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

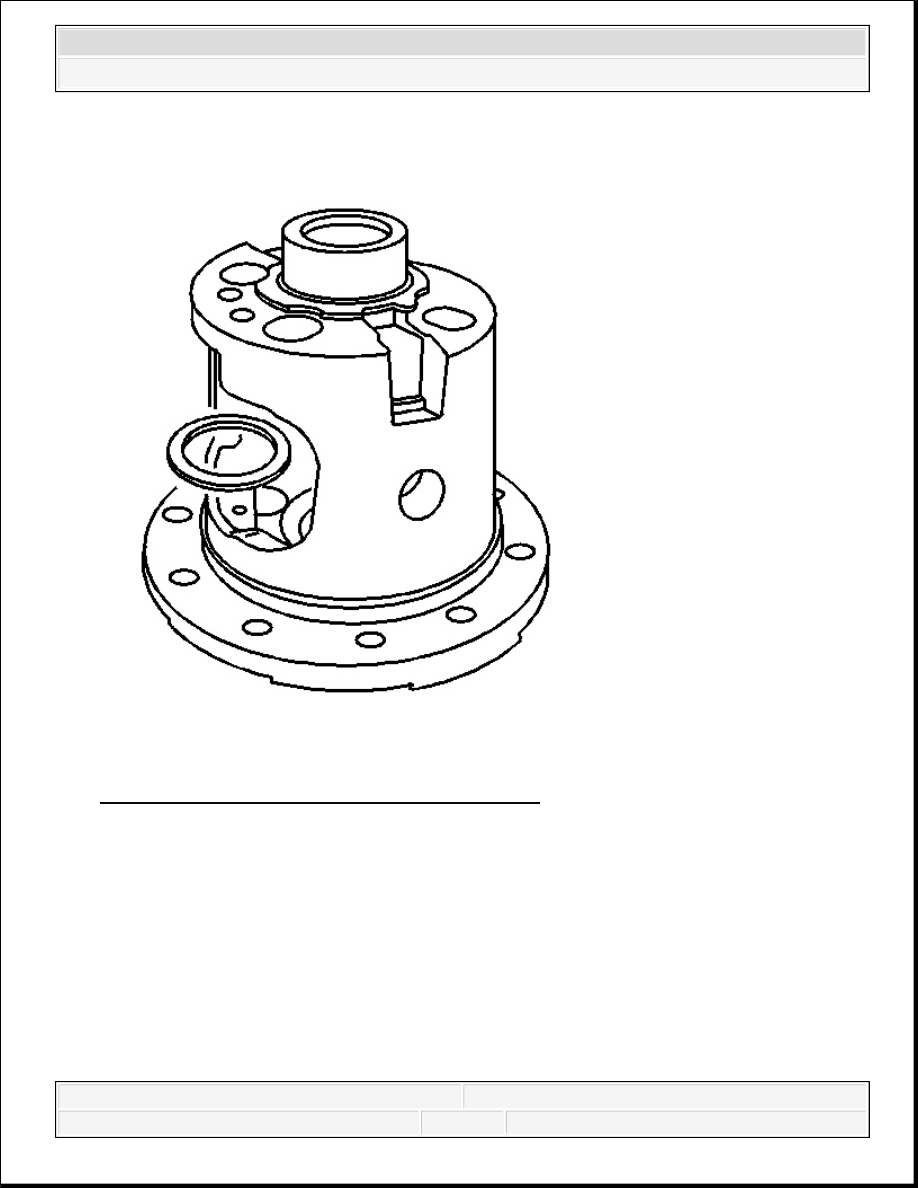

Fig. 273: View Of Left Side Gear Thrust Washer 12. Remove the left side gear thrust washer. LOCKING DIFFERENTIAL CLUTCH DISC ASSEMBLY DISASSEMBLE (9.5 INCH AXLE)
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
