Chevrolet Silverado / GMC Sierra. Manual - part 1471

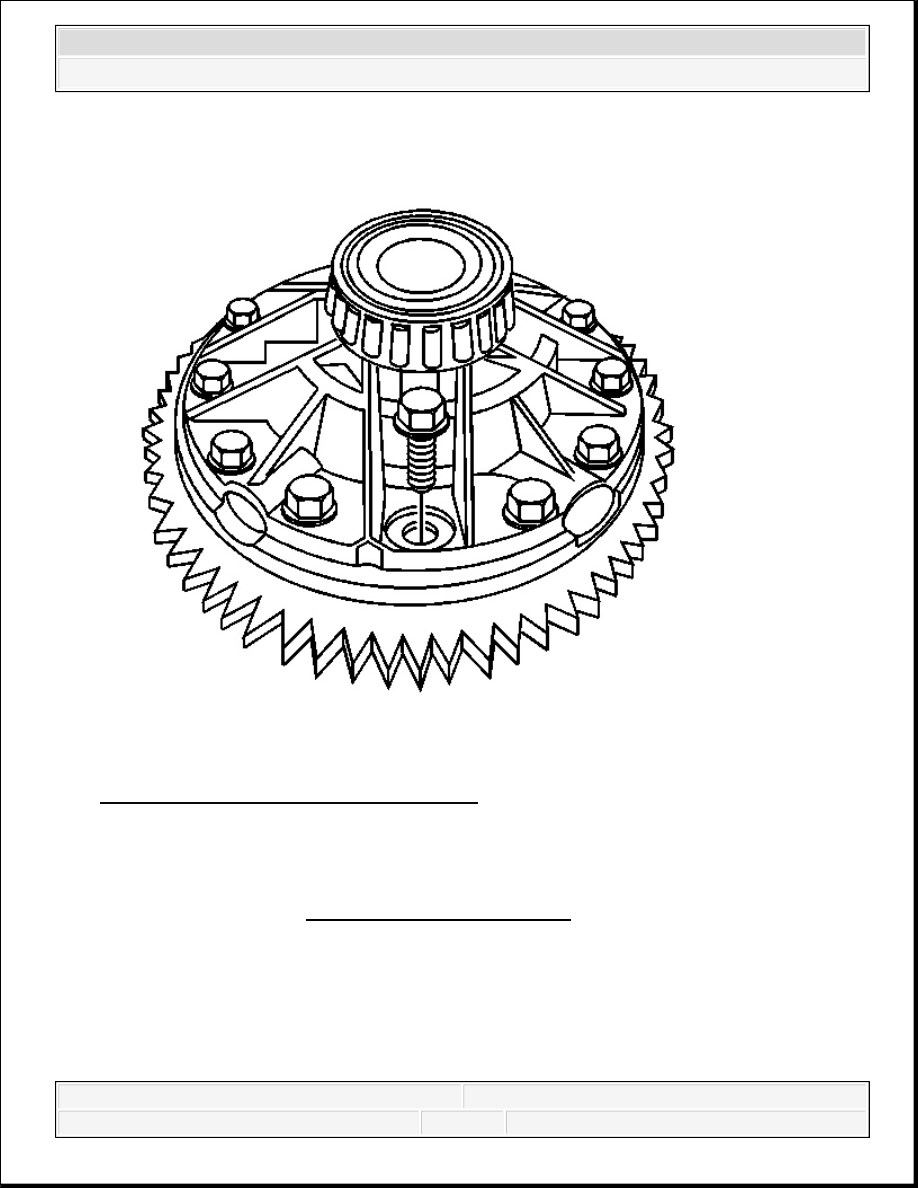

Fig. 246: Ring Gear Bolts (10.5 Inch Axle)
Courtesy of GENERAL MOTORS CORP.
2. Remove the ring gear bolts.
3. Remove the ring gear from the differential case.
Drive the ring gear off with a brass drift if necessary.
4. Separate the differential case assembly.
NOTE:
Refer to Ring Gear Removal Notice .
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

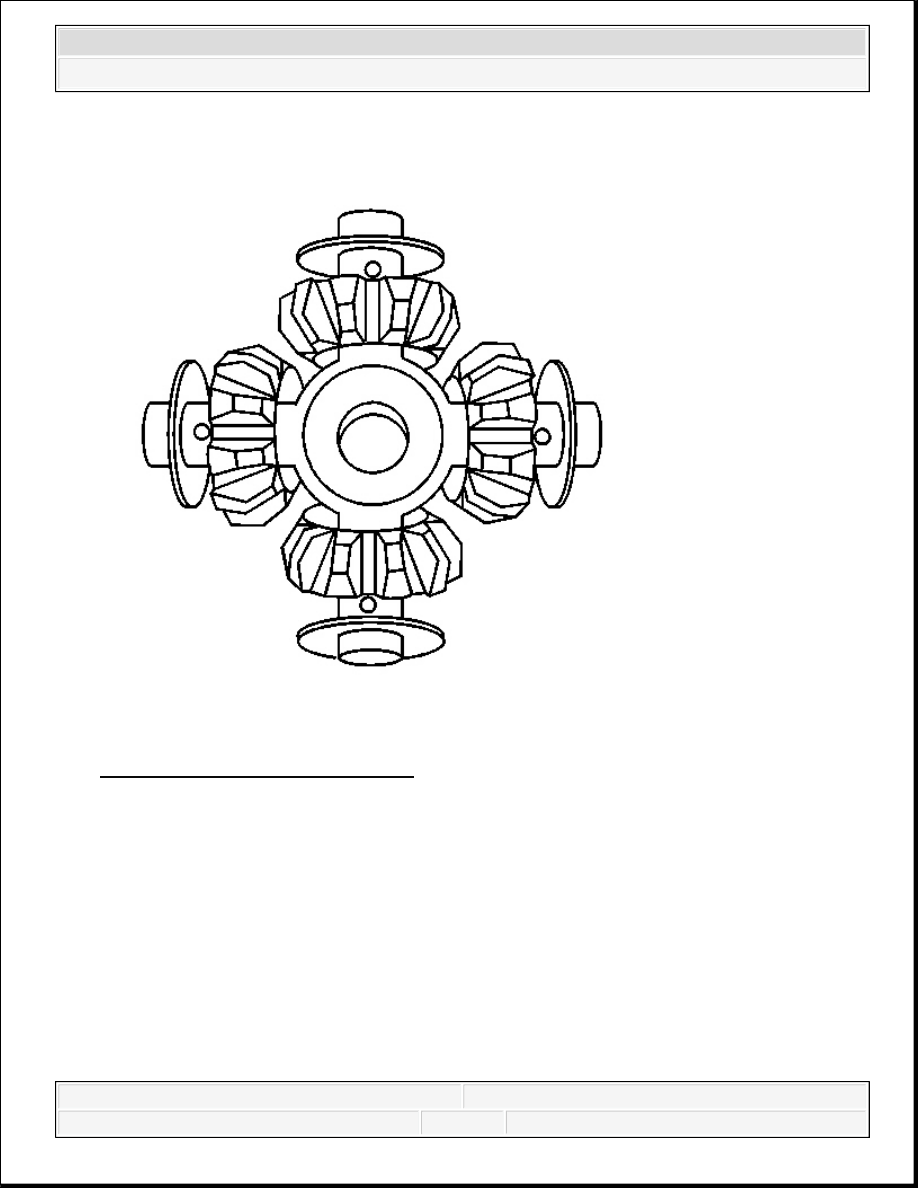

Fig. 247: Differential Pinion Gears
Courtesy of GENERAL MOTORS CORP.
5. Remove the following from the differential case:
The thrust washers
The differential pinion gears
The differential pinion spider
IMPORTANT: If the differential pinion gears, the differential side and the
thrust washers are to be reused, mark the components so
they can be re-installed in their original location in the
differential case.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

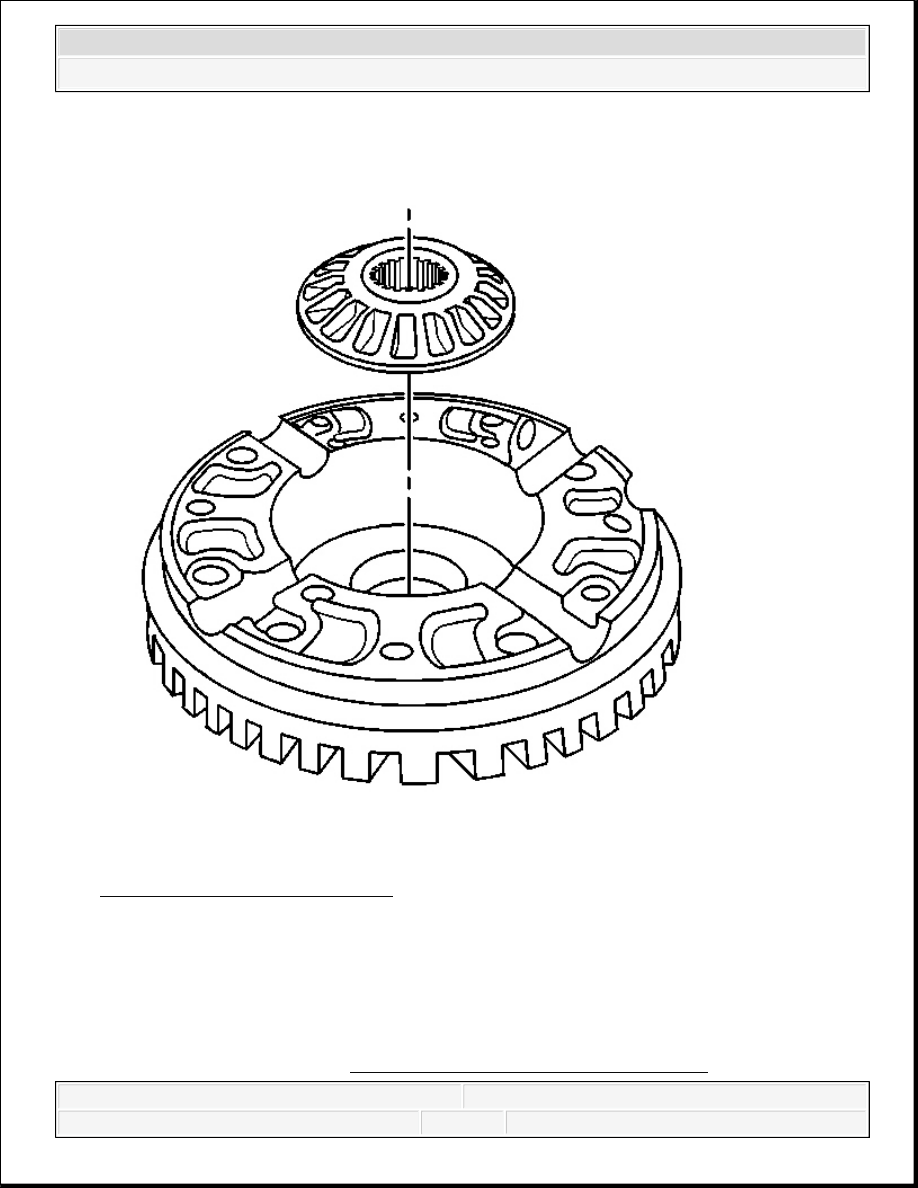

Fig. 248: Differential Side Gears
Courtesy of GENERAL MOTORS CORP.
6. Remove the differential side gears.
Assembly Procedure
1. Lubricate the differential side gears and the differential pinion gears with axle lubricant.
Use the proper fluid. Refer to Fluid and Lubricant Recommendations .
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 249: Differential Side Gears
Courtesy of GENERAL MOTORS CORP.
2. Install the differential side gears into the differential case.
If the original differential side gears are being used, install the gears in the original location.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
