Chevrolet Silverado / GMC Sierra. Manual - part 1424

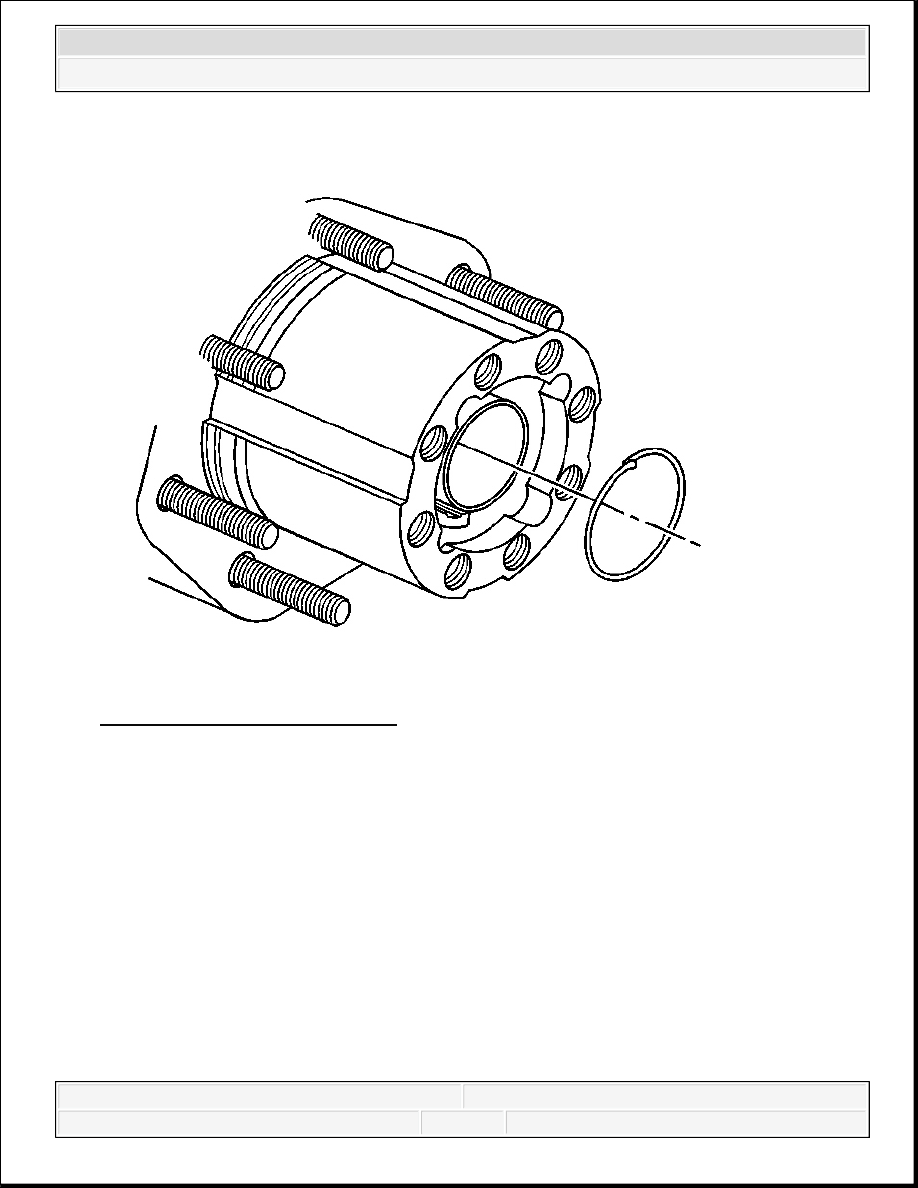

Fig. 88: Axle Nut Retaining Ring
Courtesy of GENERAL MOTORS CORP.
5. Remove the axle nut retaining ring.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

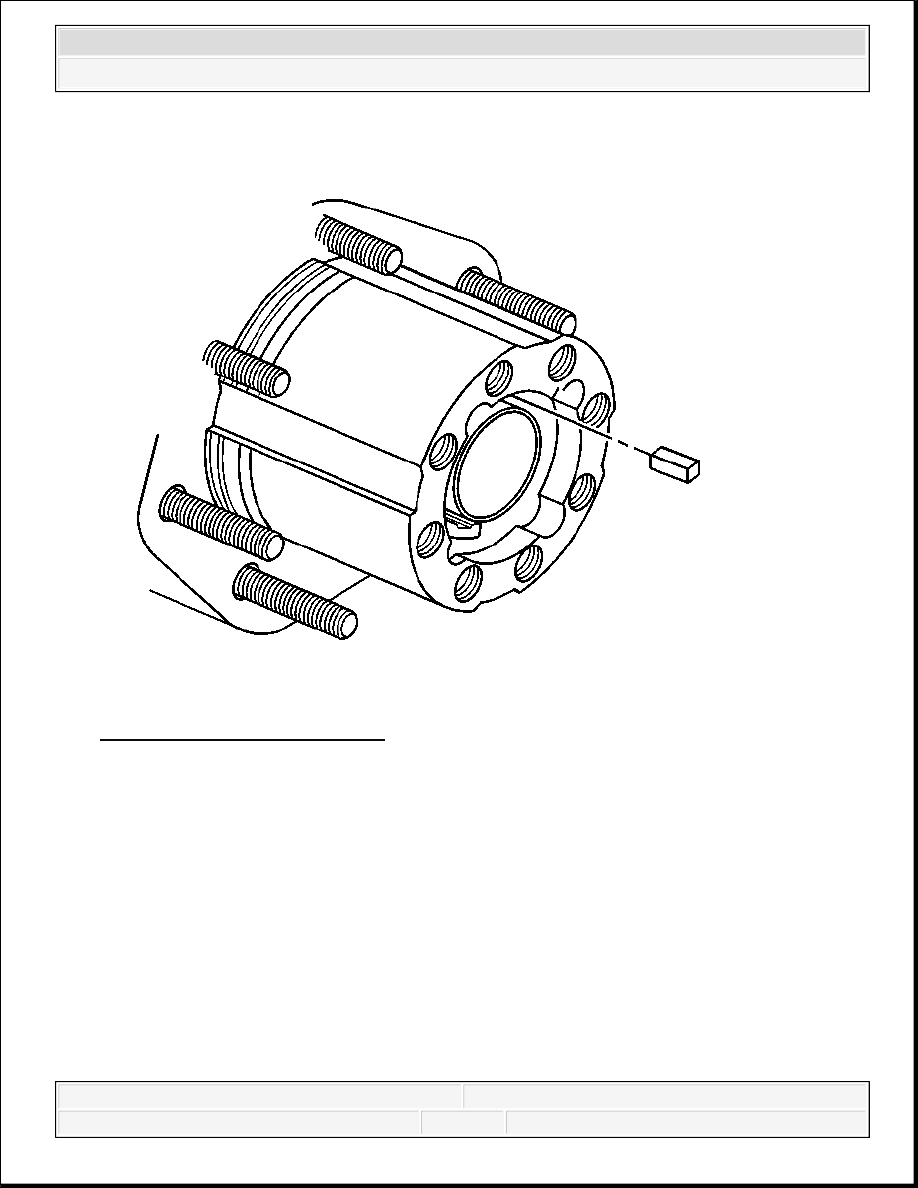

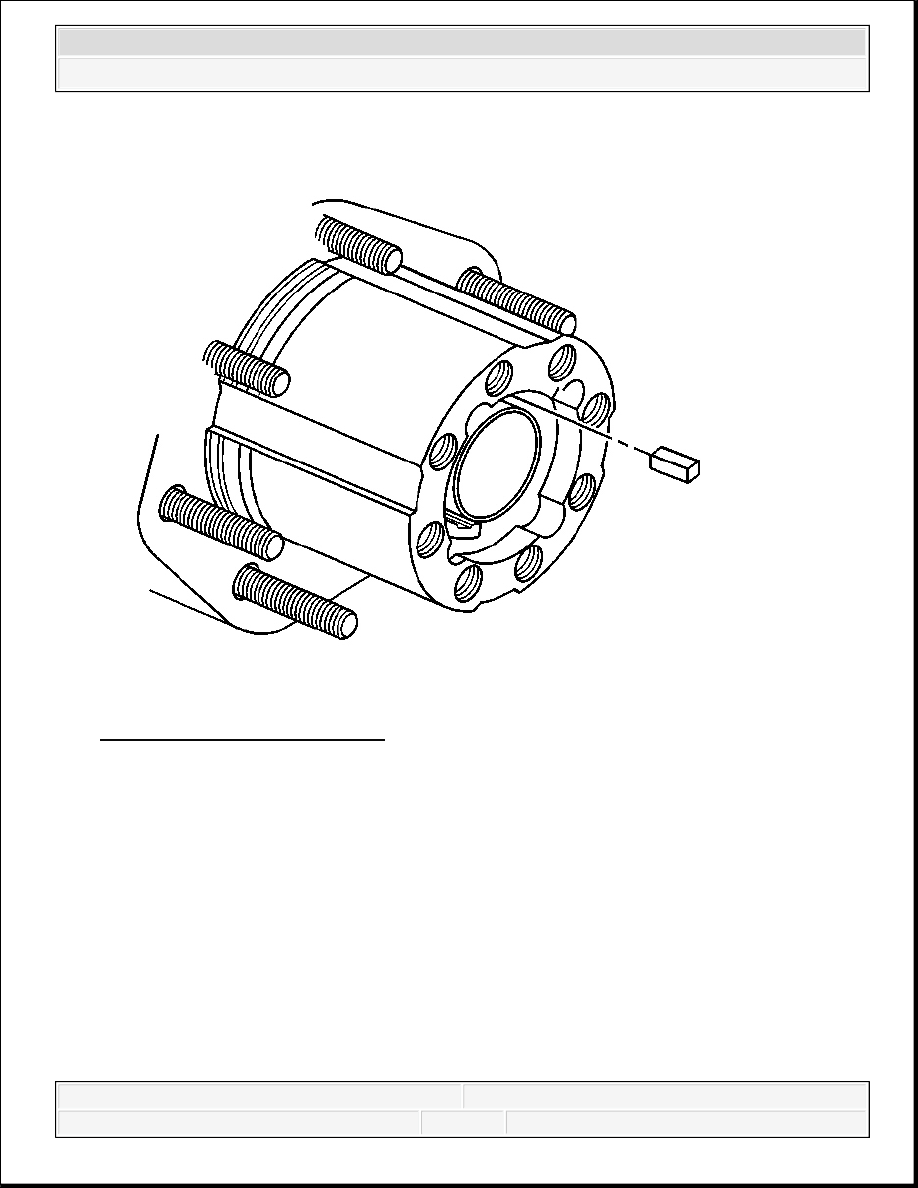

Fig. 89: Adjuster Nut Lock Key
Courtesy of GENERAL MOTORS CORP.
6. Remove the key.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

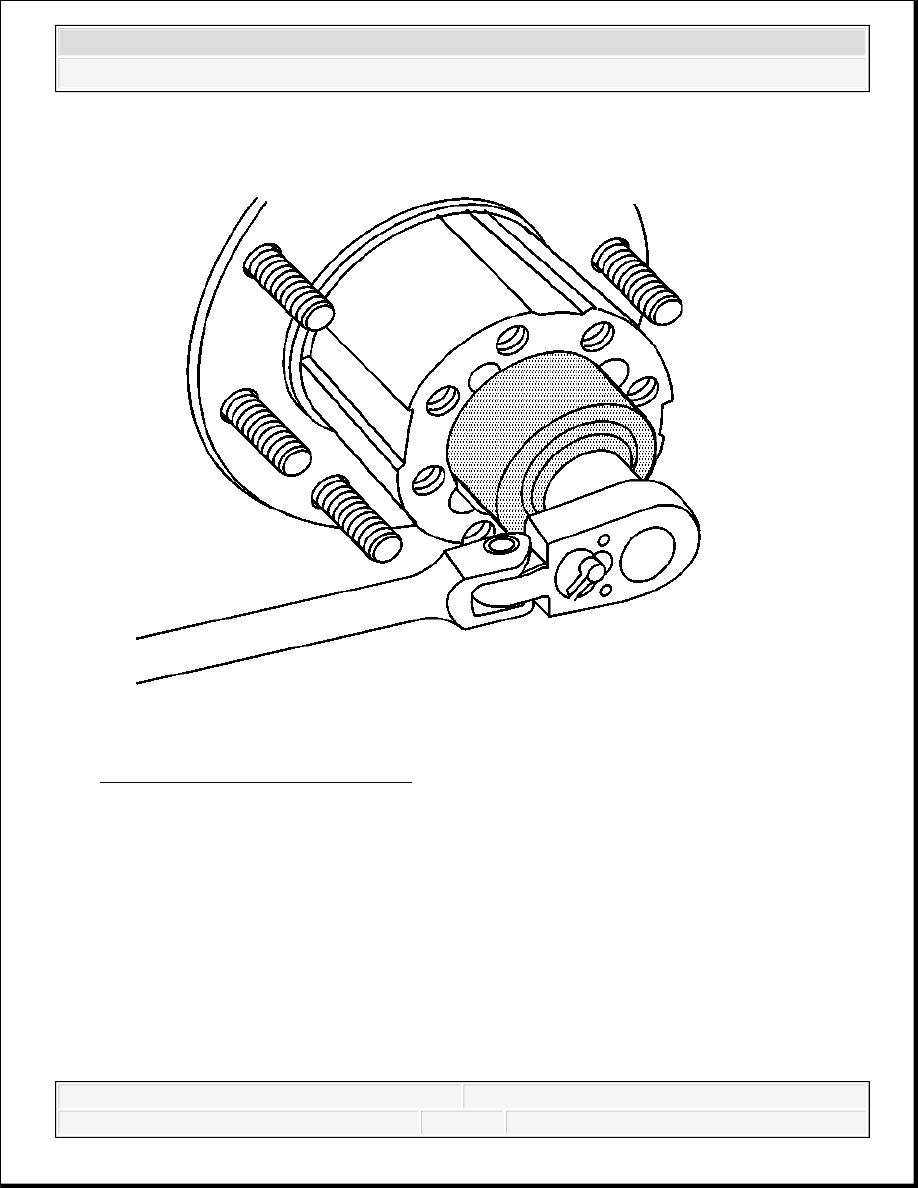

Fig. 90: Adjusting Nut & J 2222-C
Courtesy of GENERAL MOTORS CORP.
7. Remove the adjusting nut using the J 2222-C .
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
