1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . 3. Remove the wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement . 4. Remove the brake caliper. Refer to Rear Brake Caliper Replacement (JH6, JH7) or Rear Brake Caliper Replacement (JD9) . 5. Remove the rear cover and the gasket. Refer to Rear Axle Housing Cover and Gasket Replacement. 6. Remove the pinion shaft locking bolt. Fig. 71: View Of Pinion Shaft 7. On axles without a locking differential, remove the pinion shaft.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

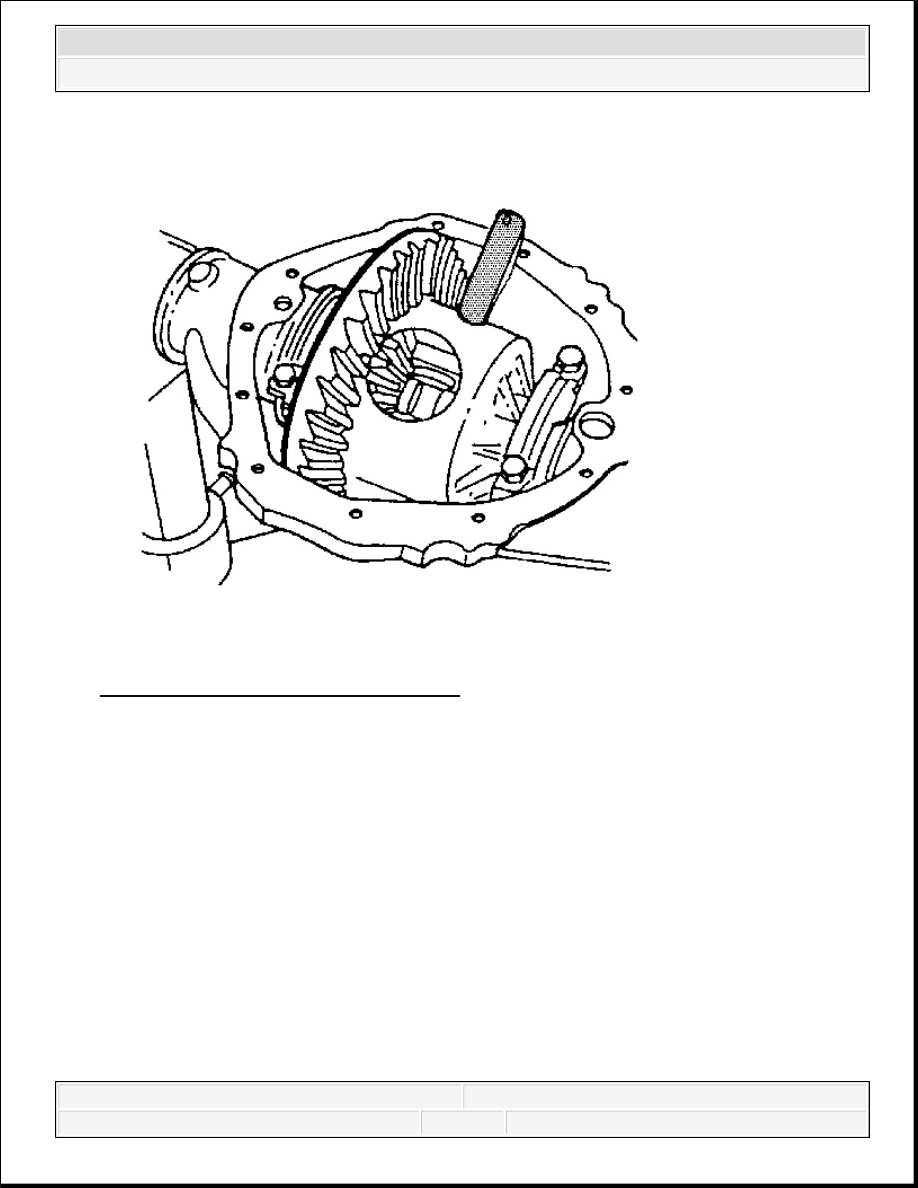

Fig. 72: Pinion Shaft Touching Housing 8. On axles with a locking differential, remove the shaft part way. Rotate the case until the pinion shaft touches the housing.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

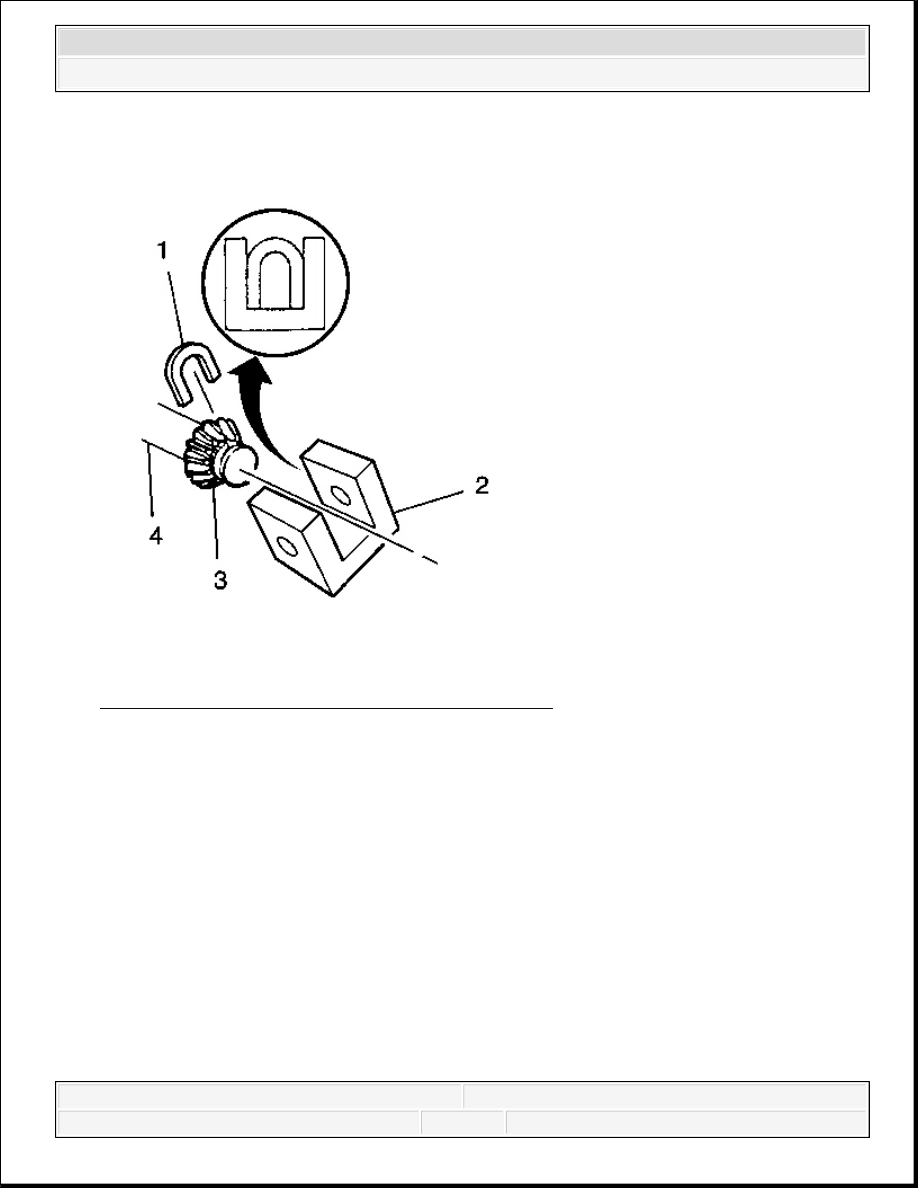

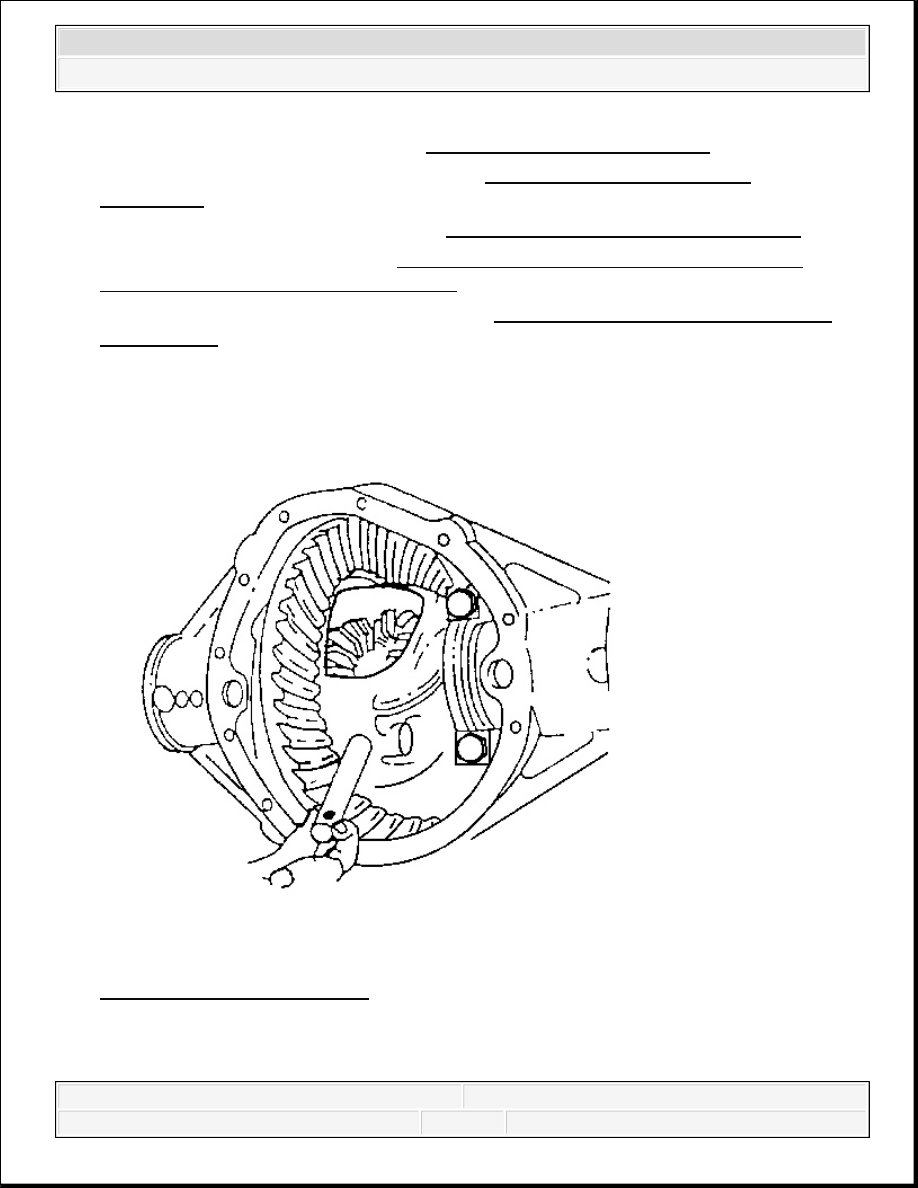

Fig. 73: View Of Axle Shaft, Lock & Thrust Block 9. On axles with a locking differential, use a screwdriver, or a similar tool, in order to enter the differential case and rotate the lock (1) until the lock aligns with the thrust block (2).
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

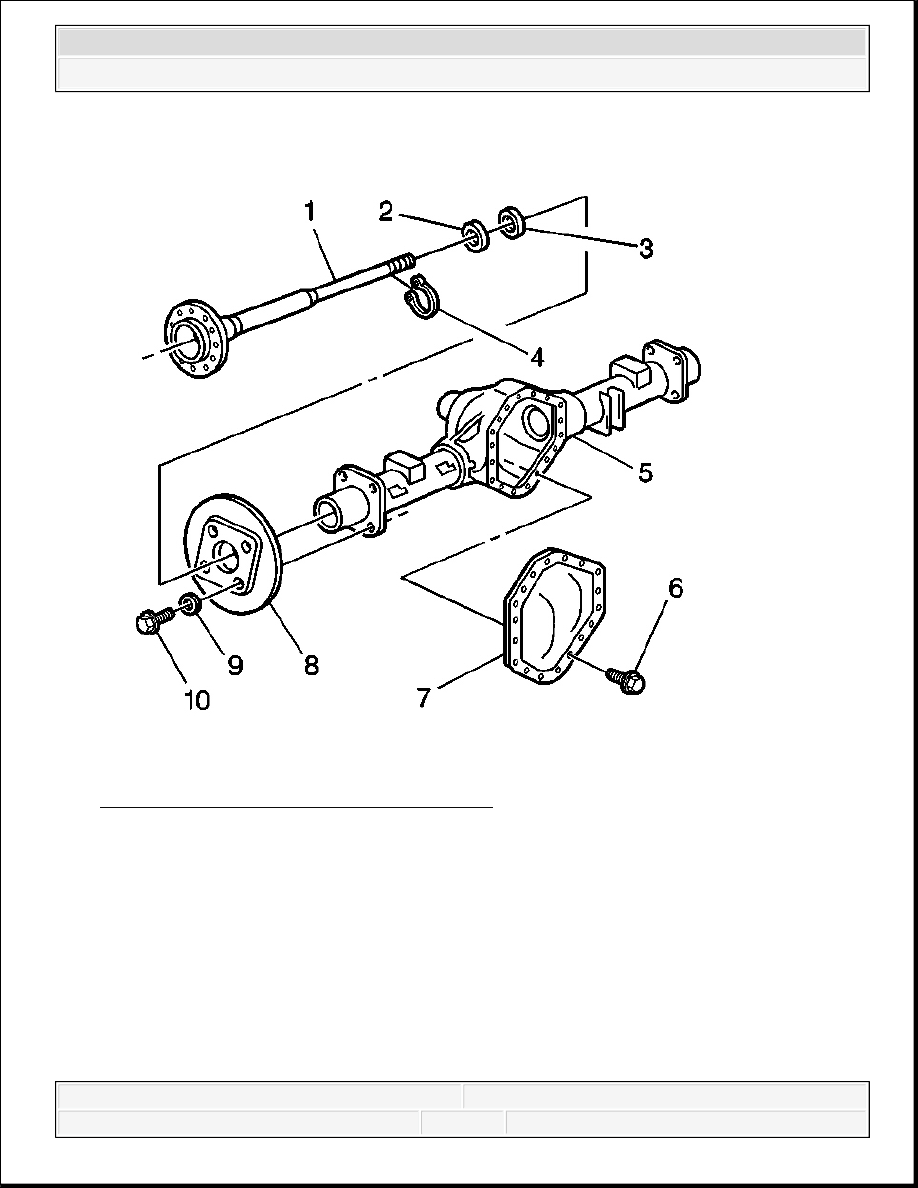

Fig. 74: Axle Shaft Housing & Components 10. Push the flange of the axle shaft (1) toward the differential. 11. Remove the C-lock (4) from the button end of the axle shaft (1). 12. Remove the axle shaft (1) from the housing (5). IMPORTANT: When removing the axle shaft, do not rotate the shaft. Rotating the shaft will misalign the gears. Misaligning the
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
