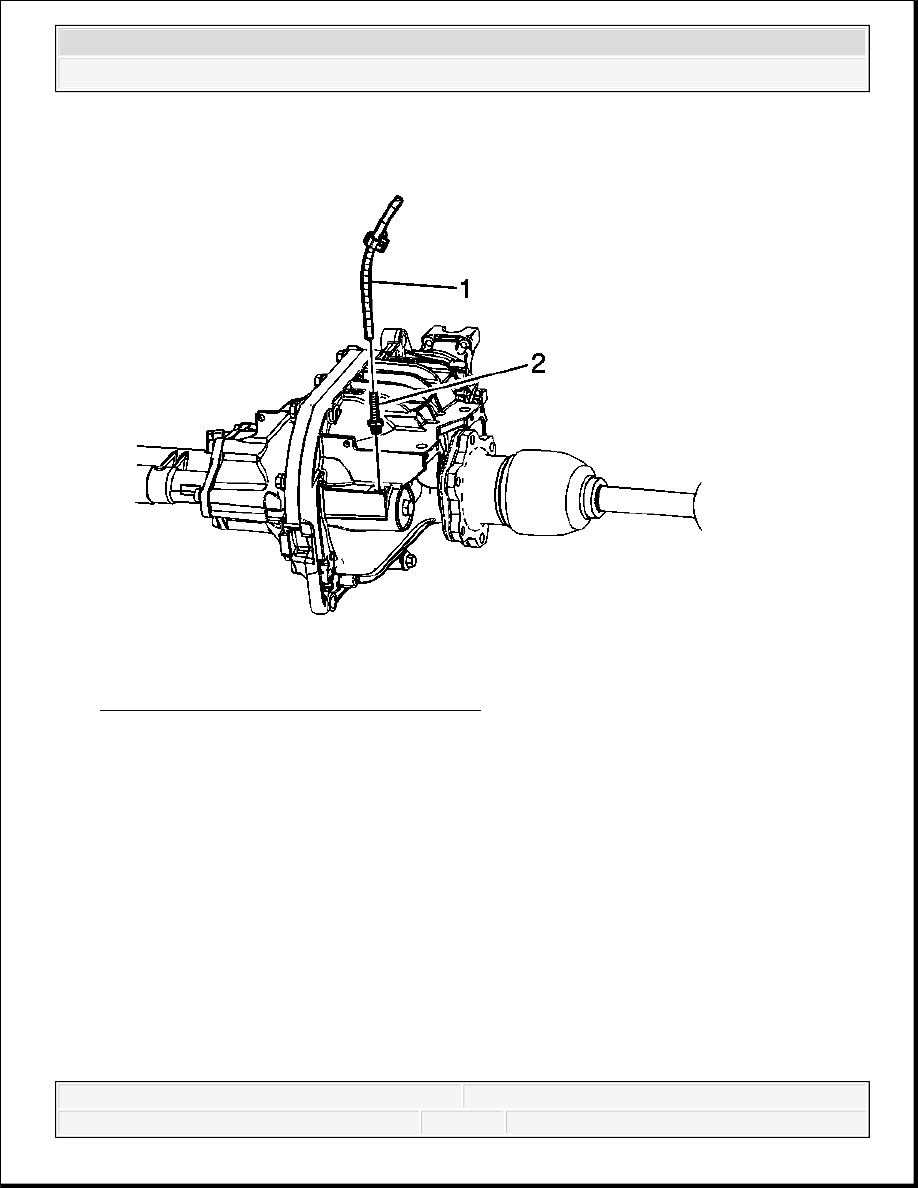

Fig. 229: View Of Vent Hose & Connector 8. If servicing the 8.25 inch axle, install the vent hose (1) to the vent connector (2). Tighten: Tighten the vent hose connector (2) to 20 N.m (15 lb ft).
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

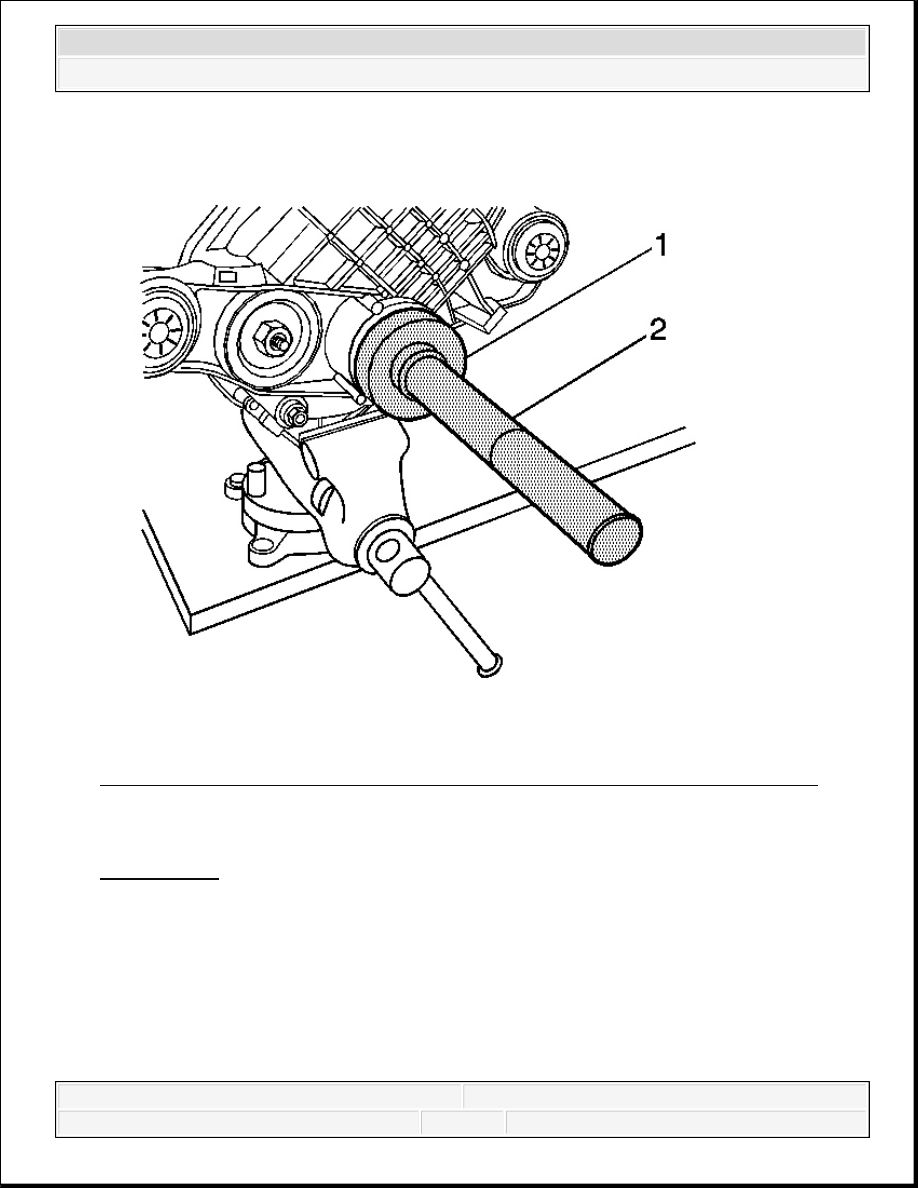

Fig. 230: Install New Axle Shaft Seal Using J 45225 & J 8092 - Front Drive Axle 9. Install the new left side axle shaft seal using the J 45225 (1) and the J 8092 (2). See Special Tools. 10. Install the new left side inner axle shaft retainer ring.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

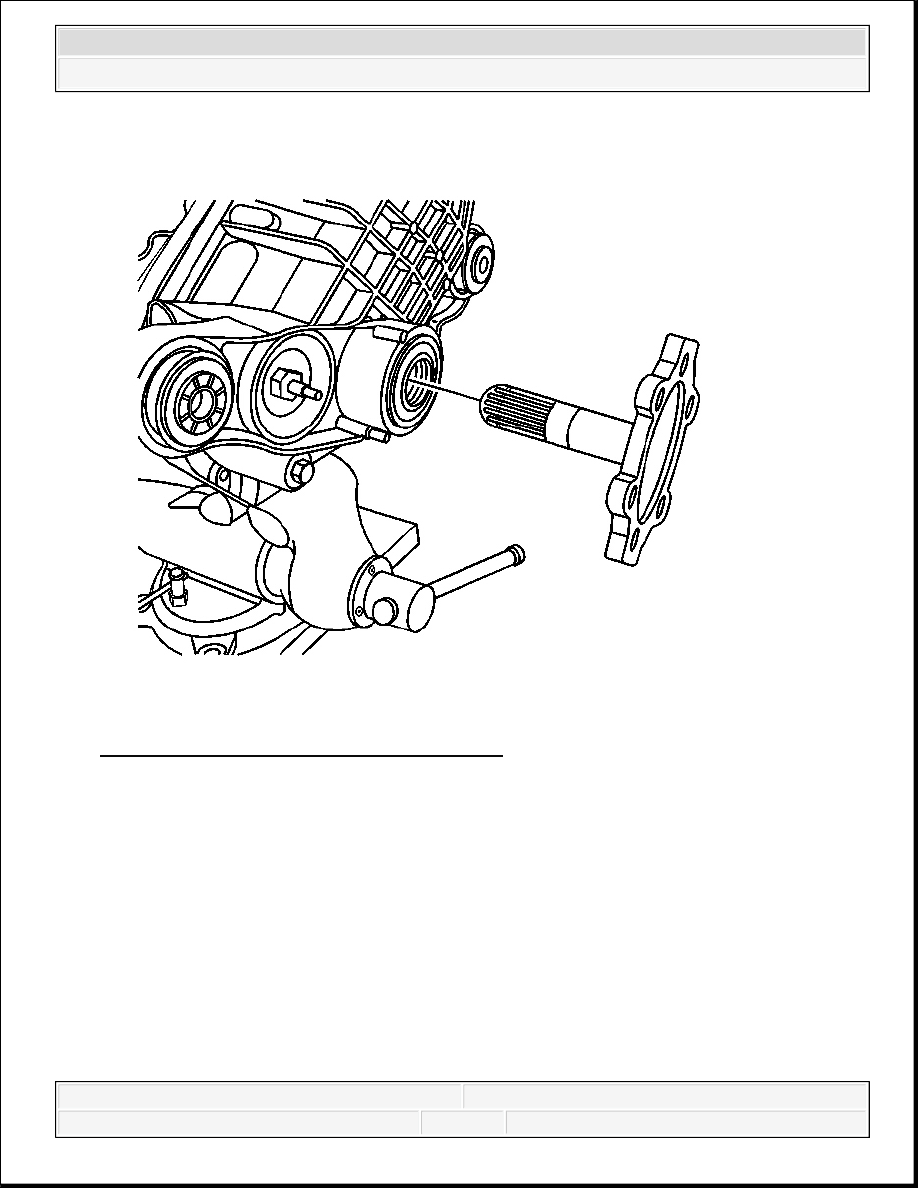

Fig. 231: View Of Left Side Inner Axle Shaft 11. Install the left side inner axle shaft by doing the following: 1. Install the left side inner shaft into the differential carrier assembly until the inner shaft is seated against the differential side gear. 2. While holding the inner shaft against the differential side gear, turn the inner shaft in order to align the splines of the inner shaft with the splines on the differential side 3. Drive the inner shaft into the differential case side gear using a soft-faced mallet until the retaining ring on the inner shaft is fully seated within the groove in the differential 12. Pull back on the inner shaft to ensure that the inner shaft is properly retained in the differential case side gear.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

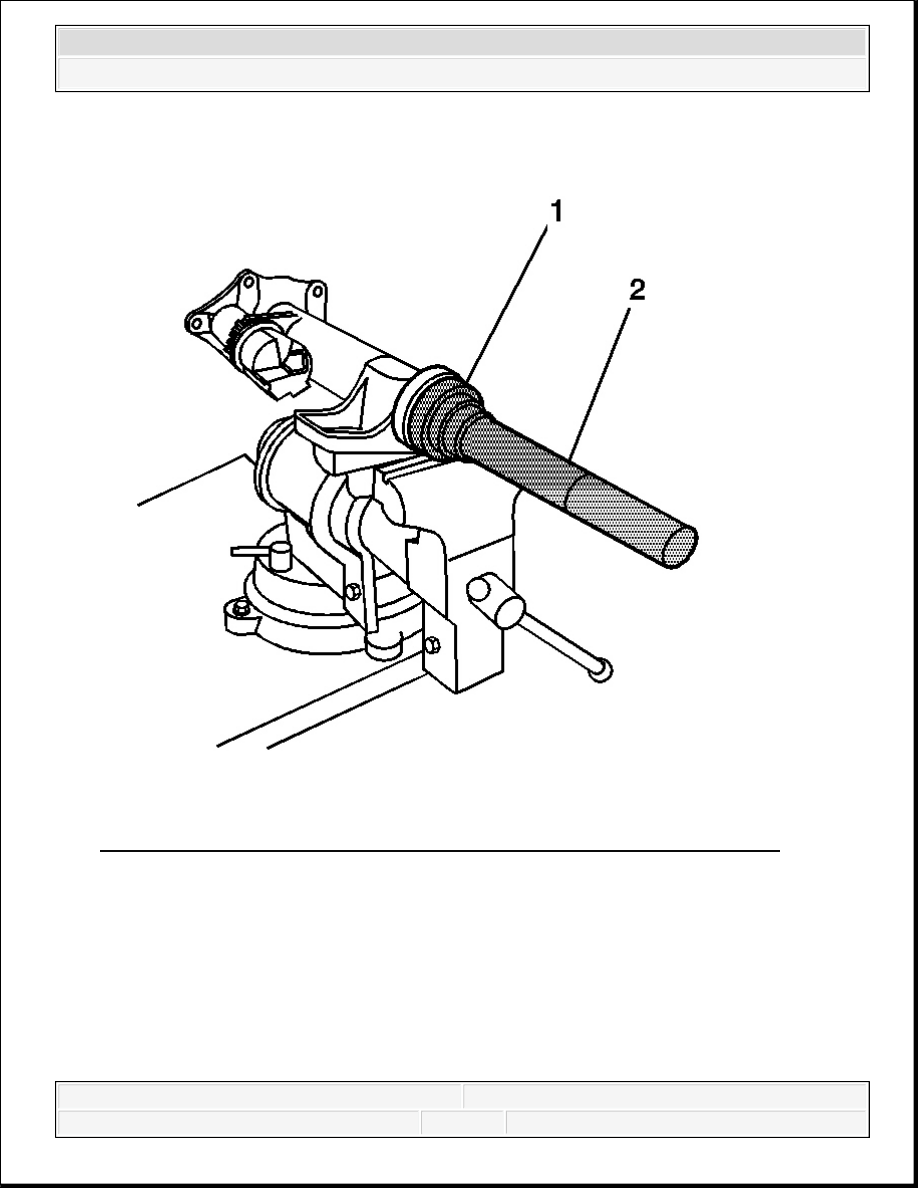

Fig. 232: Installing Side Bearing Using J 36609 & J 8092 - Front Drive Axle 13. Install the right side inner shaft bearing into the inner shaft housing by performing the following steps: 1. Install the inner axle shaft housing into a vise. IMPORTANT: Clamp only on the mounting flange of the inner axle shaft housing.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
