DIFFERENTIAL CASE ASSEMBLY DISASSEMBLE (9.25 INCH AXLE)
Tools Required
J 22888-D Side Bearing Remover Kit. See Special Tools.
J 36597 Side Bearing Puller Pilot - 9. See Special Tools.25 in Axle
Disassemble
1. Remove the differential side bearing by performing the following steps:
1. Place the differential case in a vise.

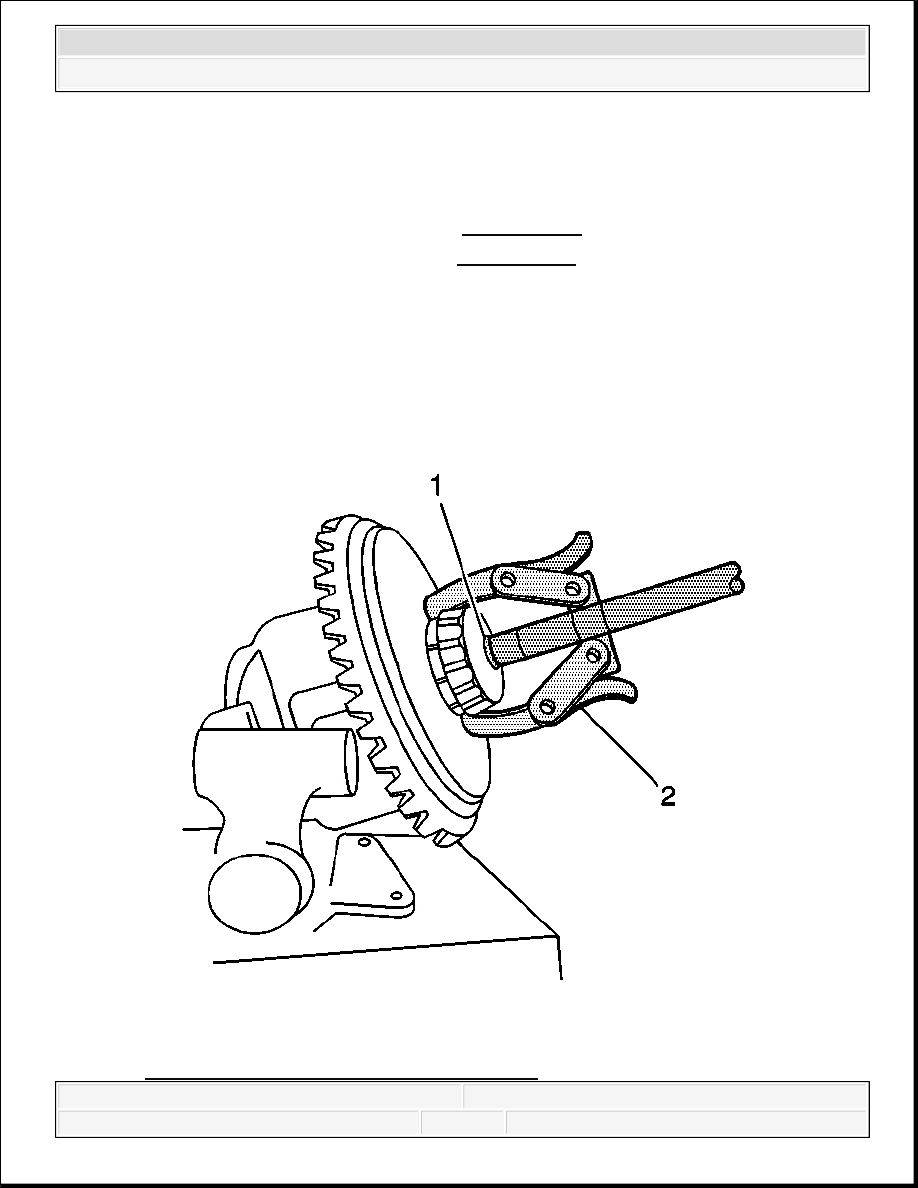

Fig. 166: View Of Differential Side Bearing
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
2. Install the J 22888-20A (2) and the J 36597 (1) as shown. See Special Tools.
3. Remove the differential side bearings using theJ 22888-20A .
2. Remove the differential assembly from the vise.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

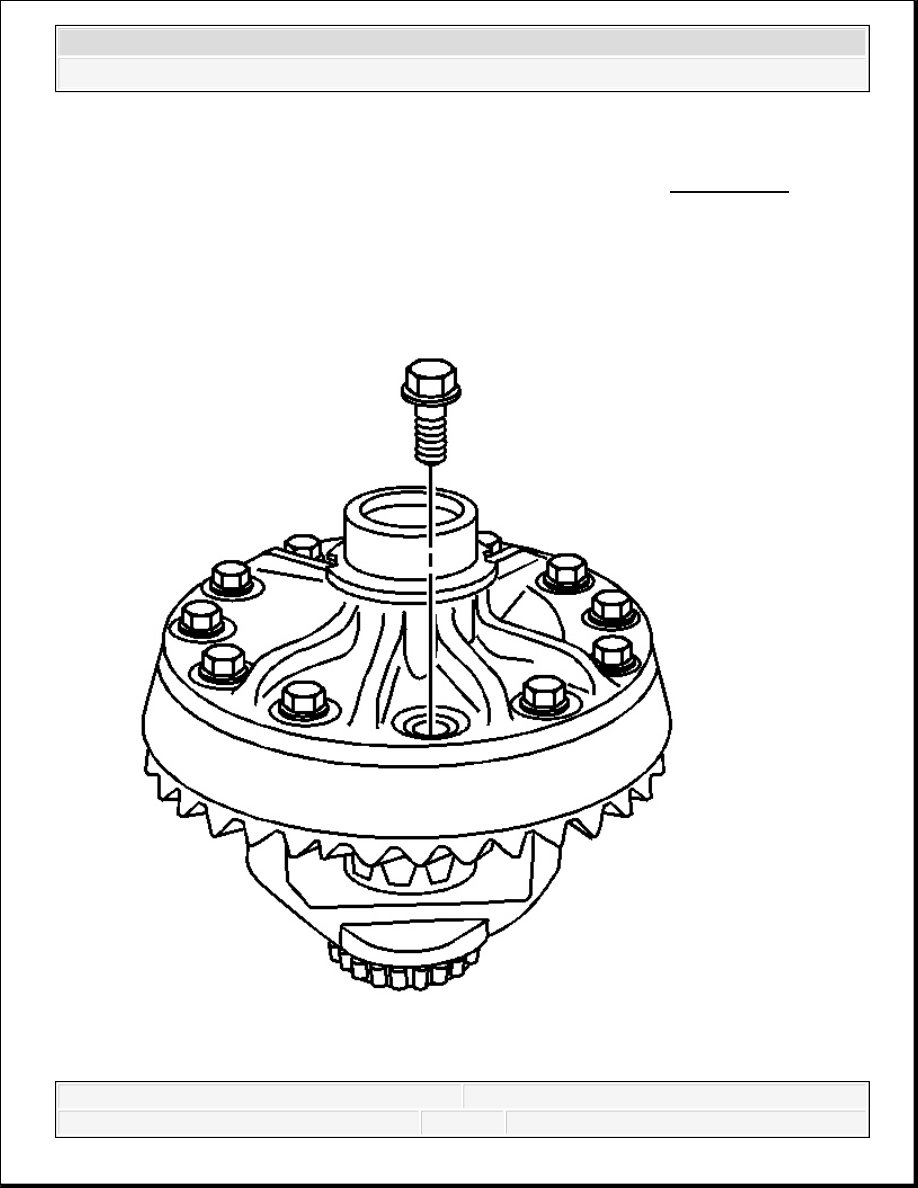

Fig. 167: Identifying Ring Gear Bolts
Courtesy of GENERAL MOTORS CORP.
3. Remove the ring gear bolts. Discard the bolts.

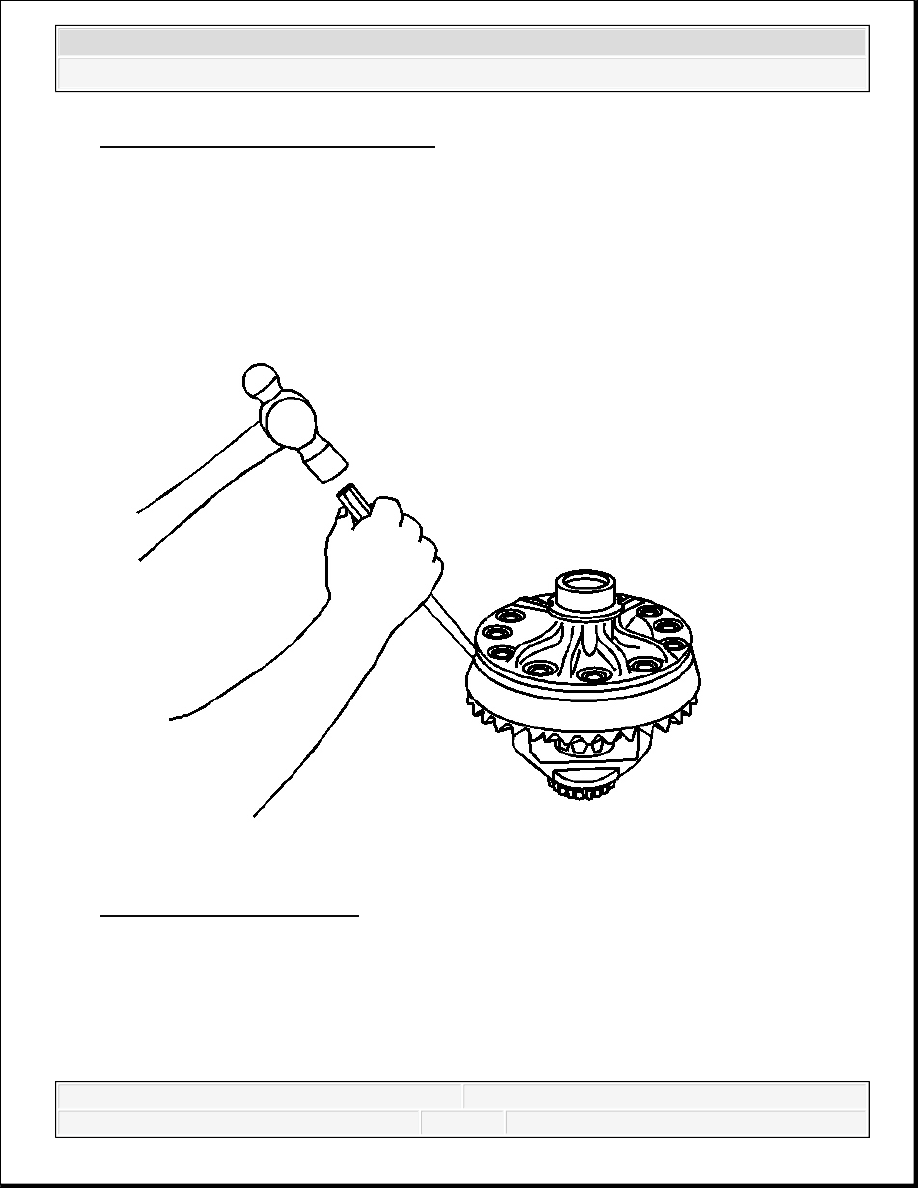

Fig. 168: View Of Ring Gear
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: The ring gear bolts have left-hand threads.
NOTE:
Do not pry the ring gear from the differential case. Prying the
ring gear from the differential case may cause damage to the
ring gear and/or the differential case.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
4. Remove the ring gear from the differential case.
Drive the ring gear off with a brass drift if necessary.

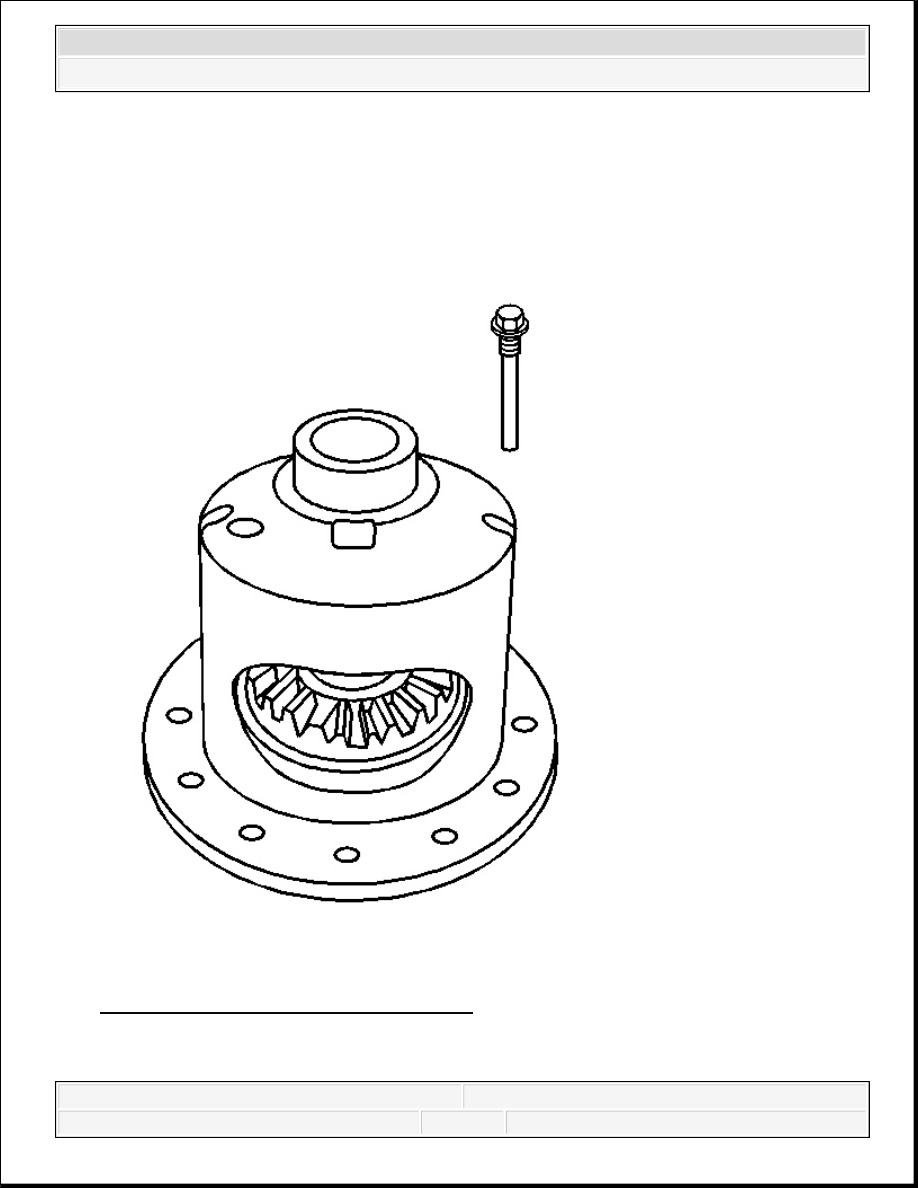

Fig. 169: View Of Pinion Shaft Lock Bolt
Courtesy of GENERAL MOTORS CORP.
5. Remove the pinion shaft lock bolt.
