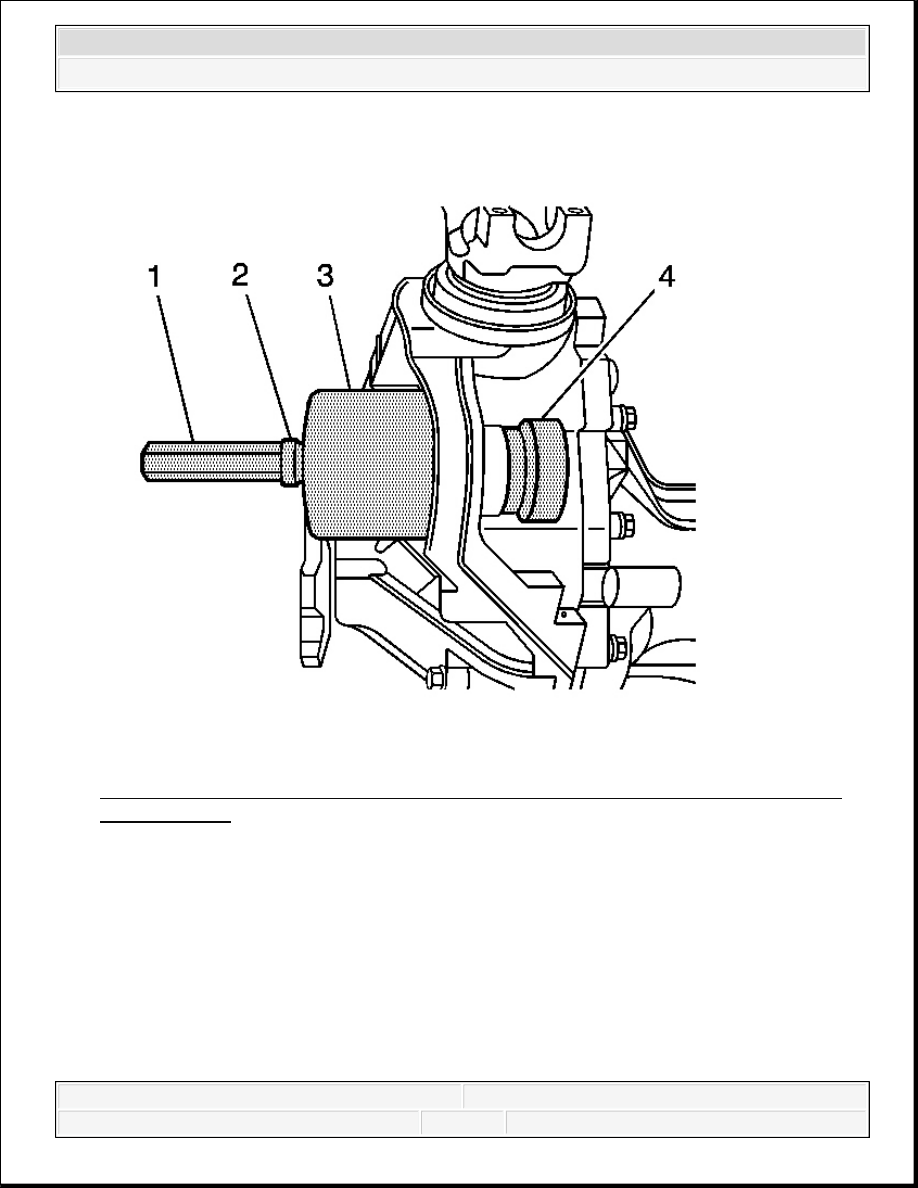

Fig. 139: View Of Special Tools 21474-18, Thrust Bearing, J 33791-1, J 36616-2, & 2. Remove the lower differential carrier assembly bushing by performing the following steps: 1. Install the J 21474-18 (1), the thrust bearing (2), the J 33791-1 (3), the J 36616-2 (4), and the forcing screw as shown. 2. Remove the lower differential carrier assembly bushing by holding the forcing screw and tightening the J 21474-18.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

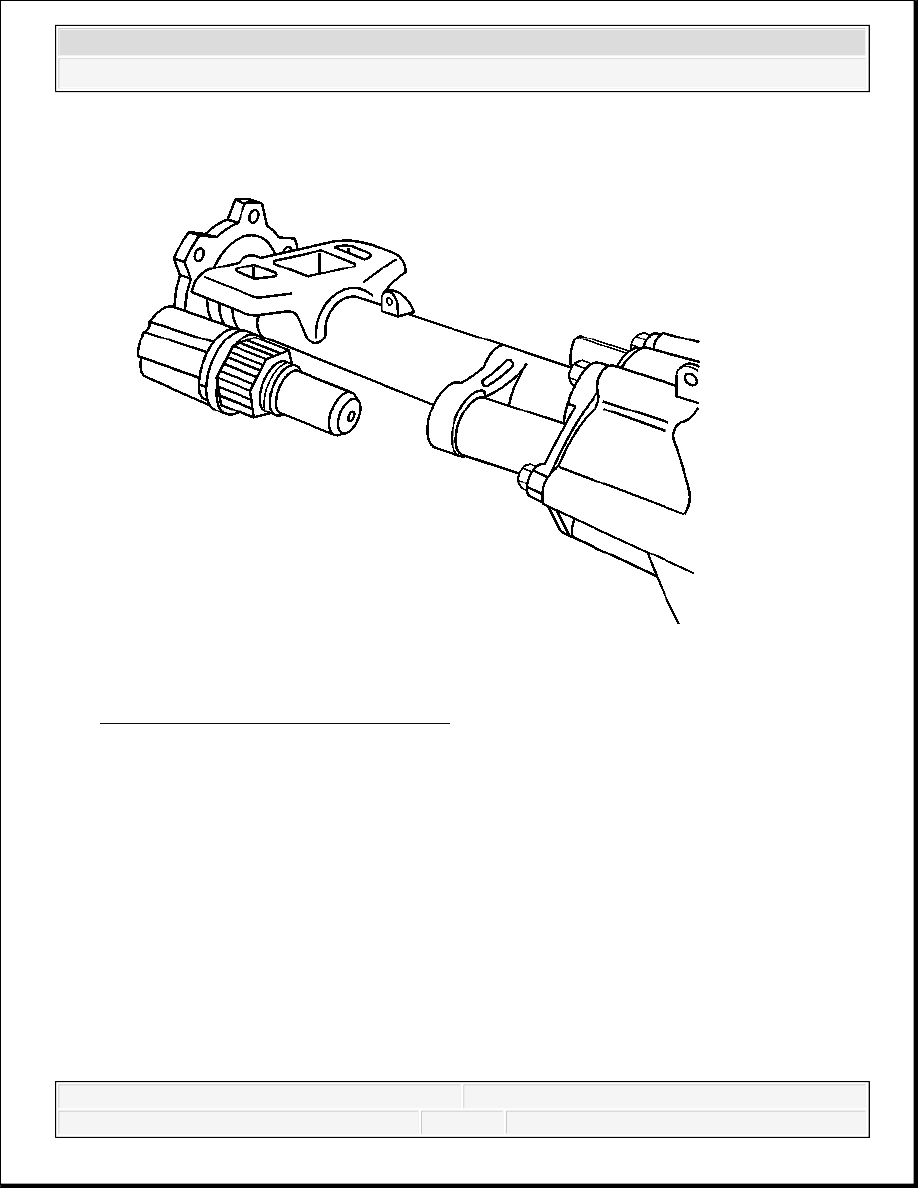

Fig. 140: View Of Front Axle Actuator 3. Remove the front axle actuator. 4. Remove the inner axle shaft housing to differential carrier assembly bolts.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

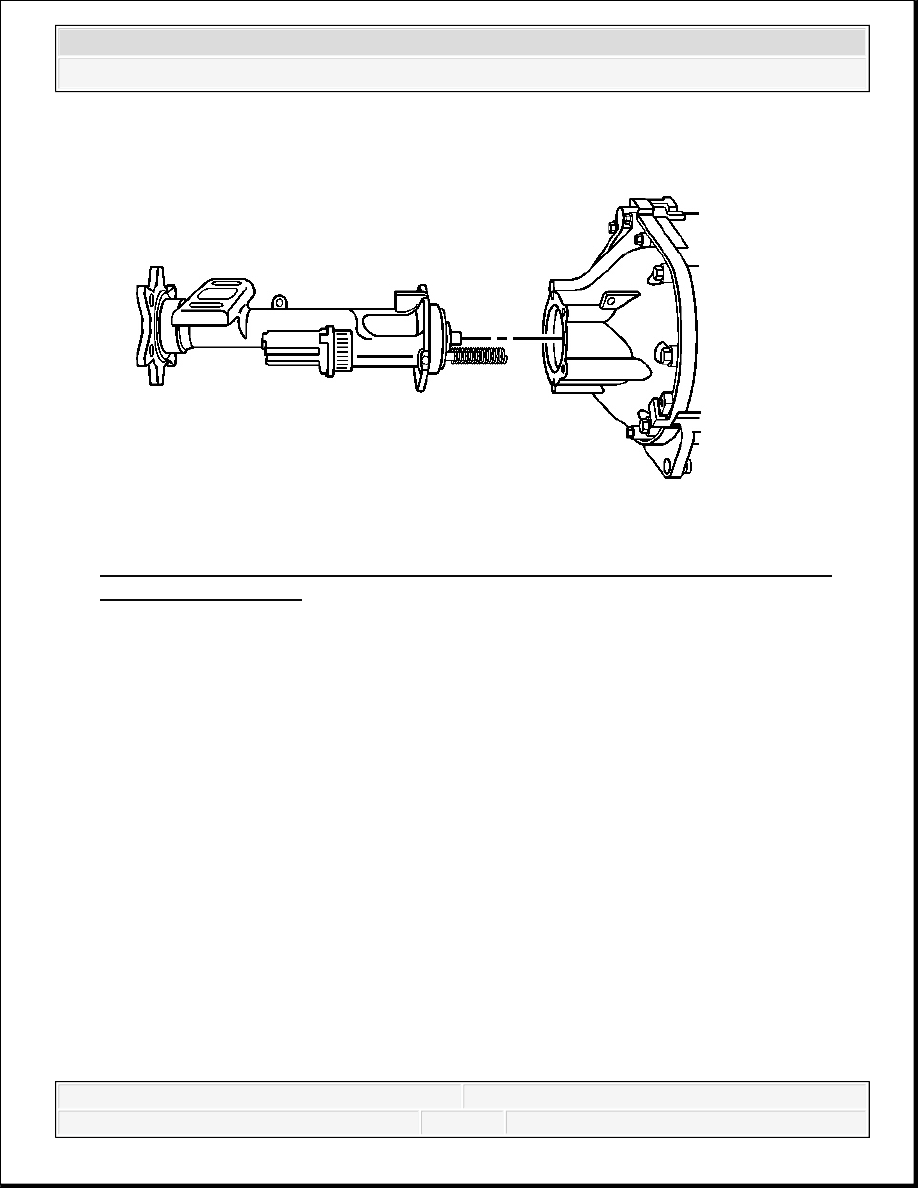

Fig. 141: Identifying Inner Axle Shaft Housing Assembly - Front Drive Axle (8.25 5. Carefully remove the inner axle shaft housing with the inner axle shaft and clutch fork components from the differential carrier assembly.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

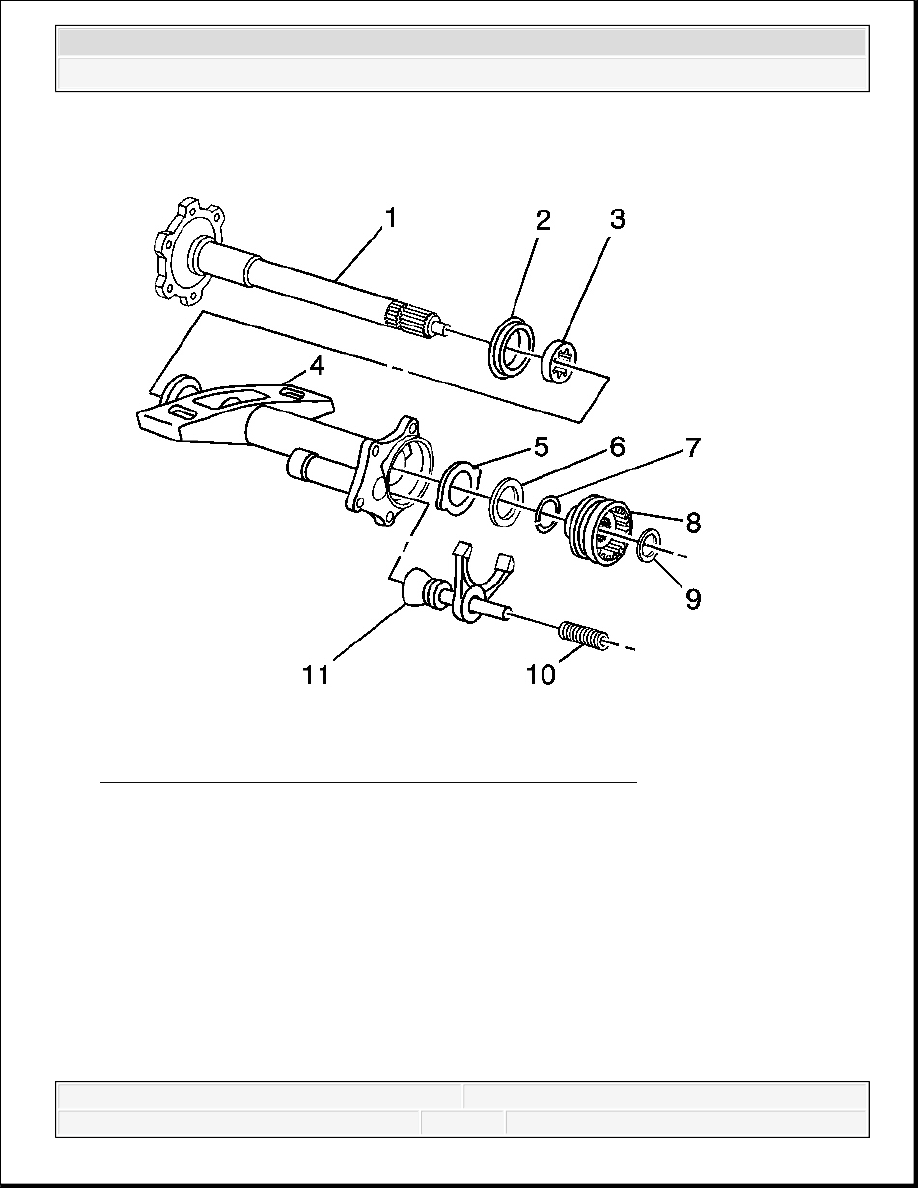

Fig. 142: Inner Axle Shaft Housing Components (9.25 Inch) 6. Remove the following components from the inner axle shaft housing (4): 1. The clutch fork inner spring (10) 2. The clutch fork assembly (11) 3. The clutch shaft shim (9) 4. The clutch shaft sleeve (8) 5. The retainer ring (7) 6. The thrust washers (5, 6)
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
