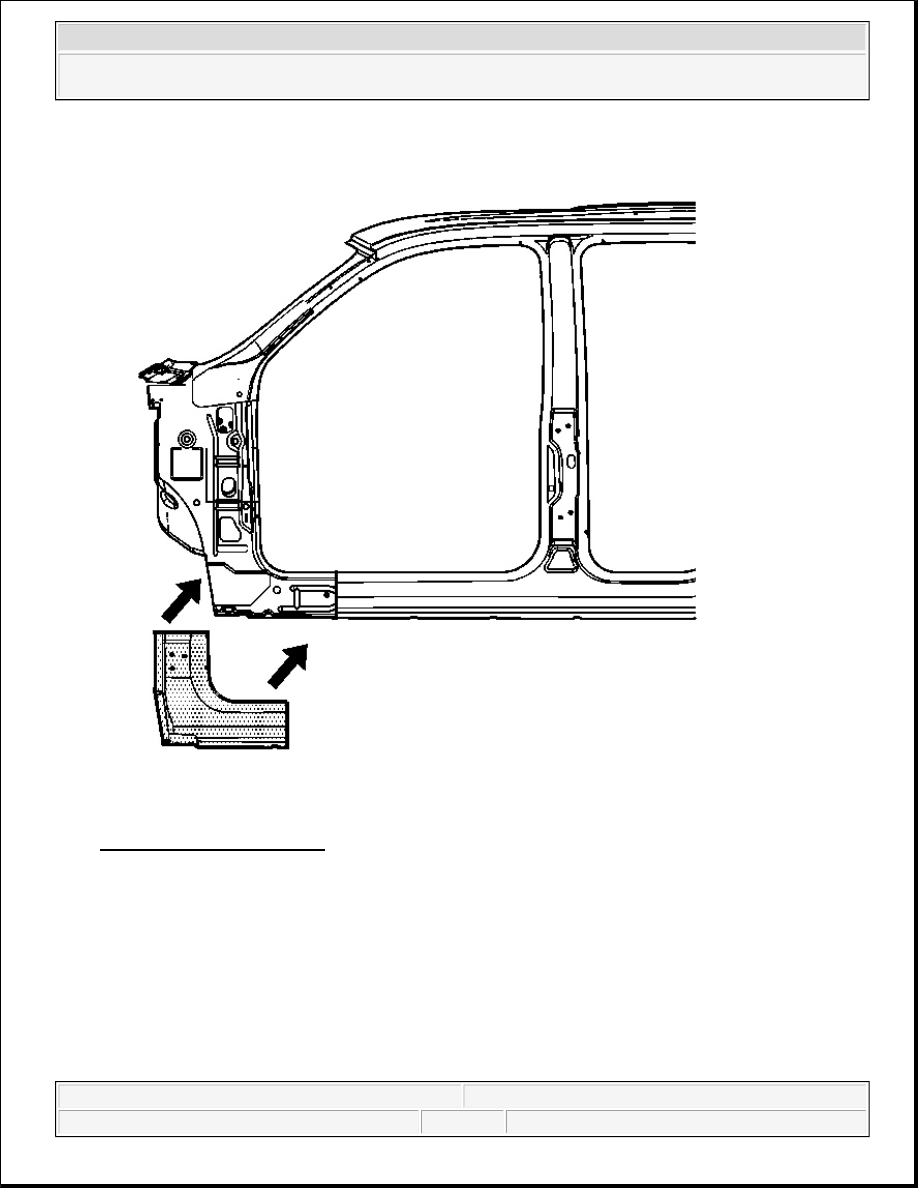

Fig. 85: View Of Hinge Pillar
Courtesy of GENERAL MOTORS CORP.

7. Position the hinge pillar to the vehicle using 3-dimensional measuring equipment. Clamp in place.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 94

© 2005 Mitchell Repair Information Company, LLC.

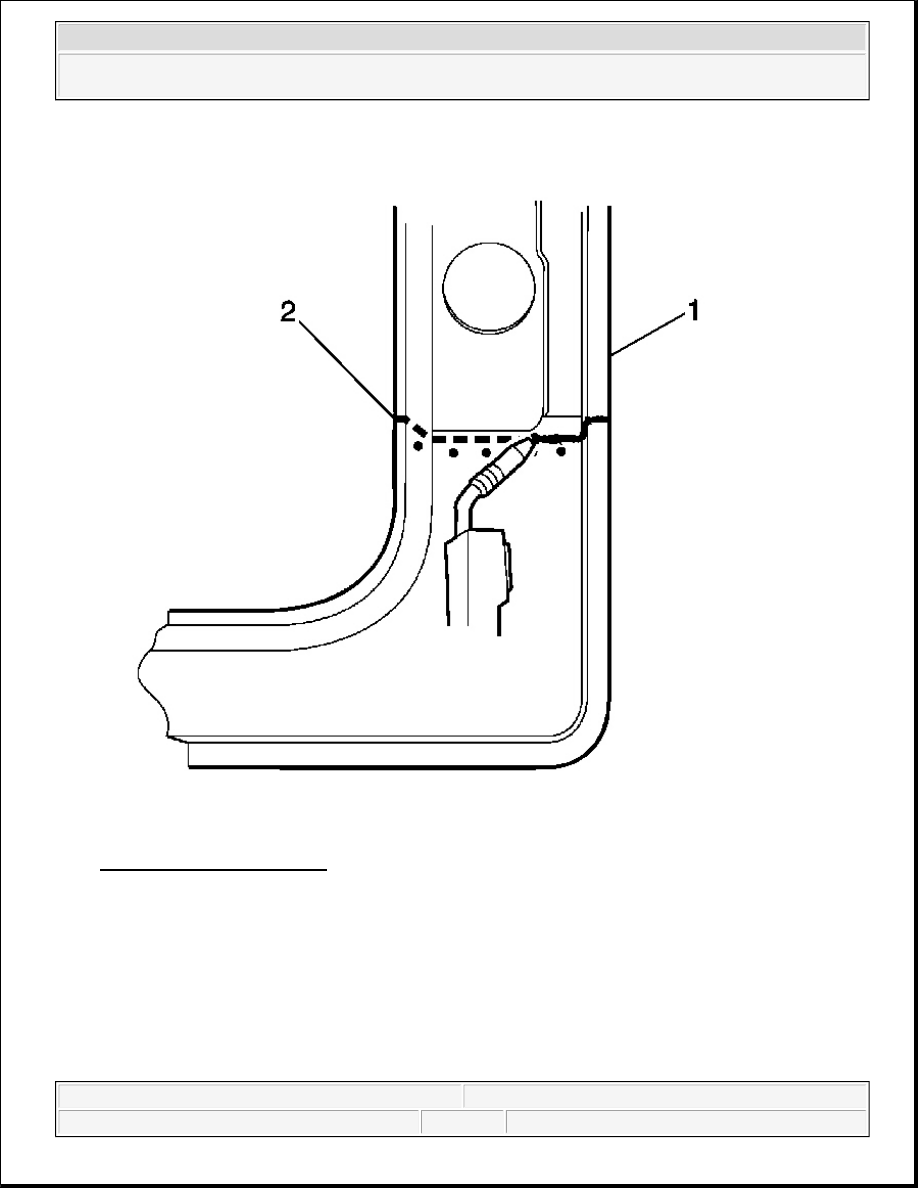

Fig. 86: Welding Service Part
Courtesy of GENERAL MOTORS CORP.

8. Plug weld accordingly.

9. Clean and prepare all welded surfaces.

10. Apply the sealers and anti-corrosion materials to the repair area (1), as necessary. Refer to Anti-

IMPORTANT: To create a solid weld with minimum heat distortion, make 25 mm (1 in)

stitch welds along the seam (2) with 25 mm (1 in) gaps between them.
Complete the stitch weld.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 95

© 2005 Mitchell Repair Information Company, LLC.

Corrosion Treatment and Repair .

11. Paint the repair area. Refer to Basecoat/Clearcoat Paint Systems .

12. Install all related panels and components.

13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

(w/Single Battery) or Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery)
or Battery Negative Cable Disconnection and Connection (w/Dual Batteries) .

14. Enable the SIR system. Refer to SIR Disabling and Enabling .

CENTER PILLAR SECTIONING

Removal Procedure

CAUTION: Refer to Approved Equipment for Collision Repair Caution .

CAUTION: Refer to Glass and Sheet Metal Handling Caution .

CAUTION: Refer to Collision Sectioning Caution .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 96

© 2005 Mitchell Repair Information Company, LLC.

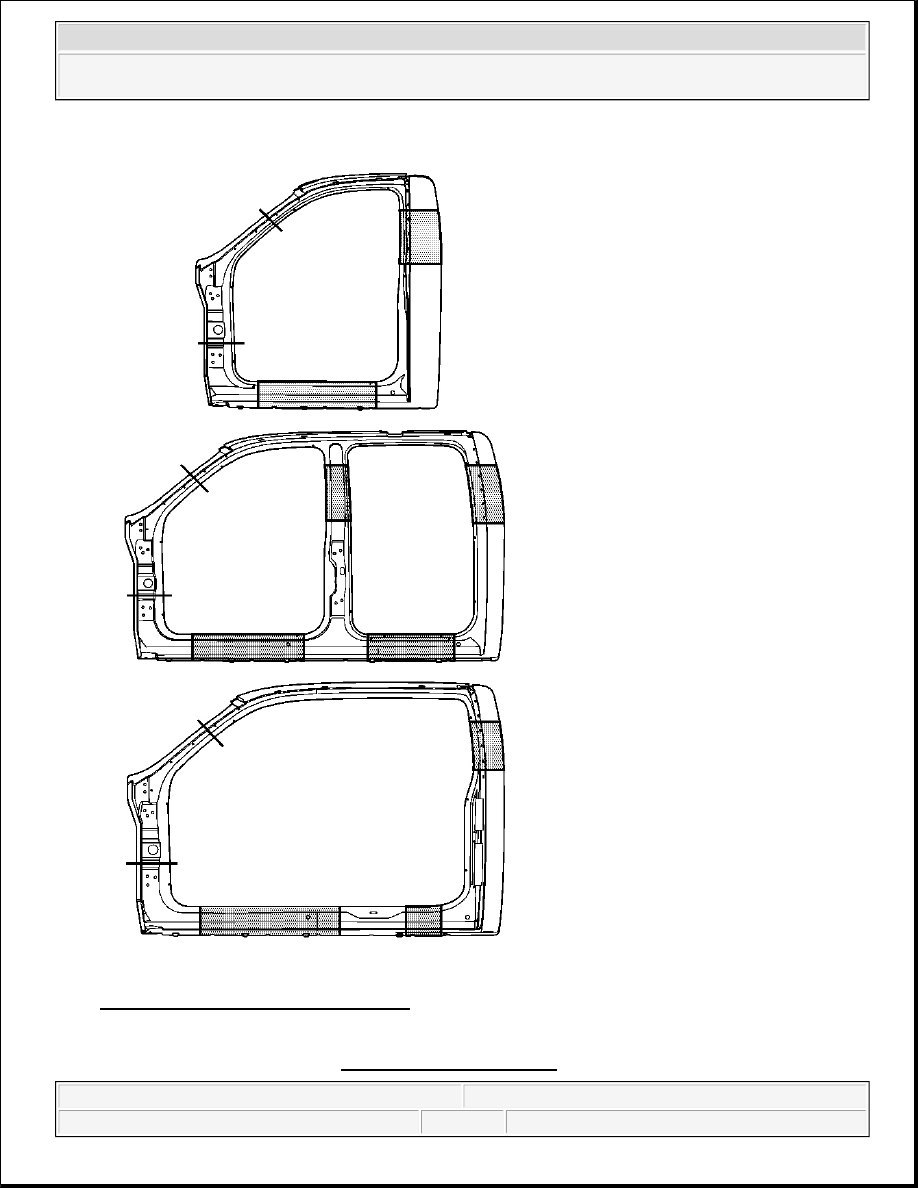

Fig. 87: View Of Sectioned Frame Areas
Courtesy of GENERAL MOTORS CORP.

1. Disable the SIR system. Refer to SIR Disabling and Enabling .
