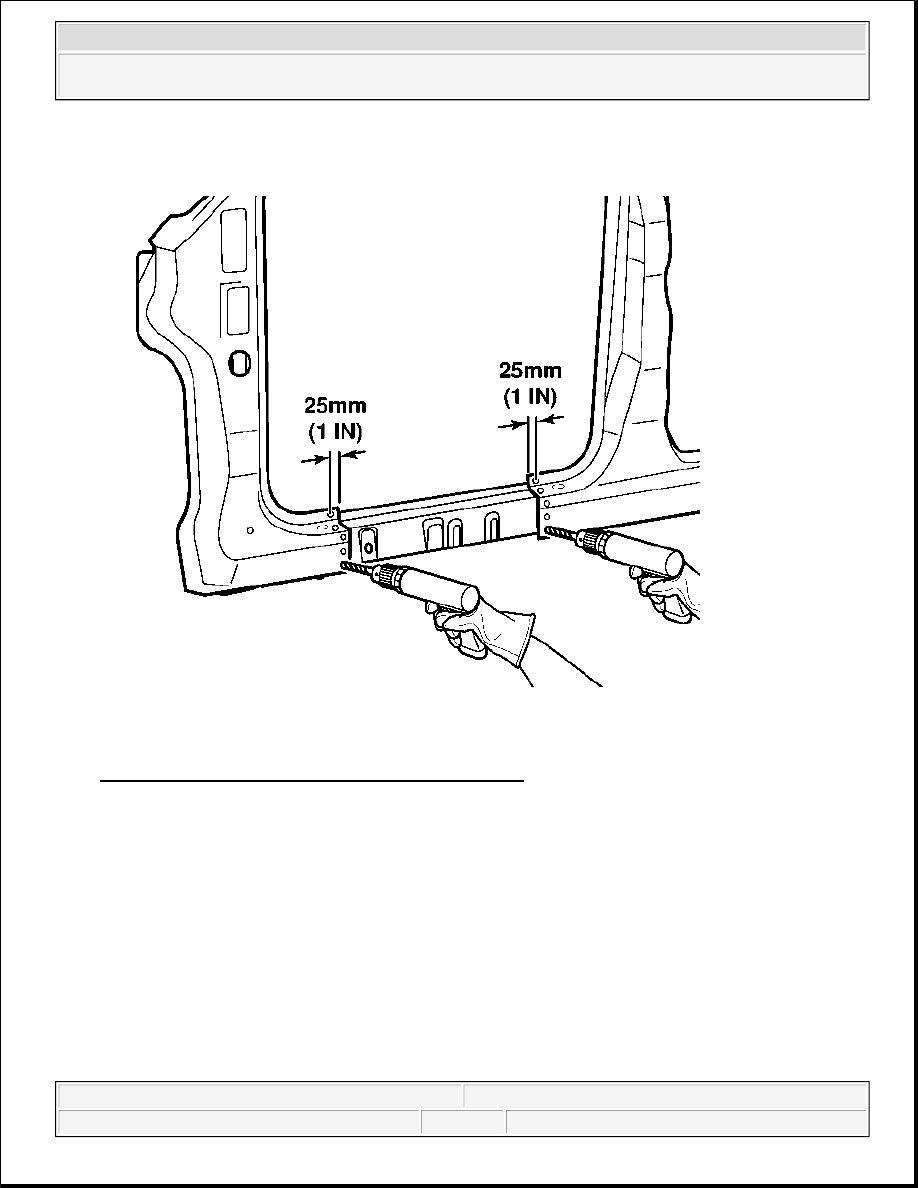

Fig. 38: Drilling Plug Weld Holes Along Sectioning Cut
Courtesy of GENERAL MOTORS CORP.

3. Drill 8 mm (5/16 in) plug weld holes along the sectioning cut on the remaining original part. Locate these

holes approximately 25 mm (1 in) from the edge and spaced 40 mm (1 1/2 in) apart.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:20:59 PM

Page 42

© 2005 Mitchell Repair Information Company, LLC.

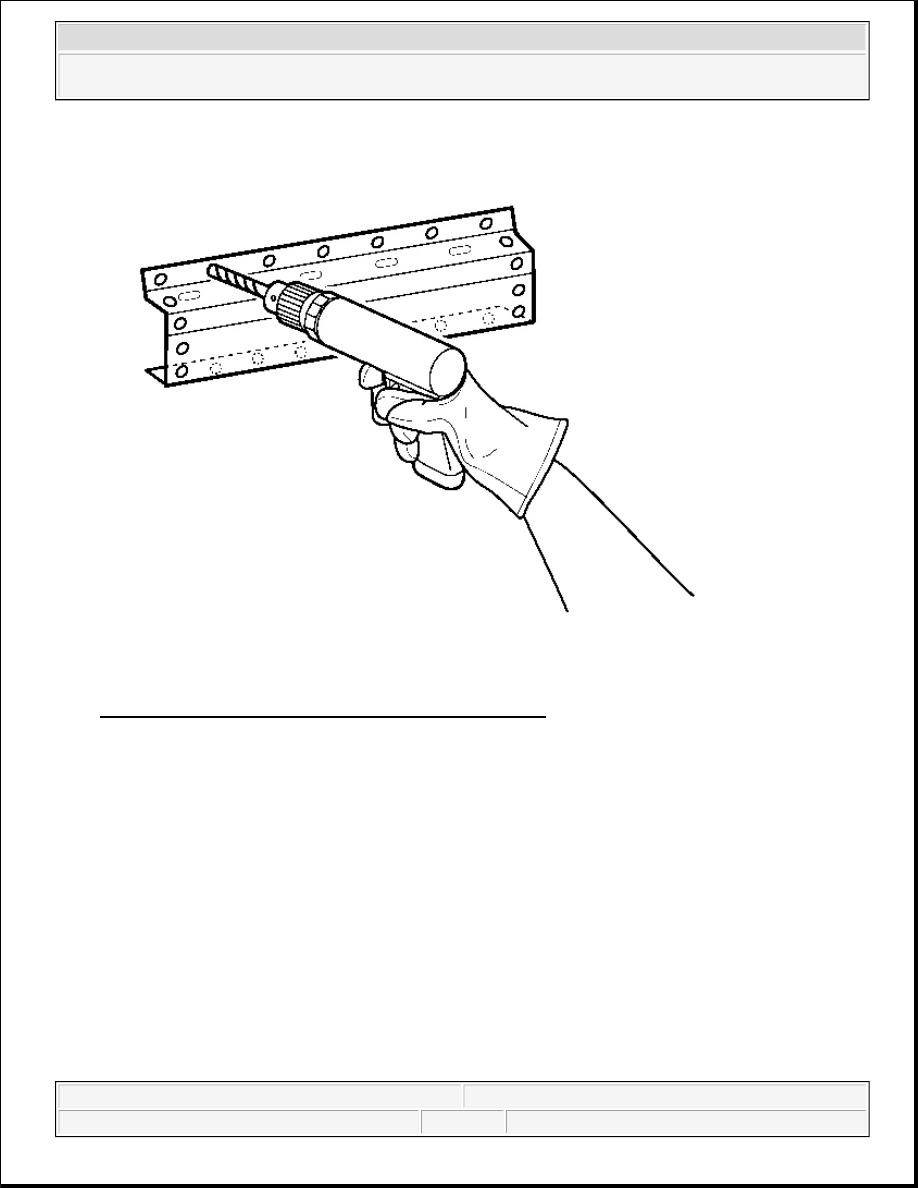

Fig. 39: Drilling Plug Weld Holes In Rocker Panel Section
Courtesy of GENERAL MOTORS CORP.

4. Drill 8 mm (5/16 in) plug weld holes in the service part as necessary in the locations noted from the

original panel and along the sectioning cut.

IMPORTANT: If the location of the original plug weld holes can not be determined, or if

structural weld-thru adhesive was present, space the plug weld holes
every 40 mm (1 1/2 in) apart.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:20:59 PM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

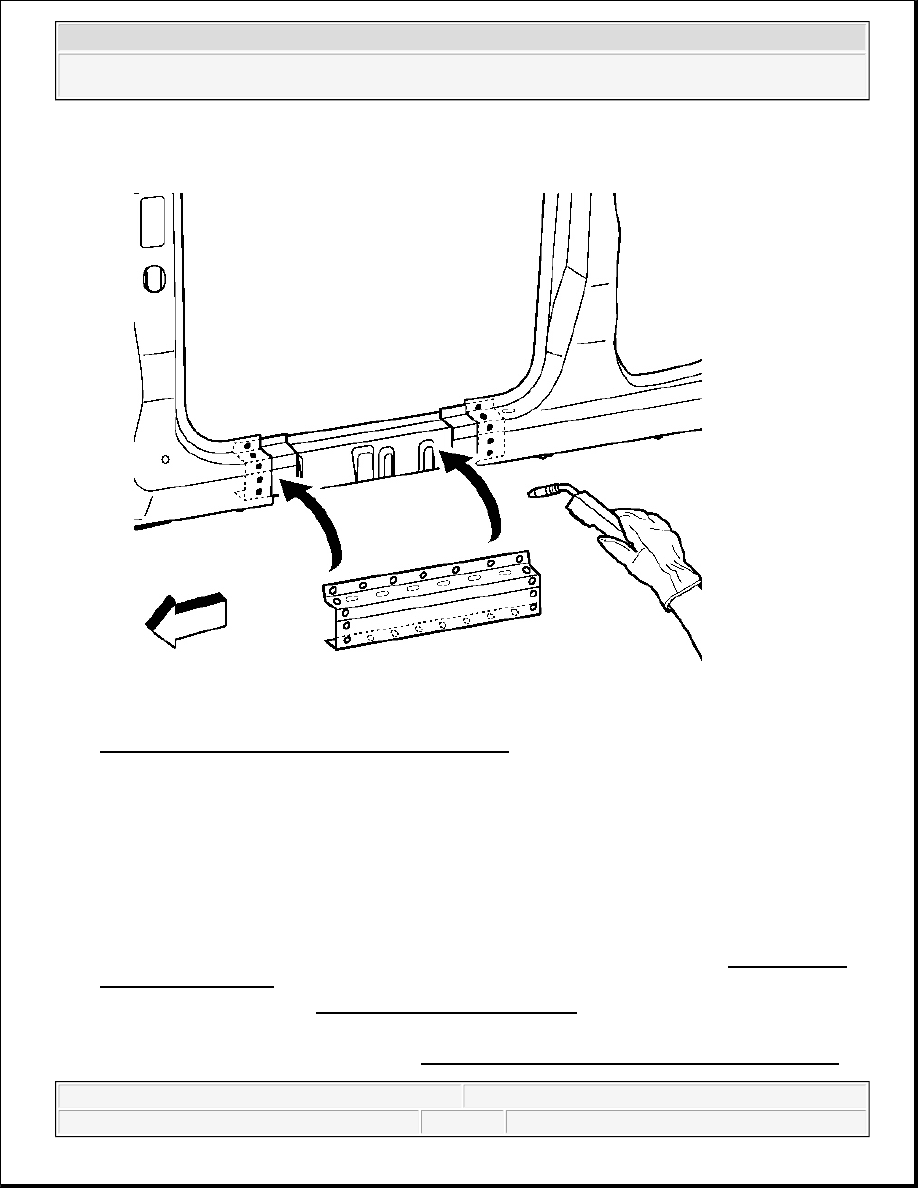

Fig. 40: Fitting & Plug Weld Backing Plate To Vehicle
Courtesy of GENERAL MOTORS CORP.

5. Prepare all attachment surfaces as necessary.

6. Apply GM-approved Weld-Thru Coating or equivalent to all mating surfaces. Refer to Anti-Corrosion

Treatment and Repair .

7. Fit the backing plate halfway into the sectioning joint, clamp and plug weld to the vehicle.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:20:59 PM

Page 44

© 2005 Mitchell Repair Information Company, LLC.

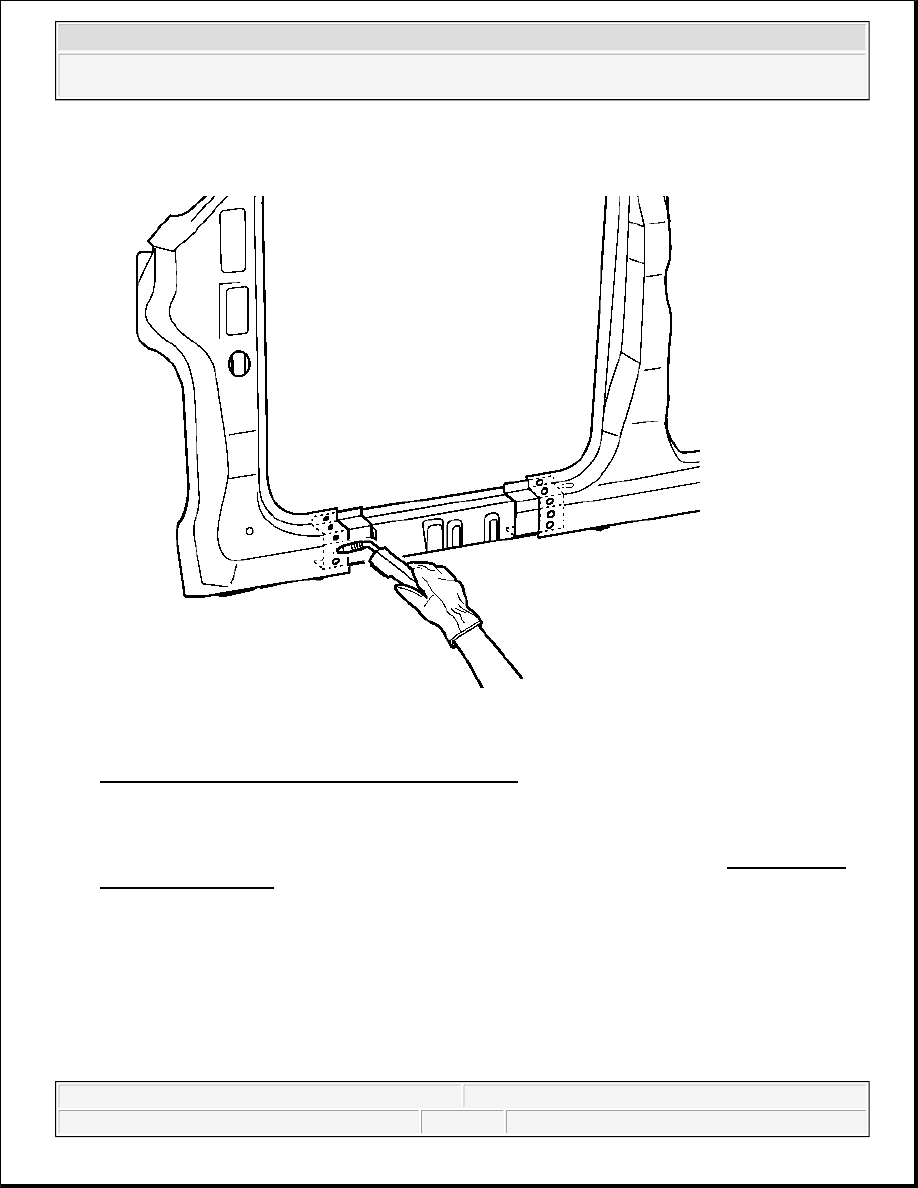

Fig. 41: Installing & Plug Weld Rocker Panel Section
Courtesy of GENERAL MOTORS CORP.

8. Position the body side to the vehicle using 3-dimensional measuring equipment. Clamp in place.

9. Clean and prepare all welded surfaces.

10. Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion

Treatment and Repair .

11. Paint the repair area. Refer to Basecoat/Clearcoat Paint Systems .

12. Install all related panels and components.

13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

(w/Single Battery) or Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery)

IMPORTANT: To create a solid weld with minimum heat distortion, make 25 mm (1 in)

stitch welds along the seam with 25 mm (1 in) gaps between them.
Complete the stitch weld.
