Chevrolet Silverado / GMC Sierra. Manual - part 1269

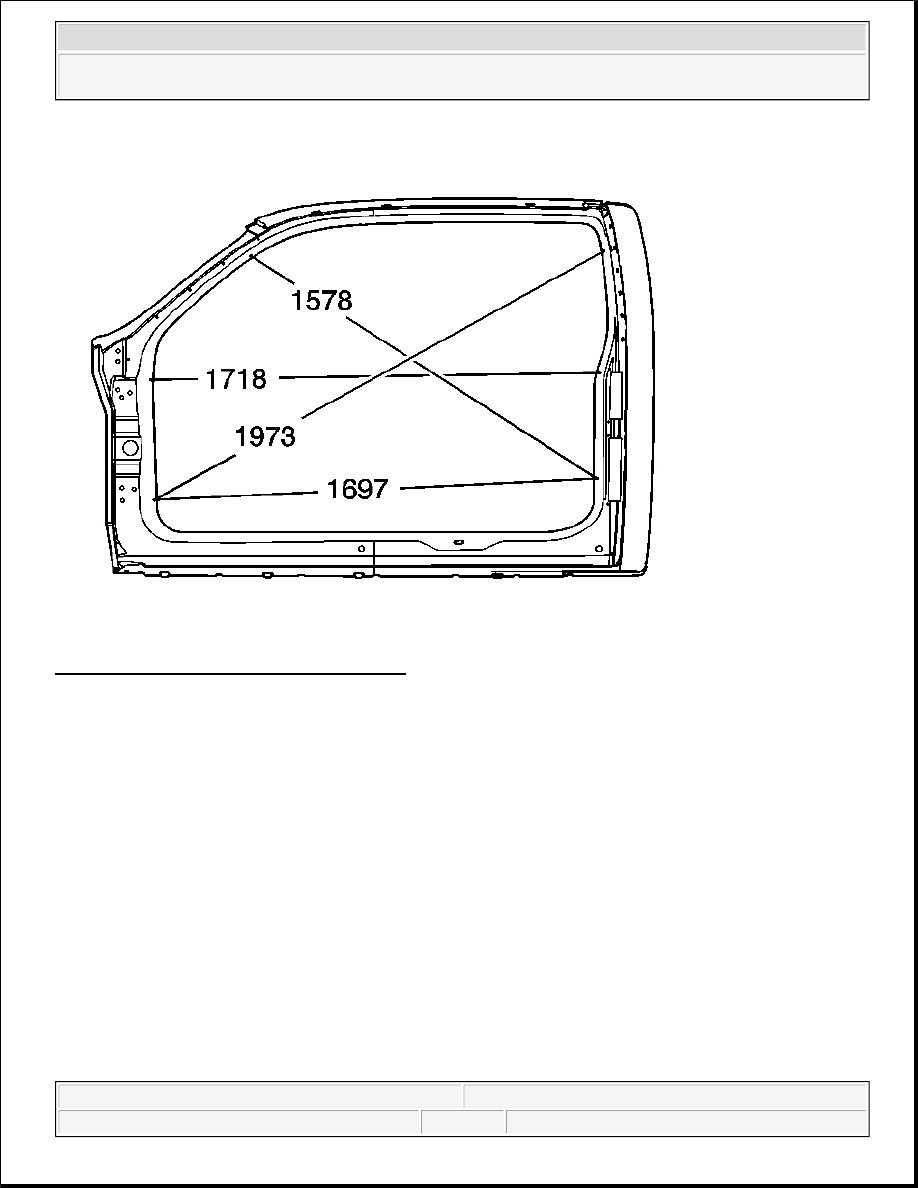

Fig. 2: Body Side Dimensions (Extended Cab)
Courtesy of GENERAL MOTORS CORP.

Body Side Dimensions (Regular Cab)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:20:59 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

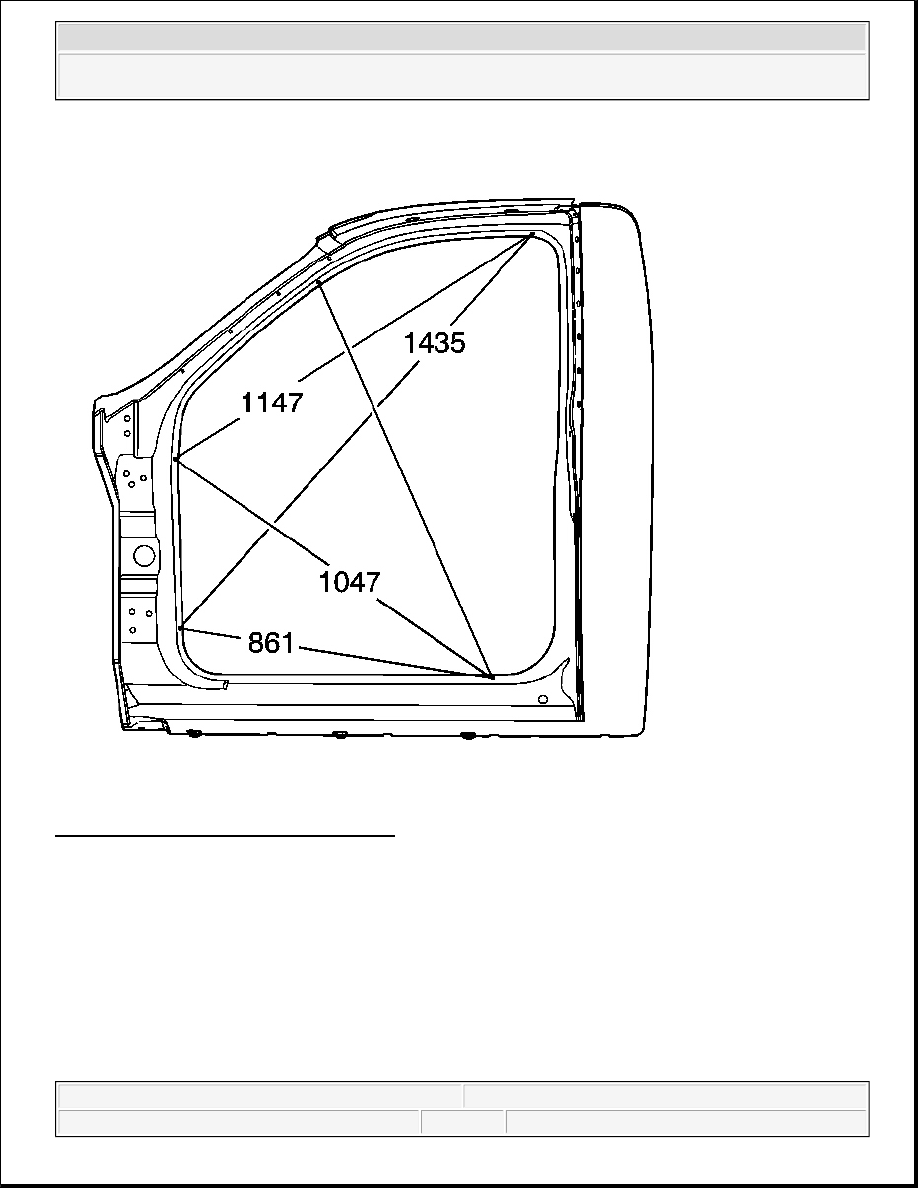

Fig. 3: Body Side Dimensions (Regular Cab)
Courtesy of GENERAL MOTORS CORP.

VISUAL IDENTIFICATION

STRUCTURE IDENTIFICATION



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:20:59 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

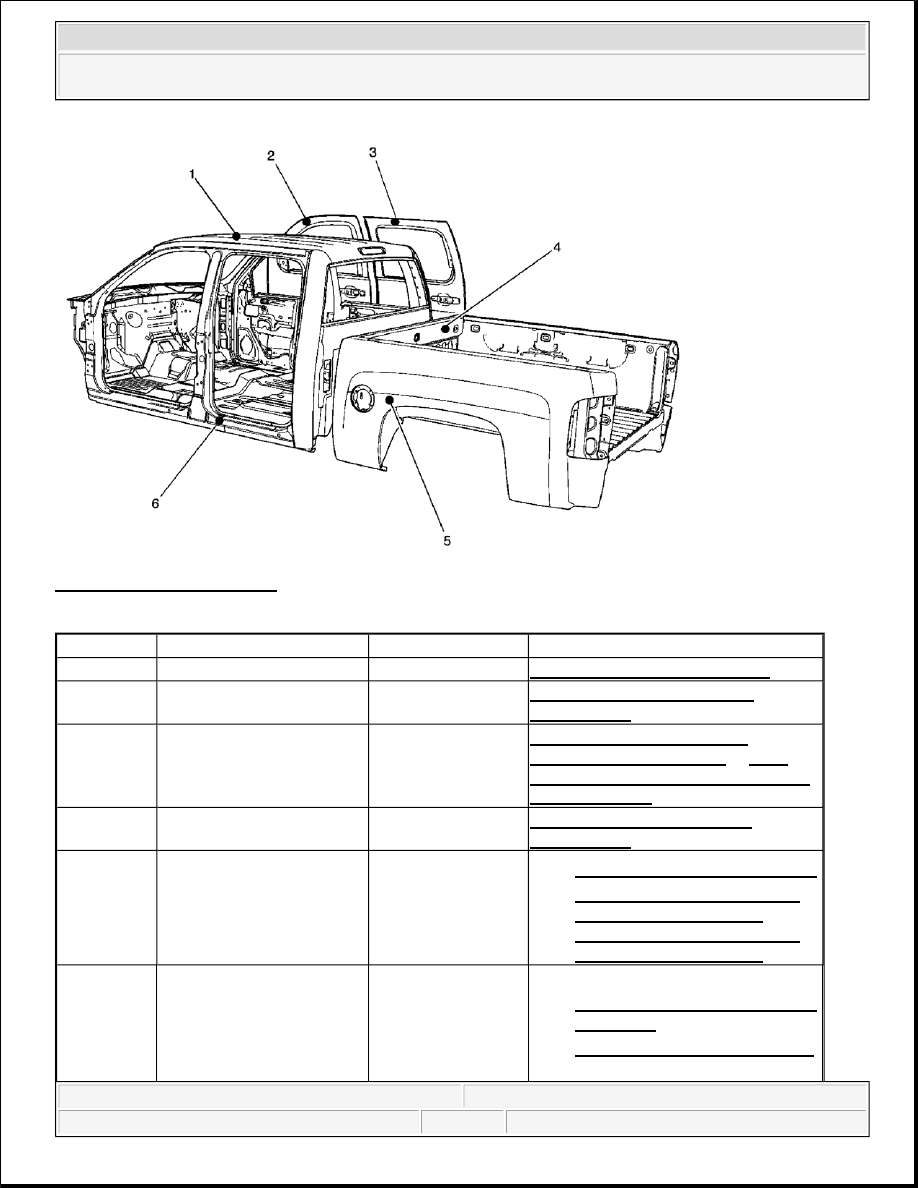

Fig. 4: Structure Description
Courtesy of GENERAL MOTORS CORP.

Number

Description

Material

Procedure

1

Roof Panel

Mild Steel

Roof Outer Panel Replacement

2

Front Door Panel

Mild Steel

Front Side Door Outer Panel
Replacement

3

Rear Door Panel

Mild Steel

Rear Side Door Outer Panel
Replacement (Crew Cab) or Rear
Side Door Outer Panel Replacement
(Extended Cab)

4

Box Front Panel

Mild Steel

Pickup Box Front End Panel
Replacement

5

Box Side Panel

Mild Steel



Pickup Box Replacement - Side



Pickup Box Outer Side Panel
Replacement (Bond-On) or
Pickup Box Outer Side Panel
Replacement (Weld-On)

6

Body Side Outer

Mild Steel



Outer Windshield Frame Pillar
Sectioning



Rocker Outer Panel Sectioning



Front Hinge Pillar Sectioning



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:20:59 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

REPAIR INSTRUCTIONS

FRONT FULL FRAME SECTIONING

Removal Procedure

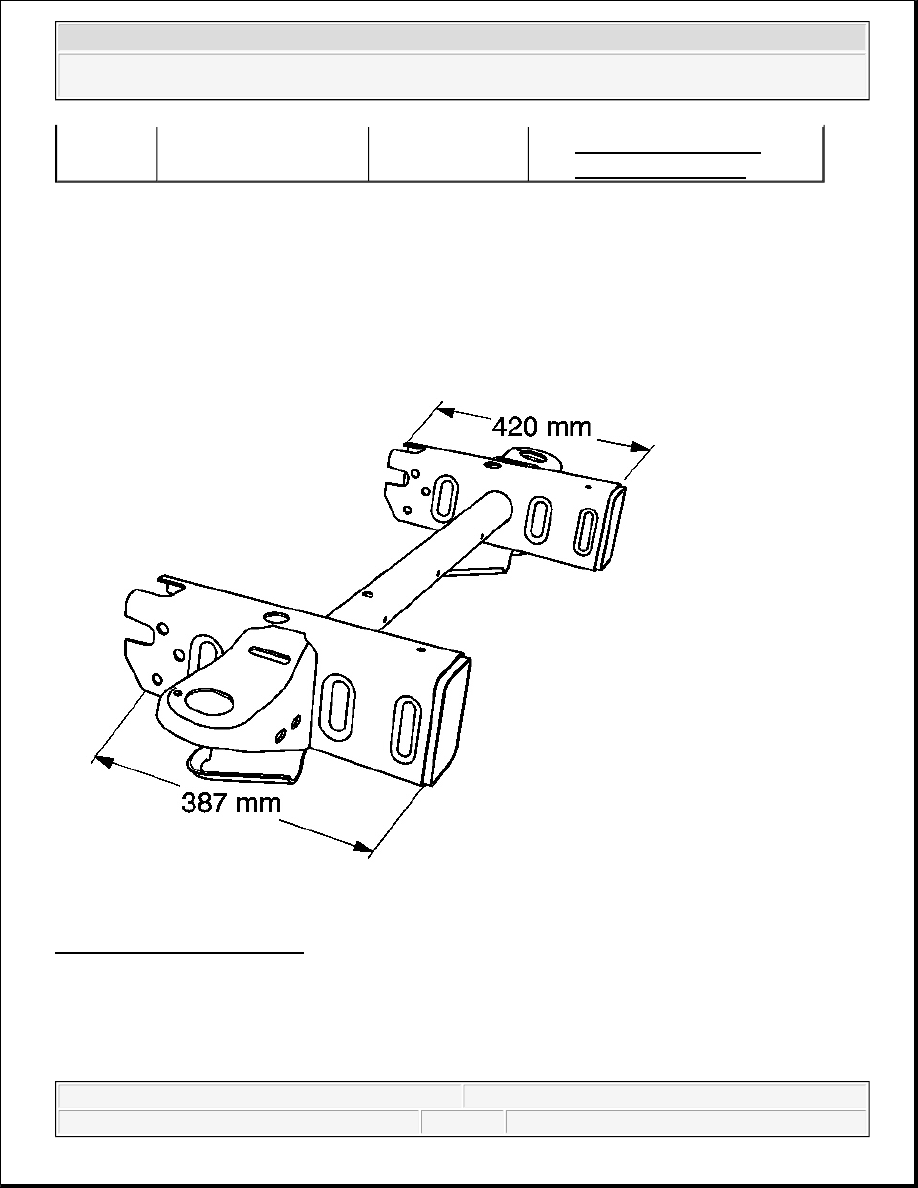

Fig. 5: Frame Sectioning - Front
Courtesy of GENERAL MOTORS CORP.

The re-designed frame assembly for the new C/K Pick-Up and Utility Trucks is a mild steel, hydroformed frame
assembly. A pre-sleeved replacement front frame service section, consisting of the left and right frame rail ends,
body, mounting brackets and front connecting cross tube is available. Replacement bolt-on front bumper
brackets are available and must be ordered separately.



Center Pillar Sectioning



Rear Pillar Sectioning
