Chevrolet Silverado / GMC Sierra. Manual - part 1255
REAR BUMPER STEP CENTER PAD REPLACEMENT

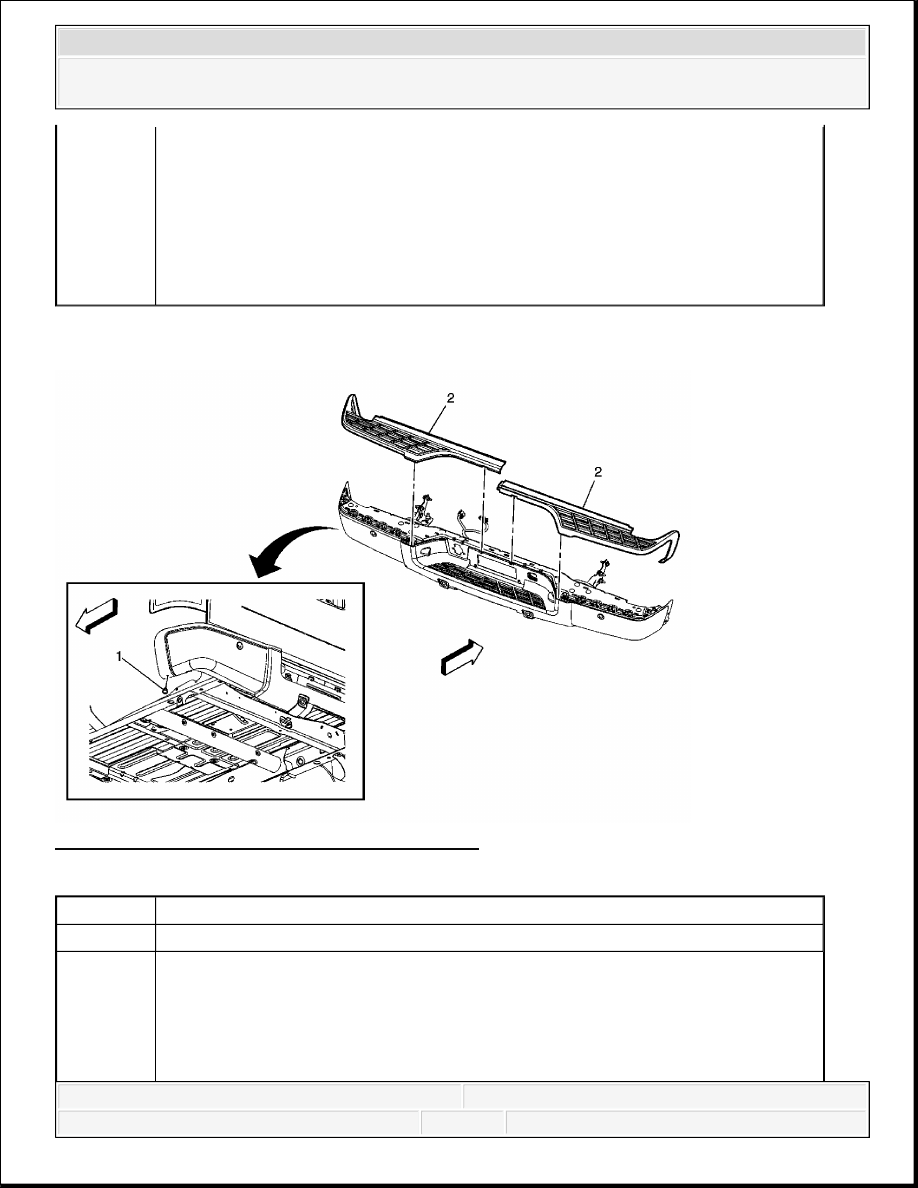

Fig. 23: View Of Rear Bumper Step Center Pad
Courtesy of GENERAL MOTORS CORP.
1
Rear Bumper Impact Bar Brace Nuts (Qty: 3)
Tighten: 70 N.m (52 lb ft)
NOTE:
Refer to Fastener Notice .
2
Rear Bumper Impact Bar Brace
Callout
Component Name
Preliminary Procedures:
Remove the rear bumper step outer pad. Refer to Rear Bumper Step Outer Pad
Replacement.
1
Center Rear Bumper Step Pad Plastic Retainer (Qty: 2)
Center Rear Bumper Step Pad
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Bumpers and Fascias - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
REAR BUMPER STEP OUTER PAD REPLACEMENT

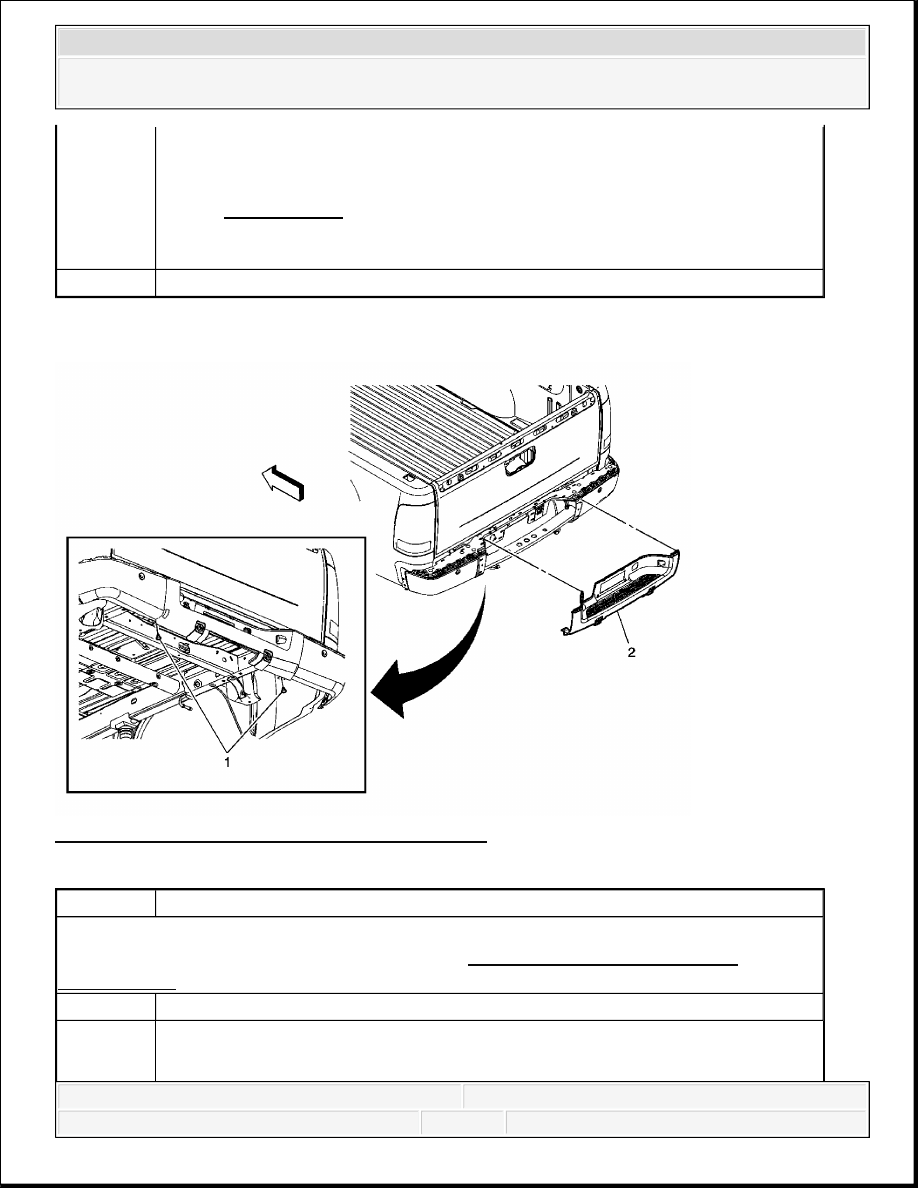

Fig. 24: View Of Rear Bumper Step Outer Pad
Courtesy of GENERAL MOTORS CORP.
2
Procedure
The spare tire hoist access hole bezel will be destroyed when removing. It
must be replaced when removing the center rear bumper step pad.
Disconnect any electrical connectors as needed.
Use a trim panel removal tool to help pry the step pad from the impact
bar.
Callout
Component Name
1
Rear Bumper Step Outer Pad Plastic Retainer
2
Rear Bumper Step Outer Pad
Tip:
If removing the right side step pad then the left pad must be removed first.
Use a trim panel removal tool to help pry the step pad from the impact
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Bumpers and Fascias - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
bar.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Bumpers and Fascias - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
2008 TRANSMISSION
Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Fastener Tightening Specifications
SEALERS, ADHESIVES, AND LUBRICANTS
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSTIC STARTING POINT - CLUTCH
Reviewing the Clutch System Description and Operation helps you determine the correct
clutch symptom diagnostic procedure when a condition exists. Reviewing the
Clutch System
Description and Operation
also helps you determine if the condition described by the customer
is normal operation. Refer to Symptoms - Clutch in order to identify the correct procedure for
diagnosing the system and where the procedure is located.
SYMPTOMS - CLUTCH
Strategy Based Diagnostics
Review the clutch system operations in order to familiarize yourself with the system functions.
Refer to Clutch System Description and Operation.
Visual/Physical Inspection
Application
Specification
Metric
English
Clutch Actuator Cylinder Bolt
8 N.m
71 lb in
Clutch Pedal to Brake Module Bolt
50 N.m
37 lb ft
Clutch Pedal to Clutch Pedal Bracket Bolt
36 N.m
27 lb ft
Clutch Pressure Plate Bolt
70 N.m
52 lb ft
Application
Type of Material
GM Part Number
United
States
Canada
Clutch Hydraulic System
Hydraulic Fluid
12345347
10953517
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
