Chevrolet Silverado / GMC Sierra. Manual - part 1247

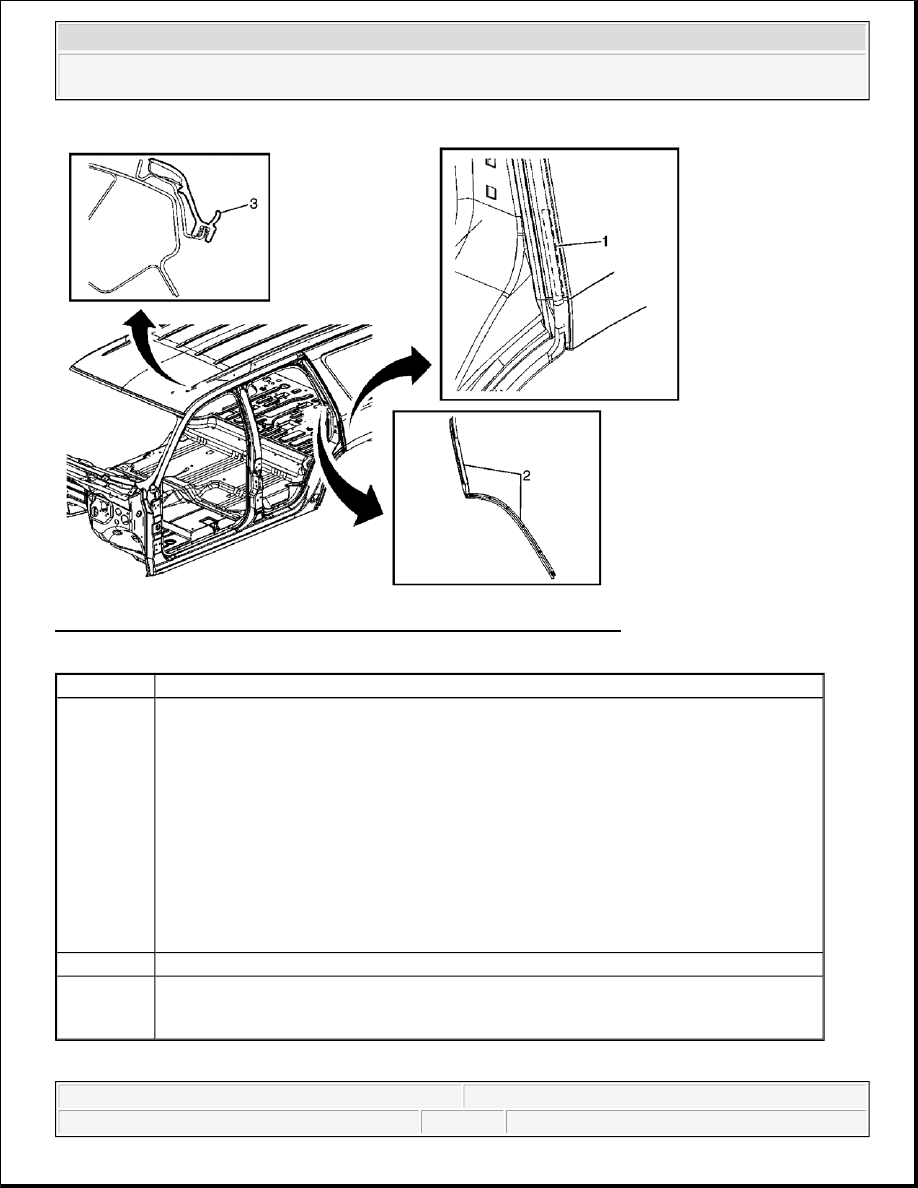

Fig. 44: View Of Weatherstrip Drip Rail Push Pin Retainers & Drip Rails
Courtesy of GENERAL MOTORS CORP.

FRONT DOOR OPENING WEATHERSTRIP REPLACEMENT (EXTENDED CAB)

Callout

Component Name

1

Weatherstrip Drip Rail Push Pin Retainers
Tip:

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should

remain 21°C (70°F) for one hour after assembly to allow adhesive to develop
sufficient bond strength.

2. Use a J 25070 Heat Gun or equivalent to remove the old weatherstrip. Clean all

adhesive residue from the door opening and wipe the surface dry with a clean lint-
free towel prior to installing the new weatherstrip.

3. When removing protective liners from the adhesive backed weatherstrip, be careful

not to touch the tape with hands. Do not allow the tape to come in contact with dirt or
any foreign matter prior to adhesion.

2

Weatherstrip Drip Rail Tab Push-In Retainers (Qty: 7)

3

Weatherstrip Drip Rail
Tip: Press the weatherstrip firmly to the top side of the door opening to ensure full adhesion
is made to the door opening.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 51

© 2005 Mitchell Repair Information Company, LLC.

Removal Procedure

1. Remove the front and rear door sill plate. Refer to Front Side Door Sill Plate Replacement (Regular

Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended Cab) or Rear Side Door Sill
Plate Replacement (Extended Cab) or Rear Side Door Sill Plate Replacement (Crew Cab) .

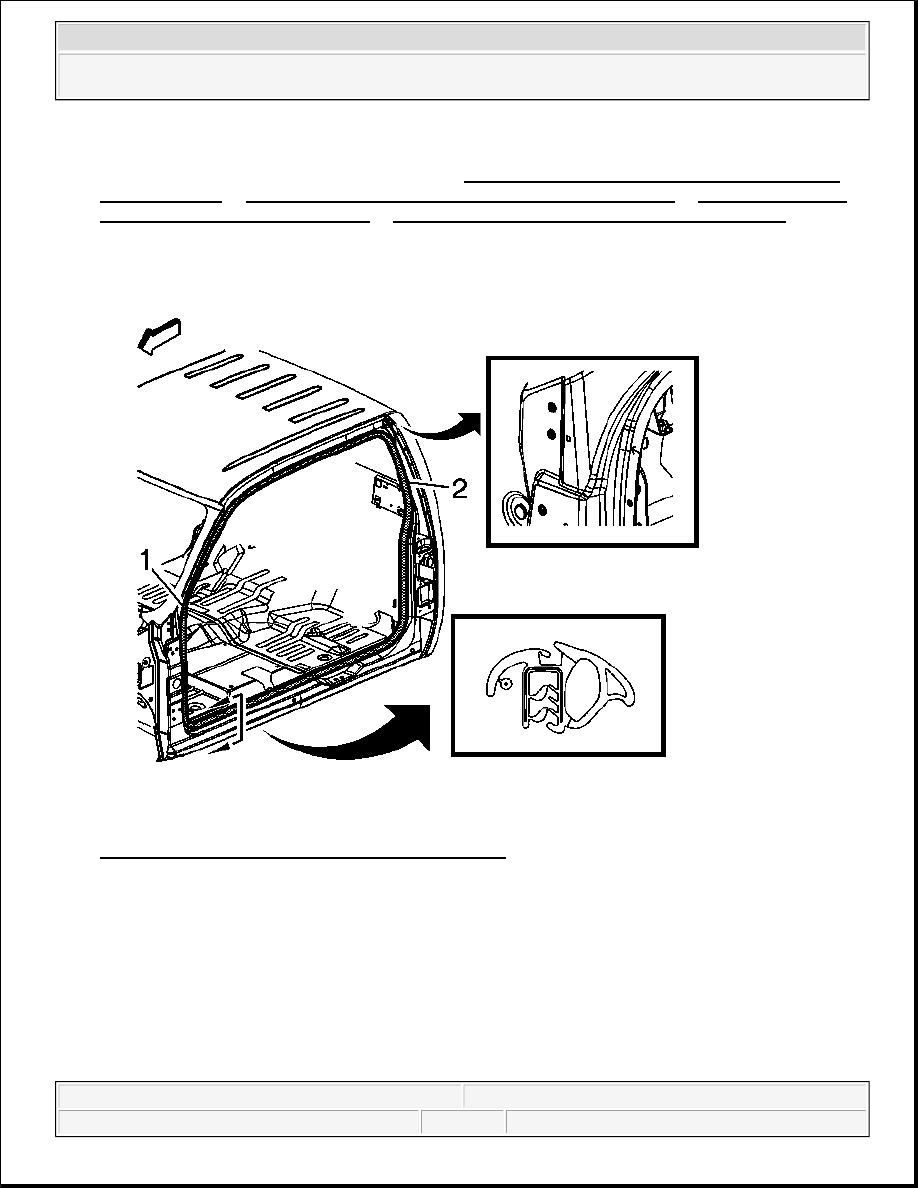

Fig. 45: View Of Weatherstrip & Pinch-Weld Flange
Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (1) from the pinch-weld flange (2).

Installation Procedure



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 52

© 2005 Mitchell Repair Information Company, LLC.

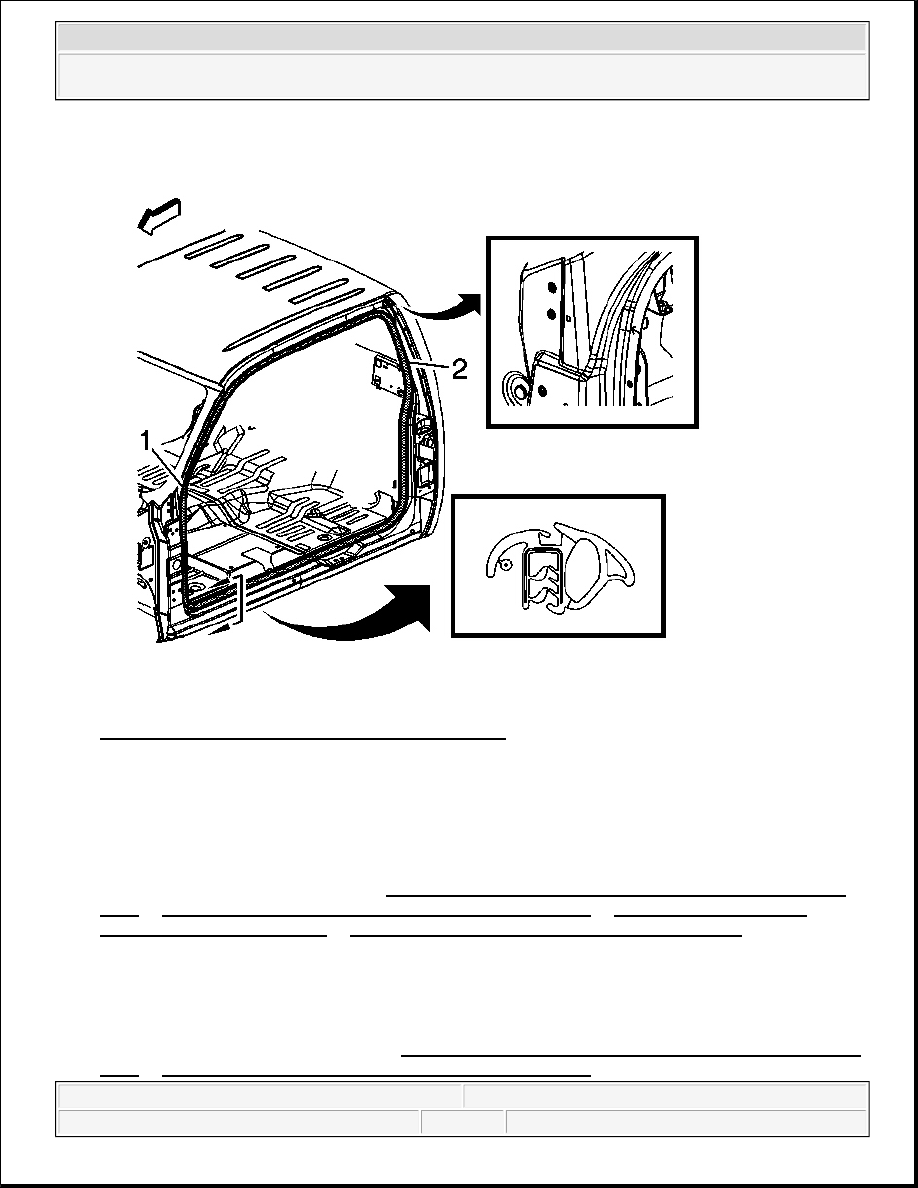

Fig. 46: View Of Weatherstrip & Pinch-Weld Flange
Courtesy of GENERAL MOTORS CORP.

1. Align the weatherstrip to the door opening with the 2 dots positioned on the upper right and left side.

2. Align the weatherstrip to the door opening with the bond joint positioned at the lower center of the door

opening.

3. Install the weatherstrip (1) to the pinch-weld flange (2). Ensure that the weatherstrip is fully seated.

4. Install the front door sill plate. Refer to Front Side Door Sill Plate Replacement (Regular Cab/Crew

Cab) or Front Side Door Sill Plate Replacement (Extended Cab) or Rear Side Door Sill Plate
Replacement (Extended Cab) or Rear Side Door Sill Plate Replacement (Crew Cab) .

FRONT DOOR OPENING WEATHERSTRIP REPLACEMENT (CREW CAB)

Removal Procedure

1. Remove the front door sill plate. Refer to Front Side Door Sill Plate Replacement (Regular Cab/Crew

Cab) or Front Side Door Sill Plate Replacement (Extended Cab) .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 53

© 2005 Mitchell Repair Information Company, LLC.

Fig. 47: Removing/Installing Pinch-Weld Flange Weatherstrip (Front Door Opening)
Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip from the pinch-weld flange.

Installation Procedure



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 54

© 2005 Mitchell Repair Information Company, LLC.
