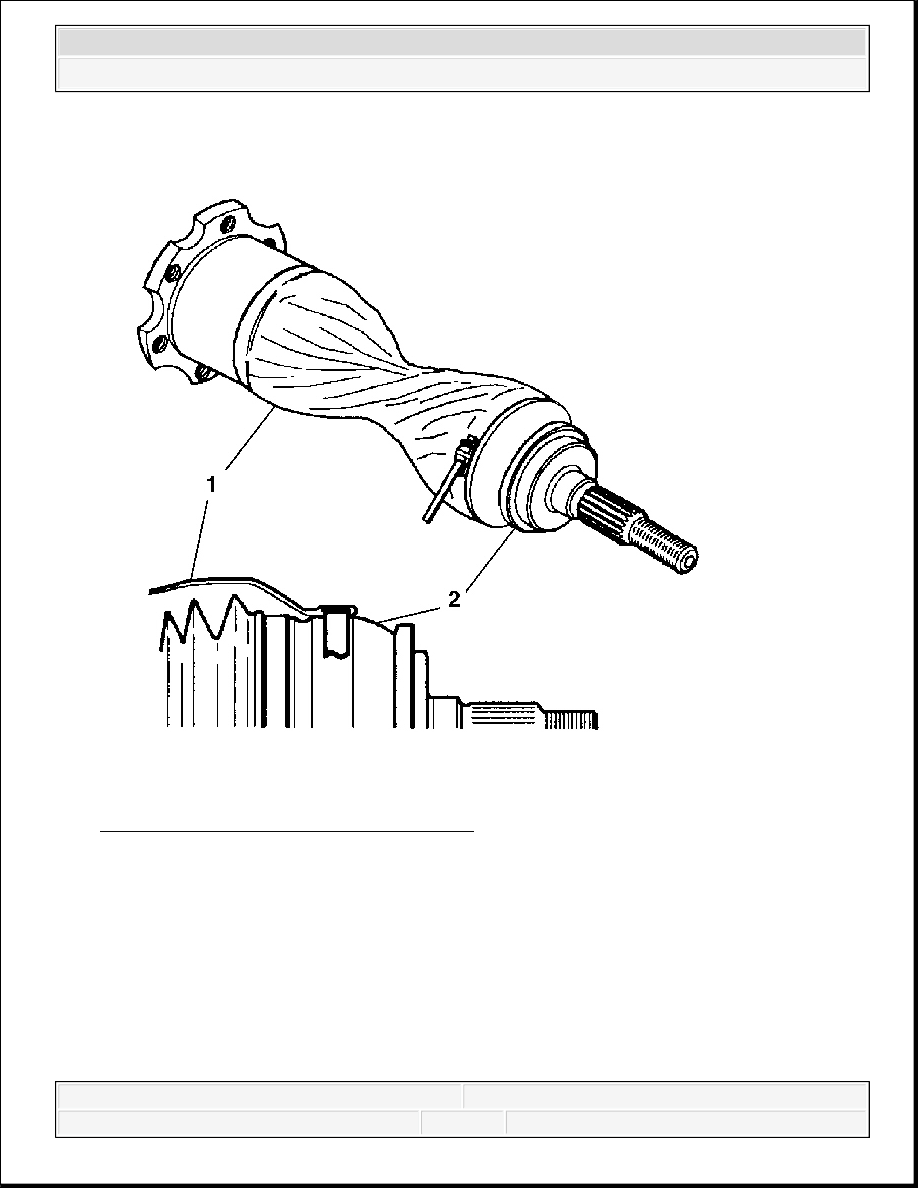

Fig. 24: Halfshaft Seal Cover & CV Joint 8. Twist the halfshaft seal cover (1) until the middle of the cover fits loosley against the halfshaft bar. 9. Position the outboard end of the halfshaft seal cover (1) over the CV joint (2) flat.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

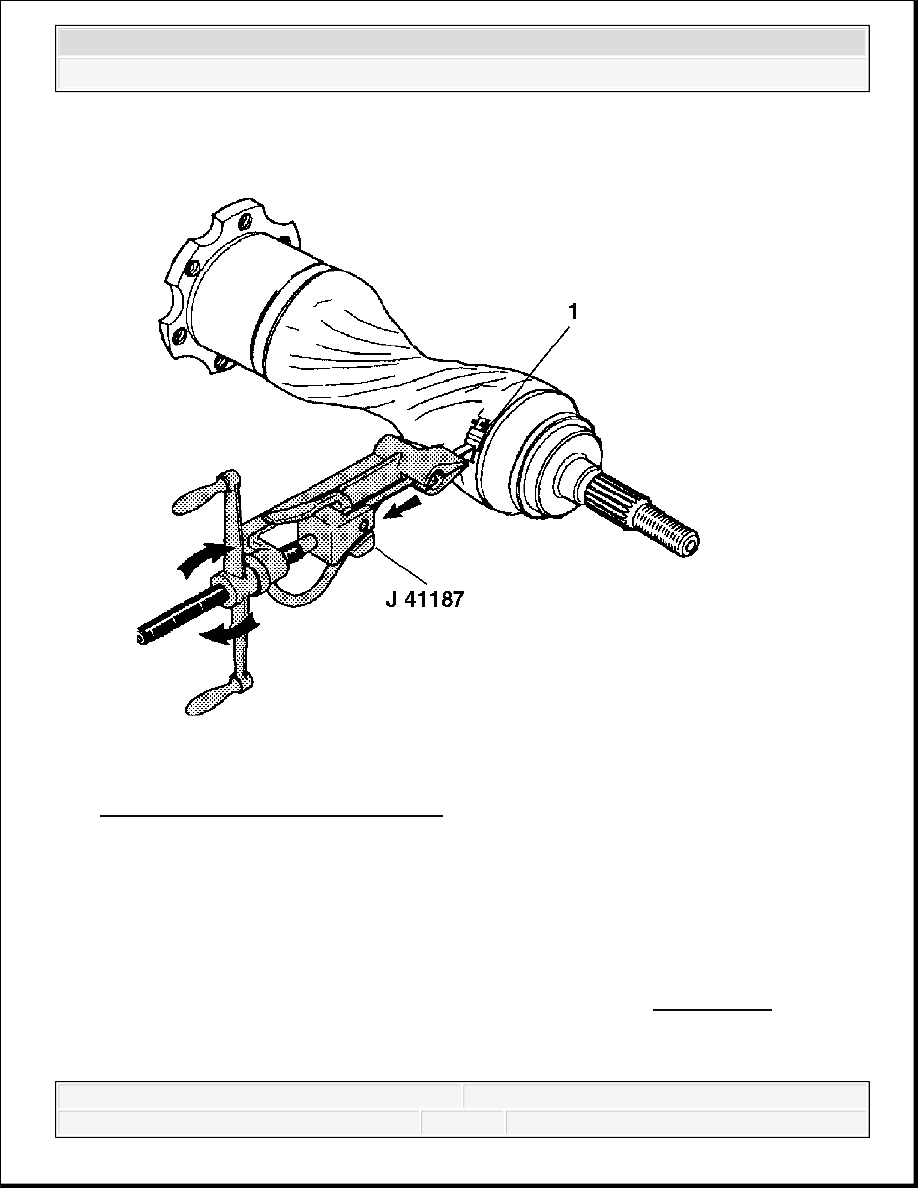

Fig. 25: Tightening Seal Cover Clamp 10. Use J 41187 in order to tighten the outboard cover clamp (1). See Special Tools. IMPORTANT: Tighten the seal cover clamp (1) as tight as possible without deforming the retaining clip. Clamps that are not tight
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

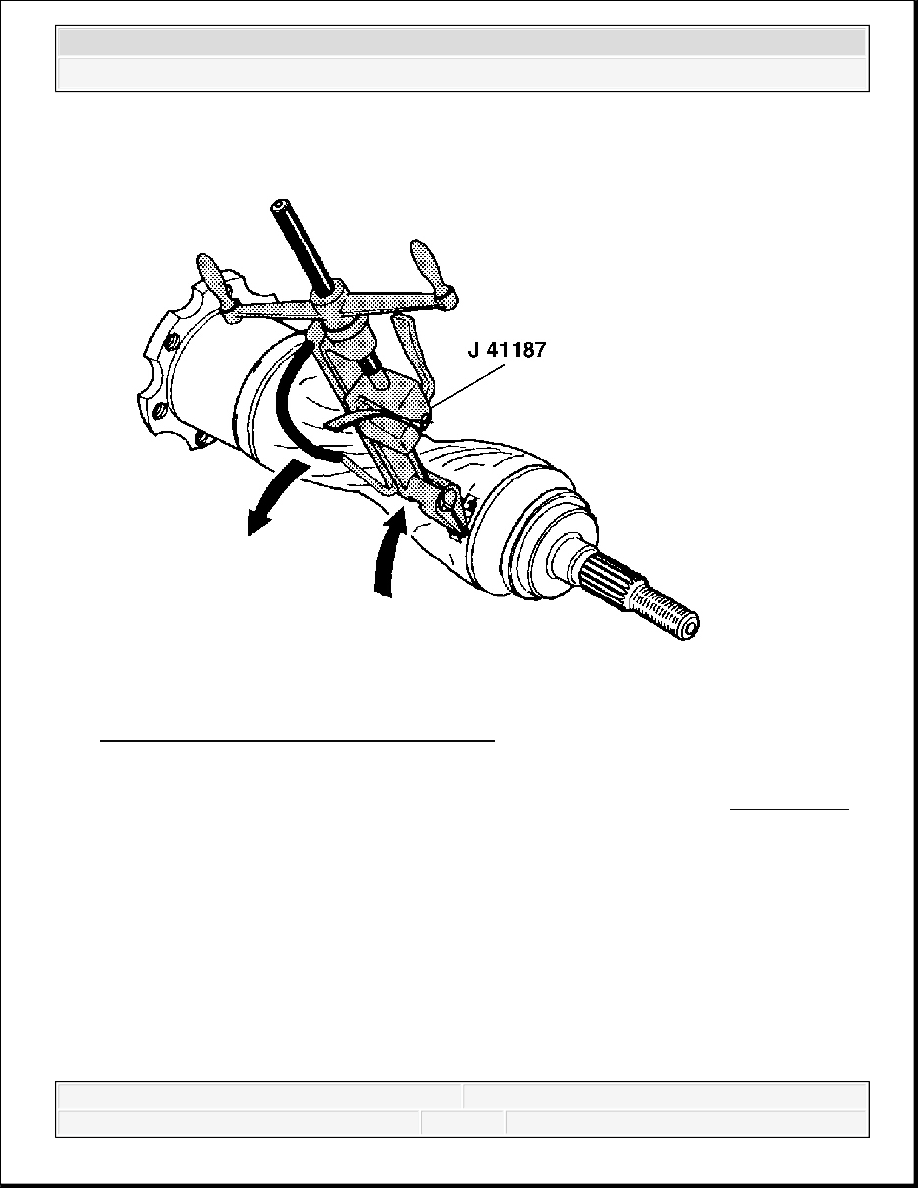

Fig. 26: Bending Outboard Band Onto Clip 11. Rotate J 41187 toward the clip in order to bend the band onto the clip. See Special Tools. 12. Pull the tool's cutting handle in order to cut off the excess band.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

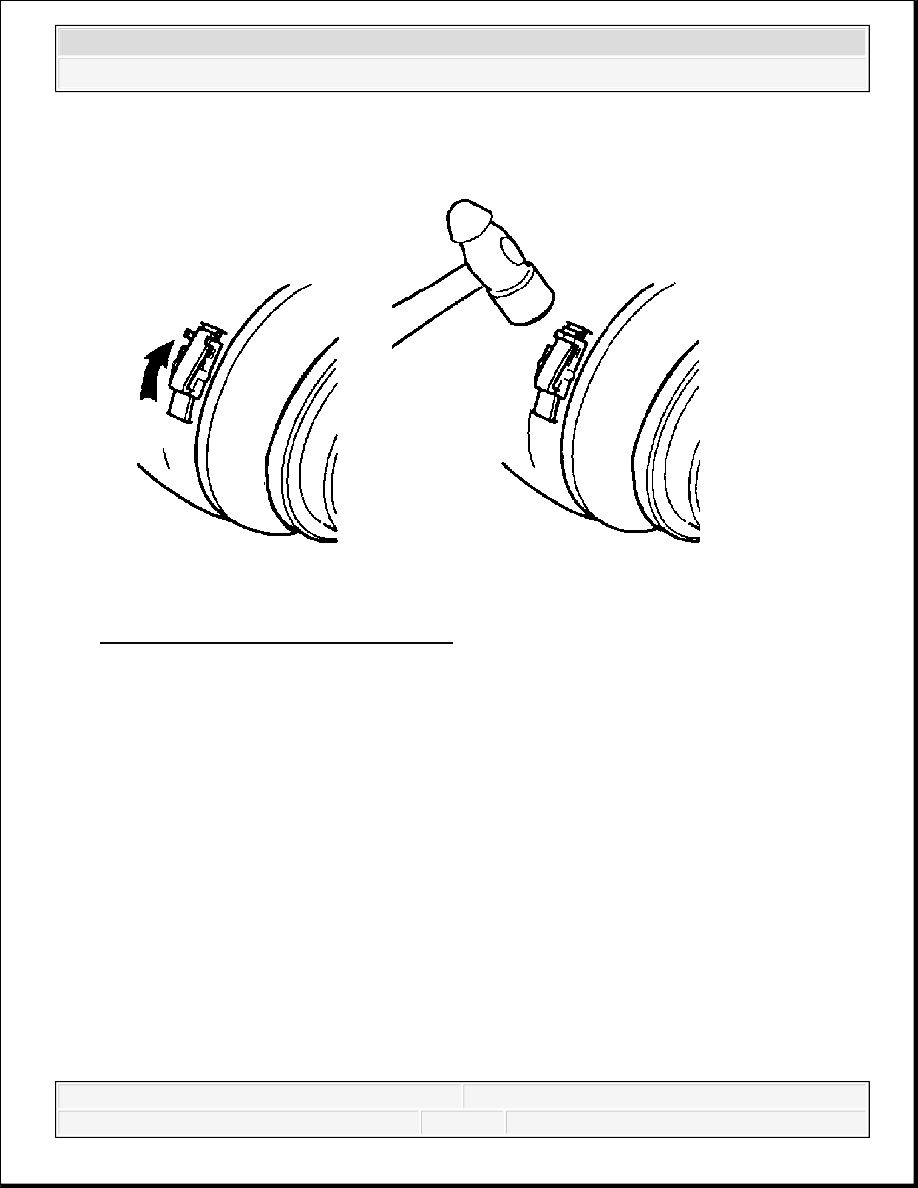

Fig. 27: Pounding Outboard Band Flat 13. Pound the band flat between the latch tabs. Peen the latch tabs over in order to lock the band into position.
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
