4. Install the 1-2 inner (104) and outer (54) accumulator springs.
5. Install the 1-2 accumulator piston (56).
1-2 ACCUMULATOR INSTALLATION
Tools Required
J 25025-5 Guide Pins. See Special Tools.
J 36850 Transjel Lubricant. See Special Tools.
Installation
(54).

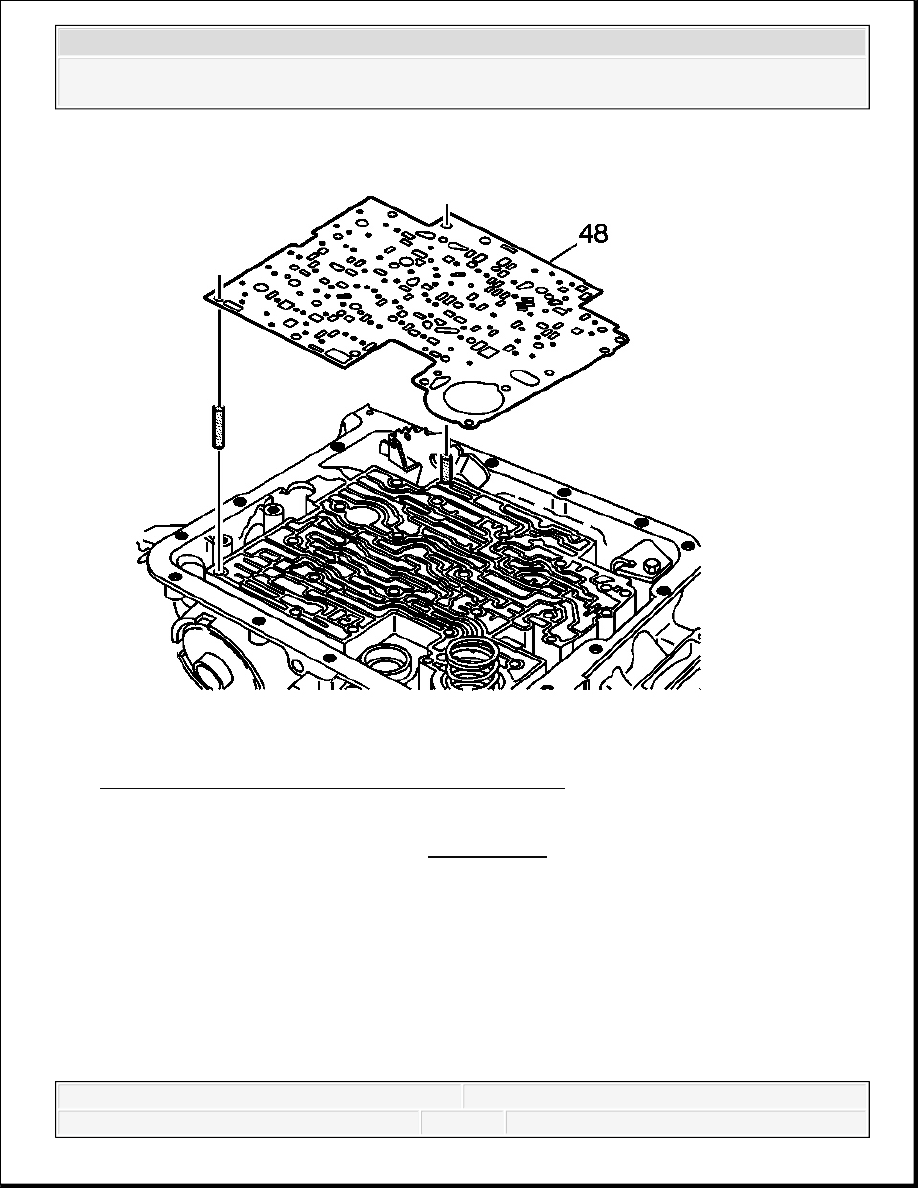

2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

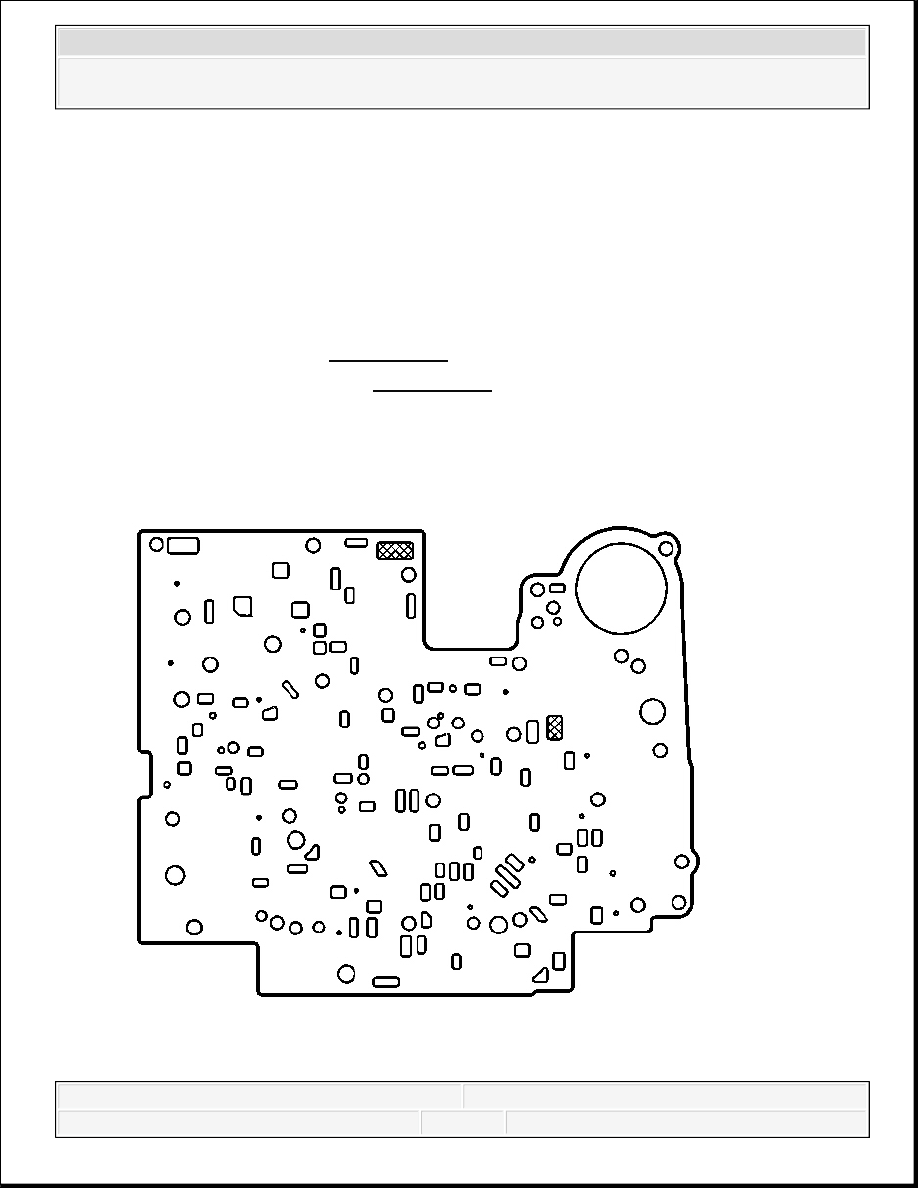

Fig. 493: View Of Valve Body Bonded Spacer Plate
Courtesy of GENERAL MOTORS CORP.
1. Inspect the valve body bonded spacer plate for damage or debris.

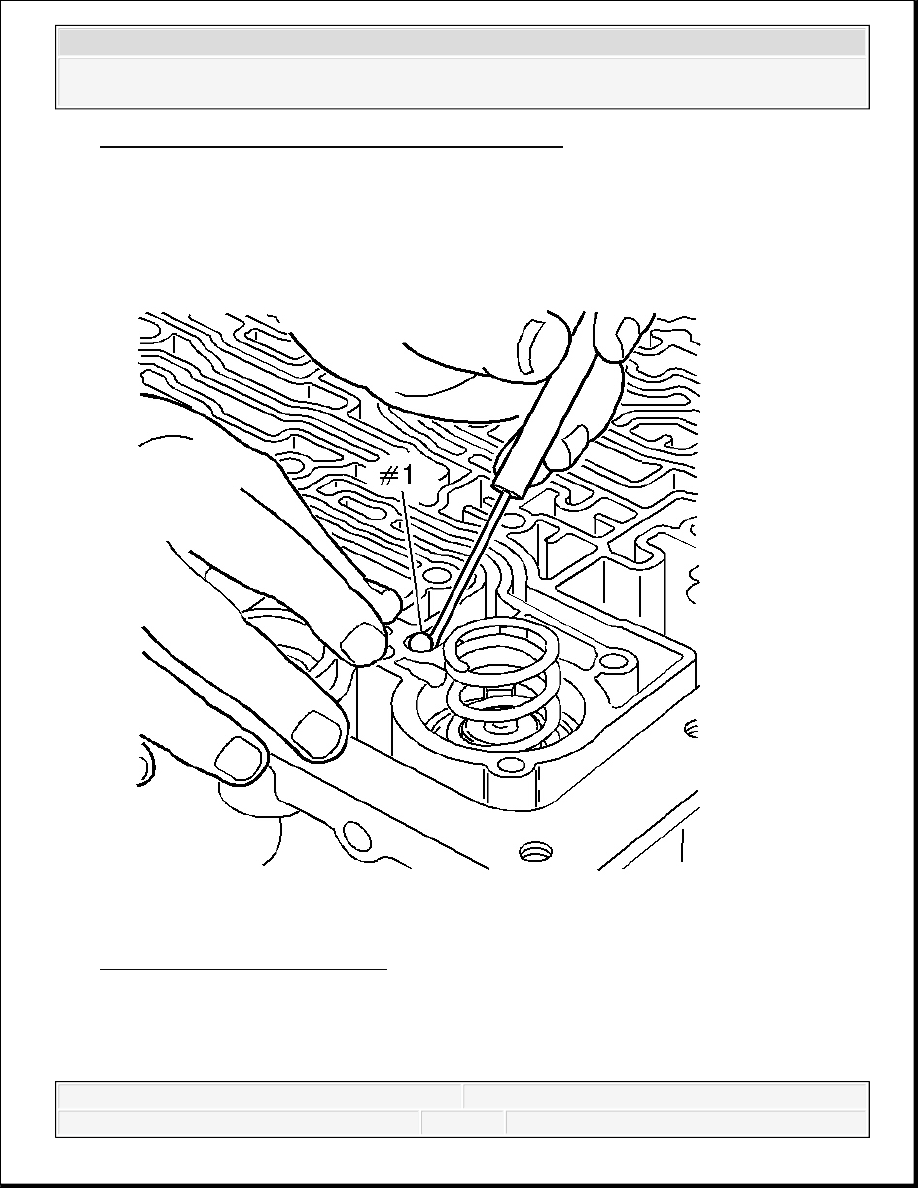

Fig. 494: Locating #1 Checkball
Courtesy of GENERAL MOTORS CORP.
2. Install the #1 checkball into the case.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 495: Aligning Valve Body Bonded Spacer Plate
Courtesy of GENERAL MOTORS CORP.
3. Install the J 25025-5 into the case. See Special Tools.
4. Place the bonded spacer plate on the case.
IMPORTANT: Do not reuse the bonded spacer plate. Replace with a NEW
bonded spacer plate.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

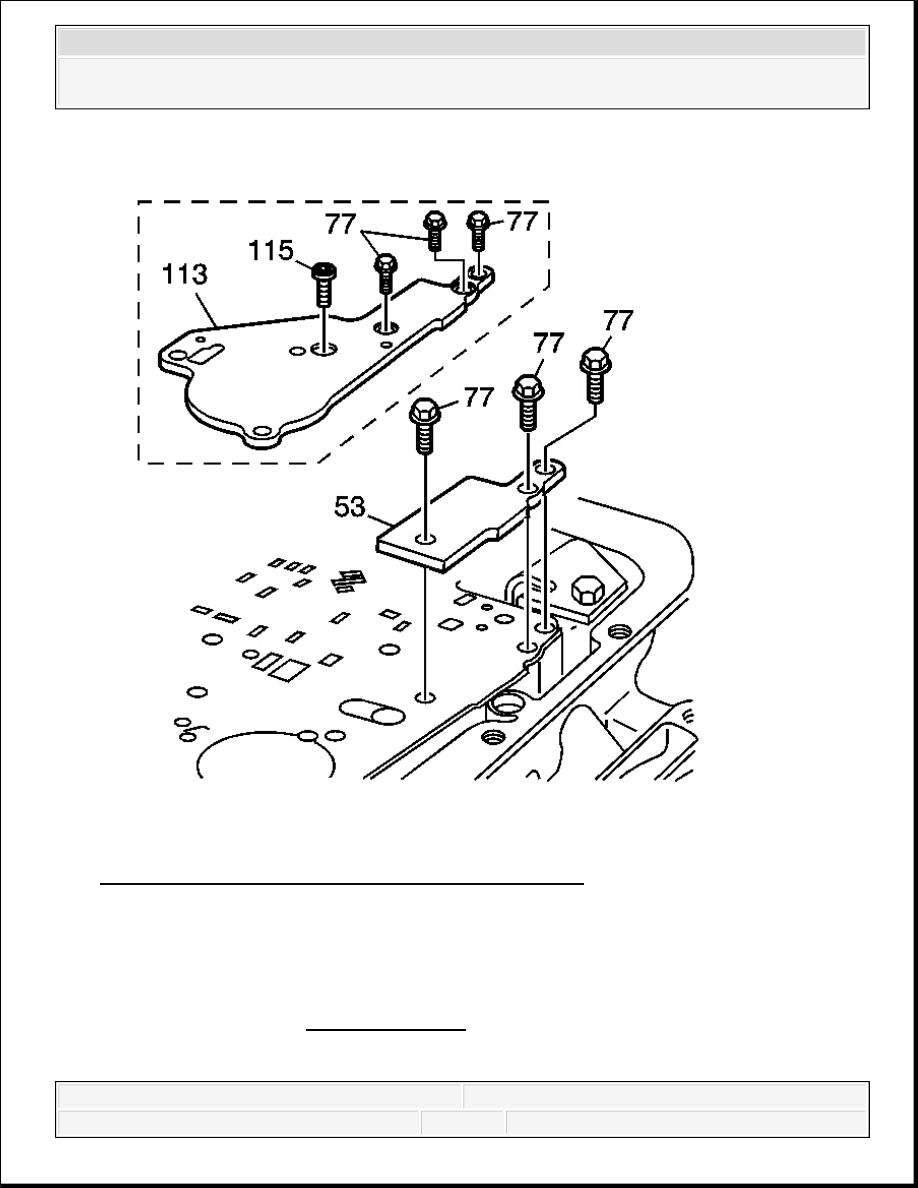

Fig. 496: View Of Spacer Plate Support Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
5. Install the spacer plate support plate (53 or 113).
6. Install the spacer plate support bolts (77).
7. Install the accumulator bolt (115), model dependent.
NOTE:
Refer to Fastener Notice .
