Tools Required J 25022 End Play Fixture Adapter. See Special Tools. J 34725 End Play Checking Adapter. See Special Tools. J 43205 End Play Fixture Adapter (300 mm). See Special Tools. J 24773-A Oil Pump Remover. See Special Tools. J 8001 Dial Indicator Set. See Special Tools. J 25025-7A Dial Indicator Post. See Special Tools. Check
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

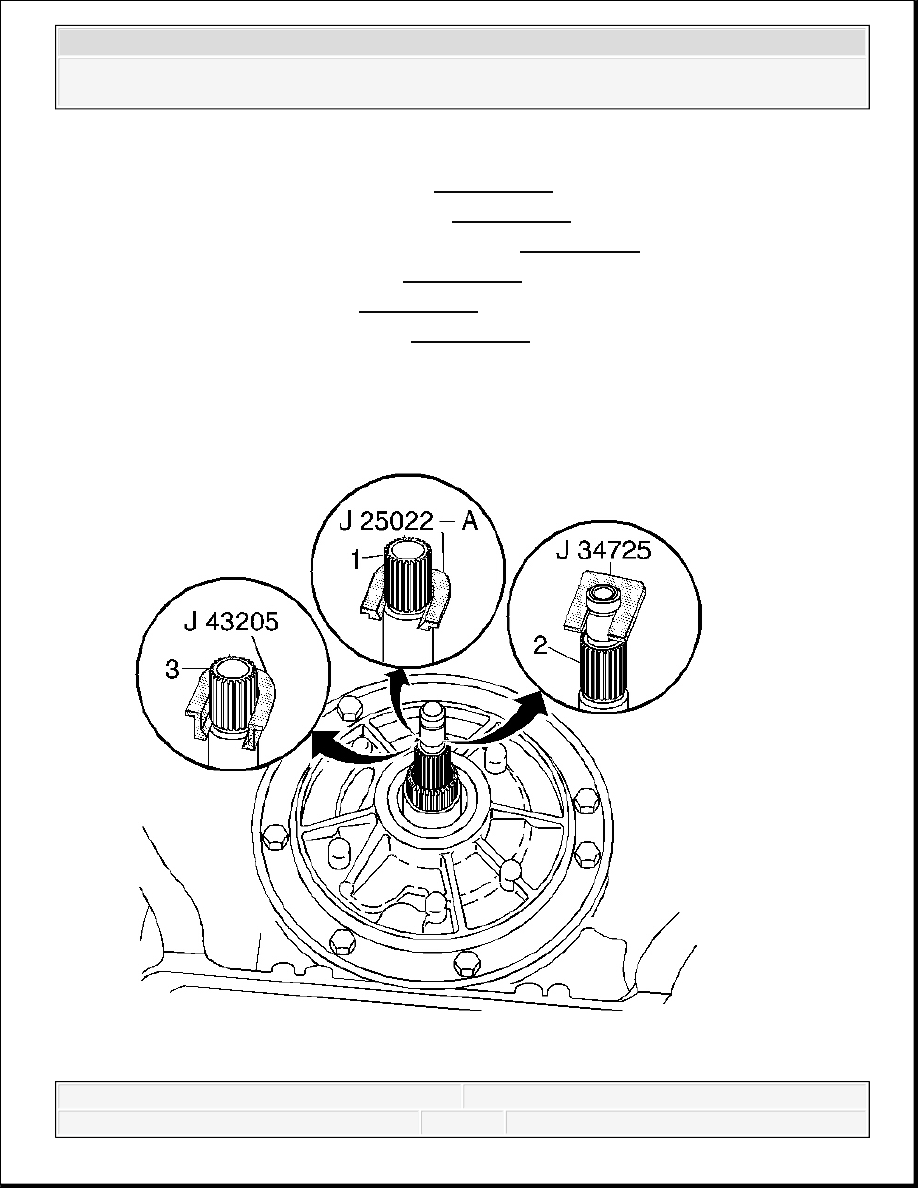

Fig. 458: Identifying Different End Play Fixture Adapters 1. Install an end play fixture adapter. Use J 25022 for a 245 mm and 258 mm turbine shaft (1). See Special Tools. Use J 34725 for a 298 mm turbine shaft (2). See Special Tools. Use J 43205 for a 300 mm turbine shaft (3). See Special Tools. Fig. 459: Identifying J 24773-A IMPORTANT: Torque converter size is model dependent.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

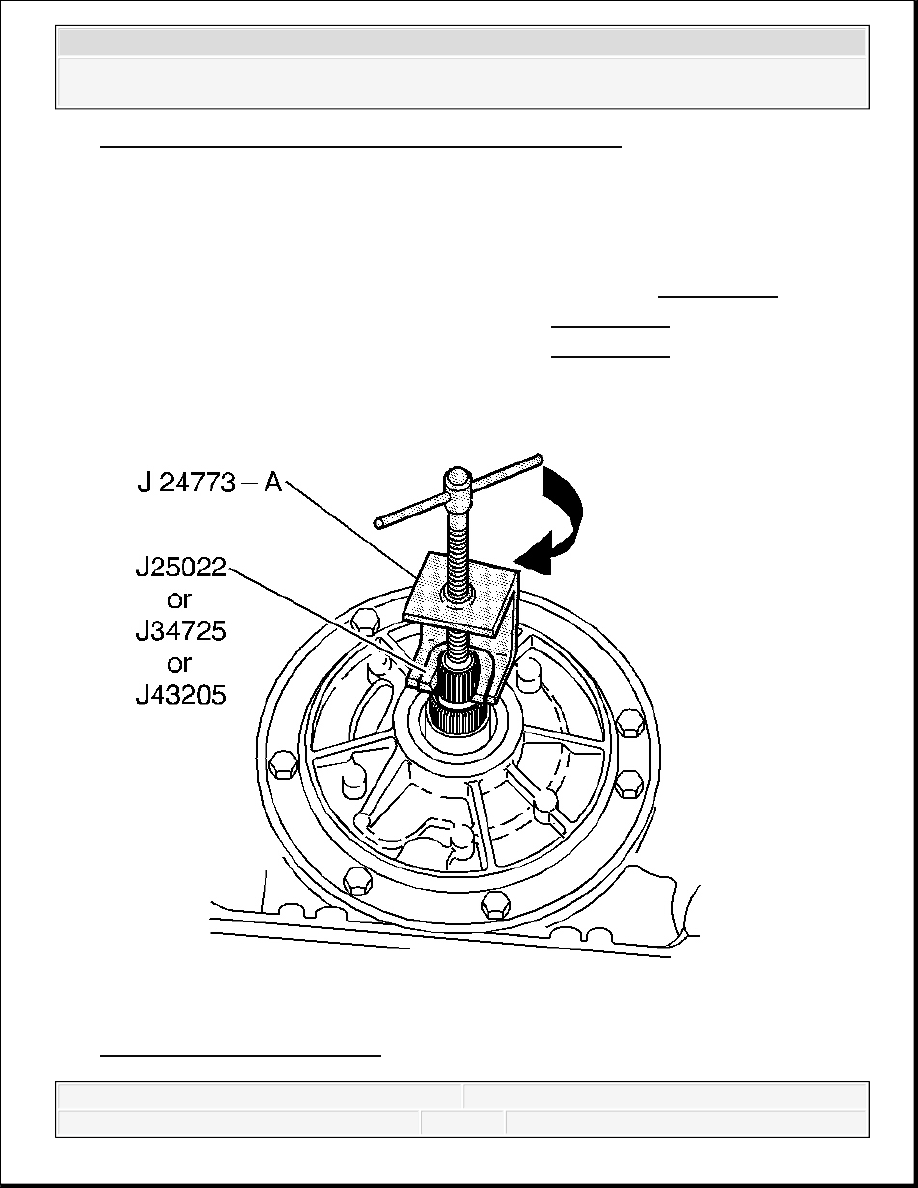

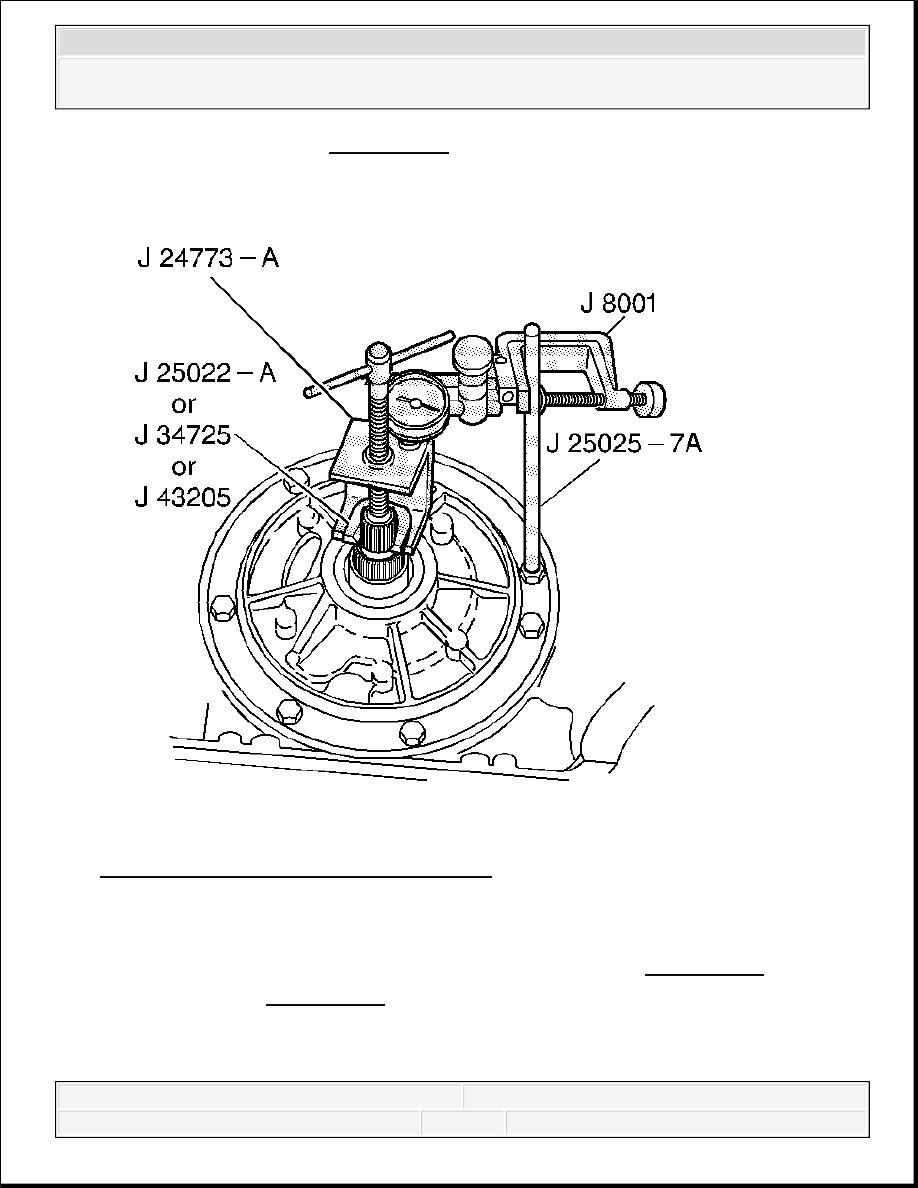

2. Install the J 24773-A . See Special Tools. Fig. 460: Installing J 25025-7A With J 8001 3. Remove an oil pump bolt. 4. Install J 25025-7A (or a 278 mm or 11 in bolt) and lock nut. See Special Tools. 5. Install J 8001 . See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

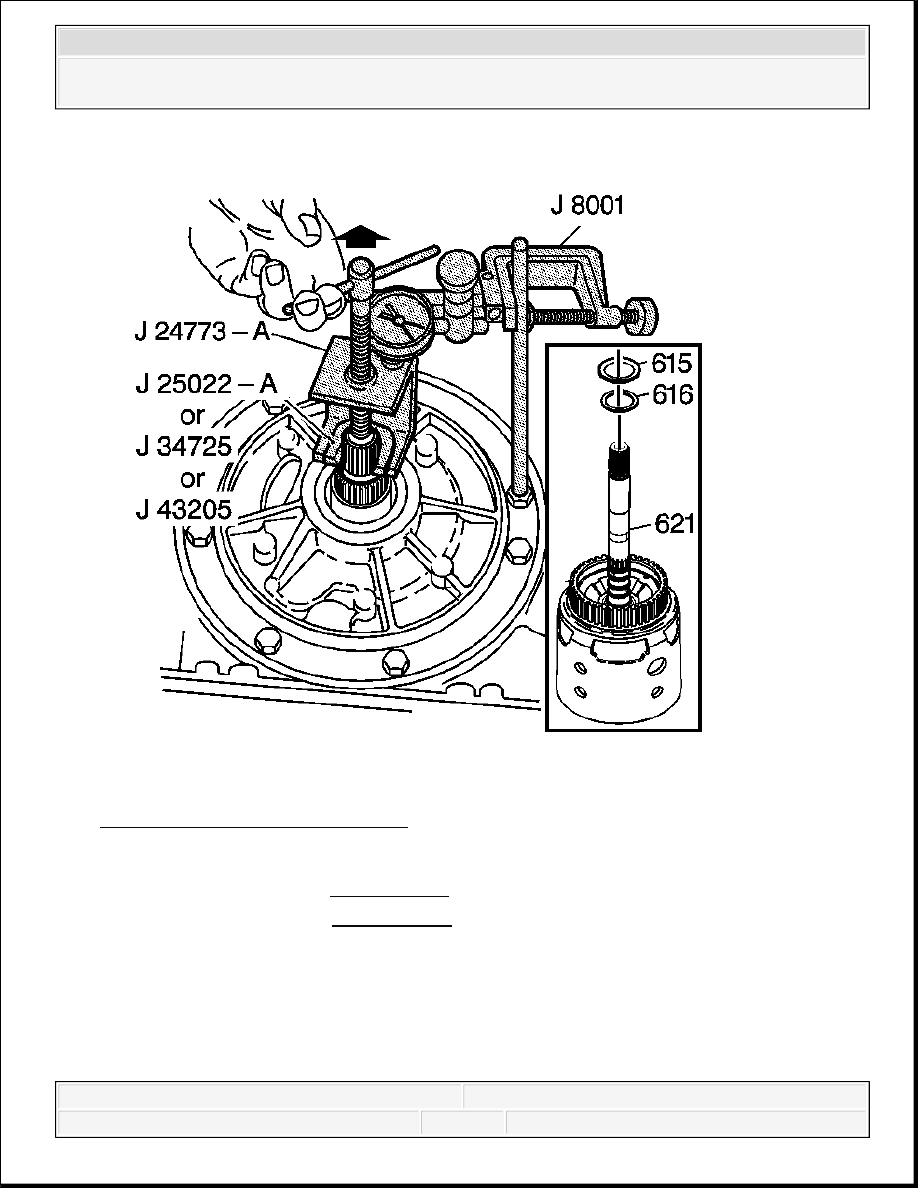

Fig. 461: Identifying Special Tools 6. Set the J 8001 to zero. See Special Tools. 7. Pull up on J 24773-A . See Special Tools. Proper end play should be 0.13-0.92 mm (0.005-0.036 in). 8. The selective washer (616), which controls the end play, is located between the input housing (621) and the thrust bearing (615) on the oil pump hub.
