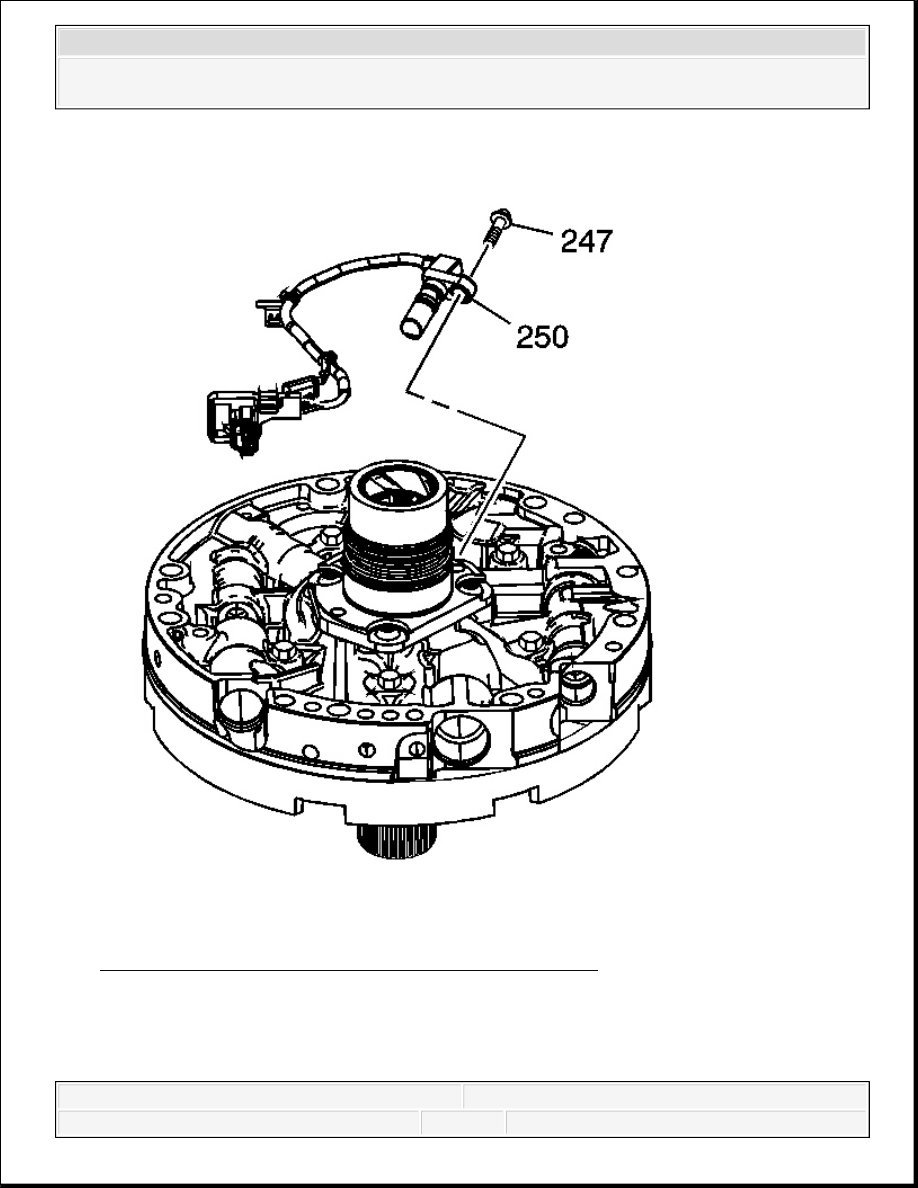

Fig. 416: Identifying Speed Sensor (ISS) Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
1. Remove the input speed sensor (ISS) retaining bolt (247).
2. Use a small tipped screwdriver to carefully pry the ISS wiring harness retaining brackets
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
from the pump housing. Being careful not to damage retainer clips.
3. Remove the ISS assembly (250).
OIL PUMP DISASSEMBLE

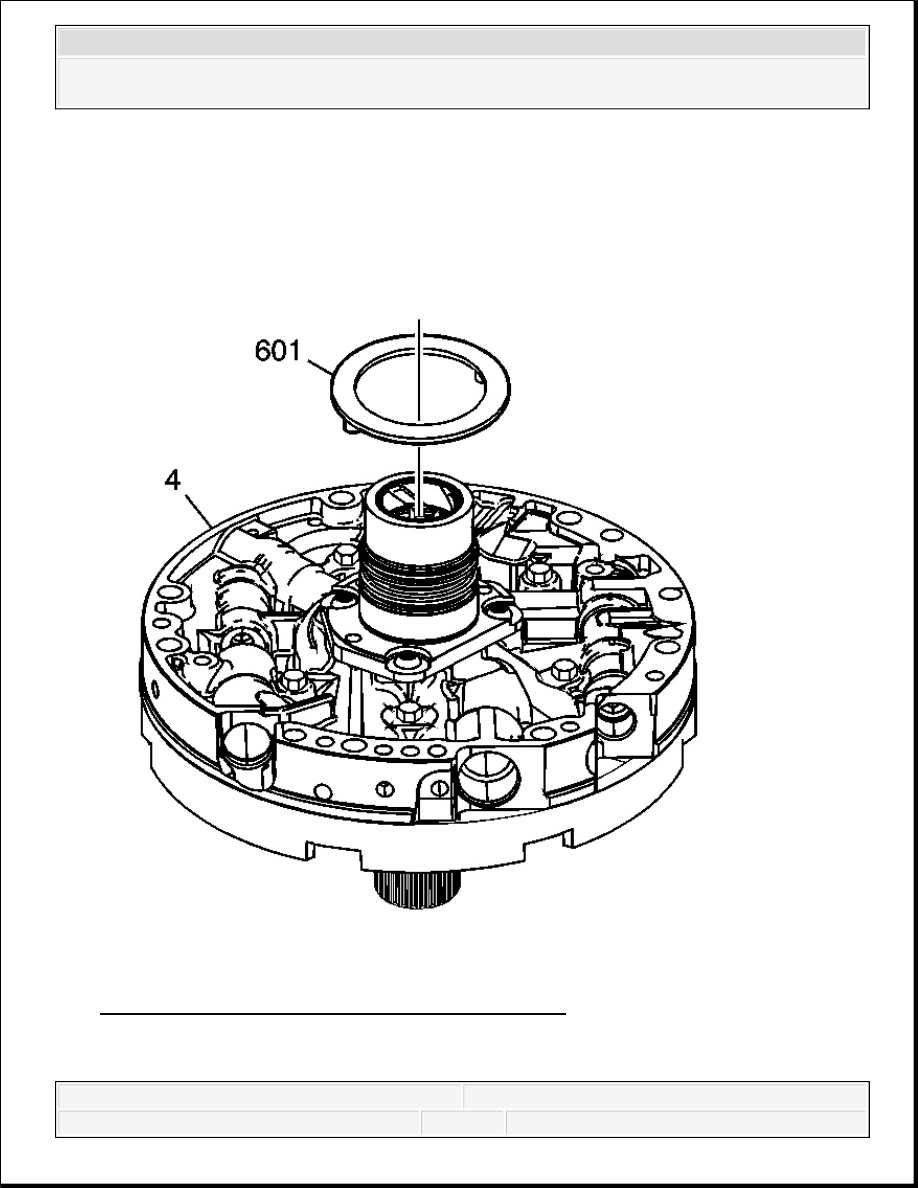

Fig. 417: View Of Thrust (Pump To Drum) Washer
Courtesy of GENERAL MOTORS CORP.
1. Remove the thrust (pump to drum) washer (601).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

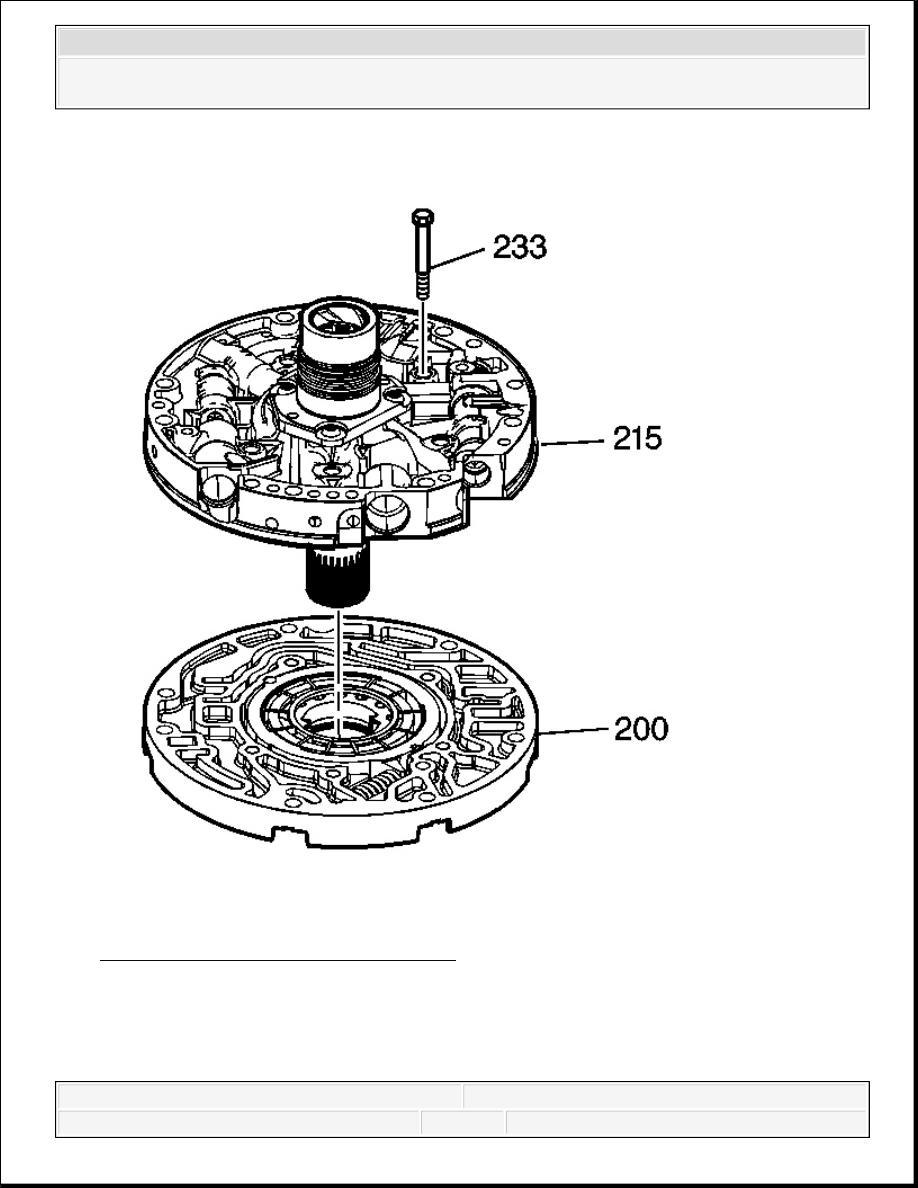

Fig. 418: Identifying Pump Cover Bolts
Courtesy of GENERAL MOTORS CORP.
2. Remove the pump cover bolts (233).
3. Remove the pump cover (215) from the pump body (200).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
OIL PUMP BODY DISASSEMBLE

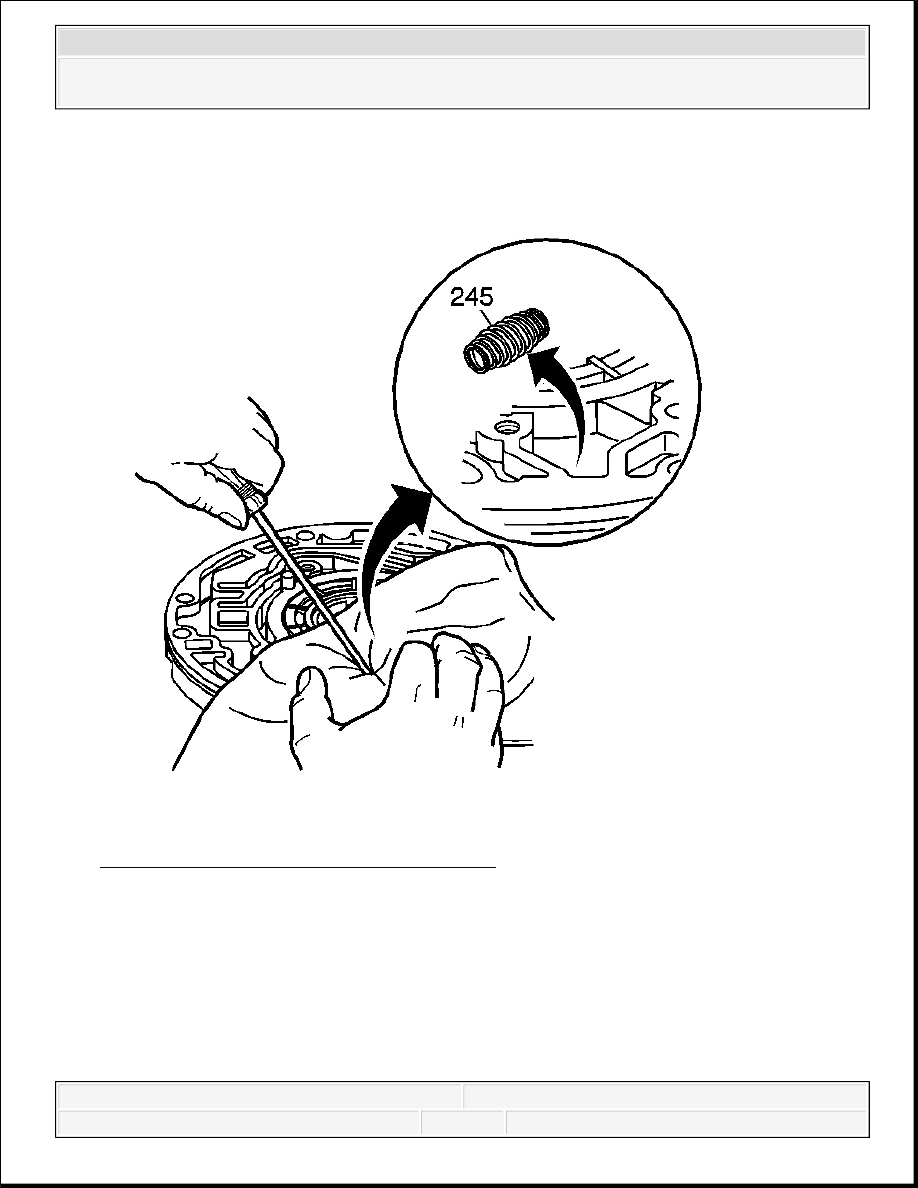

Fig. 419: View Of Pump Slide Outer Spring
Courtesy of GENERAL MOTORS CORP.
1. Remove the pump slide outer spring (245).
2. Place a rag over the spring while removing to prevent the spring from flying out.
