Seal damage
Overrun clutch ball proper operation

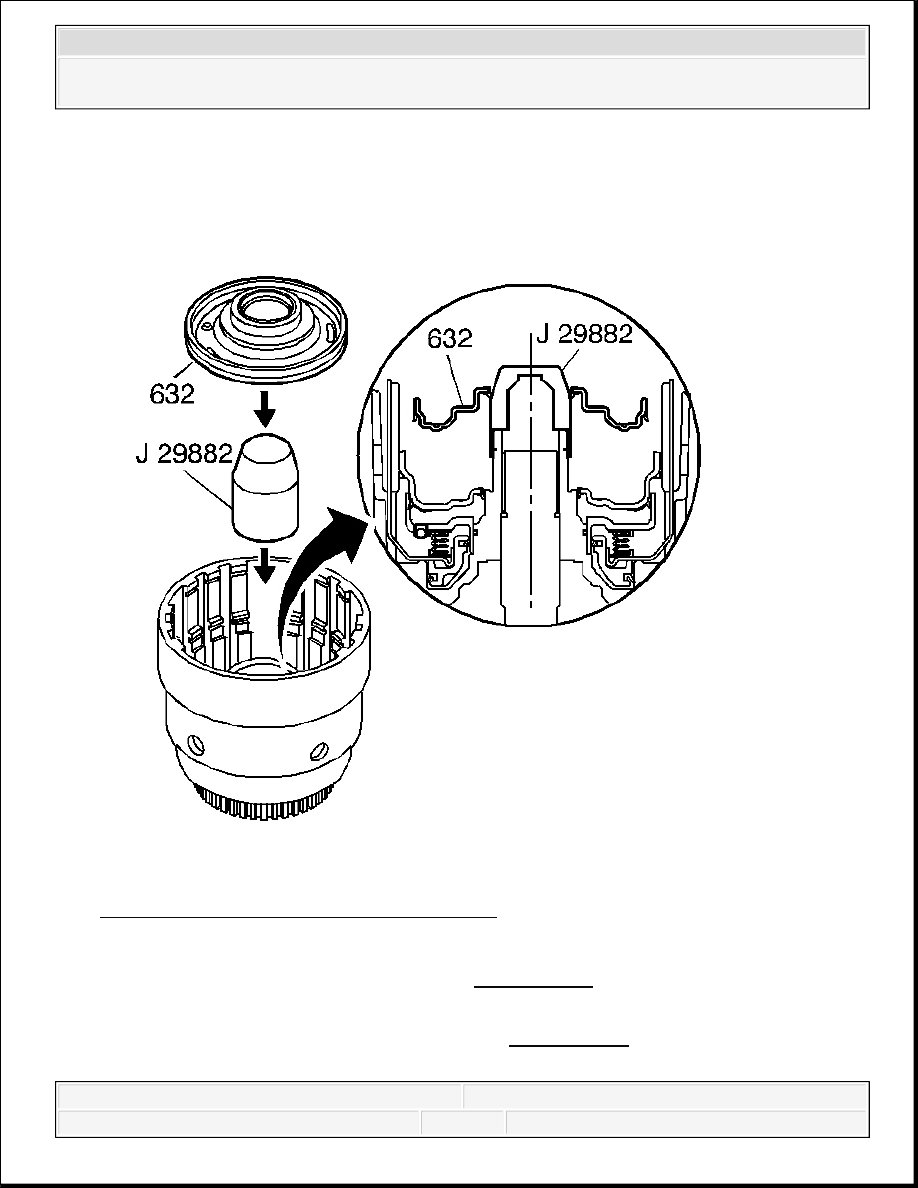

Fig. 371: Identifying Overrun Clutch Piston
Courtesy of GENERAL MOTORS CORP.
13. Install the J 29882 on the input housing. See Special Tools.
14. Install the overrun clutch piston (632) into the input housing.
15. Remove the J 29882 from the input housing. See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

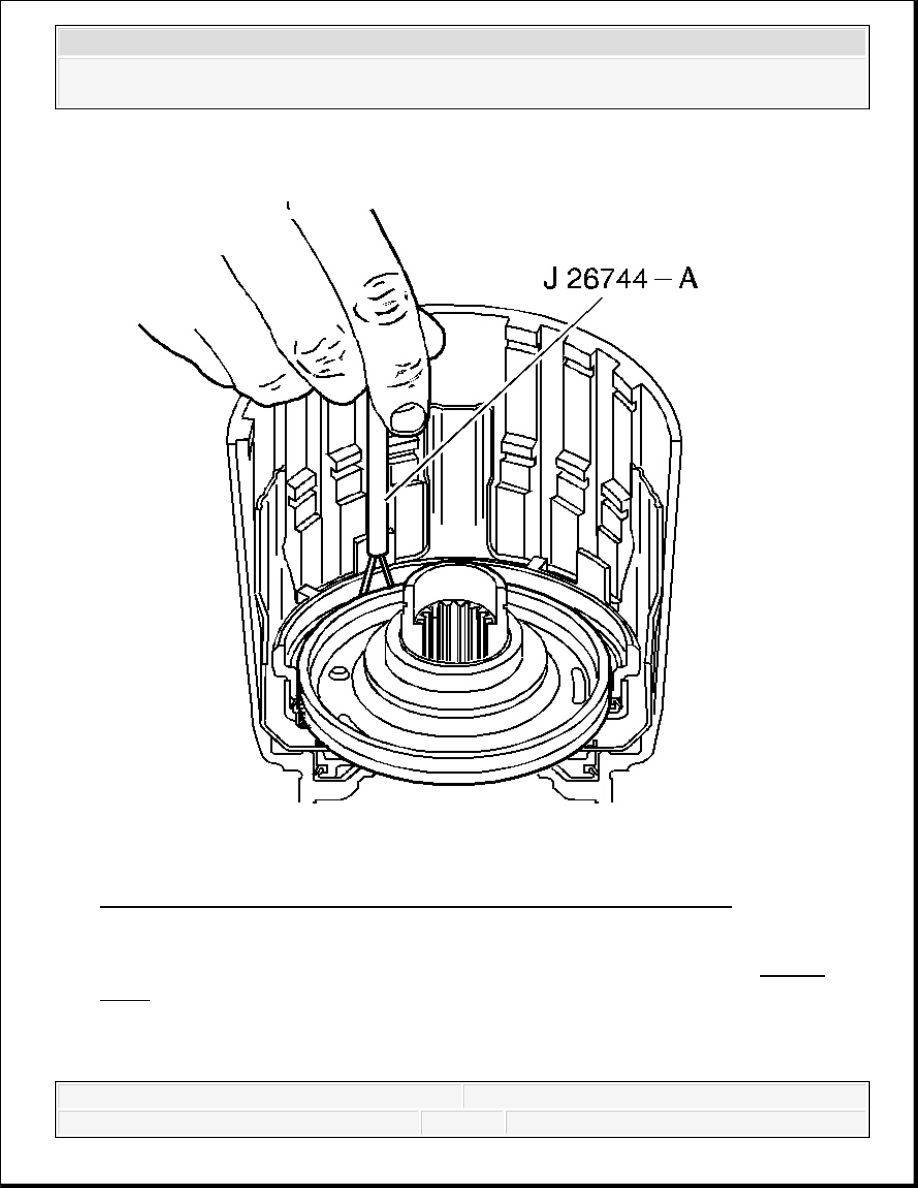

Fig. 372: Installing Overrun Clutch Piston Outer Seal With J 26744-A
Courtesy of GENERAL MOTORS CORP.
16. Using the J 26744-A , carefully install the overrun clutch piston outer seal. See Special
Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

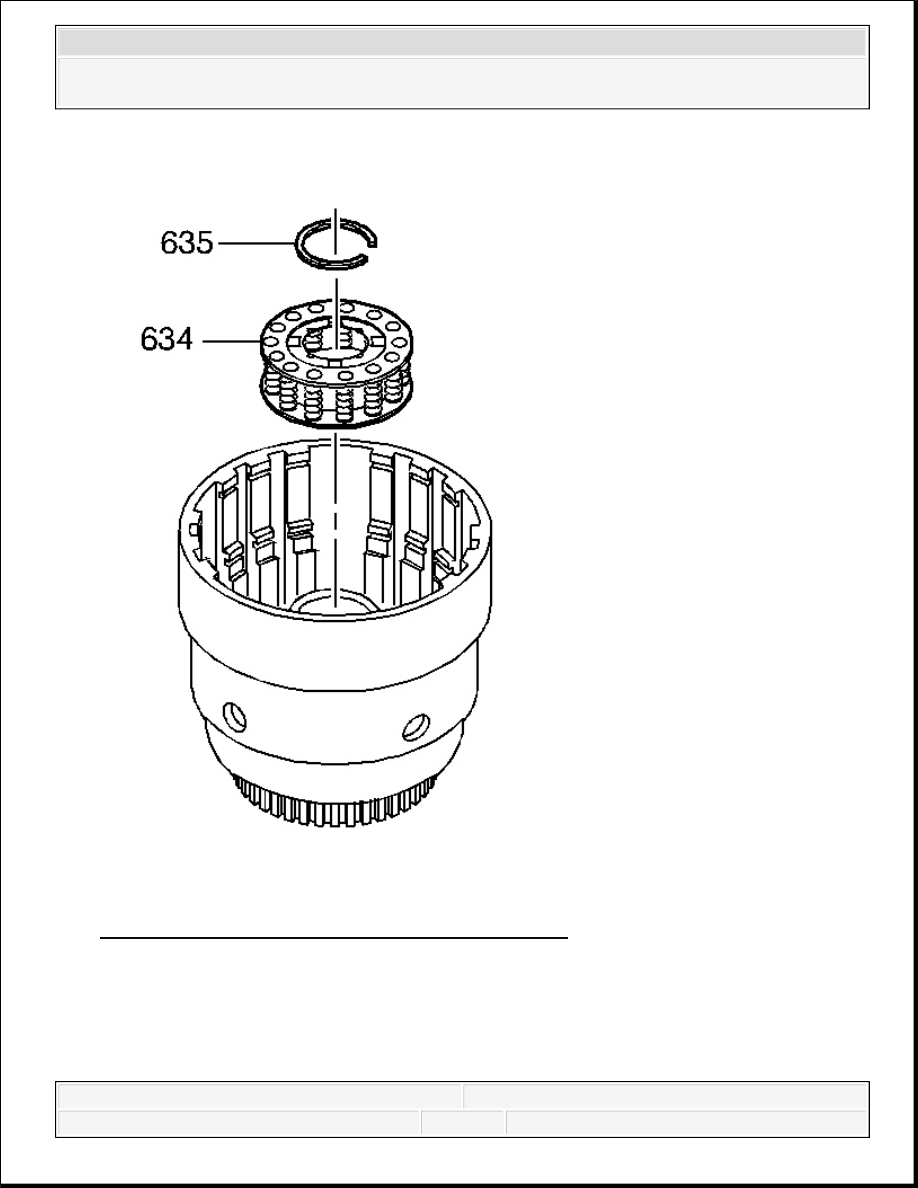

Fig. 373: View Of Overrun Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.
17. Install the overrun clutch spring (634) assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

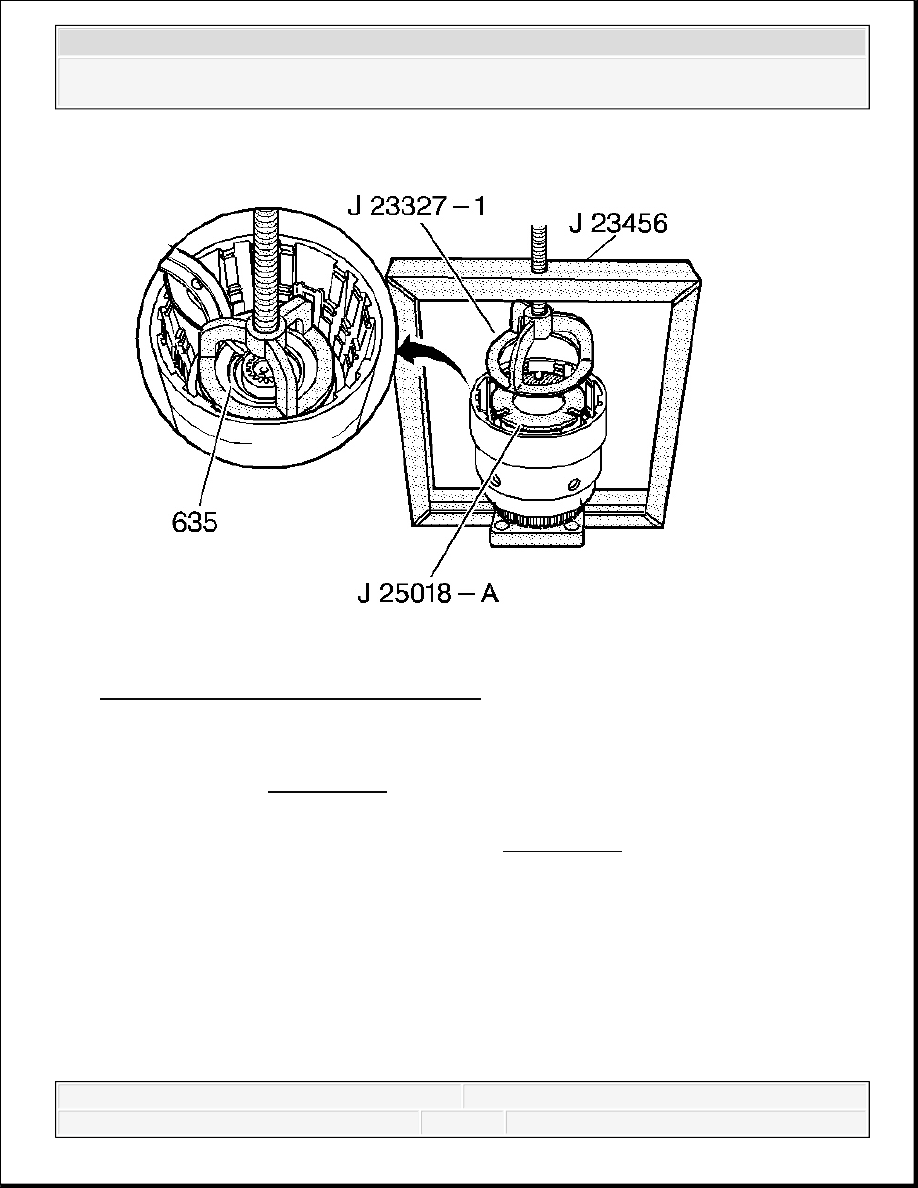

Fig. 374: Installing J 23327-1 & J 25018-A
Courtesy of GENERAL MOTORS CORP.
18. Install the J 23327-1 and the J 25018-A , and compress the overrun clutch spring assembly
using J 23456 . See Special Tools.
19. Install the overrun clutch spring retainer snap ring (635).
20. Remove the J 23327-1 and the J 25018-A . See Special Tools.
INPUT HOUSING TO OUTPUT SHAFT SEAL INSTALLATION
