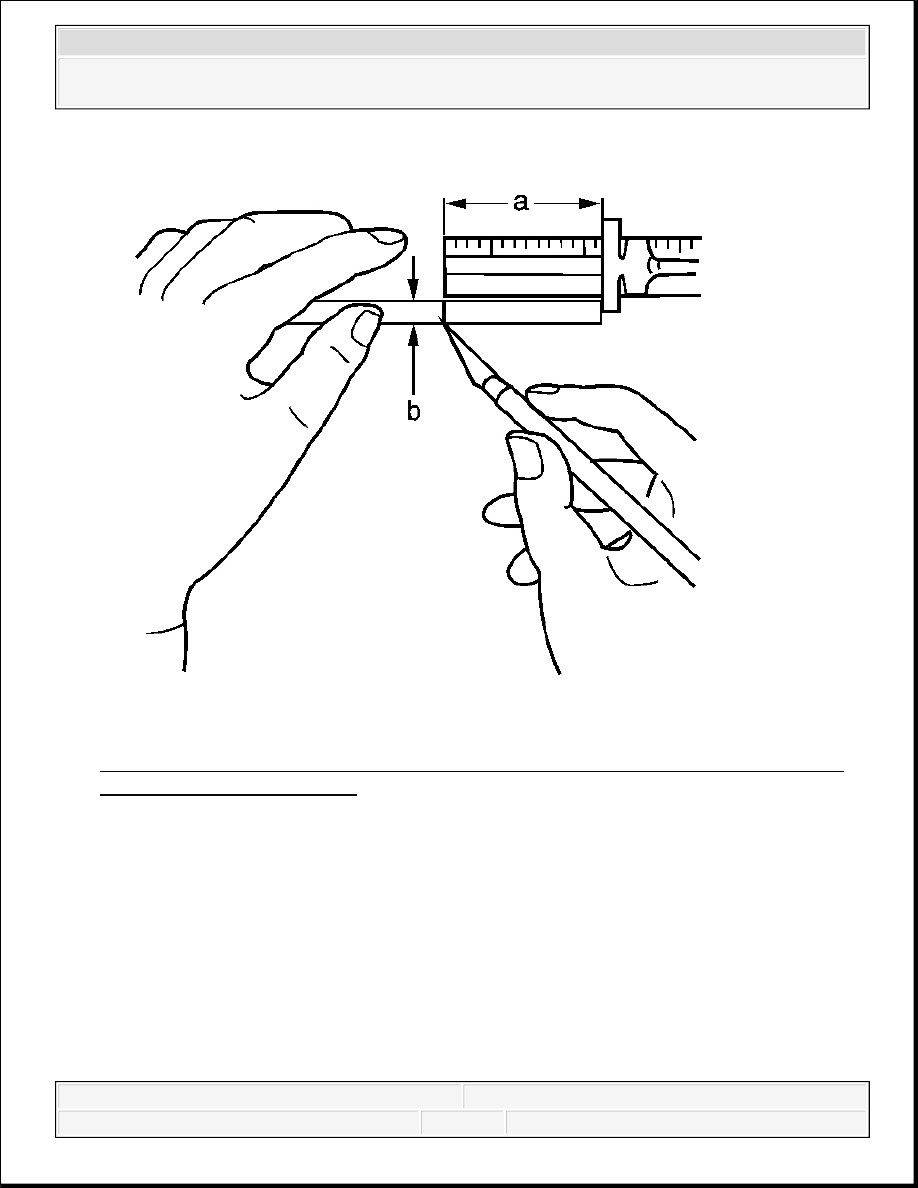

Fig. 303: Scribing Mark On Rod For Gaging Proper Depth Of Third Accumulator 2. Scribe a mark at 44.8 mm (1.763 in) on a 9.5 mm (0.375 in) diameter metal rod. The scribe mark is used to gage the proper depth of the third accumulator retainer and ball assembly.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

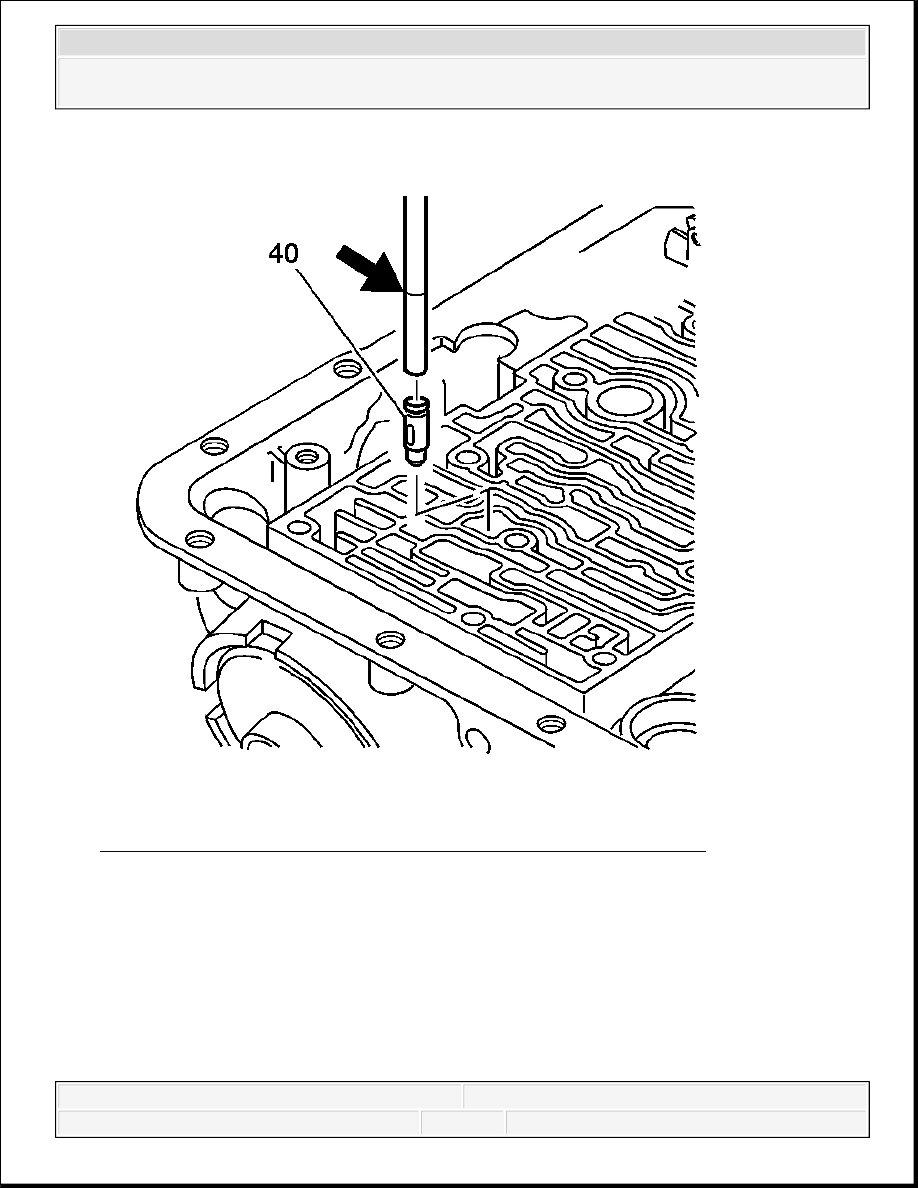

Fig. 304: Identifying Third Accumulator Retainer & Ball Assembly 3. Perform the following functions: 1. Line up the oil feed slots in the third accumulator retainer and ball assembly (40) with the servo bore. 2. Using the 9.5 mm (0.375 in) diameter metal rod, install the third accumulator retainer and ball assembly.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

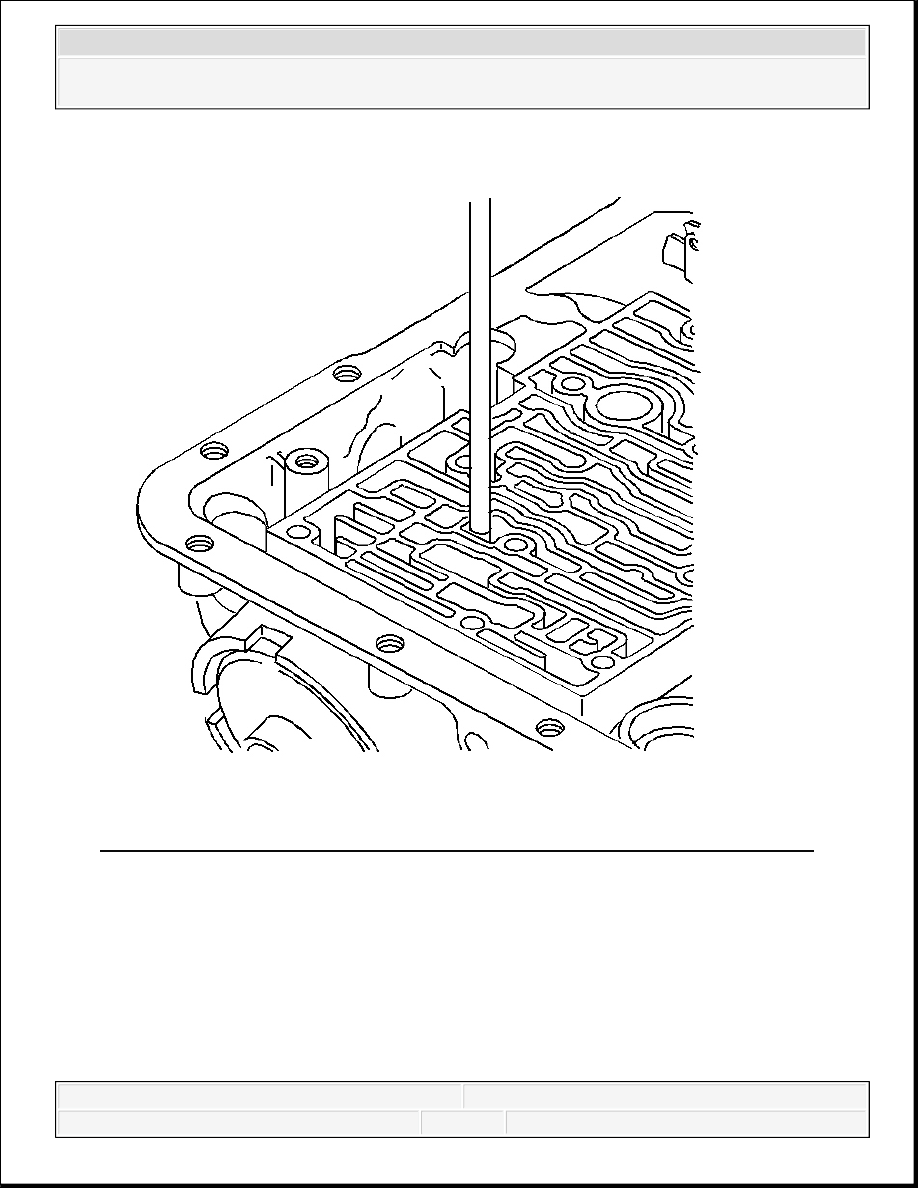

Fig. 305: Checking Third Accumulator Retainer And Ball Assembly Alignment 4. Ensure that the third accumulator retainer and ball assembly and the scribe mark on the rod are flush with the case surface.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

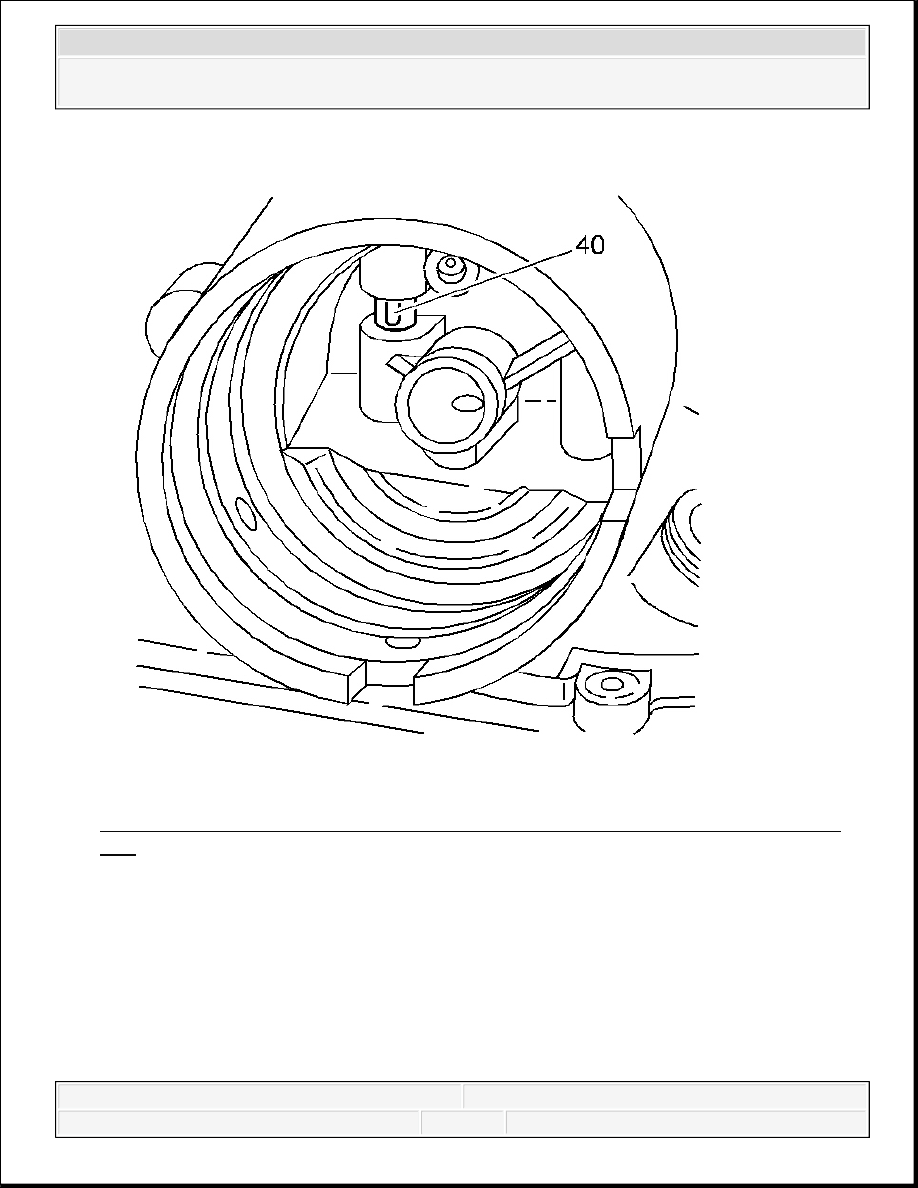

Fig. 306: Aligning Third Accumulator Retainer And Ball Assembly With Retainer 5. Check the third accumulator retainer and ball assembly (40) for alignment. The slot in the retainer must be completely open in the servo bore. CASE BUSHING Tools Required J 8092 Driver Handle
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
