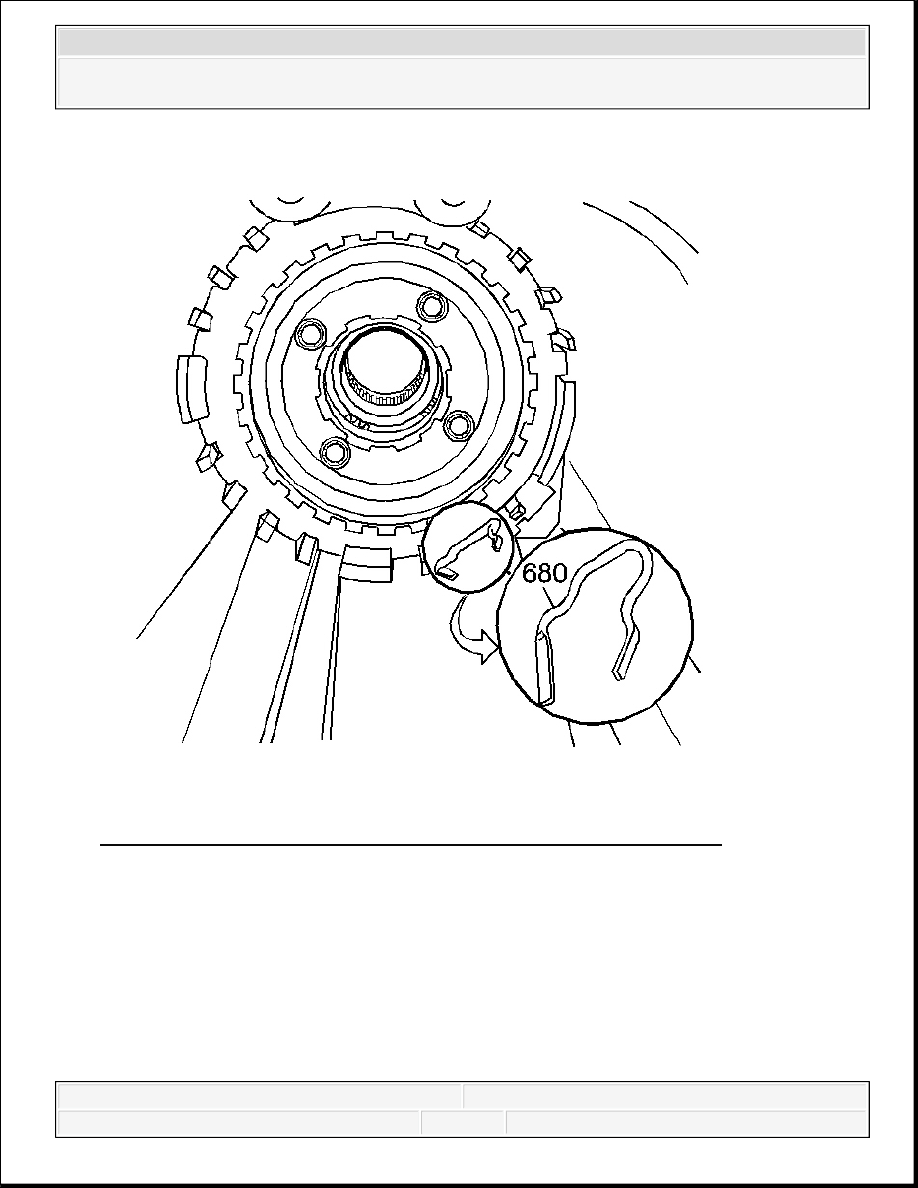

Fig. 285: View Of Low And Reverse Clutch Support Retainer Spring
Courtesy of GENERAL MOTORS CORP.
7. Remove the low and reverse clutch support retainer spring (680).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

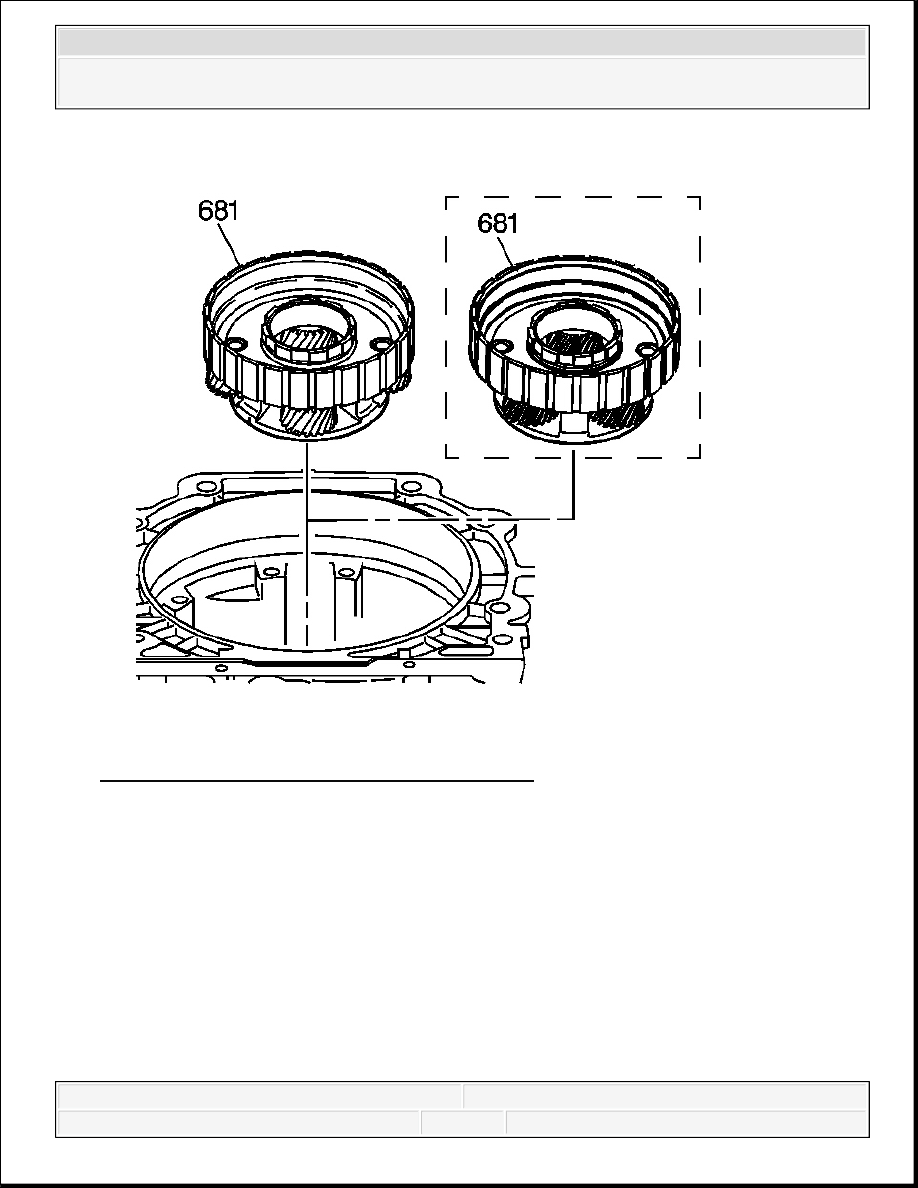

Fig. 286: Identifying Reaction Carrier Assembly
Courtesy of GENERAL MOTORS CORP.
8. Remove the reaction carrier assembly (681).
IMPORTANT: The reaction carrier assembly (681) can be a 4 or 5 pinion
design depending on the transmission model.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

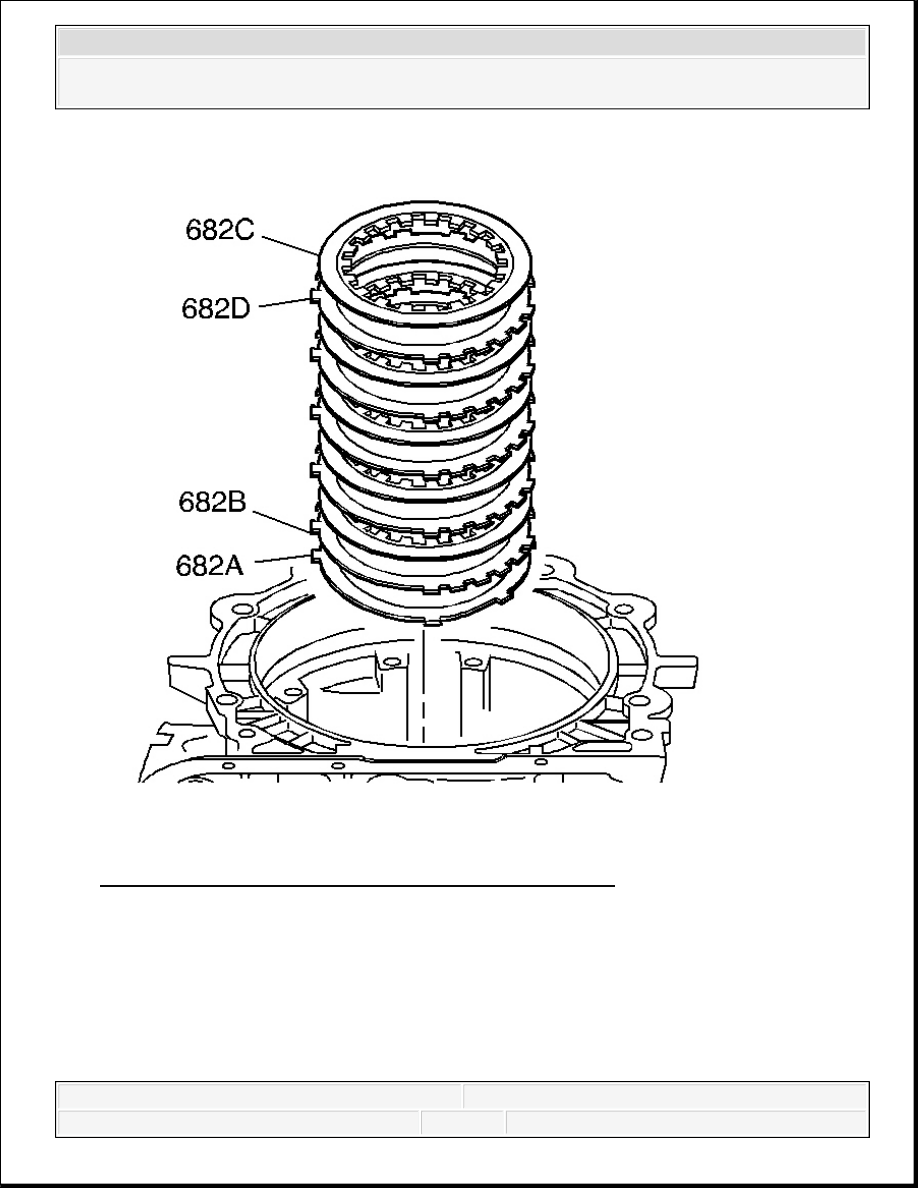

Fig. 287: Locating Low And Reverse Clutch Components
Courtesy of GENERAL MOTORS CORP.
9. Remove the following components:
1. The low and reverse clutch fiber plate assembly (682C)
2. The low and reverse clutch steel plates (682D)
3. The low and reverse clutch selective plate (682B)
4. The low and reverse clutch waved plate (682A)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

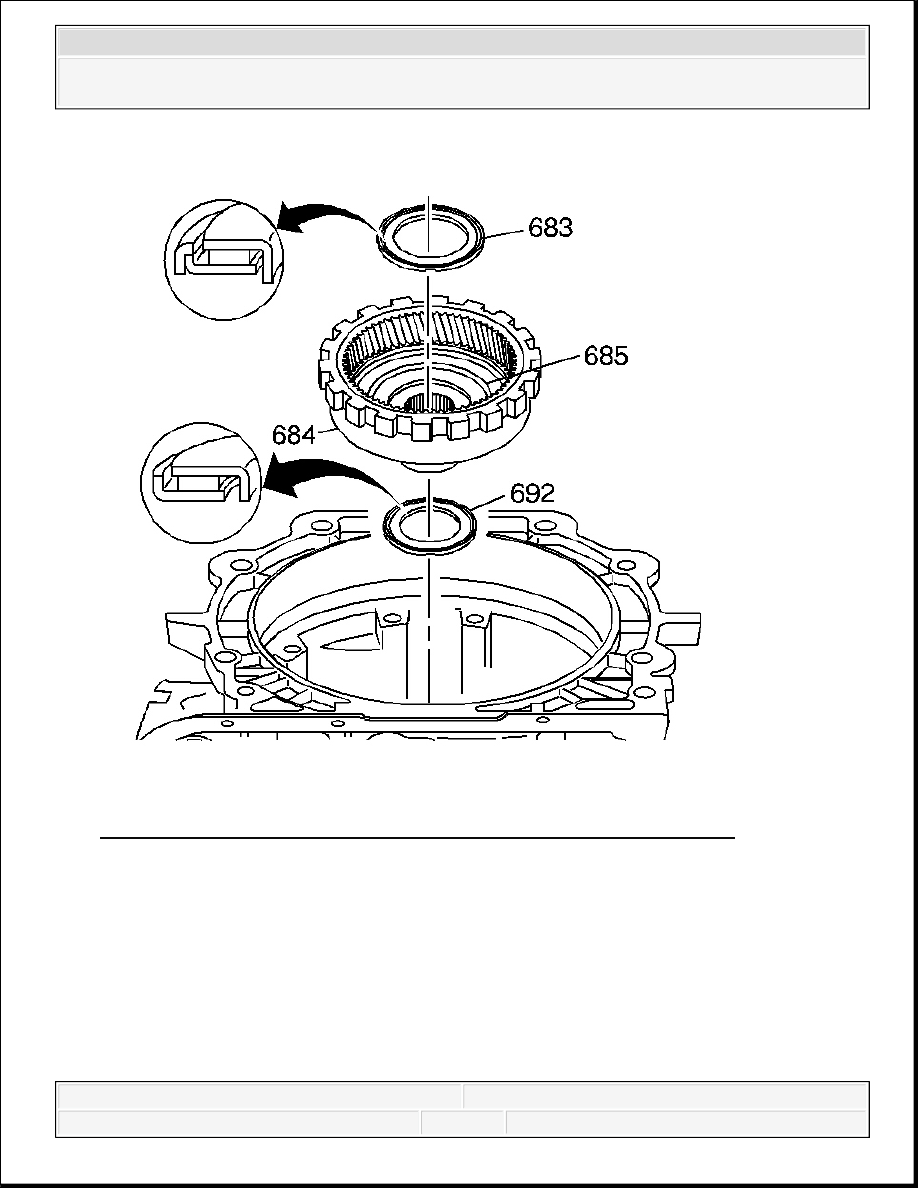

Fig. 288: View Of Reaction Carrier/Support Thrust Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
10. Remove the following components:
1. The thrust bearing assembly (reaction carrier support) (683)
2. The internal reaction gear (684) and the internal reaction gear support (685)
3. The reaction gear support bearing (692)
INNER MANUAL LINKAGE REMOVAL
