2-4 BAND, INPUT CLUTCHES, INPUT GEAR SET REMOVAL

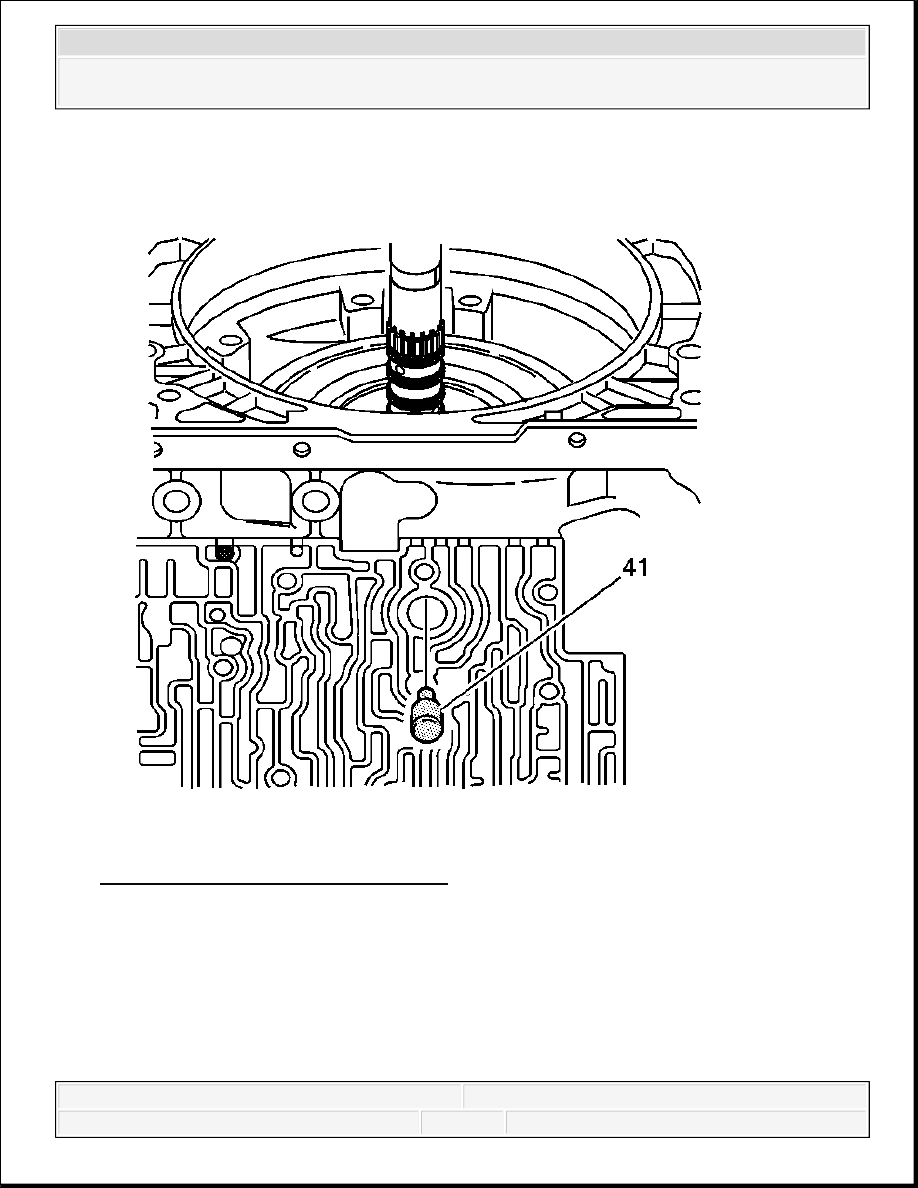

Fig. 273: Identifying Band Anchor Pin
Courtesy of GENERAL MOTORS CORP.
1. Remove the band anchor pin (41).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

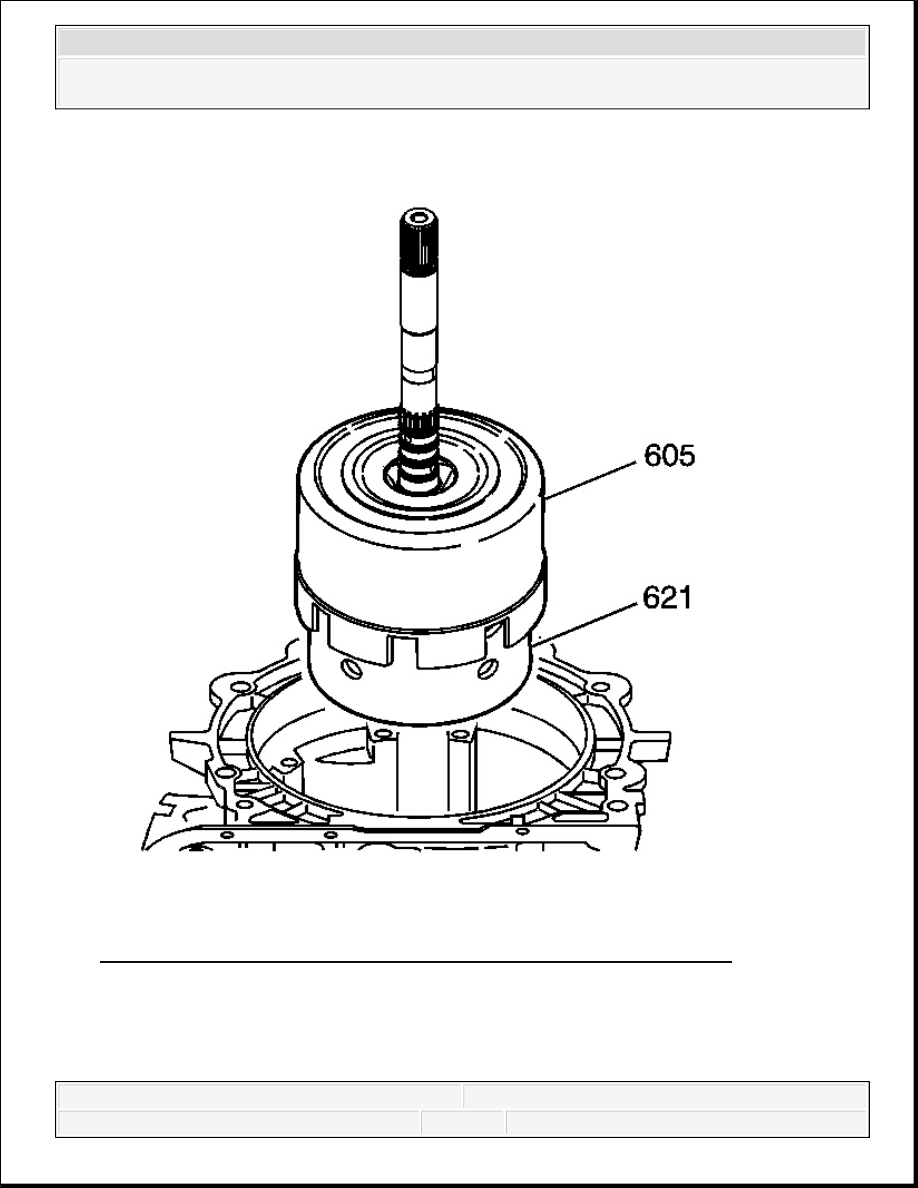

Fig. 274: Identifying Reverse Input Clutch Assembly & Input Housing
Courtesy of GENERAL MOTORS CORP.
2. Remove the input housing and shaft assembly (621), along with the reverse input clutch
housing and drum assembly (605).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

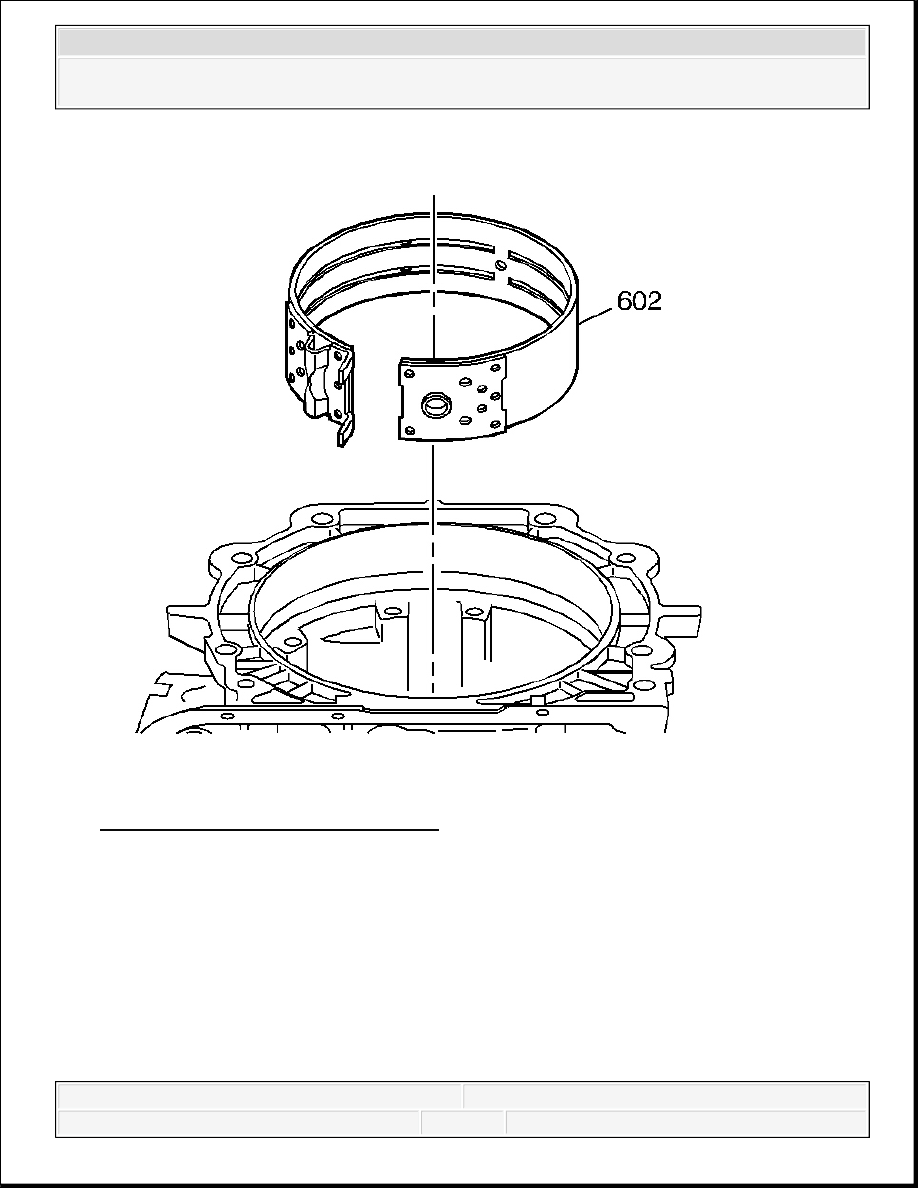

Fig. 275: View Of 2-4 Band Assembly
Courtesy of GENERAL MOTORS CORP.
3. Remove the 2-4 band assembly (602).
REACTION GEAR SET REMOVAL
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

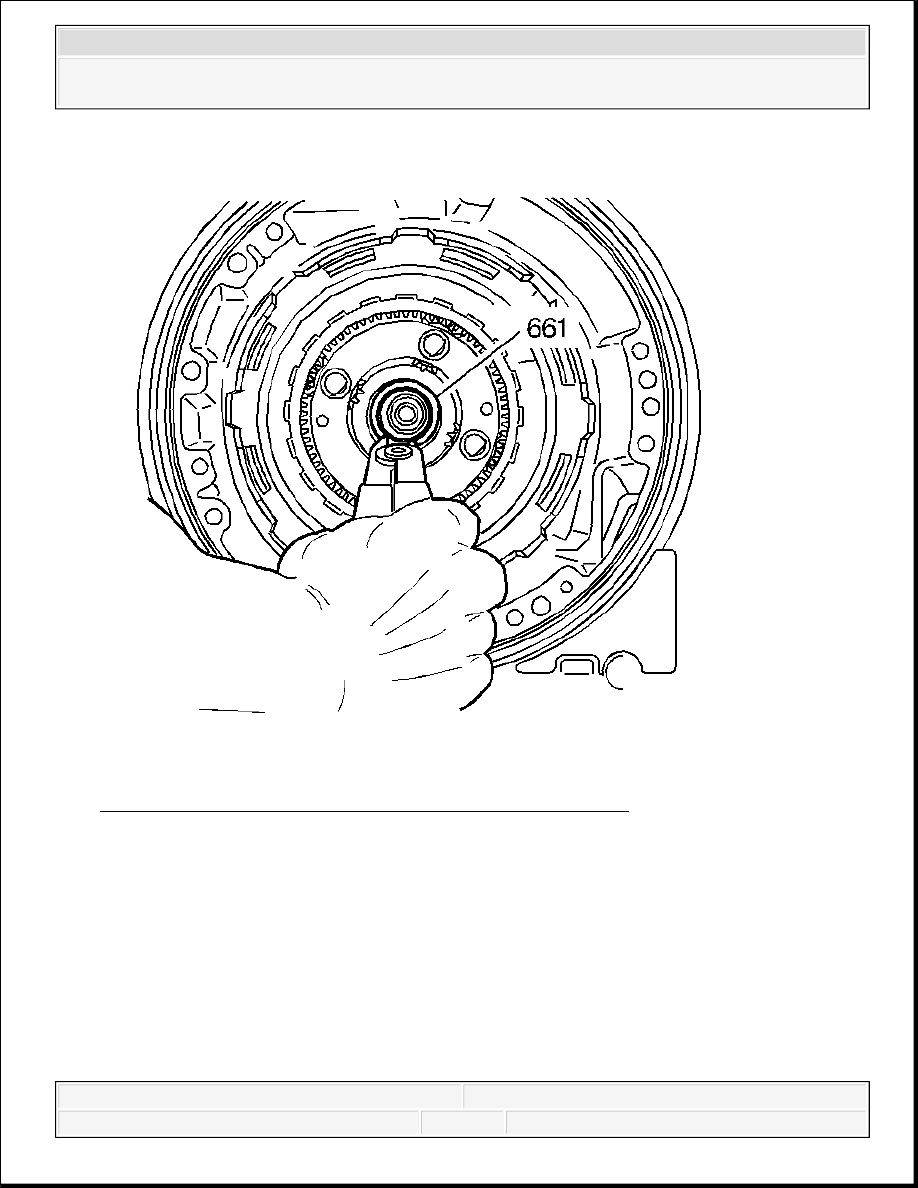

Fig. 276: View Of Output Shaft To Input Carrier Retainer
Courtesy of GENERAL MOTORS CORP.
1. Use snap ring pliers to remove the output shaft retainer ring (661).
IMPORTANT: The output shaft retainer ring (661) can not be reused, it must
be replaced.
