4. Install the pressure control solenoid (377).
5. Install the pressure control solenoid retainer (378) and retainer bolt (364A).
Tighten: Tighten the bolt to 11 N.m (97 lb in).
Fig. 175: View Of TCC PWM Solenoid & Retainer
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: When installing the pressure control solenoid, the electrical
connector must be in the position 1 shown. Do not use
position 2.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
6. Install the TCC PWM solenoid to the control valve body.
7. Install the TCC PWM solenoid retainer.
Fig. 176: Identifying Valve Body Electrical Connections
Courtesy of GENERAL MOTORS CORP.
8. Connect the internal wiring harness electrical connectors to the following components:
Transmission fluid pressure switch (1)
1-2 shift control solenoid (2)
2-3 shift control solenoid (3)
Pressure control solenoid (4)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
TCC PWM solenoid (5)
3-2 control solenoid (6)
9. Install the 1-2 accumulator. Refer to Accumulator Assembly, Spacer Plate, and Gaskets.

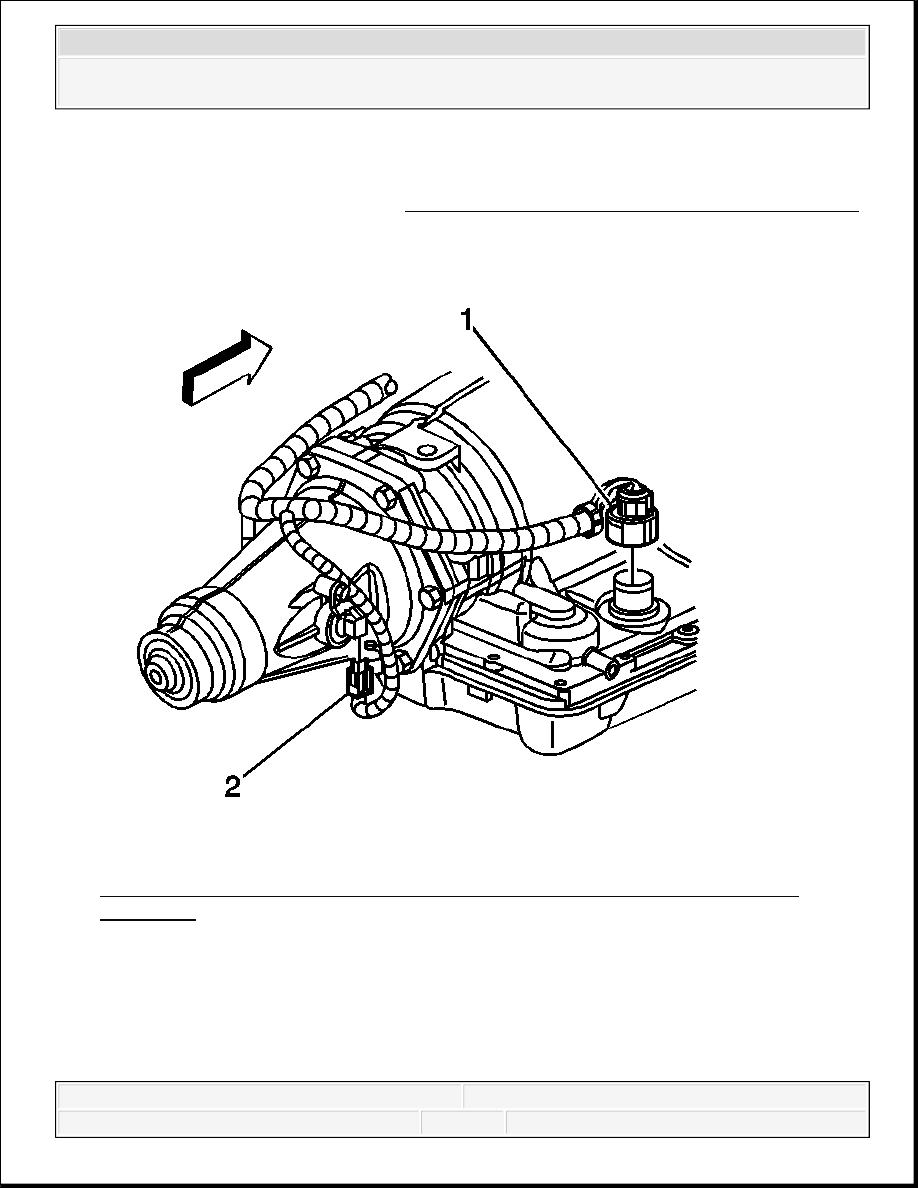

Fig. 177: View Of Transmission Harness 20-Way Connector & VSS Electrical
Connector
Courtesy of GENERAL MOTORS CORP.
10. Connect the transmission harness 20-way connector (1) to the transmission pass-through
connector.
Align the arrows on each half of the connector and insert straight down.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
11. Install the transmission filter. Refer to Automatic Transmission Fluid and Filter
Replacement.
12. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM).
