Chevrolet Silverado / GMC Sierra. Manual - part 1067

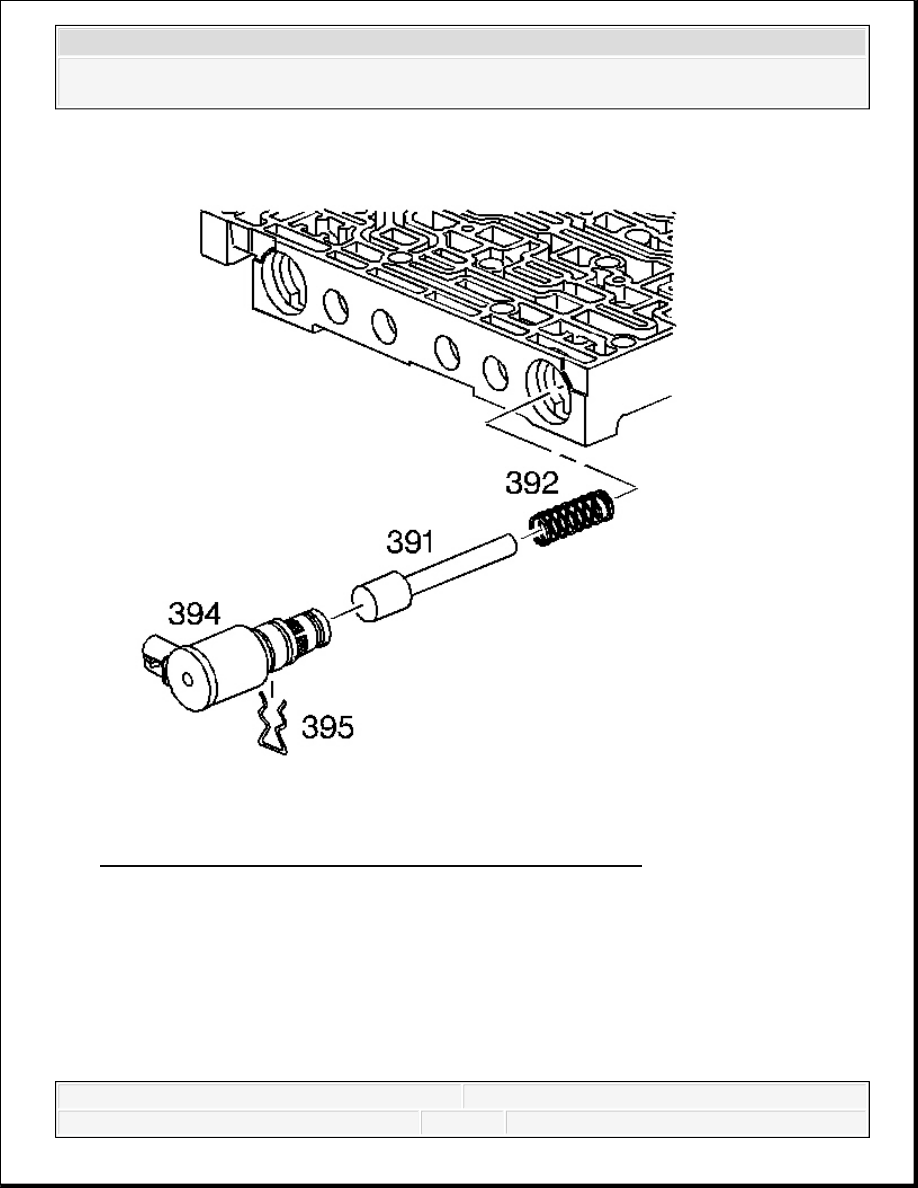

Fig. 160: View Of 3-2 Control Solenoid & 3-2 Control Valve
Courtesy of GENERAL MOTORS CORP.
1. Install the 3-2 control solenoid (394) and the 3-2 control solenoid retainer (395).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

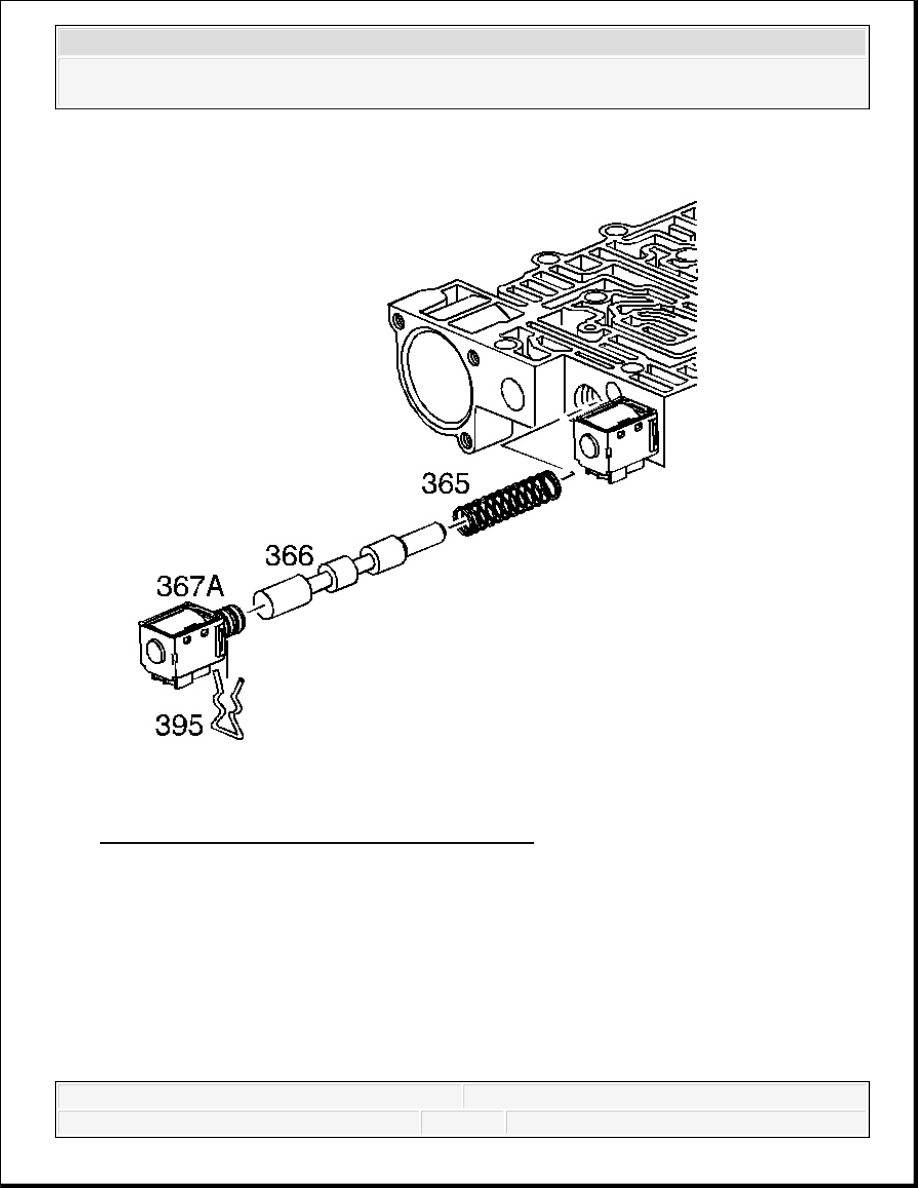

Fig. 161: View Of 2-3 Shift Solenoid & 2-3 Shift Valve
Courtesy of GENERAL MOTORS CORP.
2. Install the 2-3 shift solenoid (367A) and the 2-3 shift solenoid retainer (395).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

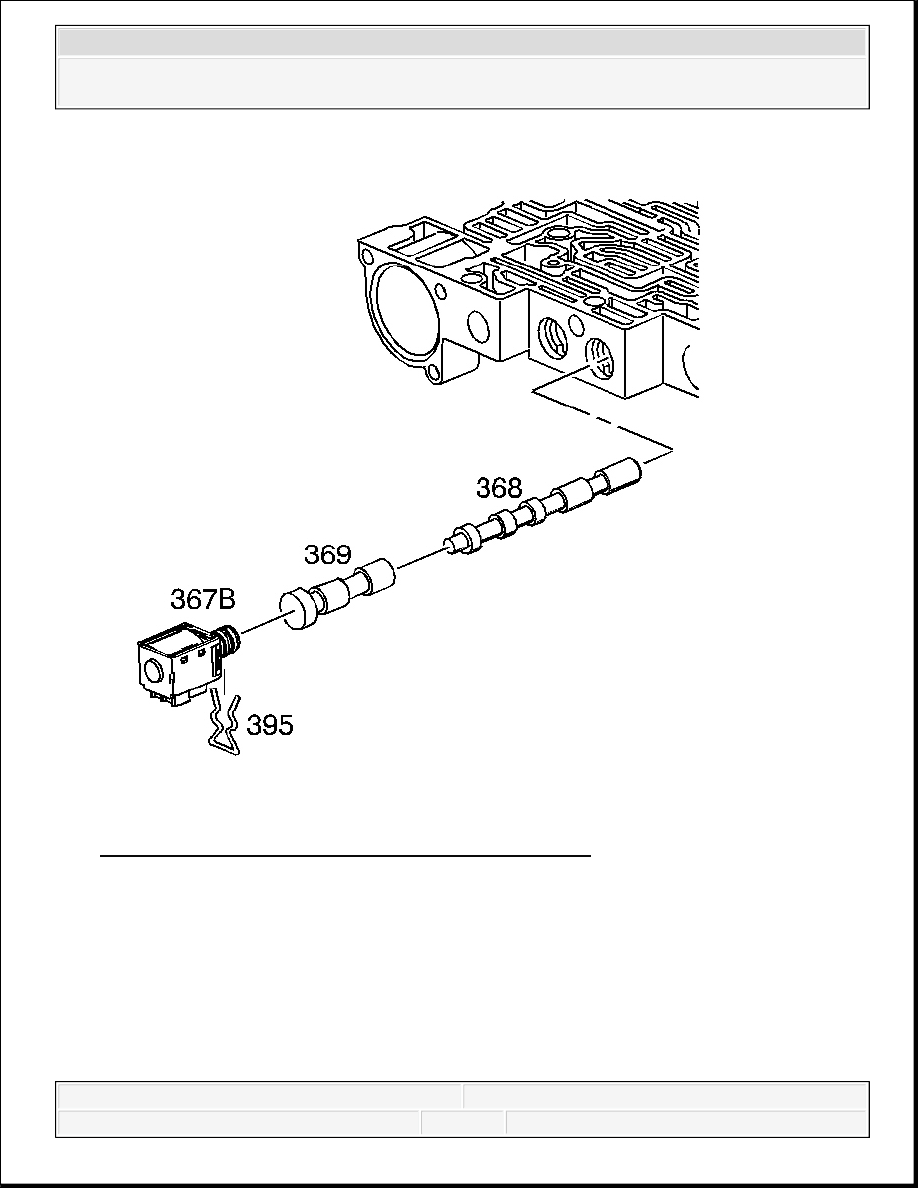

Fig. 162: View Of 1-2 Shift Solenoid & Retainer
Courtesy of GENERAL MOTORS CORP.
3. Install the 1-2 shift solenoid (367A) and the 1-2 shift solenoid retainer (395).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

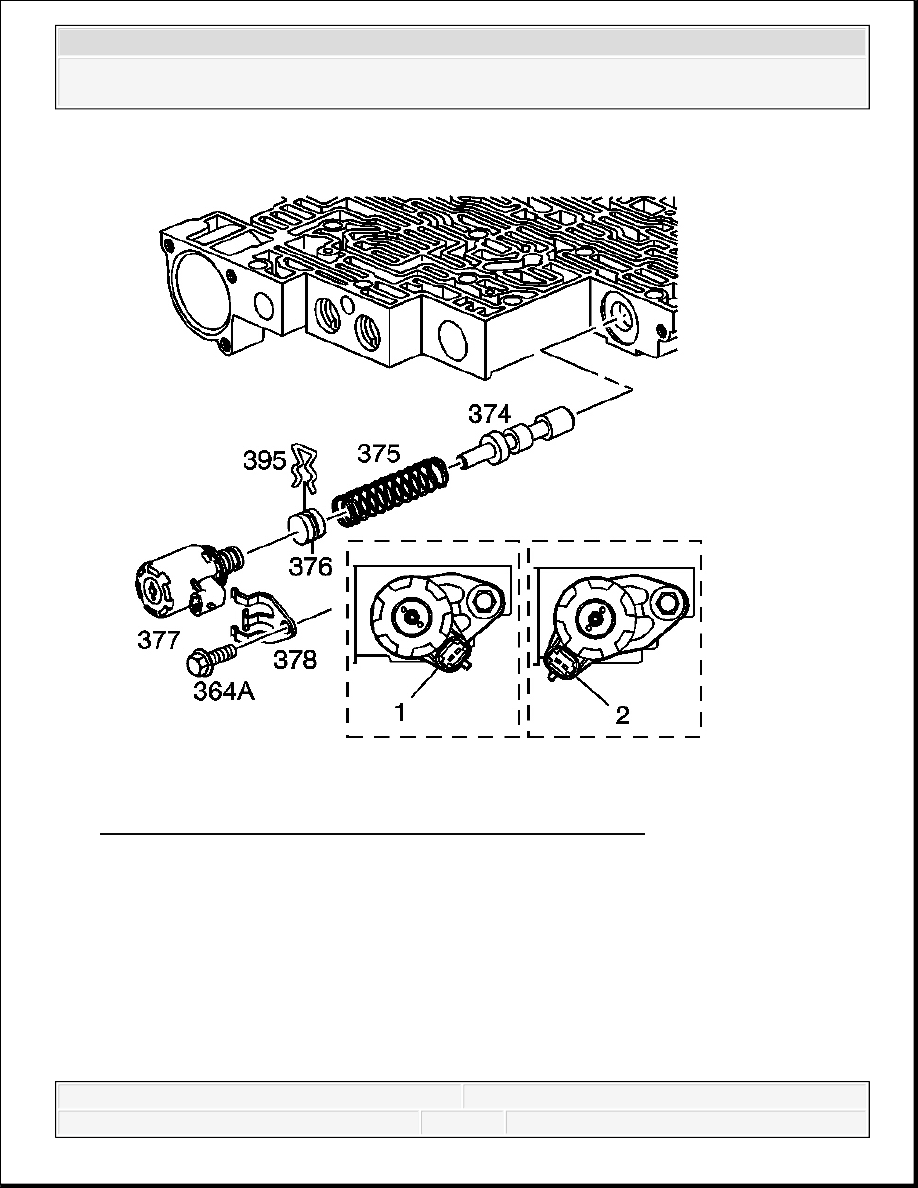

Fig. 163: View Of Pressure Control Solenoid & Components
Courtesy of GENERAL MOTORS CORP.
NOTE:
Be sure all solenoids are installed with the electrical
connectors facing the non-machined (cast) side of the valve
body; otherwise, the solenoids will bind against the
transmission case as the valve body bolts are tightened and
damage may occur.
IMPORTANT: When installing the pressure control solenoid, the electrical
connector must be in the position 1 shown. Do not use
